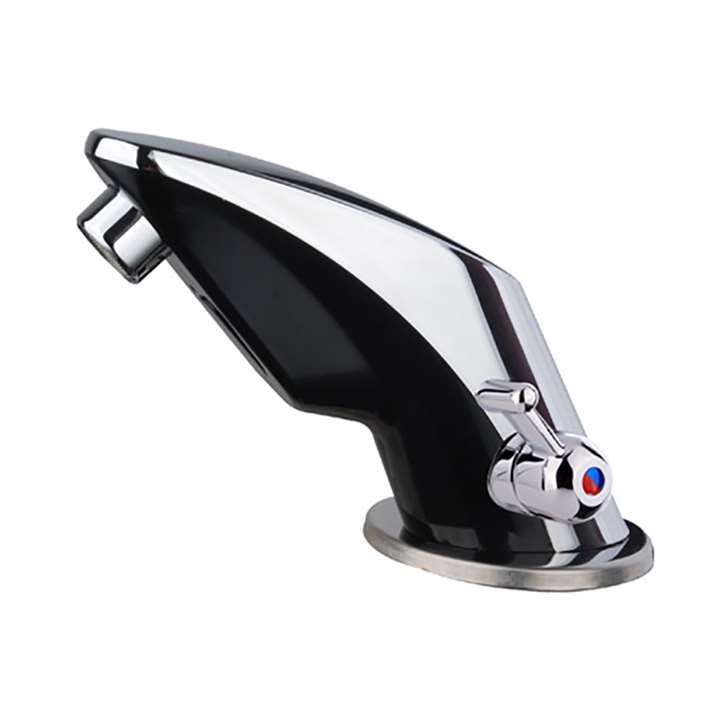

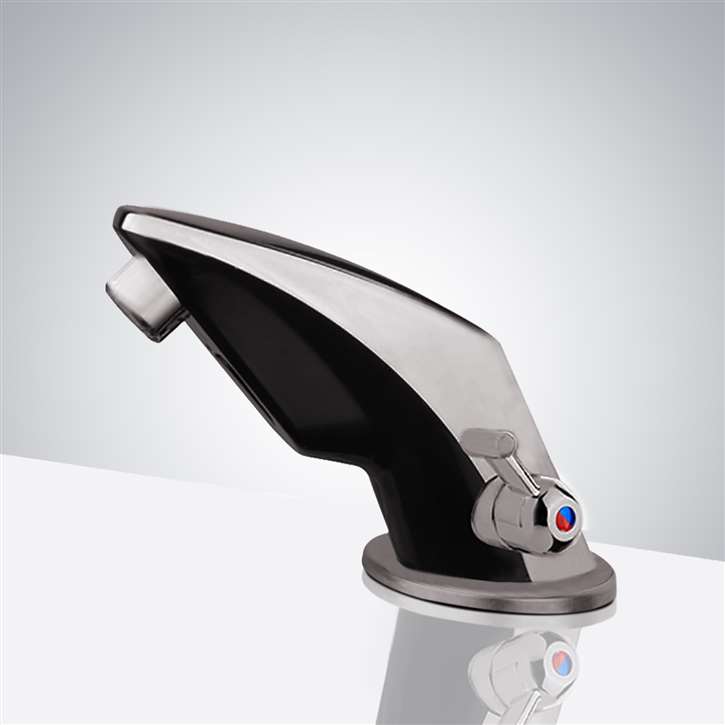

Verna Commercial Brushed Nickel Temperature Control Automatic Sensor Faucet
All-in-One Parts in one perfect product;Ceramic Cartridge; Built-in check valve; Sensor controlling;Thermostatic faucet (mixer) with advanced infrared sensor technology. This brushed nickel finished brass electronic faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Waterproof sensor, Battery low LED light indicator, Sensing distance adjusted automatically, Long life durable body, Advanced circuit design saves electricity and water. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Commercial Brushed Nickel Temperature Control Automatic Sensor Faucet Features:
- Brand Name: FontanaShowers
- Model Number: FS-D5146BN
- Type: Automatic Faucet
- Water Pressure: 0.05Mpa - 0.7Mpa
- Finish: Bruhed Nickel
- Construction: Solid Brass
- Power Supply: AC110V And DC6V
- Batteries Included: Not
- Mounting Type: Deck Mount
- Body Material: Brass
- Style: Contemporary
- Ambient Temperature: 1 - 45° / 33.8 -113 °F
- Time delay: 0.5 seconds
- Operation duration: 60 seconds
- Usage: Commercial / Residential
- Touch-free operation ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
FontanaShowers® Product Warranty Information
Installation Instructions for Verna Commercial Brushed Nickel Temperature Control Automatic Sensor Faucet
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout
|
Brushed Nickel Plated Solid Brass
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
Battery life expectancy
|
250,000 cycles
|
Solenoid valve
|
6 Volt magnet latching
|
Working Water Pressure
|
1 PSI -100 PSI
|
Supply Inlet Size
|
1/2” NPT Male
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
Microprocessor
|
Digital, Pug And Play
|
Sensing Range
|
2” to 6”
|
Response Time
|
0.3 Second
|
Shut-Off Delay Time
|
2 Seconds
|
Anti vandalism maximum Running Time
|
60 Seconds
|
Particle filter size
|
50
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
 |
