Item specifics:
- Type: Sauna Rooms
- Brand Name: Wella
- Function: Wet Steam
- Feature: Computer Control Panel
- Model Number: ST-30
- Main Material: Metal and SUS
- Capacity: 1-2
- Power(KW): 3
- Vlot: 220-240
- Phase Number: 1
- Drain: by manual
- Capacity: 3 CBM acrylic room
- Application: 1-2 CBM tile or stone room
- Maximum temperature: 35-55degress(95-131Fahrnheit)
- Certification: CE,RoHS
Product Description:
How to choose a suitable steam generator or sauna heater?
Steam Generator: 1CBM tile or stone room needs 1.5KW to 2KW, 1CBM acrylic steam room just need 1KW.
Sauna heater: 1CBM wooden sauna room needs 1KW sauna heater.
Products description

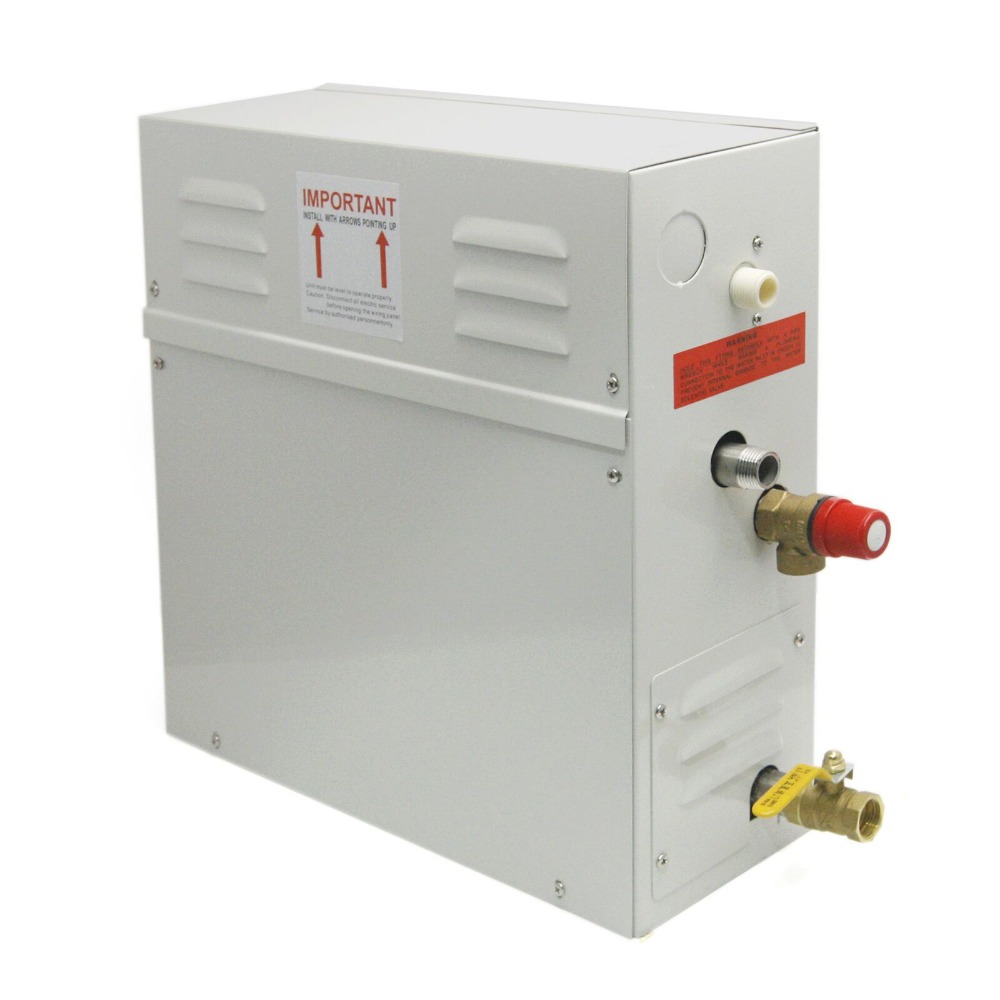

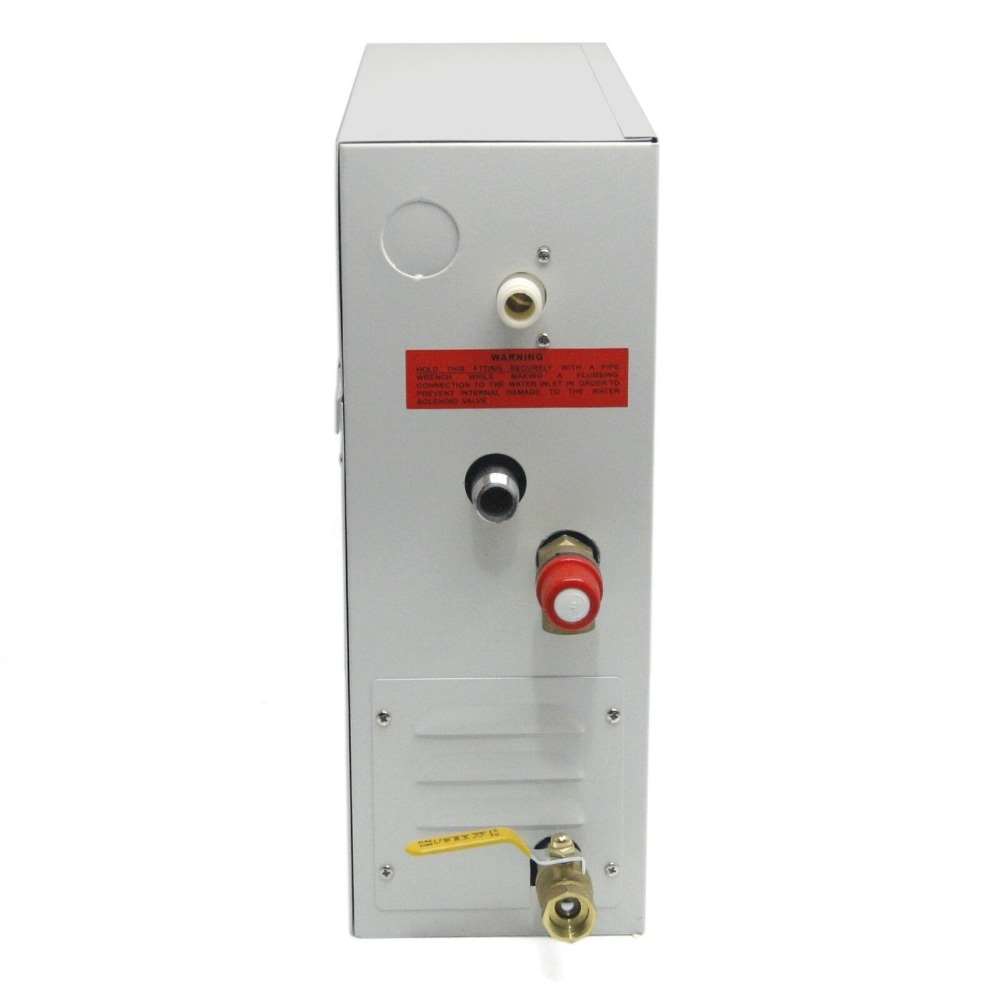

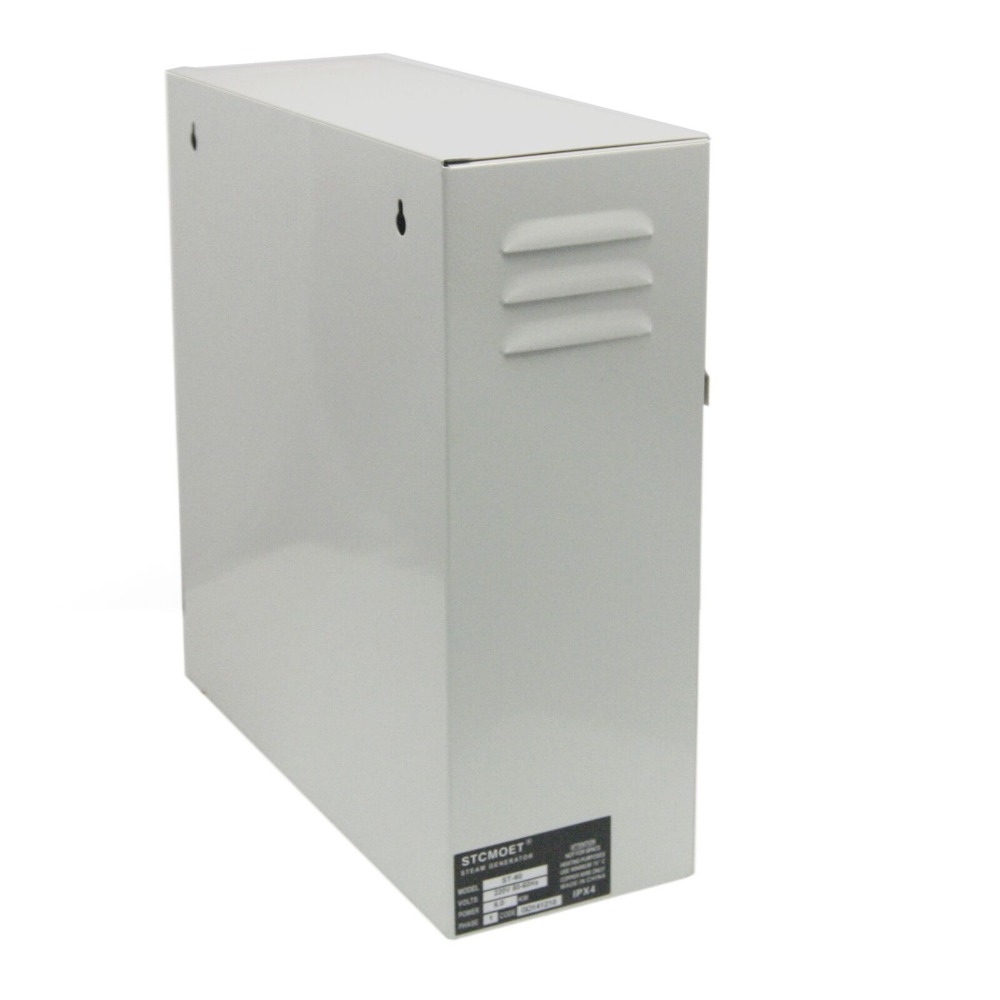

ST-30 is the first generation model. Stable performance and easy operation are its features:
1. Working Time setting :During 1 hours.
2. Temperature setting:35-55degress(95-131Fahrenheit).
3. Protection of water shortage.
4. Over-high temperature protection.
5. Light system control.
6. Long distance signal transmission,the longest distance is over 50m.
7. Over-high pressure protection,prevent tank from expanding, in the case the steam head has been blocked.
Technical data
|
Model
|
Power(KW)
|
Volt/phase number/ampere
|
Size(length*width*height)(mm)
|
|
ST-30
|
3
|
220/1/15.9
|
300×130×230
|
|
ST-40
|
4
|
220/1/20.4
|
395×145×395
|
|
ST-50
|
5
|
220/1/22.7
|
395×145×395
|
|
ST-60
|
6
|
220/1/27.3
|
395×145×395
|
|
ST-70
|
7
|
220/1/31.8
|
445×165×395
|
|
ST-80
|
8
|
220/1/36.4
|
445×165×395
|
|
ST-90
|
9
|
220/3/13.6
|
445×165×395
|
|
ST-120
|
12
|
220/3/18.2
|
500×200×520
|
|
ST-150
|
15
|
220/3/22.7
|
500×200×520
|
|
ST-180
|
18
|
220/3/27.3
|
500×200×520
|

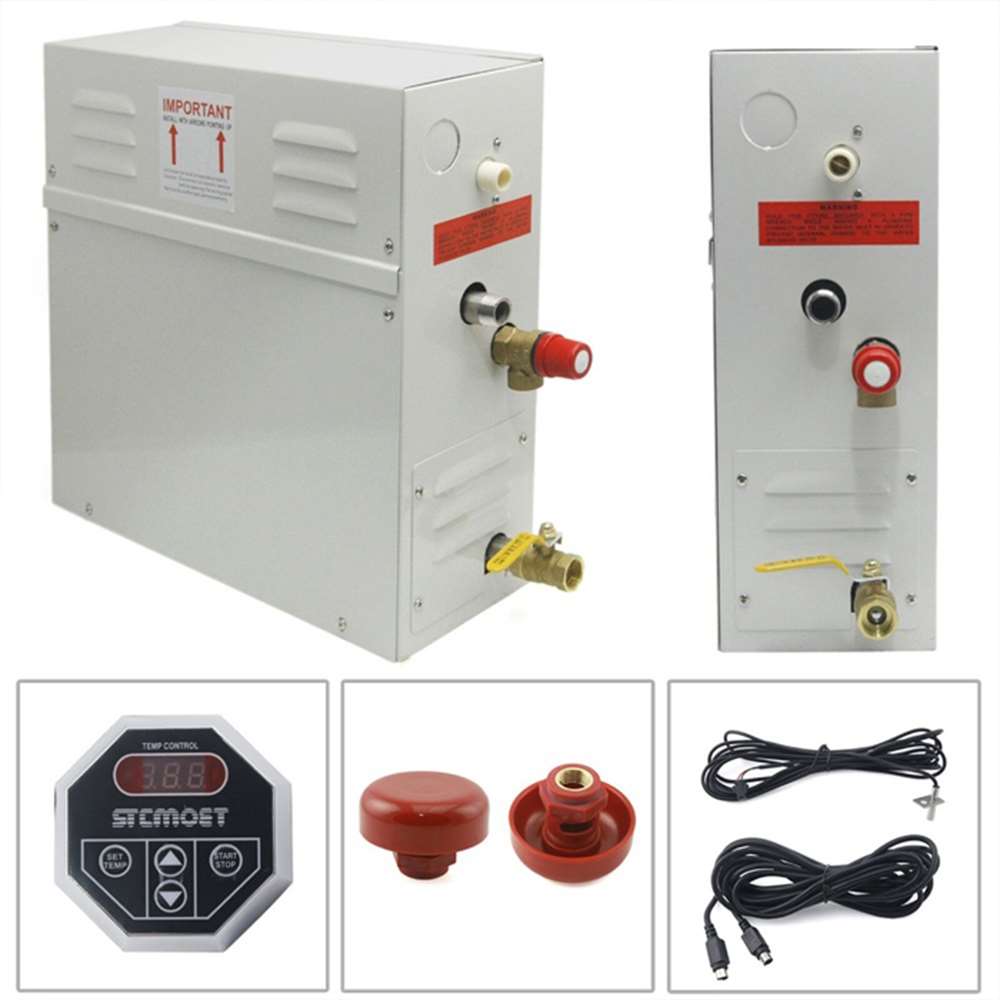

Package including

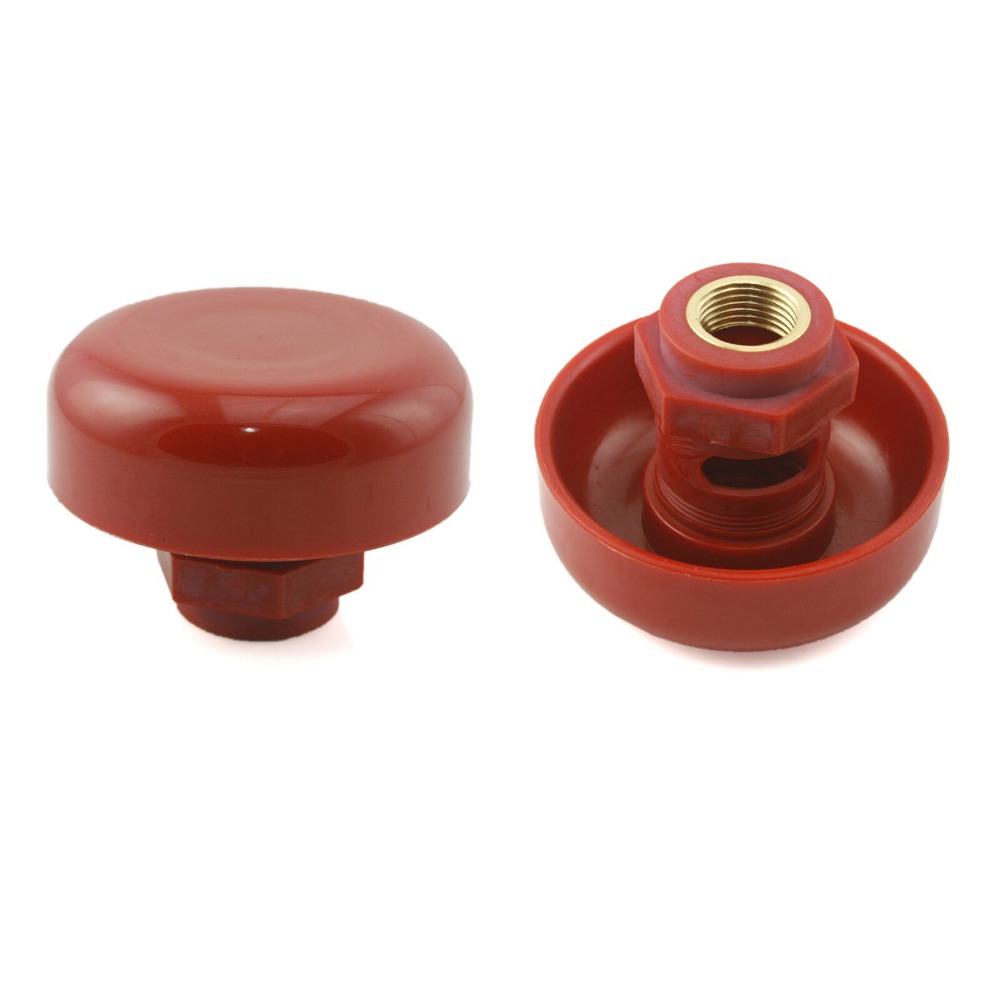

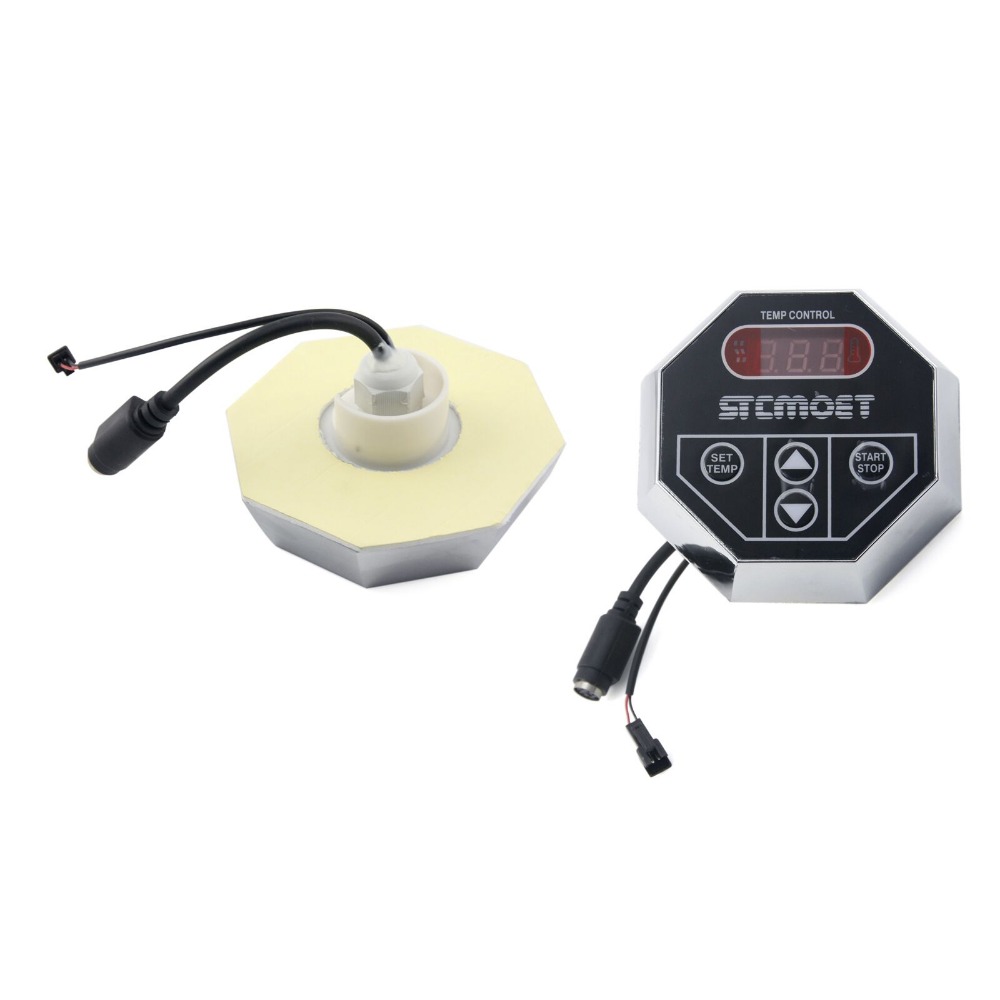

Complete full sets parts with Steam generator, including control panel, 5M standard control cable,temperature sensor, steam nozzle, inlet valve, outlet valve.
|
Steam Generator Output Stability
