Fontana American Standard Deck-Mounted Sensor Faucet:
Hot Cold Mixer Configuration
This hot-and-cold mixer configuration resource is intended to support
architects, plumbing engineers, contractors, installers and facility
managers coordinating the Fontana American Standard deck-mounted automatic
sensor faucet with mixed-water delivery. The technical drawing identifies
the hot-water supply, cold-water supply, accessible service shutoff valves,
mixing valve, mixed-water outlet, filter or strainer, sensor-controlled
solenoid valve, flexible supply connection, faucet inlet, flow direction,
temperature-adjustment point and required service access.
Fontana American Standard Deck-Mounted Sensor Faucet
The Fontana American Standard Sensor Faucet may be coordinated
with separate hot- and cold-water supplies through an approved
mixing component. In this arrangement, each supply is isolated by
an accessible shutoff valve before entering the mixer, where the
two water streams are combined into a single tempered or
project-adjusted mixed-water outlet.
The mixed-water line then passes through the approved filtration
and sensor-controlled solenoid arrangement before entering the
faucet. Final mixer type, temperature setting, connection sizes,
check-valve requirements, component sequence and service locations
must be verified from the current product documentation and
project plumbing requirements.
-
Model:
FS2361TFDP
-
Installation:
Deck mounted
-
Mounting configuration:
Single hole
-
Finish:
Polished chrome
-
Material:
Brass
-
Faucet type:
Automatic motion-sensor sink faucet
-
Sensor type:
Infrared touchless activation
-
Water configuration:
Hot- and cold-water mixer arrangement
-
Working pressure:
0.05–0.8 MPa
-
Temperature control:
Approved adjustable mixing component
-
Flow control:
Sensor-operated solenoid valve
-
Supply isolation:
Accessible hot- and cold-water shutoff valves
-
Filtration:
Verify the model-specific filter or strainer
-
Outlet:
Aerator-controlled mixed-water delivery

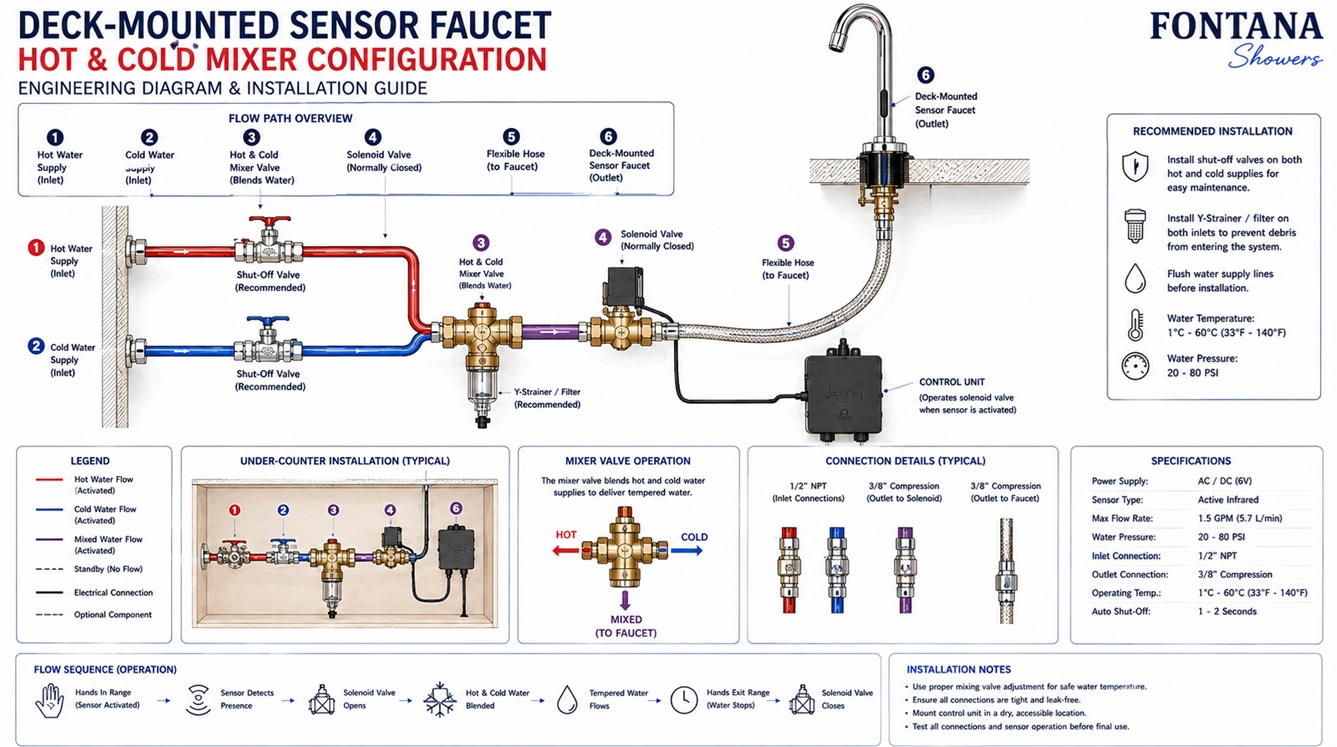

Required Hot Cold Mixer Configuration Drawing Package
Each drawing should use a consistent symbol set, flow-direction arrows
and product-identification block. The drawing package should identify
the hot-water supply, cold-water supply, separate shutoff valves,
mixing component, mixed-water outlet, filter or strainer, solenoid
valve, flexible supply hose, faucet inlet and aerator outlet. Hot,
cold and mixed-water routes should be clearly distinguished throughout
the schematic.

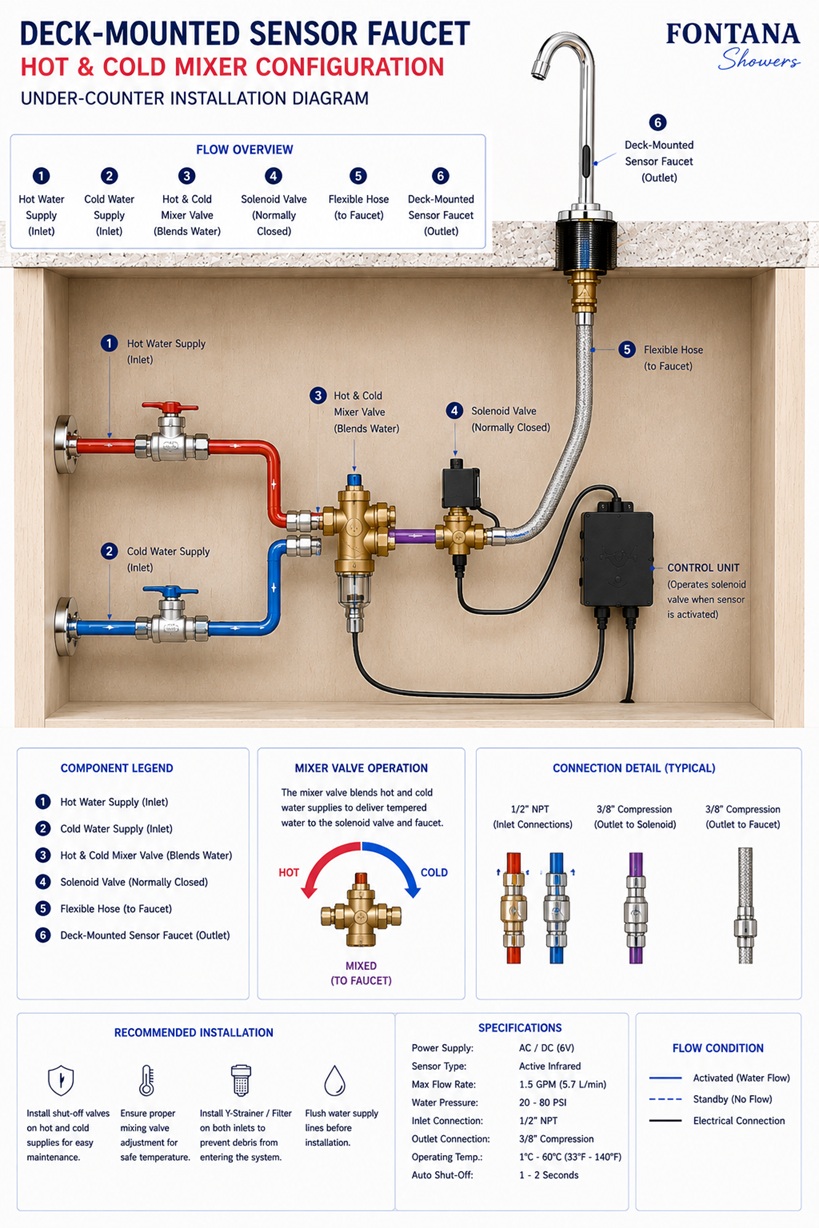

Hot Cold Mixer Configuration
Shows the complete hot- and cold-water arrangement from the
building supplies to the faucet outlet. The drawing identifies
both shutoff valves, the mixing component, mixed-water outlet,
filter, solenoid valve, flexible connection, faucet inlet and
aerator outlet in their operating sequence.
Hot-Water Supply Inlet
Identifies the building hot-water connection serving the mixer.
The supply should be coordinated with the plumbing drawings,
available temperature, pressure and approved connection
requirements.
Cold-Water Supply Inlet
Identifies the building cold-water connection serving the mixer.
The inlet should remain distinguishable from the hot-water
supply and should be coordinated with the specified mixer
orientation.
Hot-Water Shutoff Valve
Shows the accessible isolation valve installed on the hot-water
supply. The valve should remain reachable for testing, service,
mixer adjustment and emergency isolation.
Cold-Water Shutoff Valve
Shows the accessible isolation valve installed on the cold-water
supply. Both supply shutoffs should be clearly identified and
positioned for routine service access.
Mixing Valve
Identifies the component that combines the separate hot- and
cold-water supplies. The mixer should be installed in the
approved orientation, remain accessible for adjustment and
match the selected project configuration.
Mixed-Water Outlet
Shows the single outlet leaving the mixing component after the
hot and cold supplies have been combined. The mixed-water route
should connect to the downstream faucet-control components
without unnecessary restriction.
Temperature Adjustment
Identifies the approved adjustment point used to establish the
mixed-water temperature. Final settings should be verified
under flowing conditions and coordinated with project safety
and user-comfort requirements.
Check-Valve Coordination
Identifies any model-specific backflow or crossflow-control
components required at the hot and cold inlets. The final
check-valve arrangement should be verified from the approved
mixer and faucet documentation.
Filter or Strainer
Identifies the filtration component positioned downstream of
the mixer or as required by the selected configuration. The
filter helps reduce debris entering the solenoid valve, faucet
passage and aerator.
Solenoid Valve
Identifies the electrically controlled valve that opens and
closes the mixed-water path in response to the sensor-control
signal. The valve should follow the approved orientation and
marked flow direction.
Mixed-Water Flow Direction
Uses directional arrows to show water movement from the separate
hot and cold supplies through the mixer, filter, solenoid,
flexible hose, faucet body and aerator outlet.
Flexible Supply Hose
Shows the flexible connection between the downstream control
assembly and faucet inlet. The hose should remain free from
twisting, kinks, excessive tension and contact with sharp
cabinet or basin components.
Faucet Inlet
Identifies the connection through which controlled mixed water
enters the faucet body. The inlet should be securely connected
to the approved flexible hose and remain accessible for
inspection.
Aerator Outlet
Identifies the final mixed-water delivery point at the faucet
spout. The aerator controls stream form and should remain
accessible for inspection, cleaning and approved replacement.
Sensor Activation Signal
Shows the operating relationship between the infrared sensor,
control system and solenoid valve. When hands enter the approved
detection field, the solenoid opens the mixed-water path.
Automatic Shutoff
Explains that the solenoid valve closes after the user’s hands
leave the sensing area or the model-specific operating limit
is reached. Shutoff performance should be confirmed during
commissioning.
Service Access Zone
Defines the accessible under-counter area required for the
hot and cold shutoffs, mixer, filter, solenoid, flexible hose,
control connections and power components.
Engineering note:
The hot-and-cold mixer configuration drawing is a coordination resource
and should not be used to establish connection sizes, final temperature
settings or component positions without verification. Confirm the hot
and cold supplies, shutoff locations, mixer orientation, check-valve
requirements, temperature setting, filtration arrangement, solenoid
flow direction and faucet connections using the current FontanaShowers
specification sheet, installation instructions and approved project
submittal.
