Installation Instructions for Fontana Denver Rose Gold Automatic Touchless Sensor Faucet

Fontana Denver Rose Gold Automatic Touchless Sensor Faucet

This faucet has a beautiful elegant design with solid construction for long durability and long-lasting performance that will upgrade your bathroom with a modern and cool look. Very straightforward and easy to install. When a sensor is activated, it automatically supplies water as soon as hands are within sensing range and stop when you move away from your hands. Very convenient and clean. Water-efficient faucet reduces overall water usage without sacrificing water pressure. Can be cleaned with a gentle soap to make sure the non-tarnish life shine. It comes super seal technology inside, capable of delivering superior performance. It is drip-free, leak-free, & rust-free.
This product is ADA compliant.

Fontana Denver Rose Gold Automatic Touchless Sensor Faucet Features:

Brand Name: FontanaShowers

Model Number: FS9598

Type: Sink Faucets

Feature: Sensor Faucets

Surface Treatment: Polished

Number Of Holes: Single Hole

Installation Type: Deck Mount

Number of Handles: None

Style: Contemporary

Valve Core Material: Ceramic

Material: Brass Main Body

Function: Sensor faucet

Usage: Automatic wash hand

Application: Electronic Touch

Color: Rose Gold

Cartridge: 1.4 inches (35mm) Ceramic Cartridge

Body Material: Solid Brass 59

Cartridge lifetime: 5000000 Cycle

FontanaShowers®Product Warranty Information

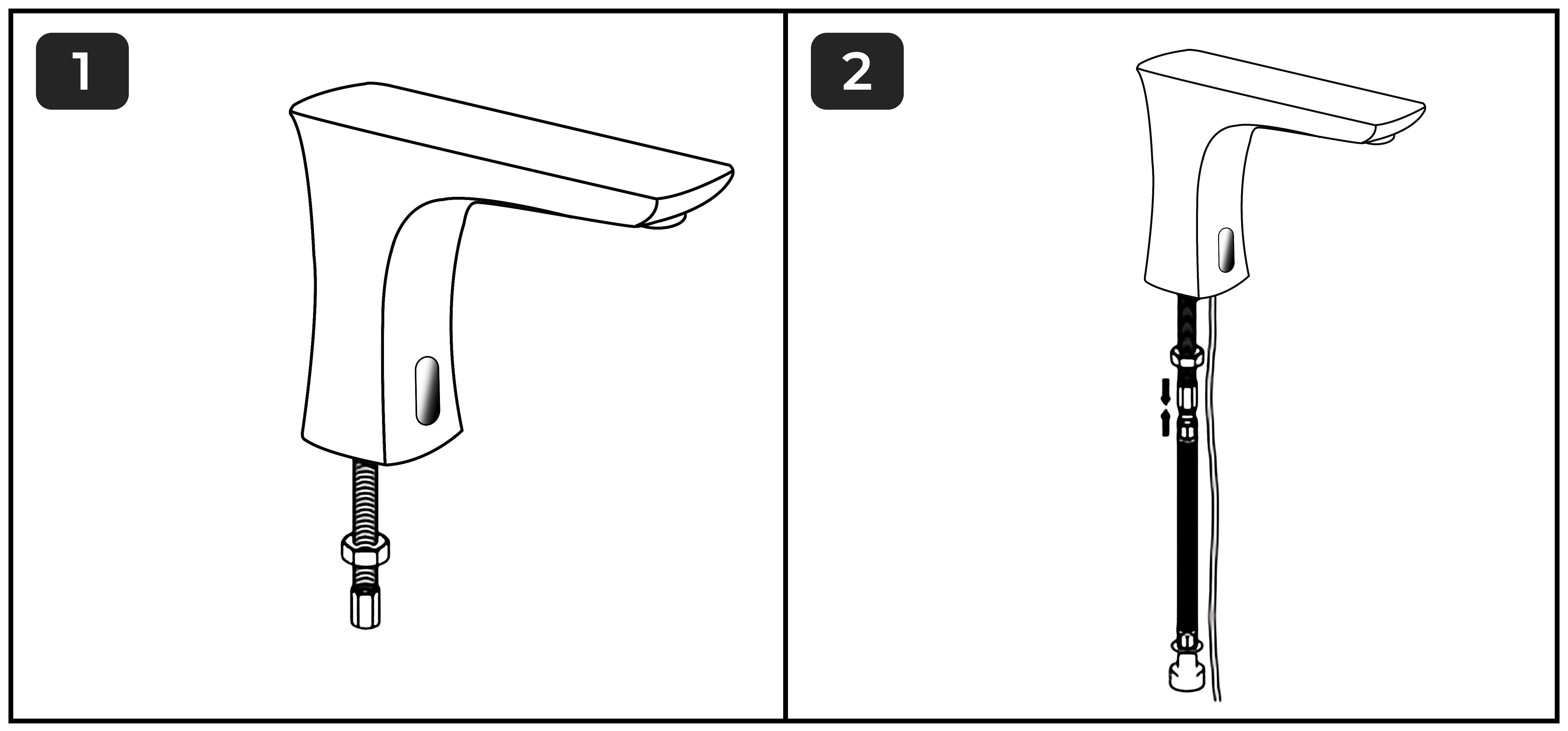

1) Position the base plate into the bottom of the tap(Ensure rubber O-ring is in place)
2) Screw the flexi hose into the bottom of the threaded tube, hand tighten only.

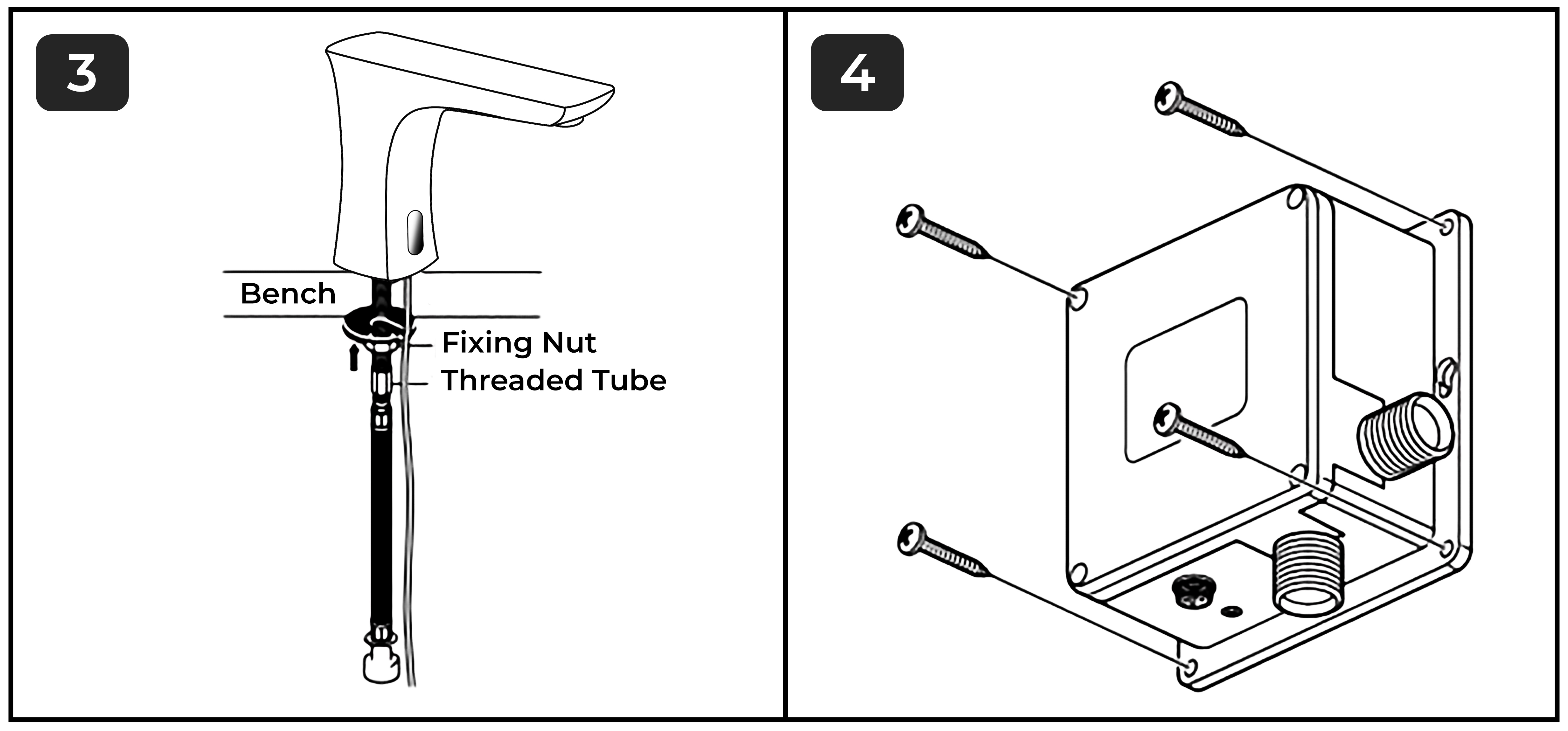

3) Tighten the fixing nut to secure the tap to benchtop(do not over tighten as this may damage benchtop), Do not tighten the threaded tube.
4) Screw control box in a suitable position under the basin making sure flexi hose and control cable can reach.
5) Make sure that the rubber washers are in place in the flexihoses.
6) Hold the plug not the wire to connect and disconnect.
