Fontana FS8014ORB Oil Rubbed Bronze Wall-Mounted Faucet: Overall Product Dimensions

This overall product dimension resource is intended to support architects, plumbing engineers, interior designers, contractors, installers and facility managers coordinating the Fontana FS8014ORB wall-mounted faucet within commercial, hospitality and residential lavatory environments. The drawing package communicates the faucet’s front elevation, side elevation, top view, outlet-end view, spout reach, straight and curved sections, spout-tube diameter, wall-flange diameter, outlet diameter, connection-thread designation and principal dimensions in metric and imperial units.

Fontana Oil Rubbed Bronze Wall-Mounted Faucet

The Fontana FS8014ORB is a wall-mounted brass faucet spout with an oil rubbed bronze finish and a streamlined curved outlet profile. Its wall-mounted configuration keeps the countertop clear while providing a defined horizontal reach over the lavatory. The dimensional drawing supports wall rough-in planning, basin alignment, connection coordination and architectural elevation development.

  • Model: FS8014ORB
  • Installation: Wall mounted
  • Finish: Oil rubbed bronze
  • Material: Brass
  • Fixture type: Wall-mounted faucet spout
  • Spout reach: 108 mm, as shown
  • Rear straight section: 67 mm
  • Spout tube diameter: Ø32 mm
  • Wall-flange diameter: Ø55 mm
  • Outlet diameter: 24 mm
  • US/Canada connection: 2 × 1/2 NPT
  • International connection: BSPP 1/2 (G1/2)
Product Page Installation Guide

Required Overall Product Dimension Drawing Package

Each drawing should use a consistent scale, dimension style and product identification block. Measurements should be referenced from the finished wall surface, faucet centerline, wall-flange face and outlet centerline. The drawing package should clearly identify the straight and curved spout sections, tube diameter, outlet diameter, threaded connection and dimensional relationships needed for architectural, plumbing and installation coordination. Metric and imperial dimensions should be shown together.

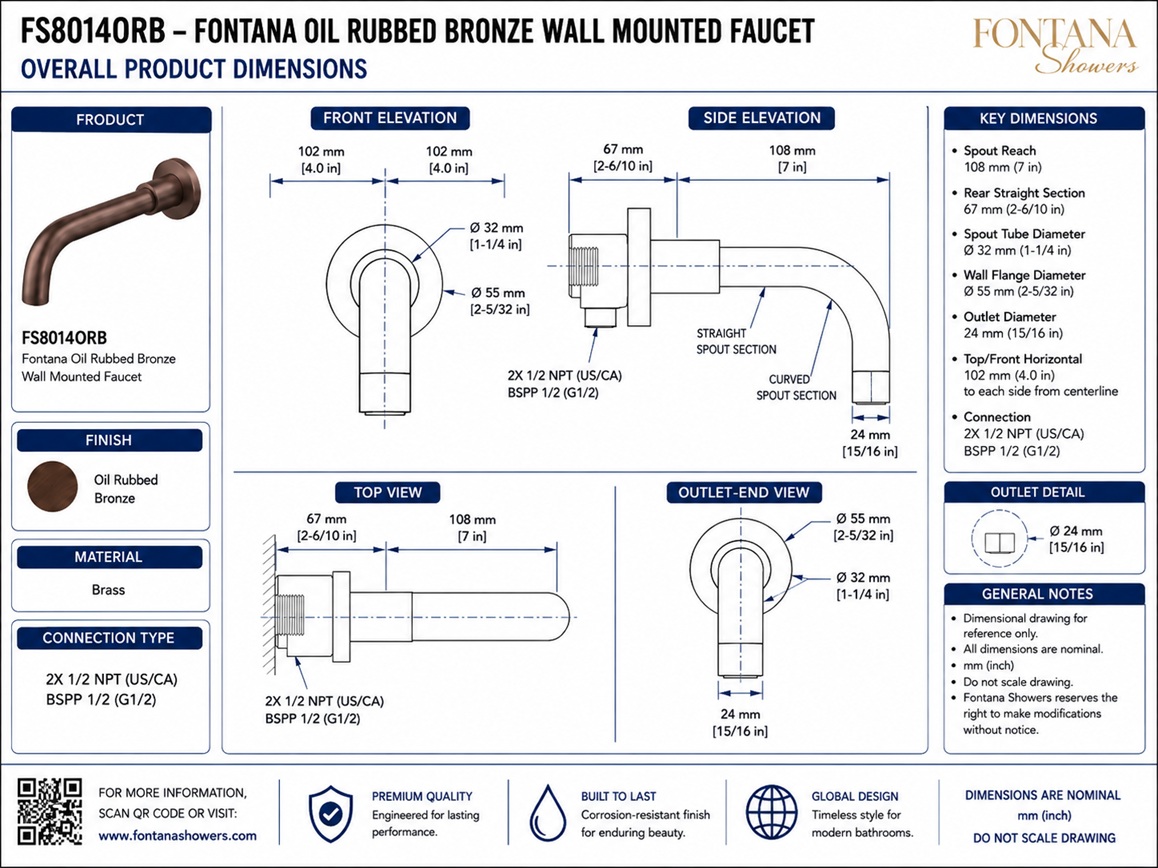

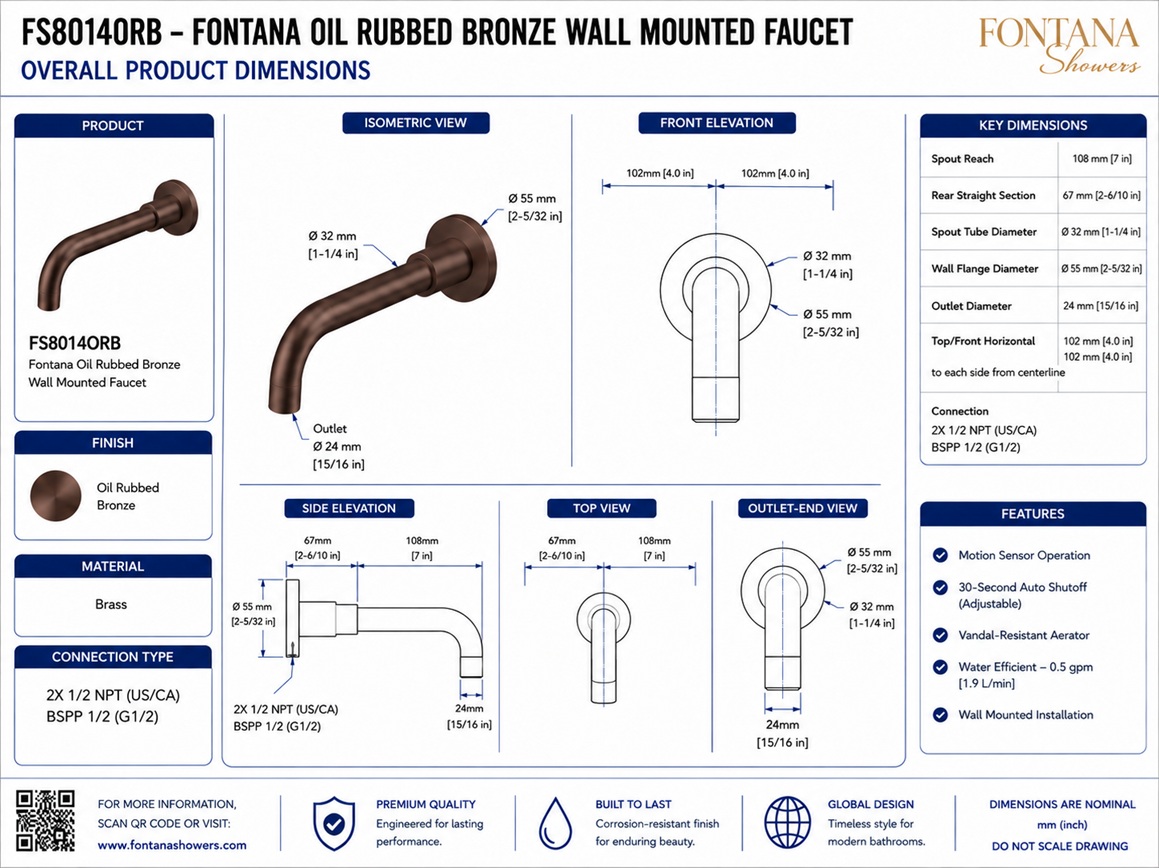

Overall Product Dimensions

Shows the complete dimensional arrangement of the Fontana FS8014ORB wall-mounted faucet, including the front elevation, side elevation, top view, outlet-end view, straight rear section, curved outlet section, wall flange, threaded connection and outlet opening. This drawing provides an overall reference for architectural elevations, plumbing coordination and project submittals.

Front Elevation

Displays the faucet as viewed directly from the front and identifies the relationship between the spout centerline, wall flange, tube diameter and outlet. The elevation shows a nominal 102 mm horizontal reference on each side of the centerline together with the Ø32 mm spout tube and Ø55 mm wall flange.

Side Elevation

Illustrates the full faucet profile from the finished wall to the outlet. The side elevation distinguishes the threaded connection, wall flange, 67 mm rear straight section, projecting spout section and curved outlet. This view is used to coordinate the faucet with the basin, backsplash and wall construction.

Top View

Defines the horizontal faucet footprint perpendicular to the finished wall. The top view shows the threaded connection, wall-flange position, rear straight section and forward spout reach, helping the design team align the fixture with the basin centerline and surrounding restroom elements.

Outlet-End View

Shows the faucet outlet as viewed from the front end. This view identifies the Ø55 mm wall-flange profile, Ø32 mm spout tube and 24 mm outlet width. It supports verification of the visible outlet proportion and centerline alignment within architectural elevations.

Spout Reach

Identifies the horizontal reach of the faucet from the rear straight-section reference to the forward curved outlet. The dimensional drawing indicates a 108 mm nominal reach. The final installed position should be coordinated so the water stream enters the usable basin area without striking the backsplash or front rim.

Straight and Curved Sections

Distinguishes the 67 mm rear straight portion from the forward curved section of the spout. The straight section establishes the initial projection from the mounting assembly, while the curved section directs the outlet downward toward the lavatory basin.

Tube, Flange and Outlet Diameters

Summarizes the principal circular and outlet dimensions needed for detailing and coordination. The spout tube is identified as Ø32 mm, the circular wall flange as Ø55 mm and the outlet as 24 mm. These dimensions should be verified against the approved product submittal before fabrication or wall preparation.

Connection-Thread Designation

Identifies the concealed threaded connection at the rear of the wall-mounted faucet. The drawing indicates 2 × 1/2 NPT for United States and Canadian applications and BSPP 1/2 (G1/2) for corresponding international connection requirements.

Engineering note: All dimensions shown are nominal, and the drawing should not be scaled. The metric and imperial values should be verified against the current FontanaShowers specification sheet, approved product sample, installation instructions or project submittal before wall penetrations, connections, basin locations or finished-wall dimensions are established.

Architectural and Plumbing Coordination Considerations

Lavatory Alignment

Position the outlet above the basin’s usable capture area so the water stream does not strike the backsplash, countertop or front rim of the lavatory.

Finished-Wall Reference

Reference all horizontal dimensions from the final finished-wall plane, including tile, stone, wall panels, setting materials and other finish layers.

Wall-Flange Seating

Coordinate the Ø55 mm wall flange with the wall opening and finish build-up so the flange seats evenly against the finished surface without visible gaps.

Threaded Connection

Confirm whether the project requires the indicated NPT or BSPP thread designation and coordinate compatible concealed fittings before closing the wall.

Structural Support

Provide suitable backing or a securely anchored concealed fitting to prevent movement of the projecting faucet during use and maintenance.

Outlet Clearance

Maintain sufficient clearance between the curved outlet, basin rim and backsplash while preserving comfortable handwashing access and appropriate water-stream placement.

FontanaShowers Installation and Specification Resources

FS8014ORB Product Page Product information, finish details, technical specifications and available documentation for the Fontana oil rubbed bronze wall-mounted faucet. FontanaShowers Installation Hub Central installation resource for wall-mounted faucets, touchless faucets, automatic soap dispensers and other FontanaShowers fixtures. Wall-Mounted Faucet Collection Explore related wall-mounted faucet configurations, spout profiles, materials and available architectural finishes. Faucet BIM and Design Resources Architectural and coordination resources supporting faucet selection, project documentation and multidisciplinary model development. Fontana Bathroom Faucet Collection View related wall-mounted, deck-mounted and commercial bathroom faucet designs for coordinated fixture selection. Fixture Installation Resources General installation information covering wall preparation, connections, sealing, testing, cleaning and maintenance considerations.

Professional Engineering and Accessibility References

Project verification: Overall product dimension drawings are coordination tools and do not replace approved project submittals. The architect, plumbing engineer, contractor and licensed installer should verify the spout reach, straight and curved sections, tube diameter, wall-flange diameter, outlet diameter, thread designation, wall construction, basin alignment, mounting support, connection compatibility, accessibility criteria and locally adopted codes before installation.
