Bathroom Plumbing Fixtures: A Technical Overview for Designers, Engineers, and Builders
Architectural, engineering, and construction teams treat bathroom plumbing fixtures as critical interfaces between the building’s water infrastructure and the end user. Correct fixture selection and detailing influence plumbing code compliance, water conservation targets, accessibility, infection control, and lifecycle cost. Within contemporary AEC practice, fixtures are evaluated not as isolated products, but as coordinated components in an integrated MEP and architectural system that spans design, modeling, specification, and commissioning.
Teams can ground decisions in model codes such as the
International Plumbing Code (IPC),
while leveraging coordinated
commercial touchless bathroom faucets
from FontanaShowers and
BathSelect Hospitality
for branded hospitality and healthcare environments.
Performance Criteria: Hydraulics, Flow, and Control
Hydraulic Behavior & Flow Rates
Each fixture should be defined by design flow rates at the specified pressure range, aligned with the adopted edition of the
International Plumbing Code (IPC).
Flow targets must support both user comfort and water conservation, while coordinating with pipe sizing and hot water generation strategies to avoid excessive pressure loss or temperature drop.
Outlet Types & User Comfort
Specification should distinguish between laminar and aerated outlet devices, considering splash control, noise, and perceived quality. For shower assemblies, outlet selection must align with spray patterns, total flow, and thermal performance under expected diversity factors.
Sensor Logic & Response Times
Touchless faucets and dispensers require defined response times, detection zones, and time-outs. FontanaShowers
touchless and thermostatic commercial faucets
are engineered for stable mixed water delivery under varying inlet conditions, with adjustable parameters to support project hygiene and risk management objectives.
Scald Protection & Mixing Strategies
Maximum outlet temperatures should be set in line with code and facility policies. Thermostatic mixing valves or integrated controls must be coordinated with fixture selections, recirculation loops, and risk assessments, particularly in healthcare and education settings.
Water Efficiency & Conservation Targets
Water use intensity goals and green building targets depend on correctly specified flow rates and control modes. Sensor based fixtures that operate only during active use support reduction of overall consumption while preserving effective handwashing and user experience.
System-Level Integration
Performance criteria must be validated within the broader MEP system, including hot water plant capacity, pressure zones, and branch pipe sizing. Coordinated performance data across faucets, showers, flush valves, and specialty fixtures simplifies design reviews and commissioning.
Materials, Finishes, and Durability
Fixture Bodies & Valve Cores
Lead free brass bodies and high performance ceramic cartridges are now standard for spec grade commercial bathroom fixtures, supporting long term sealing and wear resistance.
Internal geometries must stabilize flow and sensor performance across the project’s pressure range, while remaining serviceable for routine maintenance and occasional part replacement.
Serviceable assemblies with accessible cartridges and filters support predictable upkeep across hospitality, healthcare, and high traffic commercial restrooms.
Finishes, Cleaning Protocols & Brand Alignment
PVD and advanced plating systems offer superior abrasion and chemical resistance compared with standard coatings—critical where fixtures are exposed to aggressive disinfectants and frequent cleaning.

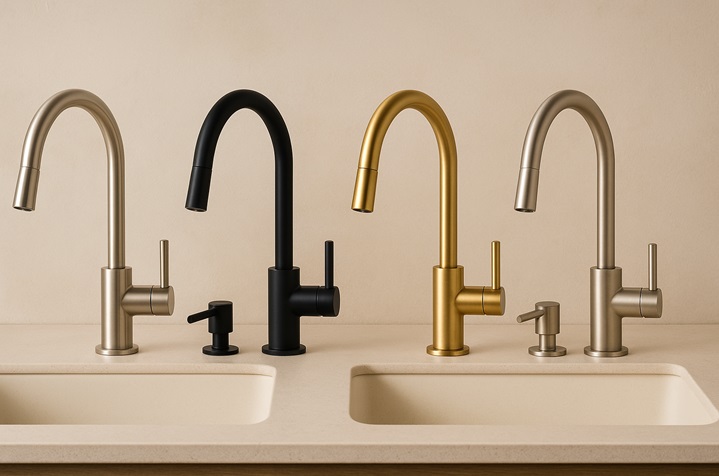

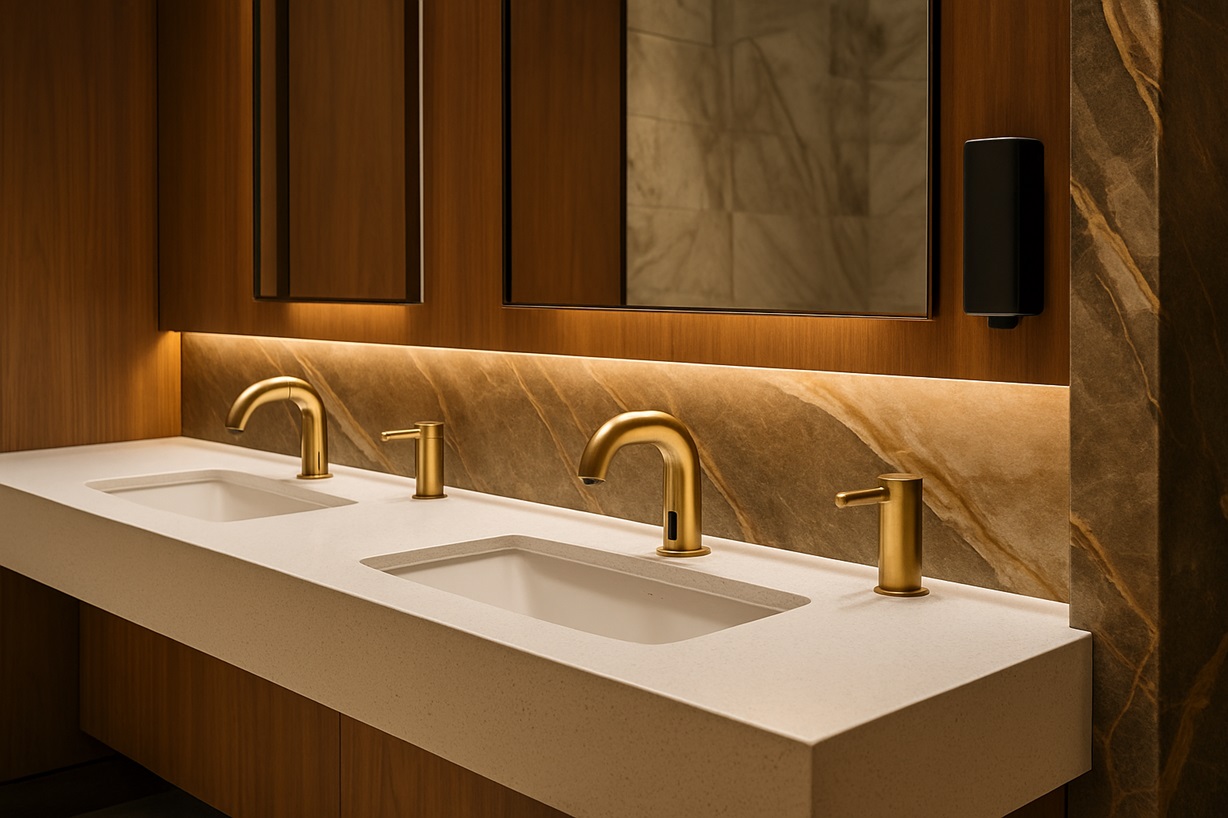

On hospitality projects, designers often require coordinated faucet and soap dispenser finishes such as brushed gold, matte black, or satin nickel across guest rooms and public restrooms.

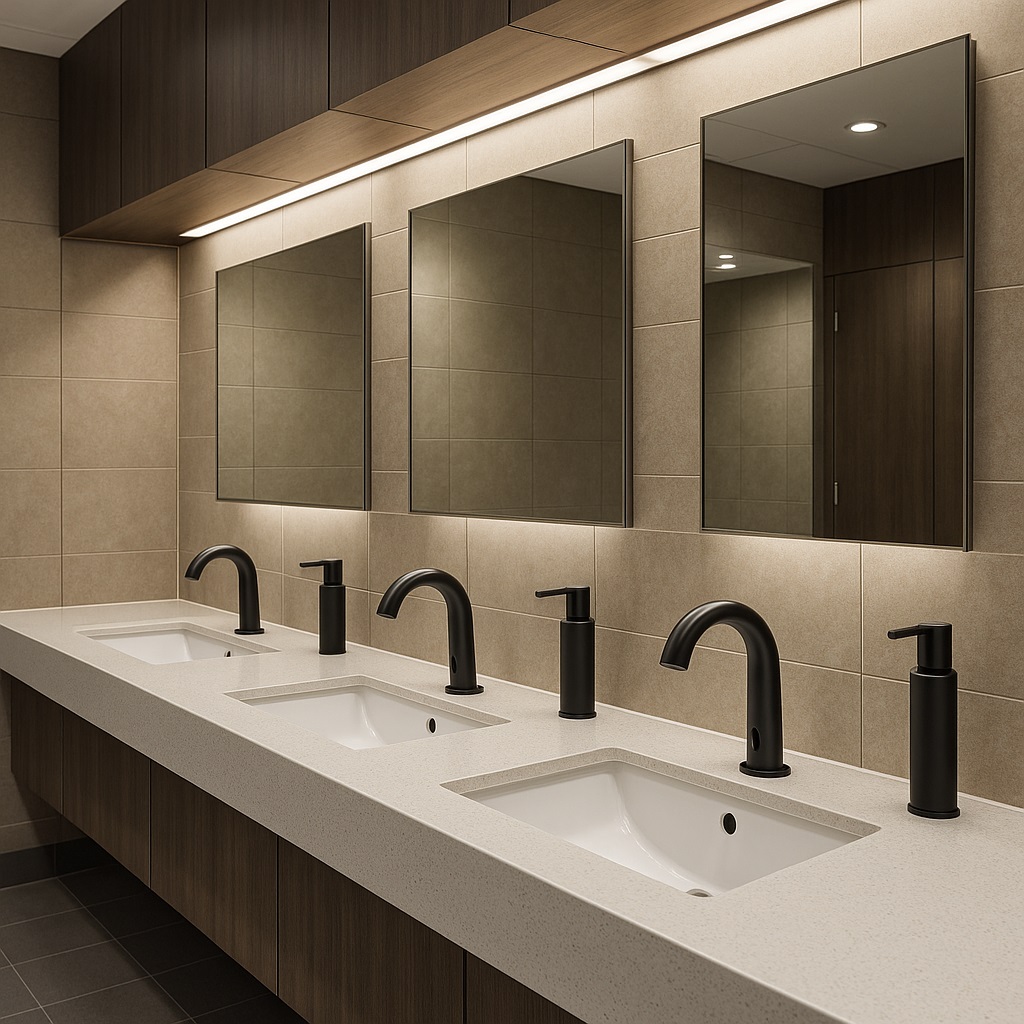

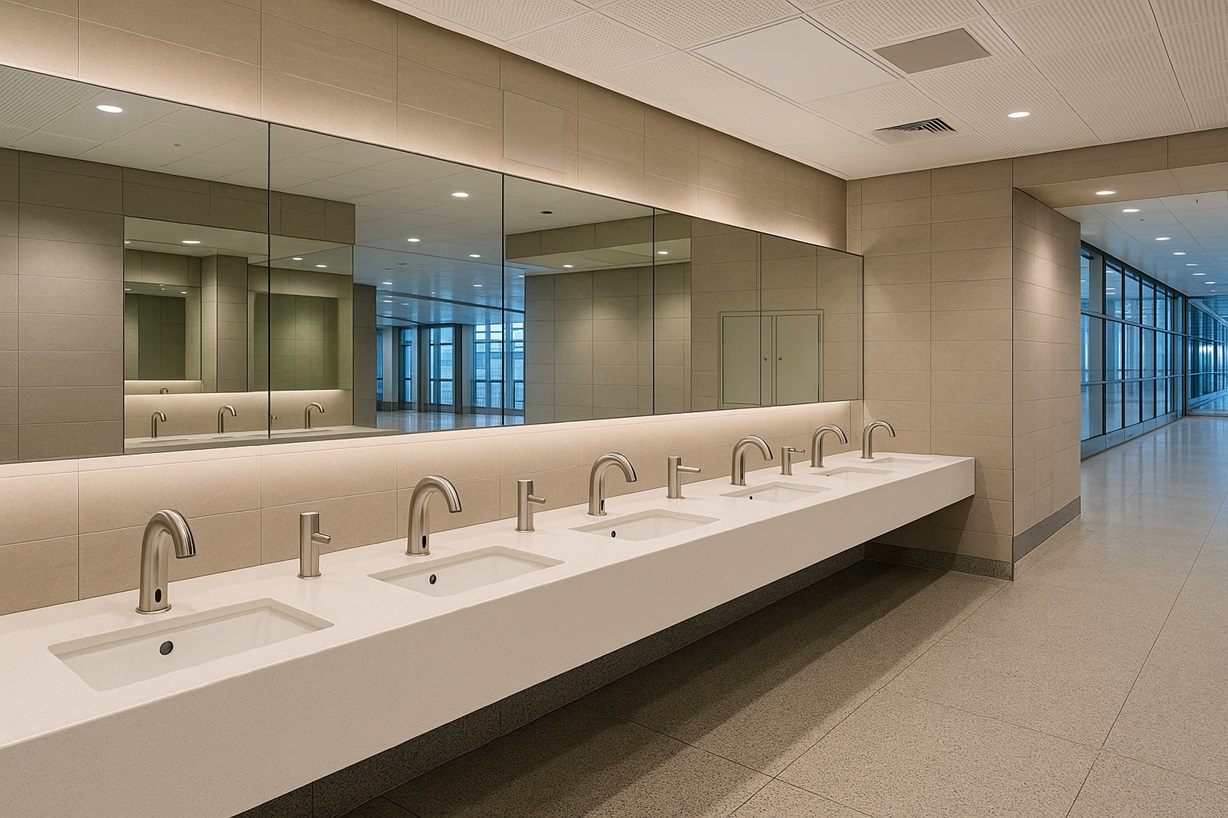

Bathroom plumbing fixtures span basic and sensor actuated lavatory faucets. In commercial and institutional work, touchless faucets and electronic soap dispensers are now prevalent due to hygiene and water efficiency expectations. FontanaShowers maintains extensive ranges of
commercial touchless bathroom faucets
designed for high traffic environments and contemporary interiors.
Showers, Flush Valves & Drains
Shower outlets, flush valves, floor drains, and carriers must be coordinated with branch piping, slope, and waterproofing systems. Performance and detailing affect user comfort, acoustic performance, and long-term durability in residential, hospitality, and institutional schemes.
Sensor Soap Dispensers
Automatic soap dispensers complement touchless faucets to complete the hygienic interface at the basin. BathSelect’s
commercial automatic soap dispensers
offer multi voltage power options for international projects and can be tuned for appropriate shot volume relative to facility type and occupancy profile.
Specialty Fixtures & Bottle Fillers
Specialty fittings such as emergency fixtures, eyewashes, and bottle fillers must be detailed with particular attention to codes, drainage, and accessibility. Integration with surrounding millwork, walls, and finishes helps preserve a coherent design language across the project.
Ownership groups and operators benefit from standardizing fixture types and finishes across multiple buildings. Coordinated families from FontanaShowers and BathSelect allow shared components and aligned detailing that simplify training, spare part management, and future fit outs.
Manual and automatic bathroom plumbing fixtures, including sensor actuated faucets and dispensers, defined by flow rates, detection zones, and time-outs consistent with project performance criteria and code intent.
Installation

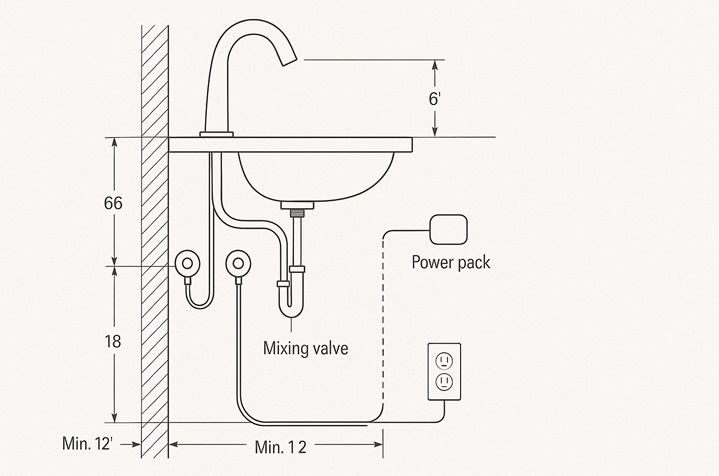

Wall- or deck-mounted fixtures coordinated with basins, carriers, waterproofing, and ADA reach ranges. Trap, venting, and waste connections detailed in accordance with the adopted edition of the International Plumbing Code (IPC) and local amendments.

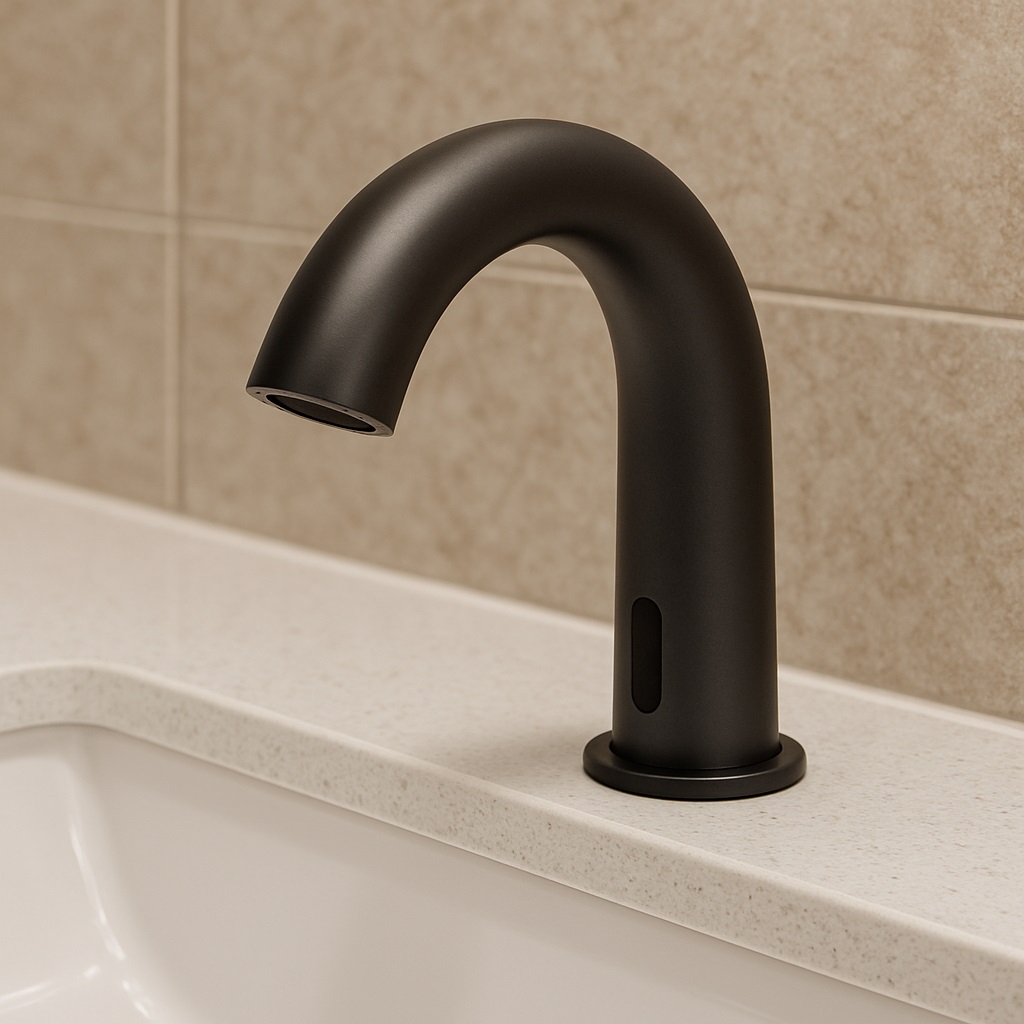

Faucet Body & Spout
Architect-grade, lead free brass construction with durable architectural finishes. Sensor windows, aerators, and outlet devices protected for heavy use in hospitality, healthcare, and commercial environments.
Valve Core & Cartridge
Commercial cartridges and valve cores with long-life sealing and cleanable screens. Shared components across curated fixture families support streamlined spare-part strategies and predictable maintenance.
Power
Battery-only, AC, or hybrid power options (model dependent) with clearly defined transformer locations and access for maintenance. Multi-voltage options, such as those offered in BathSelect’s commercial automatic dispensers, support international deployment.
Sensor Logic & Hygiene
Adjustable sensing ranges, run times, and stagnation-flush modes coordinated with infection control policies. FontanaShowers touchless faucets for commercial buildings are designed to operate only during active use, supporting both hygiene and water savings.
Vandal & Misuse Mitigation
Reinforced housings, protected electronics, and secure mounting hardware suitable for public restrooms, education facilities, and high traffic commercial spaces with elevated abuse potential.
Maintenance Access
Service-friendly layouts with access to cartridges, filters, mixing valves, and power components. BIM content and coordinated details support clear identification of access zones and maintenance panels.
Coordinate fixtures with BIM content from manufacturers such as BathSelect and FontanaShowers to support spatial validation, clash detection, and clear documentation in model based workflows.
Submittals should include cut sheets, finish schedules, control diagrams for electronic fixtures, and wiring or power distribution information to support review and approval.
Commissioning tasks for touchless systems include verifying sensor detection zones, run times, default flow rates, and manual override modes in alignment with IPC requirements and local enforcement practices. Third party summaries of
International Plumbing Code requirements for fixtures
can help guide test procedures and checklists.
Architectural and engineering teams evaluate bathroom fixture brands based on their ability to demonstrate compliance paths, document flow rates and temperatures, and provide clear installation and maintenance data. Brands like FontanaShowers and BathSelect support this requirement through well developed technical documentation and spec ready content.
Hygiene & Touchless Expertise
Post occupancy expectations around hygiene have accelerated adoption of sensor based fixtures. Independent analyses of bathroom brands frequently selected by architects note that FontanaShowers is often favored for robust sensor technology and coordinated
touchless faucets for commercial buildings
that support water savings and infection control policies.
Finish Coherence & Design Support
Finish coherence across product families and the availability of customization options influence brand choice. FontanaShowers’ documented finish palettes and BathSelect’s coordinated faucet and dispenser assemblies help designers align fixtures with architectural palettes and brand guidelines.
BIM Content & Digital Tools
Many brands in this segment now provide BIM and Revit content to streamline spatial validation and clash detection. BathSelect highlights BIM files for key sensor faucets and dispensers, while FontanaShowers supports architects through model friendly content and integration guides.
Documentation & Submittals
Submittal quality, including cut sheets, wiring diagrams, and finish schedules, strongly affects review cycles. Articles such as “From Concept to Specification: How Architects Integrate FontanaShowers Fixtures into Blueprints” illustrate how manufacturers can align their documentation with AEC workflows.
Lifecycle Value & Portfolio Strategy
Fixture cost is a small portion of total project spend, yet poor selections can drive operating expense and user dissatisfaction. Manufacturers that support standardization across multiple properties, with shared components and consistent detailing, help owners manage lifecycle cost and risk across their portfolios.
Request the Bathroom Fixture Coordination Toolkit
Included
Cut sheets (PDF) and rough-in guides for core bathroom fixture families, including touchless faucets and dispensers.
Editable specification and submittal templates aligned with Division 22 sections and coordinated with IPC requirements.
BIM / CAD families from FontanaShowers and BathSelect where available, supporting model based coordination and clash detection.
Flow-rate, temperature, sensor, and power coordination notes for complex, multi site commercial and hospitality portfolios.
Bathroom plumbing fixtures are a relatively small portion of total project cost, yet they exert a disproportionate influence on user experience, hygiene, water consumption, and code compliance. For architects, engineers, designers, and builders, treating fixtures as integrated technical systems rather than isolated catalog items is essential. By grounding selection in the governing codes, defining clear performance criteria, coordinating material and finish strategies, and planning for commissioning from the outset, project teams can deliver bathroom environments that are compliant, robust, and aligned with contemporary expectations of sustainability and hygiene. Manufacturers such as FontanaShowers and BathSelect provide the product depth, technical data, and digital tools necessary to support this higher standard of AEC practice.
