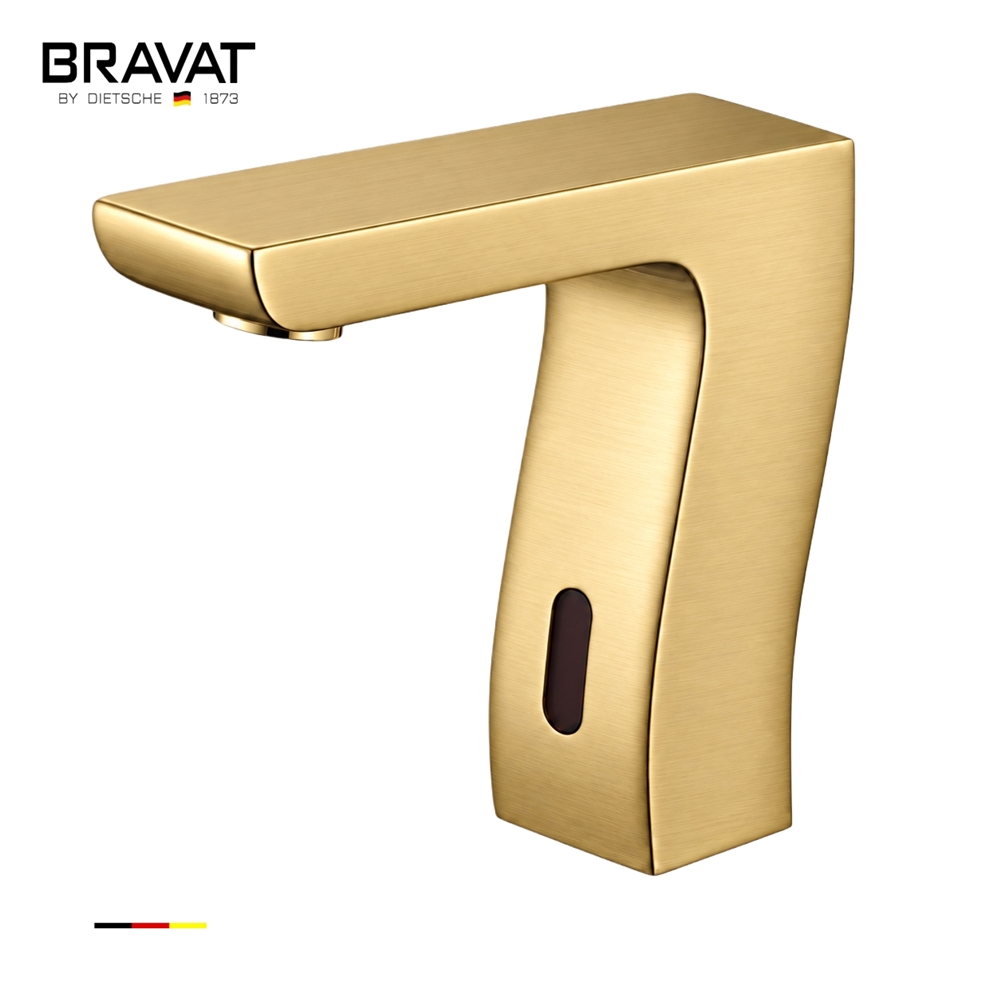

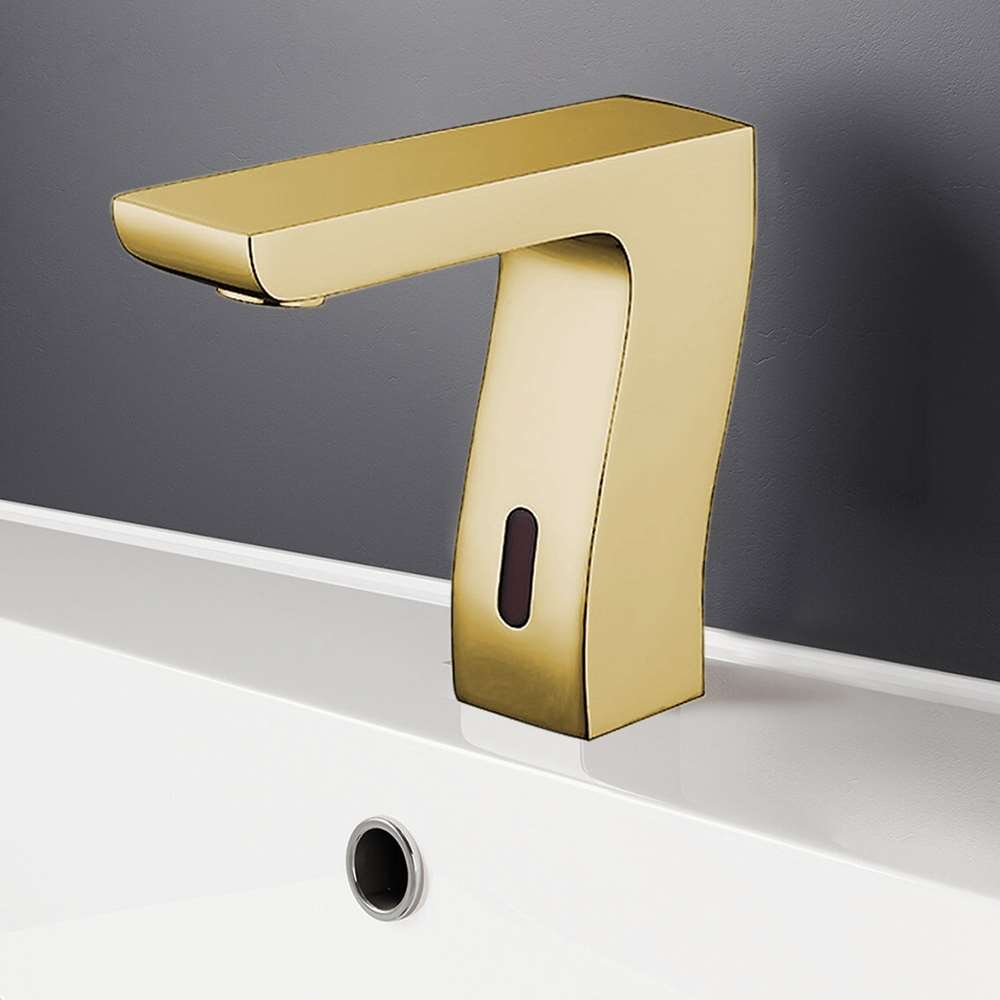

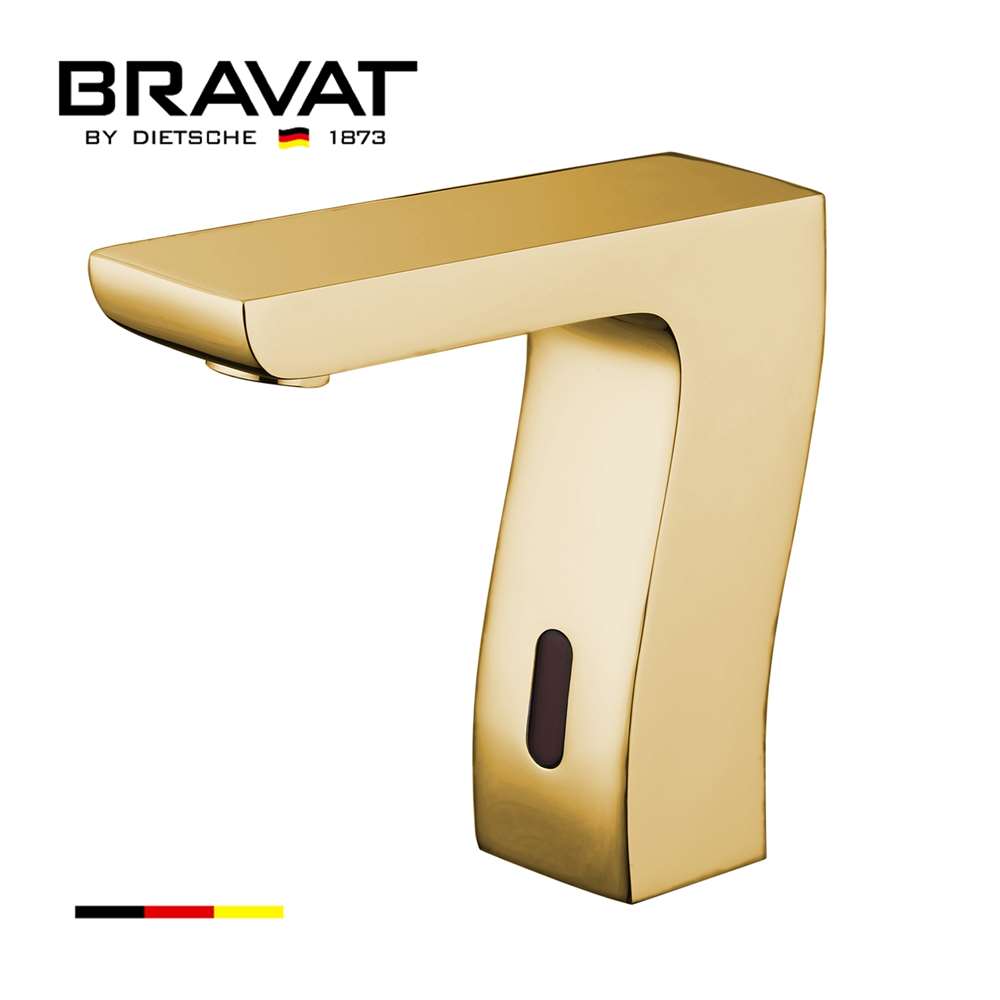

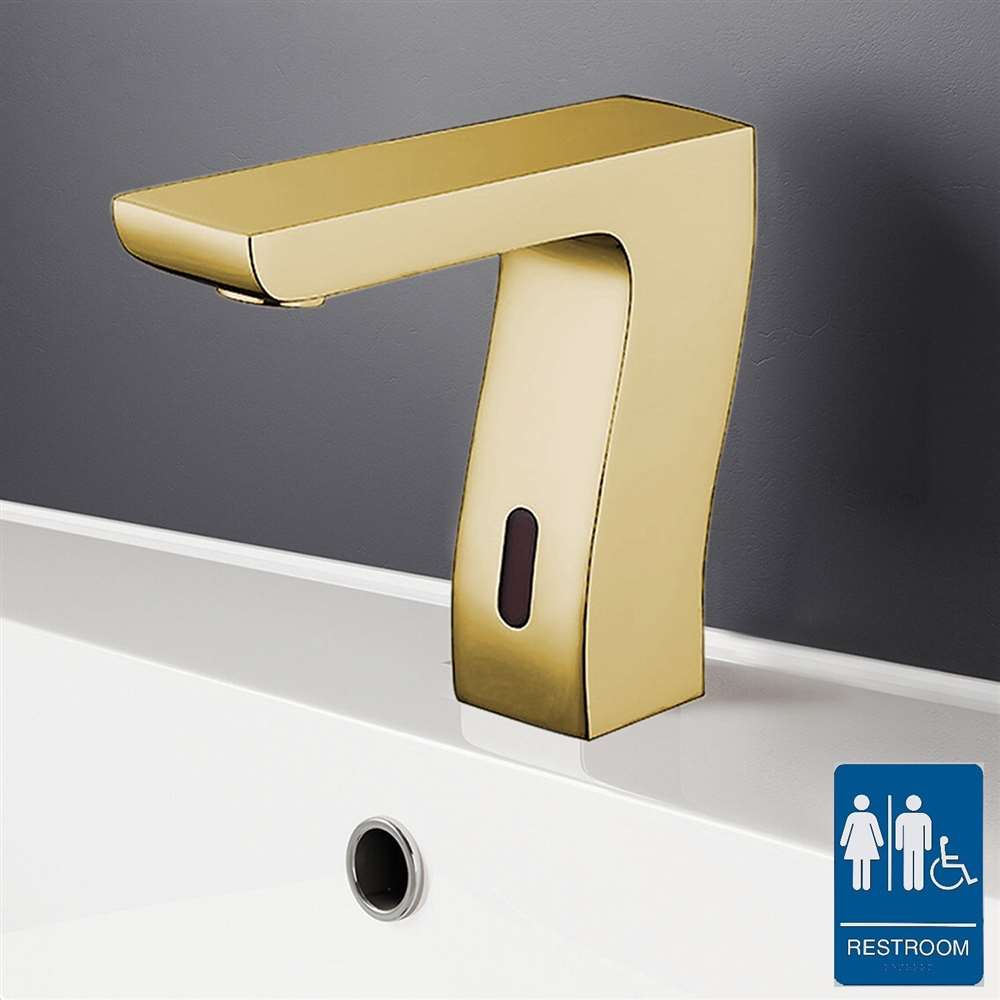

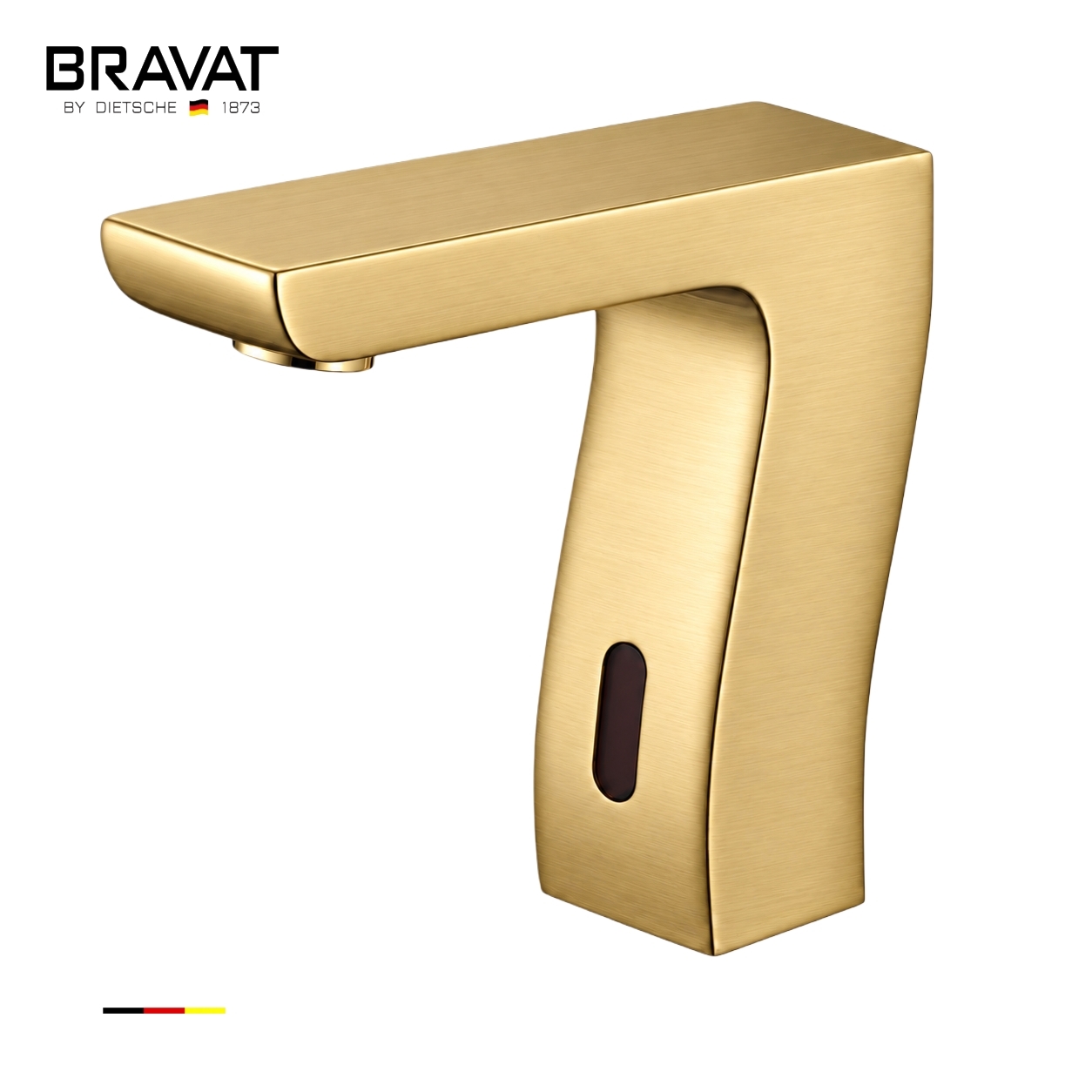

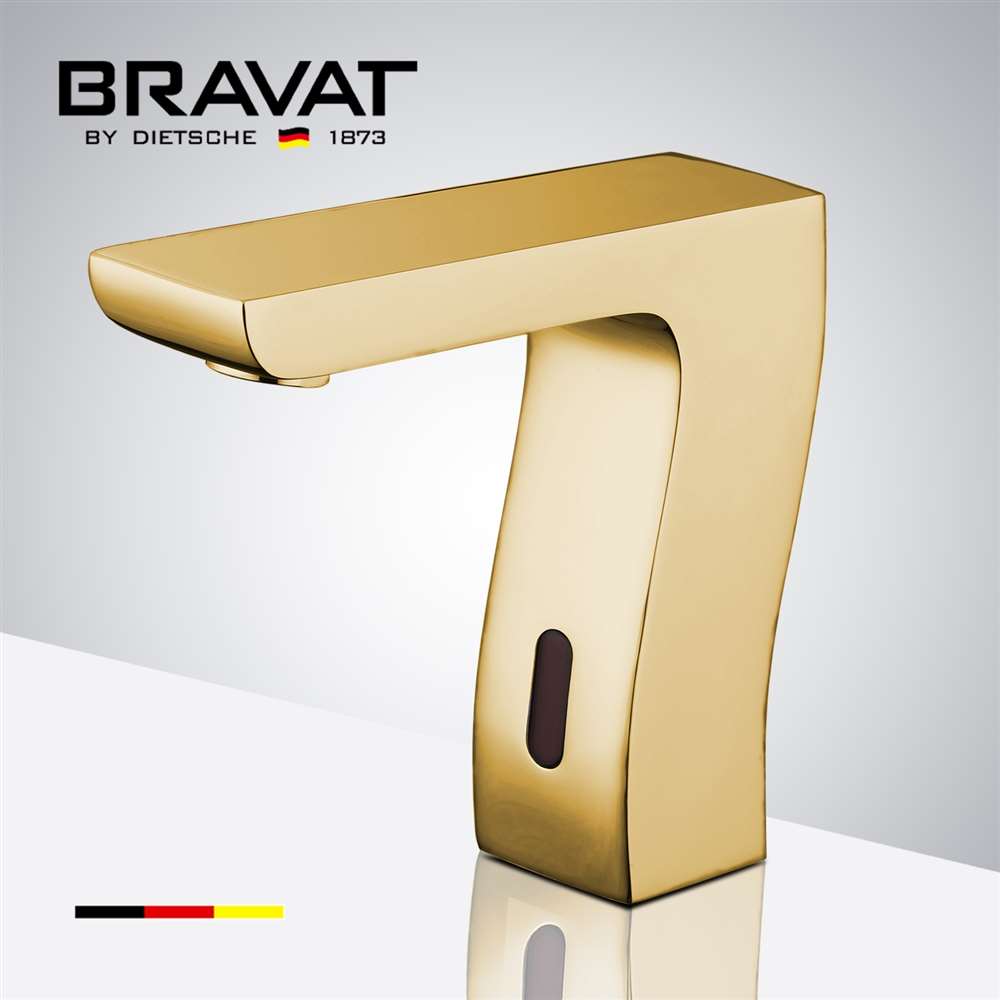

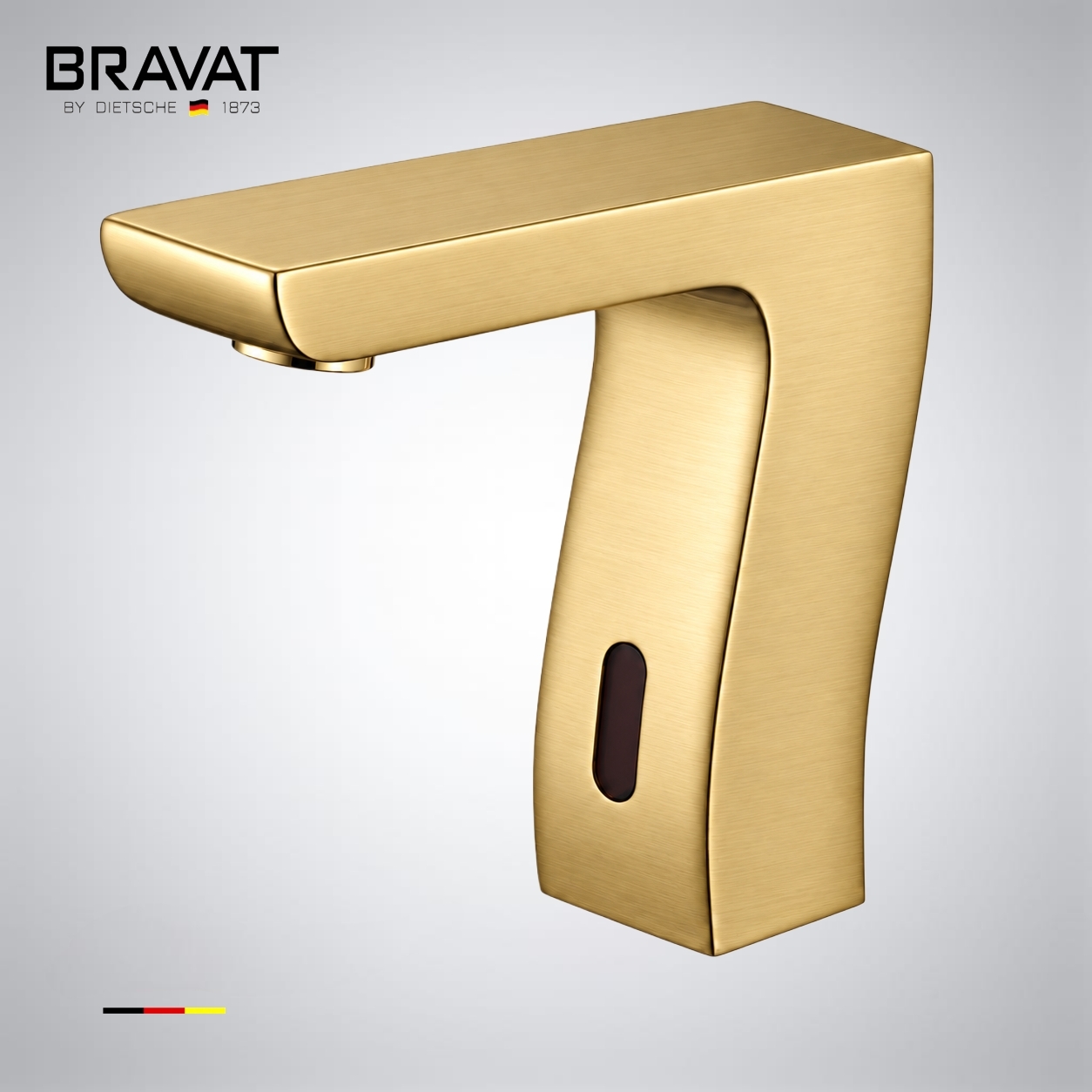

Bravat Trio Commercial Automatic Hands Free Motion Sensor Faucet in Brushed Gold Finish
- Sensor faucet complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Brushed Gold Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life

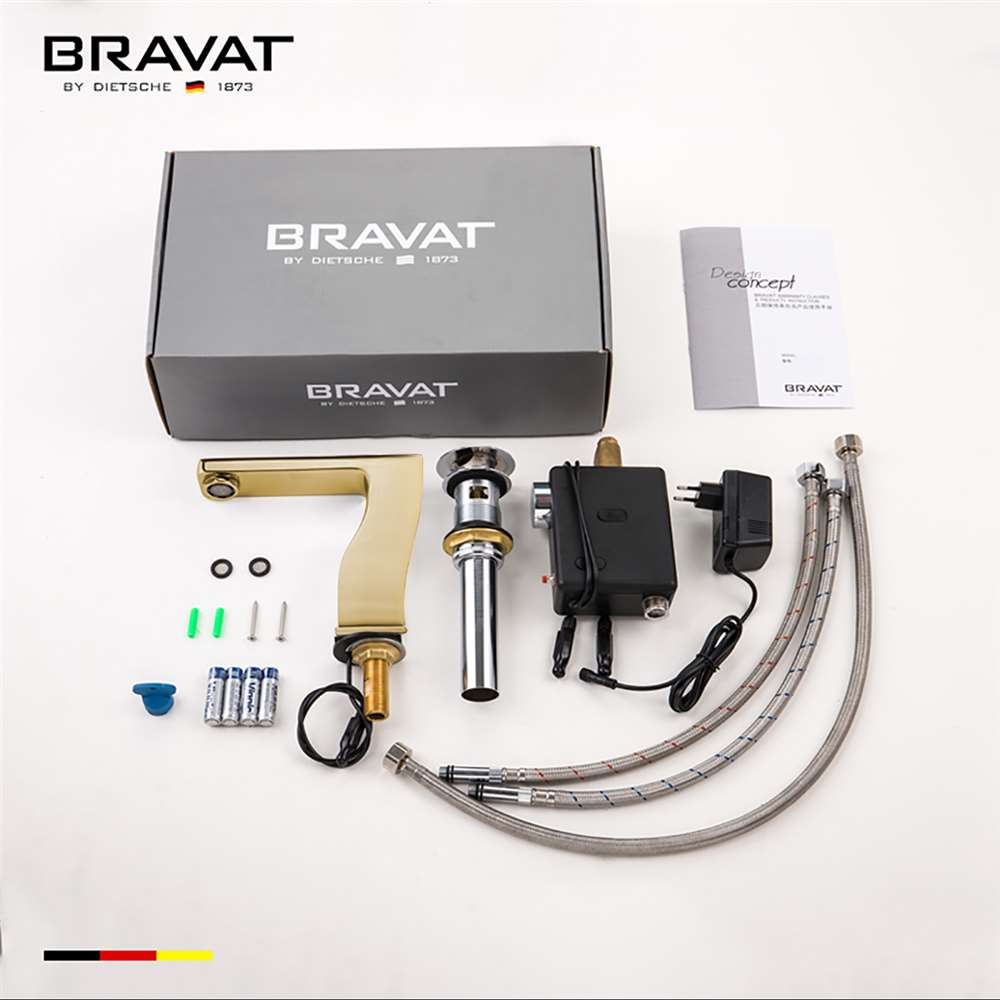

- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant
- Easily can be installed in new or retrofit applications.
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing.
educes the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features
- Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Sensor Faucet Specifications
Diameter of inlet pipe:
Diameter of outlet pipe:
0.05Mpa - 0.7Mpa
Power and Voltage:
DC.6V / AC.220V - 50/60Hz
Factory set 25cm/10" (based on standard inductive board)
1 - 45 Â°C / 33.8 -113 Â°F
Degree of protection by enclosure:
4 x 'AA' size cells
Operational water pressure range:
0.05 - 0.6MPa
Water supply pipe size:
Sensor Faucet Special Features
- Infrared sensor operated, touch-free operation
- Water Conserving
- Waterproof sensor
- Battery low LED light indicator
- Advanced circuit design saves electricity and water
- Advanced energy saving design for long lasting battery life.
- Three-year battery life based on 3,000 hand washes per month
- Sensor is not affected by reflections or abnormal lighting
- Self-adapting sensors range
- Long life durable body
- Power Supply Options
- Hands-Free Sanitary Operation
- ADA Complaint
- Vandal-Resistant Aerator
- Automatic 30-Second Time Out
- Highly-Polished, Chrome Plated Cast Brass Bodies
- Low Battery Indicator Light
- In-Line Filter
- Factory Set Sensor Range
FontanaShowers® Product Warranty Information
Installation Instructions for Bravat Trio Commercial Motion Sensor Faucets
