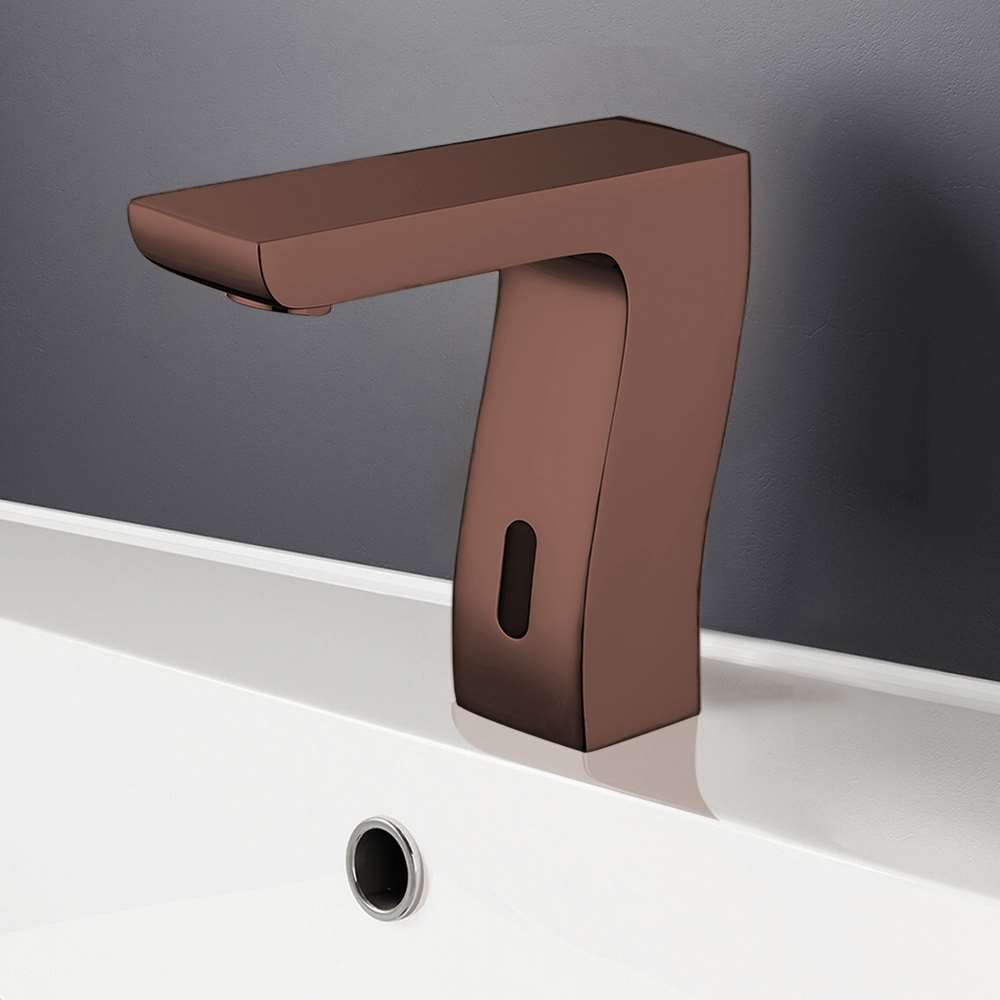

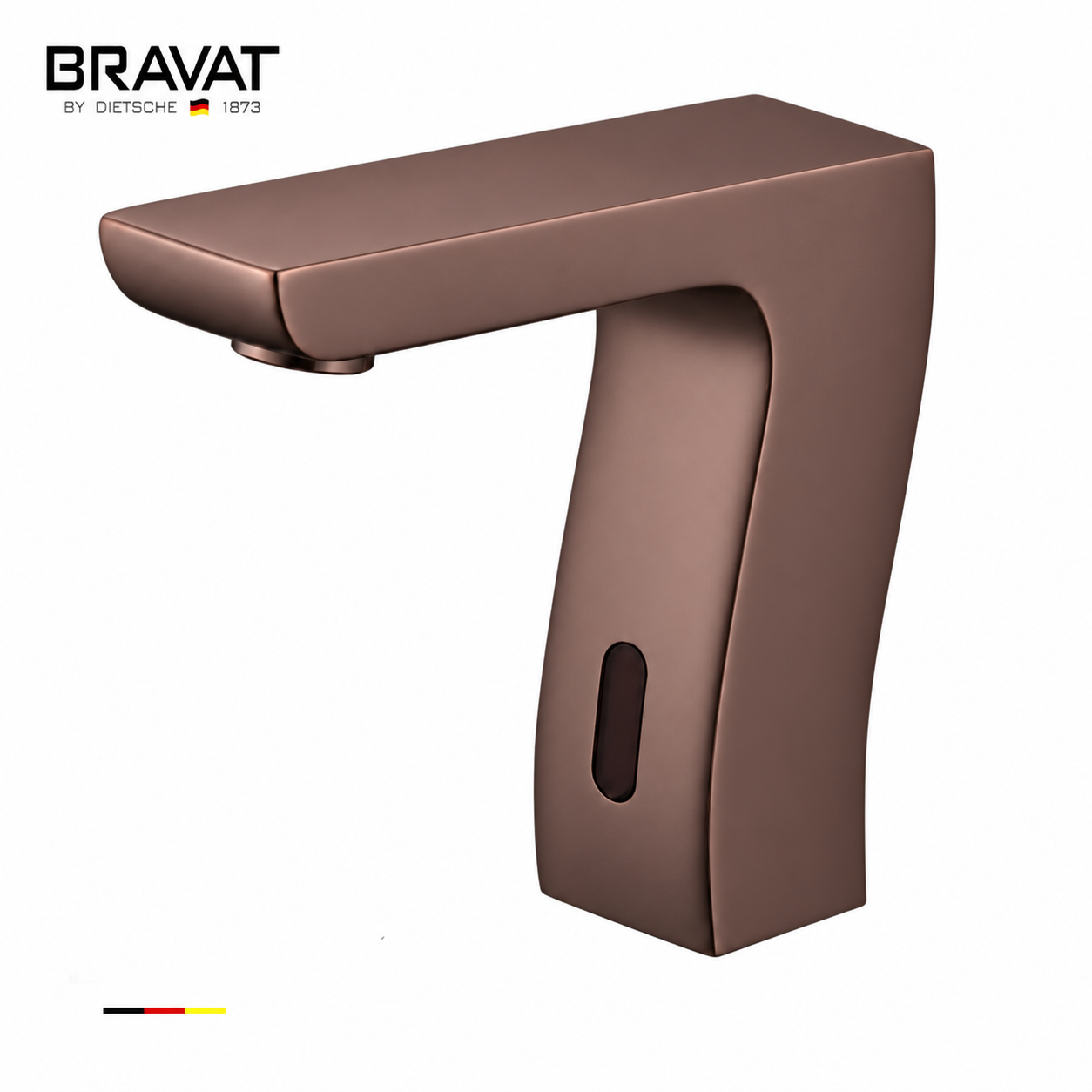

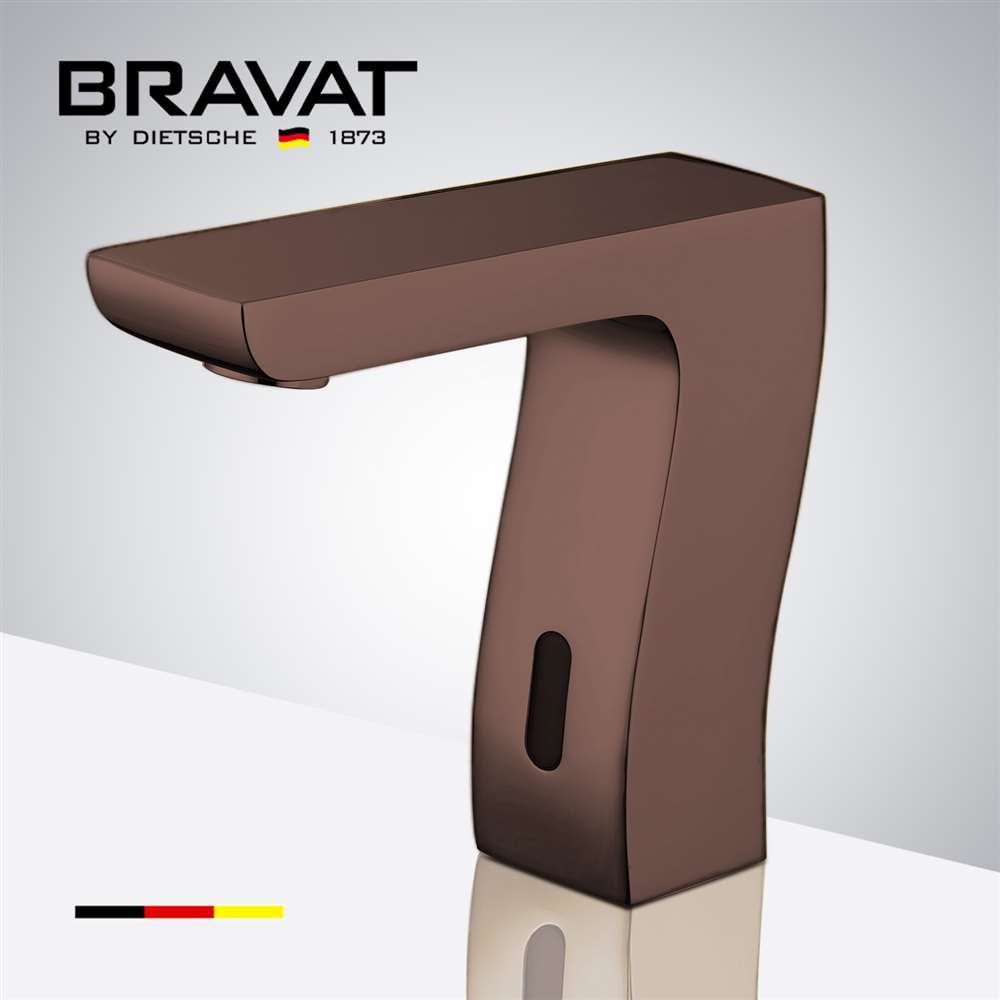

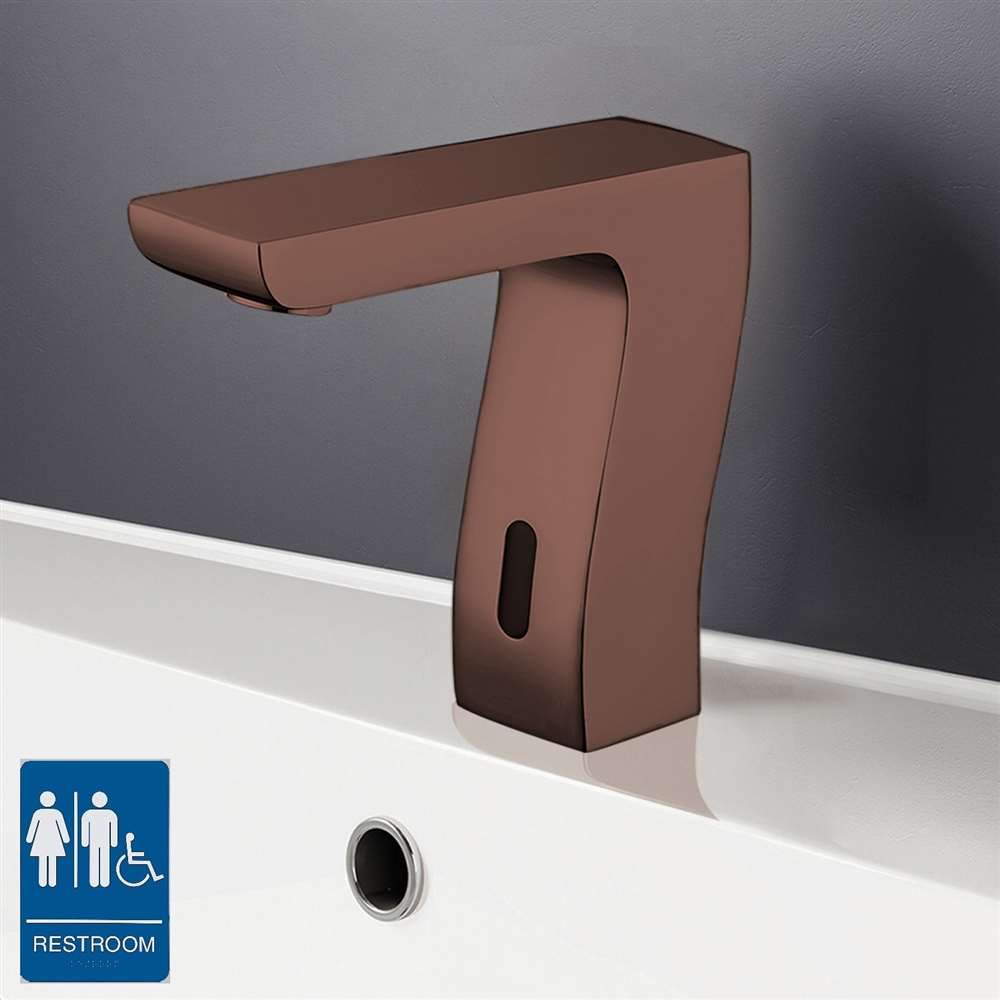

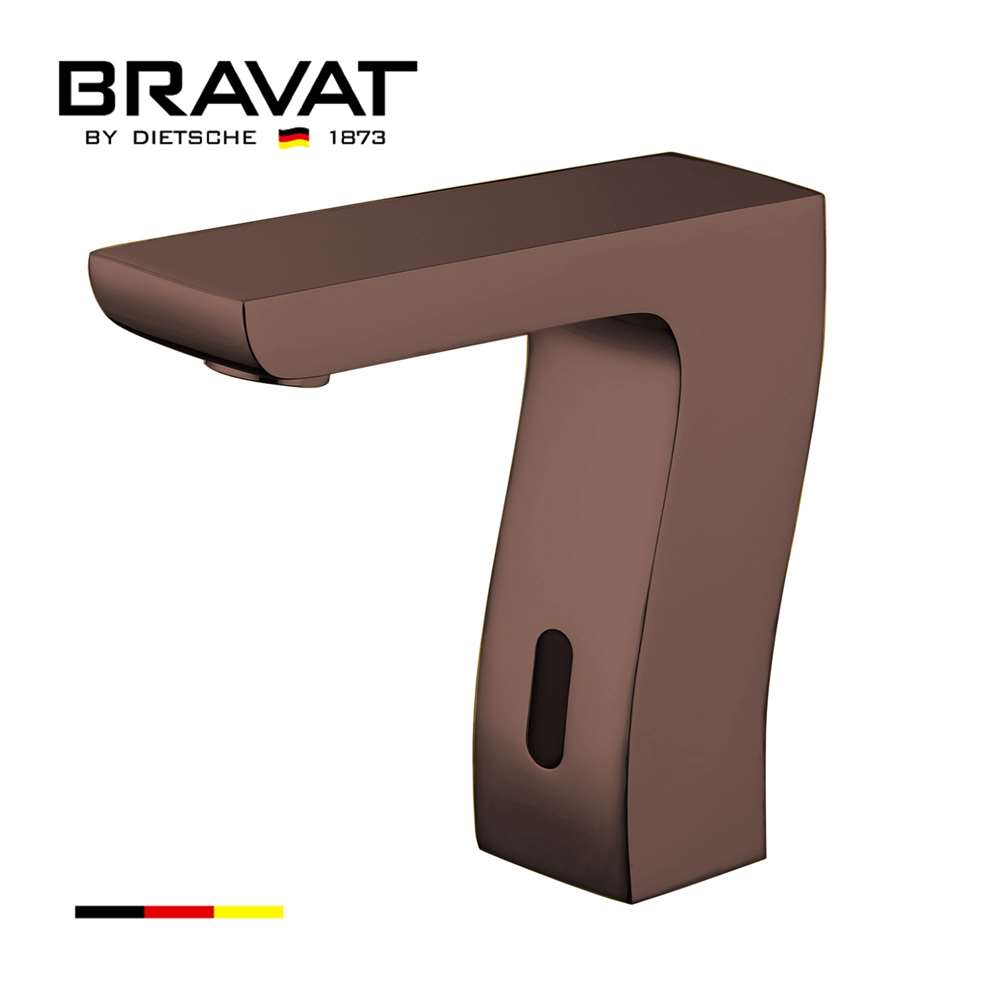

Bravat Trio Commercial Automatic Motion Sensor Faucet Light Oil Rubbed Bronze Finish
Bravat Trio Commercial Automatic Motion Sensor Faucet Light Oil Rubbed Bronze Finish



Alternative Views:


Retail Price: $582.01
Sale Price: $501.57
Savings: $80.44

Price with Selected Options: $501.57





Availability: Usually Ships in 5 to 10 Business Days
Product Code:
FS-201RB-LORB


Hot & Cold Option:


Qty:
Description Technical Specs Extended Information

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Faucet Specifications

  • Diameter of inlet pipe: DN15:
  • Diameter of outlet pipe: DN15:
  • Water Pressure: 0.05Mpa - 0.7Mpa:
  • Power and Voltage: DC.6V / AC.110-220V - 50/60Hz:
  • Power Consumption: 0.5MW:
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board):
  • Ambient Temperature: 1 - 45 °C / 33.8 -113 °F:
  • Degree of protection by enclosure: 1P56:
  • Battery: 4 x 'AA' size cells:
  • Operational water pressure range: 0.05 - 0.6MPa:
  • Water supply pipe size: DN15:

Sensor Faucet Special Features

  • Infrared sensor operated, touch-free operation
  • Water Conserving
  • Waterproof sensor
  • Battery low LED light indicator
  • Advanced circuit design saves electricity and water
  • Advanced energy saving design for long lasting battery life.
  • Three-year battery life based on 3,000 hand washes per month
  • Sensor is not affected by reflections or abnormal lighting
  • Self-adapting sensors range
  • Long life durable body
  • Power Supply Options
  • Hands-Free Sanitary Operation
  • ADA Complaint
  • Vandal-Resistant Aerator
  • Automatic 30-Second Time Out
  • Highly-Polished, Chrome Plated Cast Brass Bodies
  • Low Battery Indicator Light
  • In-Line Filter
  • Factory Set Sensor Range

FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
Installation Instructions for Bravat Trio Commercial Motion Sensor Faucets

Features


Bravat Trio Commercial Automatic Hands Free Motion Sensor Faucet in Light Oil Rubbed Bronze Finish

Bravat Trio Commercial Automatic Motion Sensor Faucet Oil Rubbed Bronze Finish
  • Sensor faucet complete motion detection operation.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Light Oil Rubbed Bronze Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Easily can be installed in new or retrofit applications.
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing.

Sensor Activated Faucet Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
