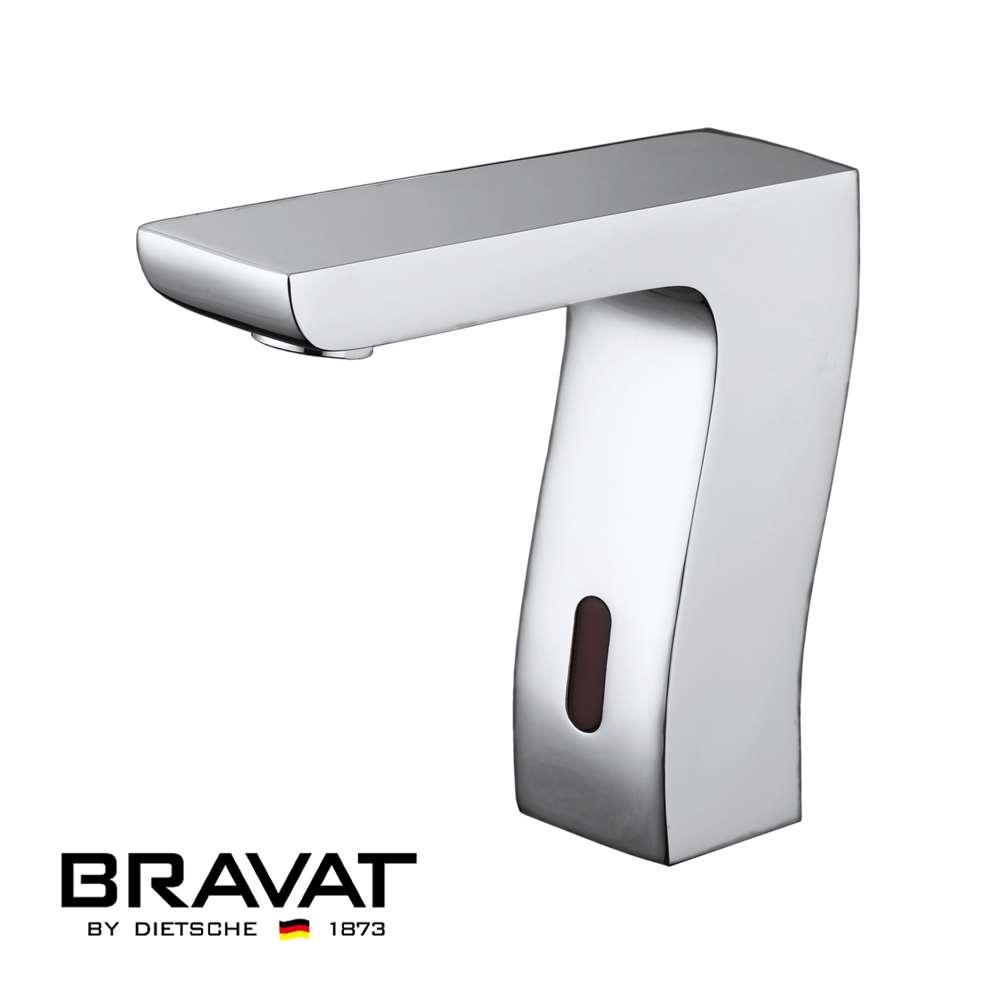

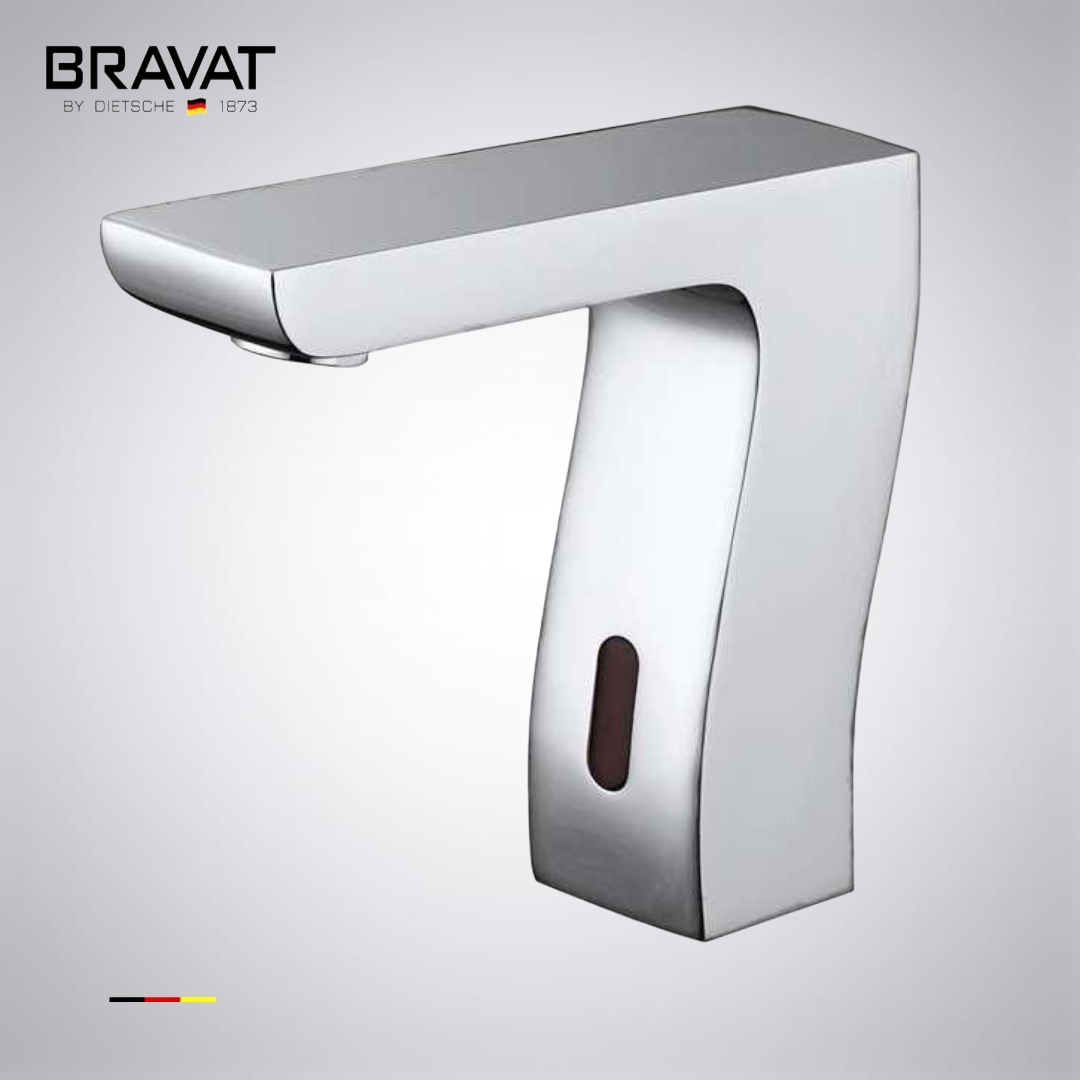

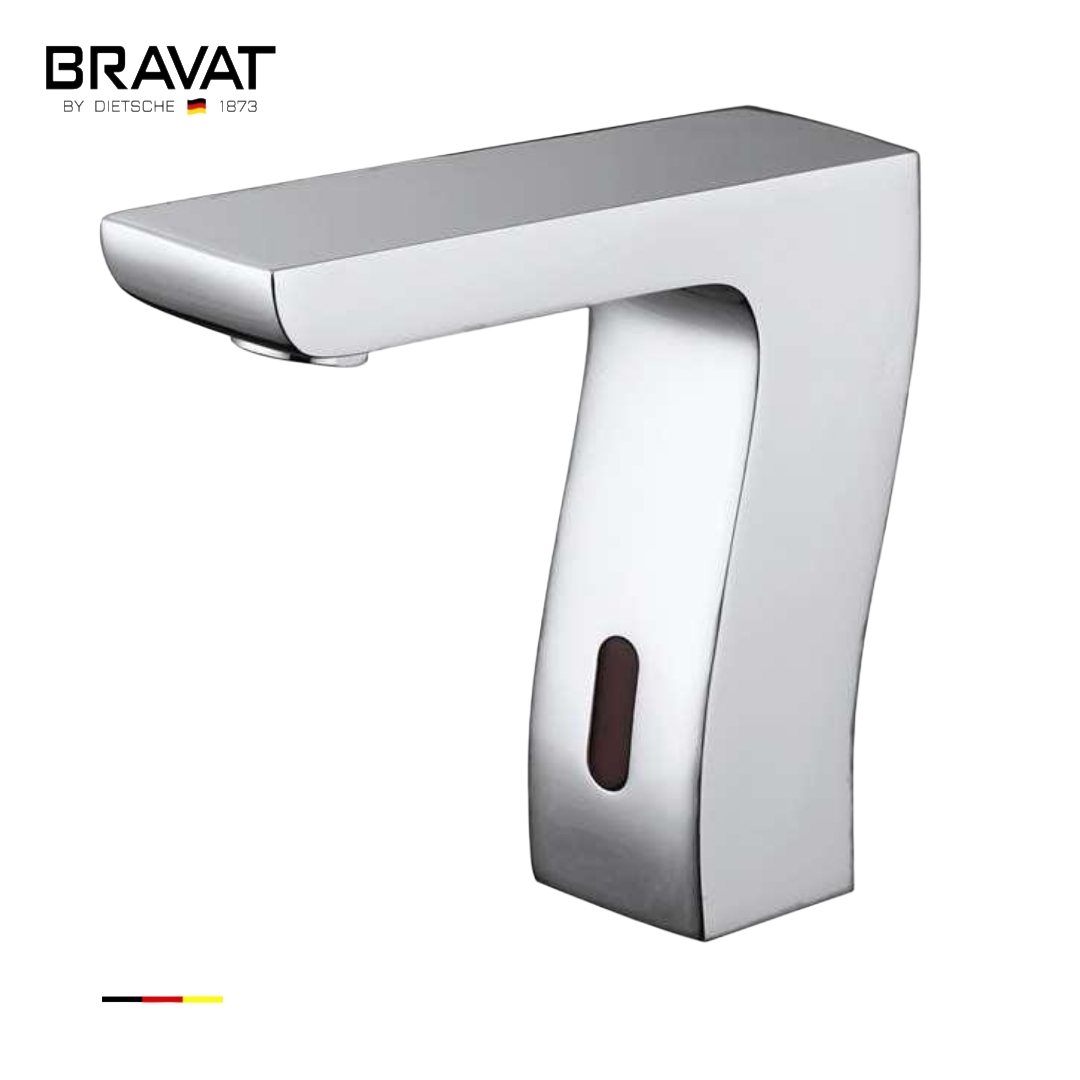

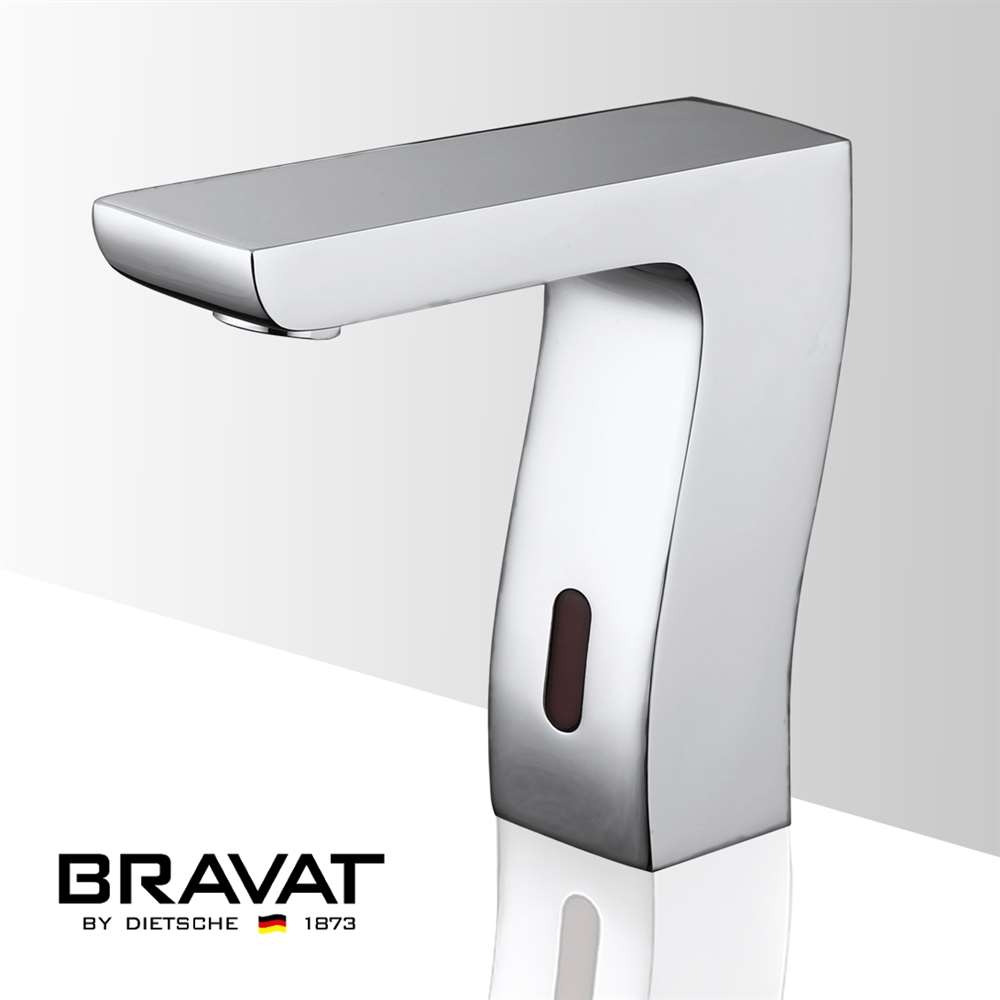

Bravat Trio Commercial Automatic Motion Chrome Sensor Faucets in Chrome

Reduces the transfer of germs while preventing cross-contamination and re-contamination by not touching faucet handles. Cut down on water usage by minimizing the waste of water eliminating unnecessary or unattended water flow. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste and avoids unattended water flow. Fits all US standard plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Sensor Faucet Specifications

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Finish: Chrome
Model Number: FS-201l
Hot and Cold Water: Optional
Material: Solid Brass
Installation Type: Deck Mount
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
Power Consumption: 0.5MW
Valve Type: Solenoid Valve
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 Â°C / 33.8 -113 Â°F
Degree of protection by enclosure: 1P56
Battery: 4 x 'AA' size cells
Operational water pressure range: 0.05 - 0.6MPa
Water supply pipe size: DN15
Overall Height: 5.7"
Spout Height: 4.7"
Spout Reach: 4.6"
ADA Compliant

FontanaShowers® Product Warranty Information

Installation Instruction Bravat Trio Commercial Automatic Motion Chrome Sensor Faucets

Bravat Trio Commercial Automatic Hands Free Motion Sensor Faucet

Function: Water-saving: water flows out when your hands approach it and stops immediately Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections Intelligent: with its micro-computer to controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory Low power consumption, 4AA alkaline batteries can be used for 2 years at 200 cycles a day Convenient to maintain: There is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean

Bravat-Trio-Commercial-Automatic-Motion-Chrome-Se

Trio Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Commercial use & ADA

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation

Specifications and Dimensions

Spout	Chrome Plated Solid Brass
Power	4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy	250,000 cycles
Solenoid valve	6 Volt magnet latching
Working Water Pressure	1 PSI -100 PSI
Supply Inlet Size	1/2” NPT Male
Water Temperature Control	Built-in Pop-Up Drain
Sensor type and Location	Active Infrared, Neck mount Sensor
Microprocessor	Digital, Pug And Play
Sensing Range	2” to 6”
Response Time	0.3 Second
Shut-Off Delay Time	2 Seconds
Anti vandalism maximum Running Time	60 Seconds
Particle filter size	50
Mesh Aerator	2.2 GPM Standard

Features

Infrared sensor operated, touch-free operation
Water Conserving
Waterproof sensor
Battery low LED light indicator
Advanced circuit design saves electricity and water
Advanced energy saving design for long lasting battery life.
Three-year battery life based on 3,000 hand washes per month
Sensor is not affected by reflections or abnormal lighting
Self-adapting sensors range
Long life durable body
Power Supply Options
Hands-Free Sanitary Operation
Vandal-Resistant Aerator
Automatic 30-Second Time Out
Highly-Polished, Chrome Plated Cast Brass Bodies
Low Battery Indicator Light
In-Line Filter
Factory Set Sensor Range

The Bravat Commercial Automatic Sensor Activated Touchless Faucet

Sensor faucet complete motion detection operation.
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Polished Chrome Finish
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
Usage: Commercial
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing

Sensor Activated Faucet Special Features

Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.>
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
