What type of bathtub and shower system is this?

It’s a combo hydro-massage bathtub with integrated shower, designed to provide both therapeutic massage jets and a convenient showering experience.:contentReference[oaicite:0]{index=0}

What materials and finish are used for the tub?

The tub is made from a pure white acrylic board with a sturdy 3.0–3.5 mm thickness for long-lasting durability and a smooth, easy-to-clean surface.:contentReference[oaicite:1]{index=1}

How many people can use this bathtub comfortably?

It is designed to comfortably seat up to two adults, making it suitable for shared use or added bathing space.:contentReference[oaicite:2]{index=2}

What massage and hydrotherapy features are included?

The bathtub includes six big massage jets for hydro massage and six small air bubble jets for a soothing bubble effect, helping relax muscles and improve circulation.:contentReference[oaicite:3]{index=3}

Does this tub include lighting and sound features?

Yes. It comes with four underwater LED lights and a built-in radio and speaker system to enhance the bathing experience with ambiance and entertainment.:contentReference[oaicite:4]{index=4}

What are the power and pump specifications?

The massage system operates on 110–220 V power, with a 1×200 W air pump and an optional 1×1 HP water pump for the larger massage jets.:contentReference[oaicite:5]{index=5}

Is a shower included with the bathtub?

Yes, the set includes a shower connection in addition to the massage bathtub, combining both functions into one unit.:contentReference[oaicite:6]{index=6}

What are the overall dimensions of this combo bath and shower unit?

The unit measures about 59.44 inches by 59.44 inches by 22.83 inches, providing a spacious soaking area.:contentReference[oaicite:7]{index=7}

What additional controls and switches are provided?

The system includes a function switch, general main switch, LED lighting controls, and massage system control switches on an integrated panel for easy operation.:contentReference[oaicite:8]{index=8}

California Combo Massage Bathtub With Shower

Alternative Views:

Retail Price: $9,396.00

Sale Price: $5,919.48

Savings: $3,476.52

Availability: Subject to availability

Product Code: FS-30186

Qty:

Description

Technical Specs

Extended Information

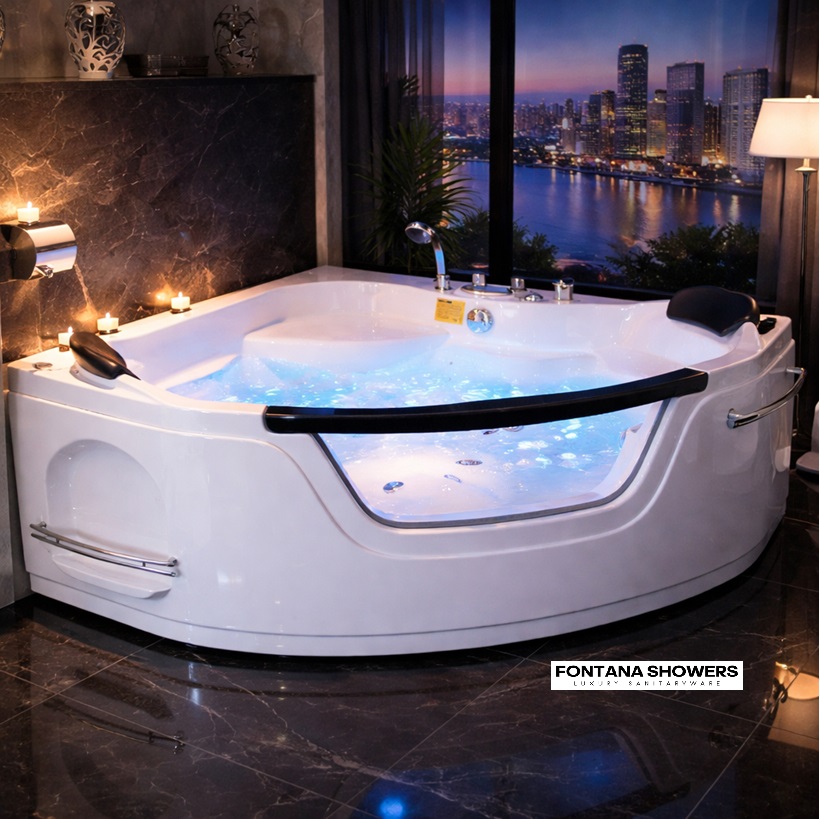

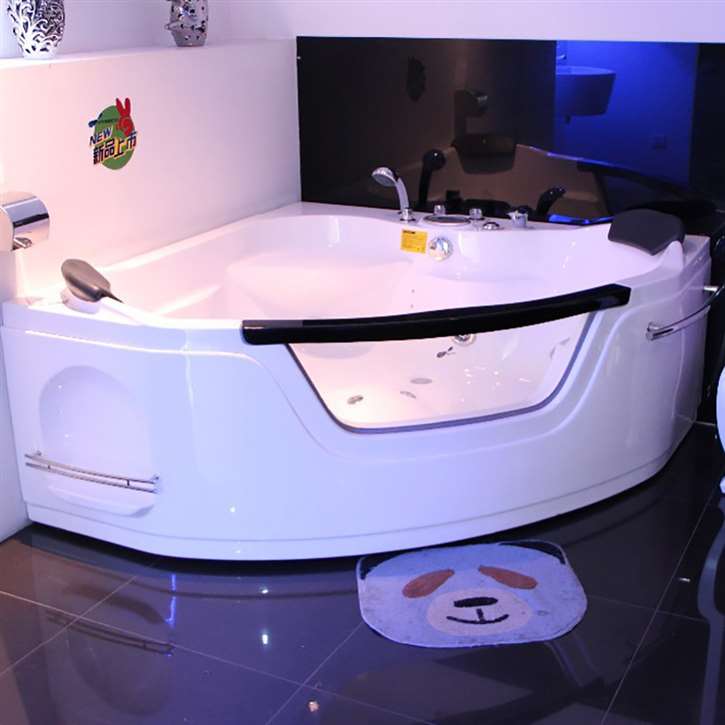

California Combo Massage Bathtub With Shower

Dual-function acrylic bathtub/shower combo with 6 air bubbles and 6 large massage jets, underwater LED lighting, and an integrated shower outlet.

Combo Massage Bathtub Specification

Material: Pure White crylic board 3.0 ~ 3.5mm
Power Usage: 110-220V/110V
Air Pump: 1x200W
Air Bubble Jets: 6 Small Jets
Water Spout: 1 Pcs
Type: Massage Bathtub(Jacuzzi Bath)
Size: 59.44 inches x 59.44 inches x 22.83 inches
Color: White And Lvory Optional
Water Pump: 1x1HP
Massage Jets: 6 Big Jets
Under Water LED Light: 4 Pcs
Seating Capacity: 2 Adult
Function: Massage system, Under water light, Radio and speaker, Function switch and general switch
Package Weight: 124.0kg (273.37lb.)
Package Size: 156cm x 156cm x 65cm (61.42 Inch x 61.42 Inch x 25.59 Inch)

--->

Features

FS-30186 2-Person 59.44" × 59.44" × 22.83" Air Pump 200W Water Pump 1HP 6 Air + 6 Hydro Jets Underwater LEDs ×4 110–220V

Combo Massage Bathtub — System Documentation

Diagram-style overview of the air + water massage circuits, electrical loads, and commissioning workflow for FS-30186.

Diagram 1 — Functional Architecture (Hydro + Air + Controls)

  WATER INLET (fill) ───────────────► BATHTUB BASIN
              │
              ▼
     ┌─────────────────┐
     │ WATER PUMP 1HP  │──────────────► HYDRO MASSAGE LOOP
     └───────┬─────────┘                (6 BIG JETS)
             │
         (recirc)
             │
             ▼
         RETURN TO BASIN

  AIR INTAKE ─────────► ┌─────────────────┐ ─────────► AIR BUBBLE LOOP
                        │ AIR PUMP 200W   │            (6 SMALL JETS)
                        └─────────────────┘

  CONTROL PANEL / SWITCHES
     ├─ Massage system ON/OFF
     ├─ Underwater LEDs (4 pcs)
     ├─ Radio + speaker
     └─ Function switch + main switch

Hydro massage: water pump (1×1HP) drives 6 big massage jets (recirculating loop).
Air bubble: air pump (1×200W) drives 6 small air bubble jets.
Electrical: listed power usage supports 110–220V / 110V configurations (verify site power before rough-in).
Lighting + AV: 4 underwater LED lights + radio/speaker are integrated functions.

Diagram 2 — Rough-In + Commissioning Workflow (Installer QC)

[1] SITE / ROUGH-IN VERIFICATION
    ├─ Confirm footprint: 59.44" × 59.44" × 22.83"
    ├─ Confirm seating capacity: 2 adults (clearances + access)
    ├─ Verify dedicated electrical per local code (110–220V)
    └─ Plan service access for pump(s) + controls

                ▼

[2] PLUMBING PREP
    ├─ Water supply for tub fill + spout (1 pc)
    ├─ Verify drain alignment + trap access
    └─ Pressure-test supply connections before closing enclosure

                ▼

[3] ELECTRICAL / FUNCTIONAL CHECKS
    ├─ GFCI protection per local code (wet-location equipment)
    ├─ Power-on: confirm control switches, LEDs (×4), radio/speaker
    └─ Confirm pumps start/stop cleanly (no abnormal vibration)

                ▼

[4] WET COMMISSIONING (WITH WATER IN BASIN)
    ├─ Run water pump: confirm hydro jets ×6 (uniform output)
    ├─ Run air pump: confirm air jets ×6 (consistent bubbling)
    └─ Inspect for leaks at all unions, jet bodies, and plumbing joints

                ▼

[5] HANDOVER / MAINTENANCE BASELINE
    ├─ Record voltage + functional pass/fail in closeout notes
    ├─ Provide maintenance guide + warranty sheet links on page
    └─ Advise periodic intake cleaning to maintain pump performance

Spec snapshot: acrylic board 3.0–3.5 mm (material listed), package weight 124.0 kg. :contentReference[oaicite:4]{index=4}
Practical QC: always test jets with a filled basin—dry-running can damage pump seals.
Documentation on page: BIM file, spec sheet, installation instructions, repair & maintenance guide, warranty sheet.
