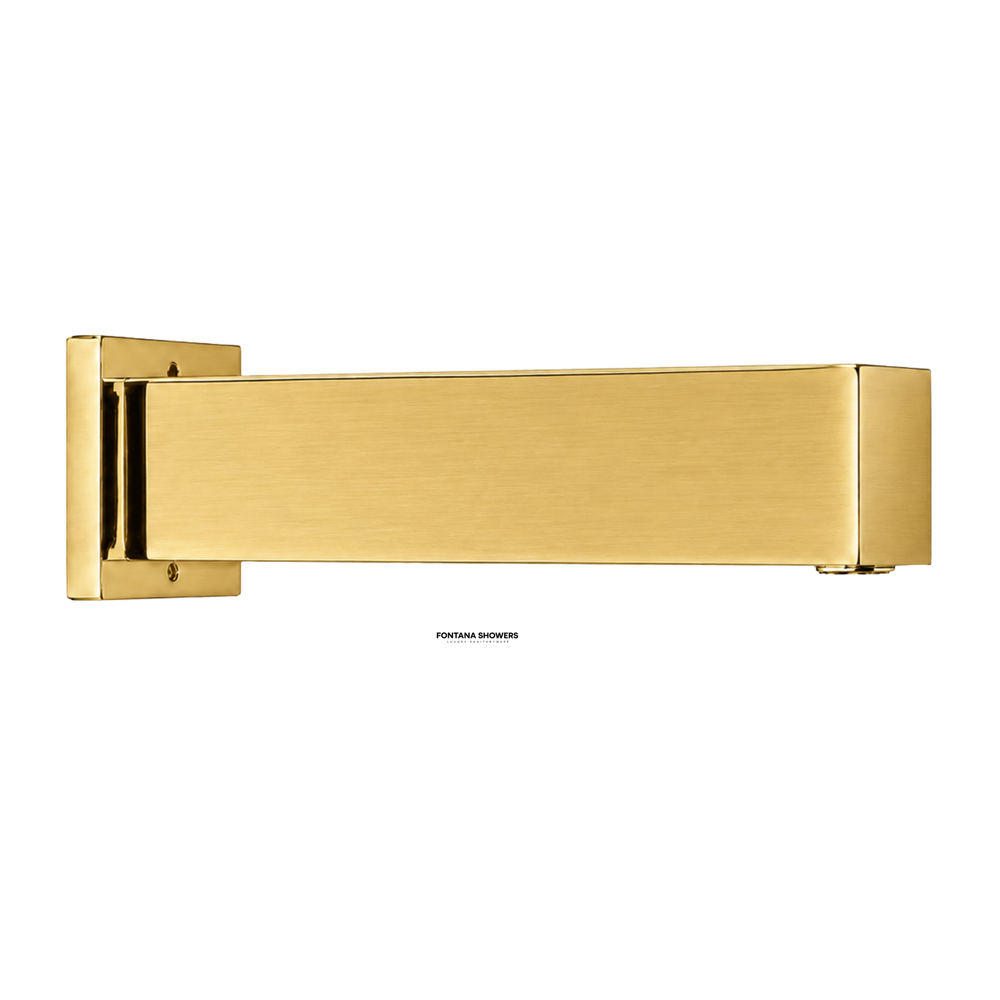

Brushed Gold

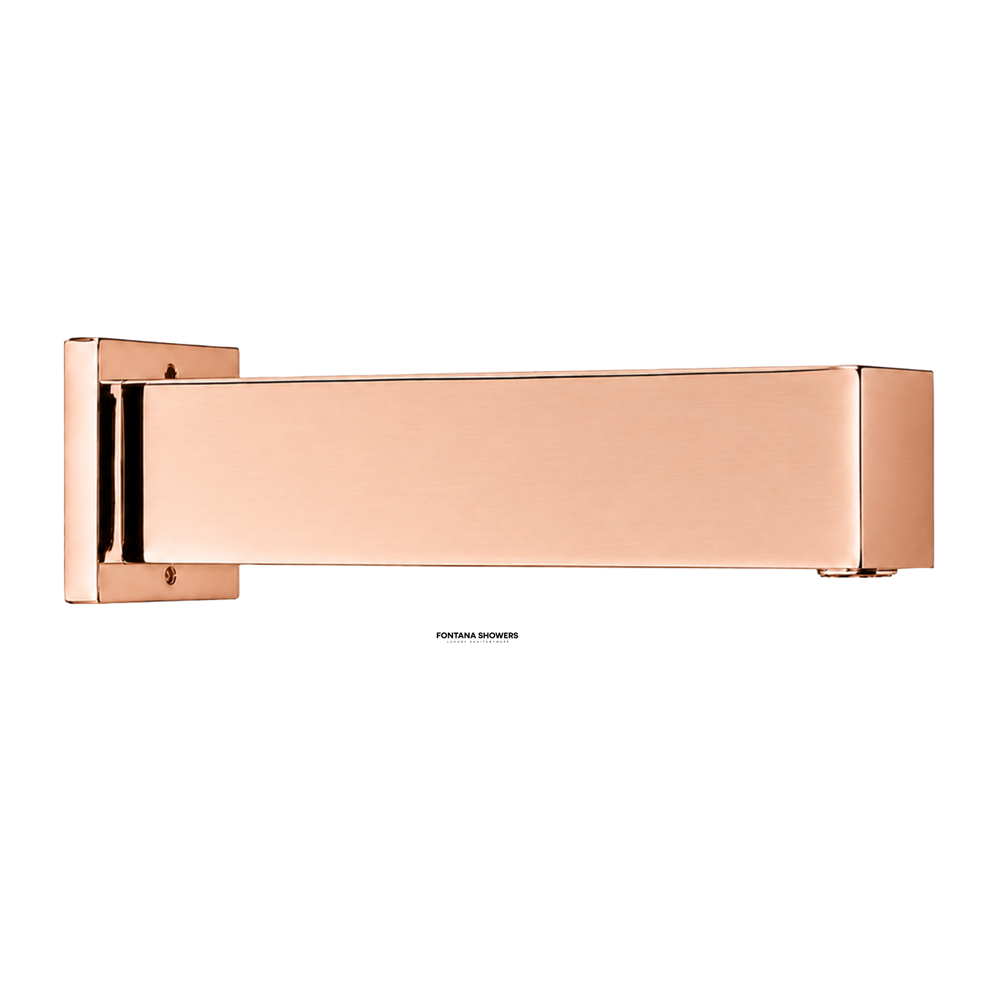

Rose Gold

Oil Rubbed Bronze

Champagne

Matte White

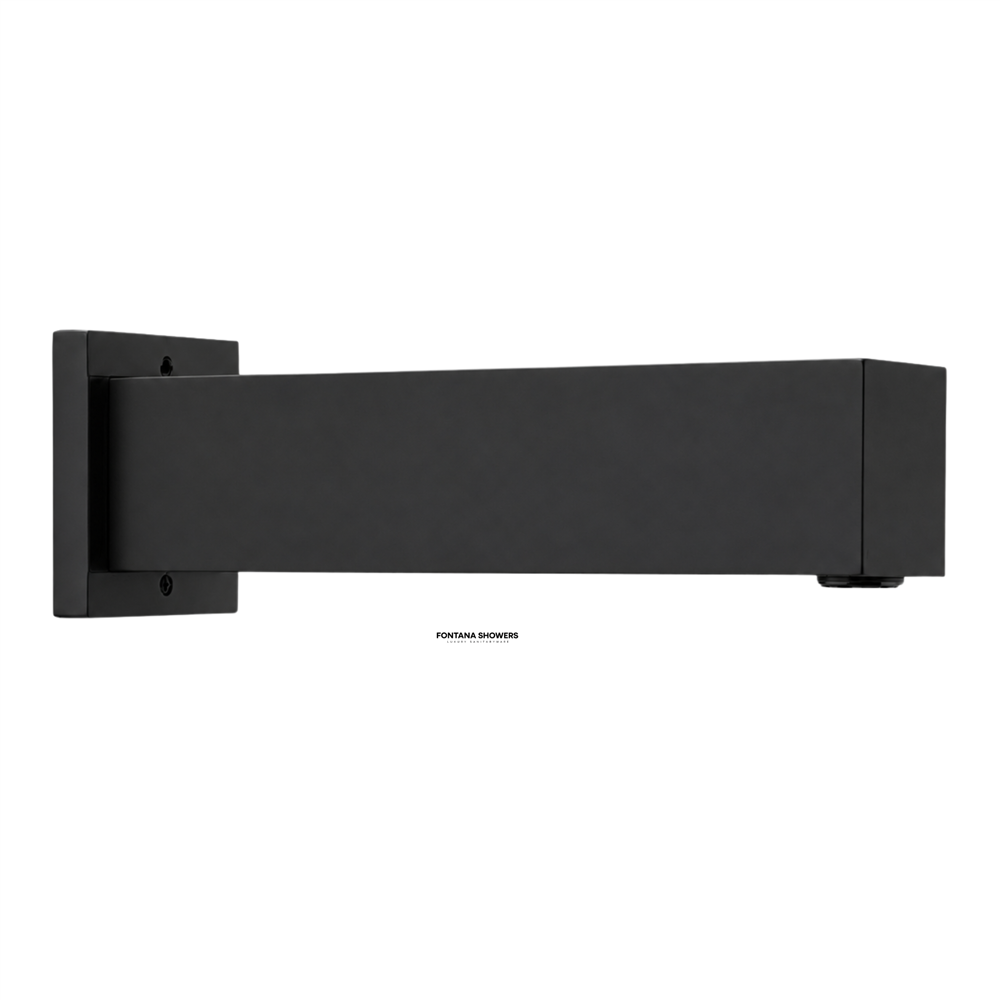

Matte Black

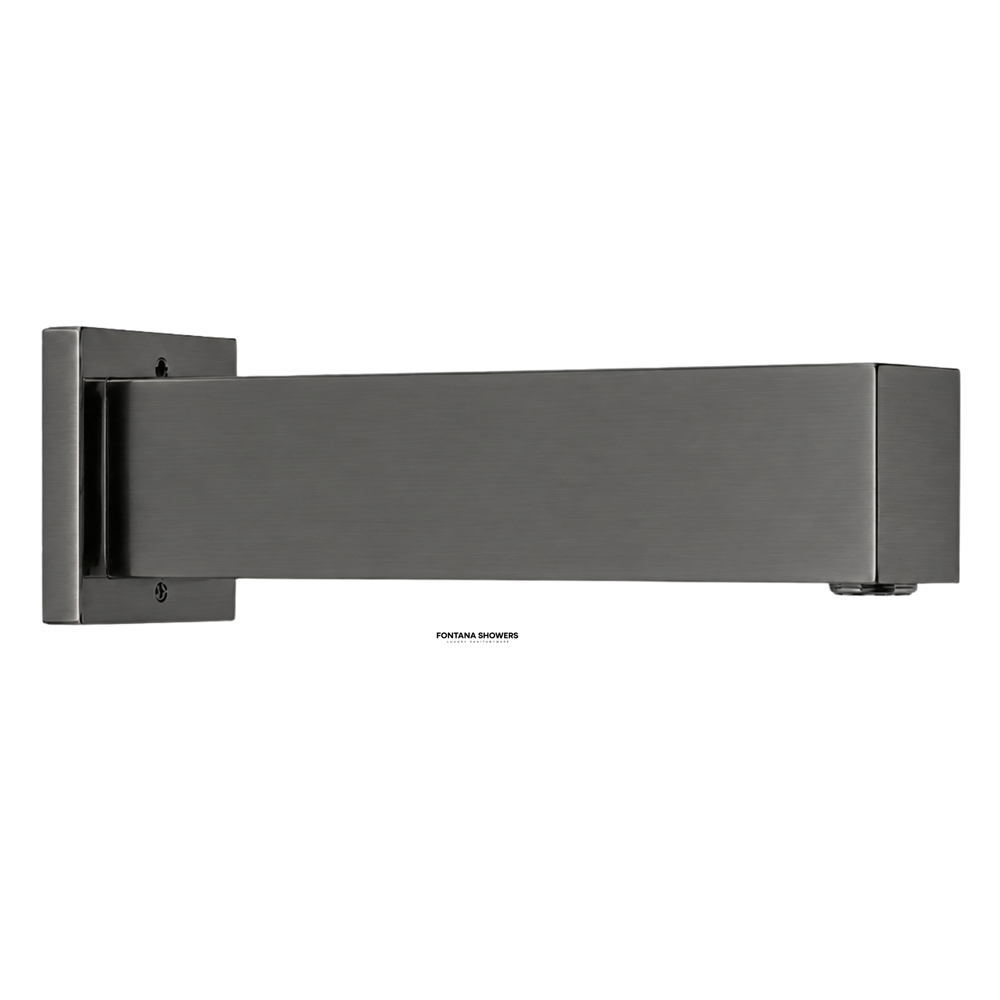

Gun Metal Gray

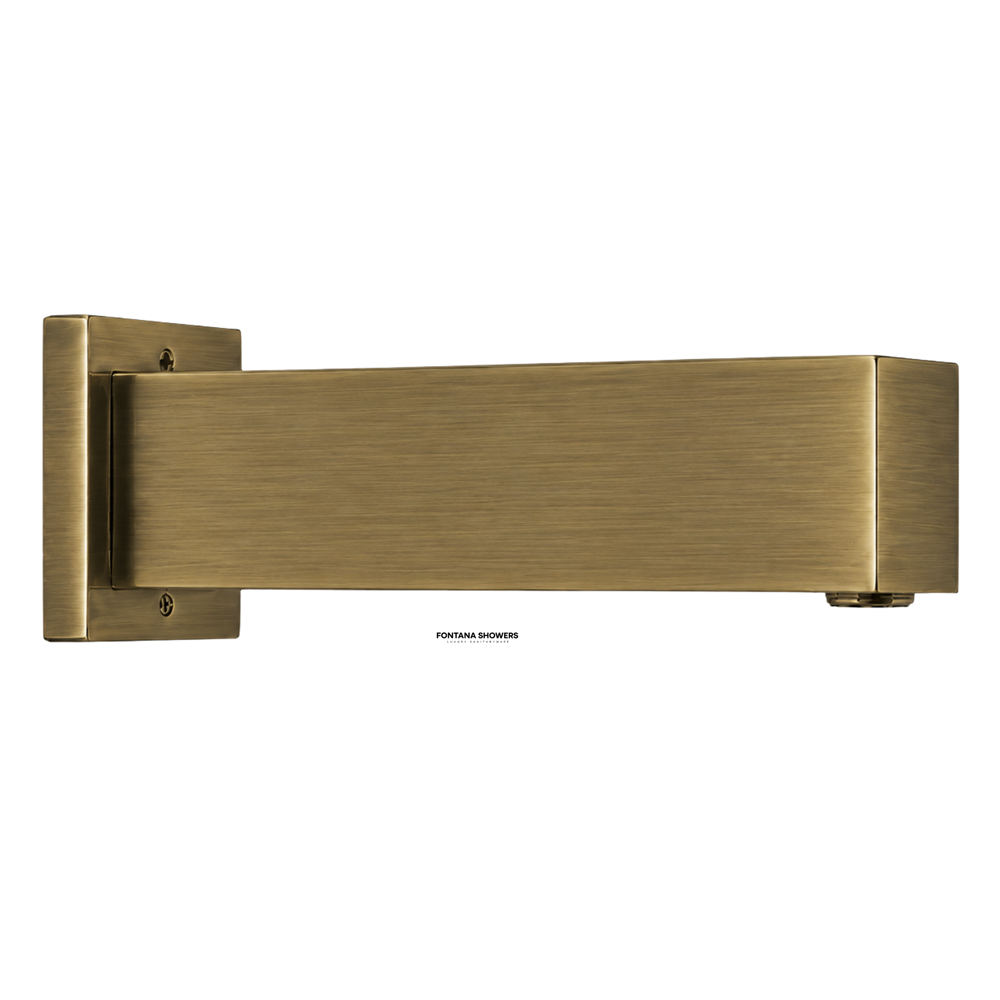

Antique Brass

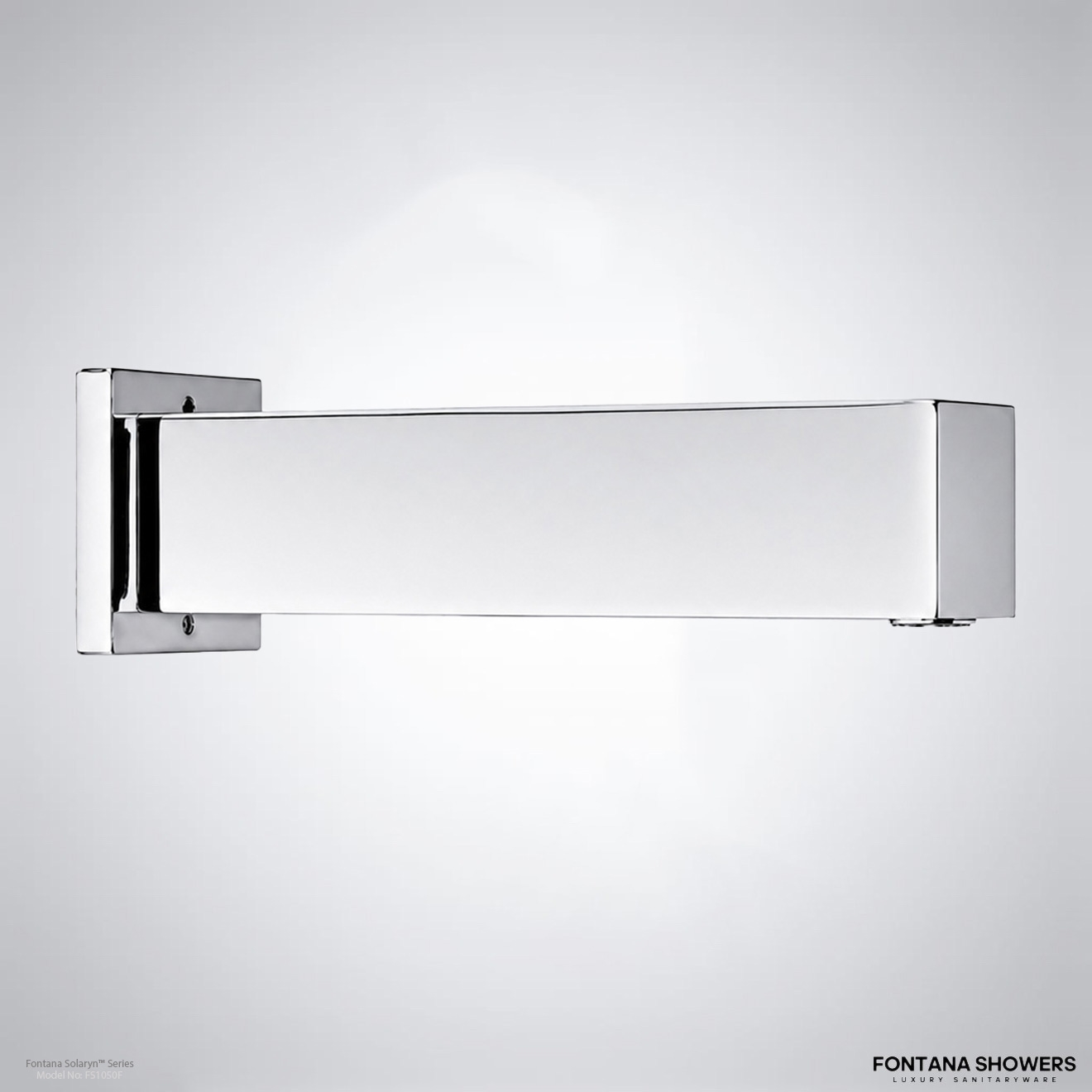

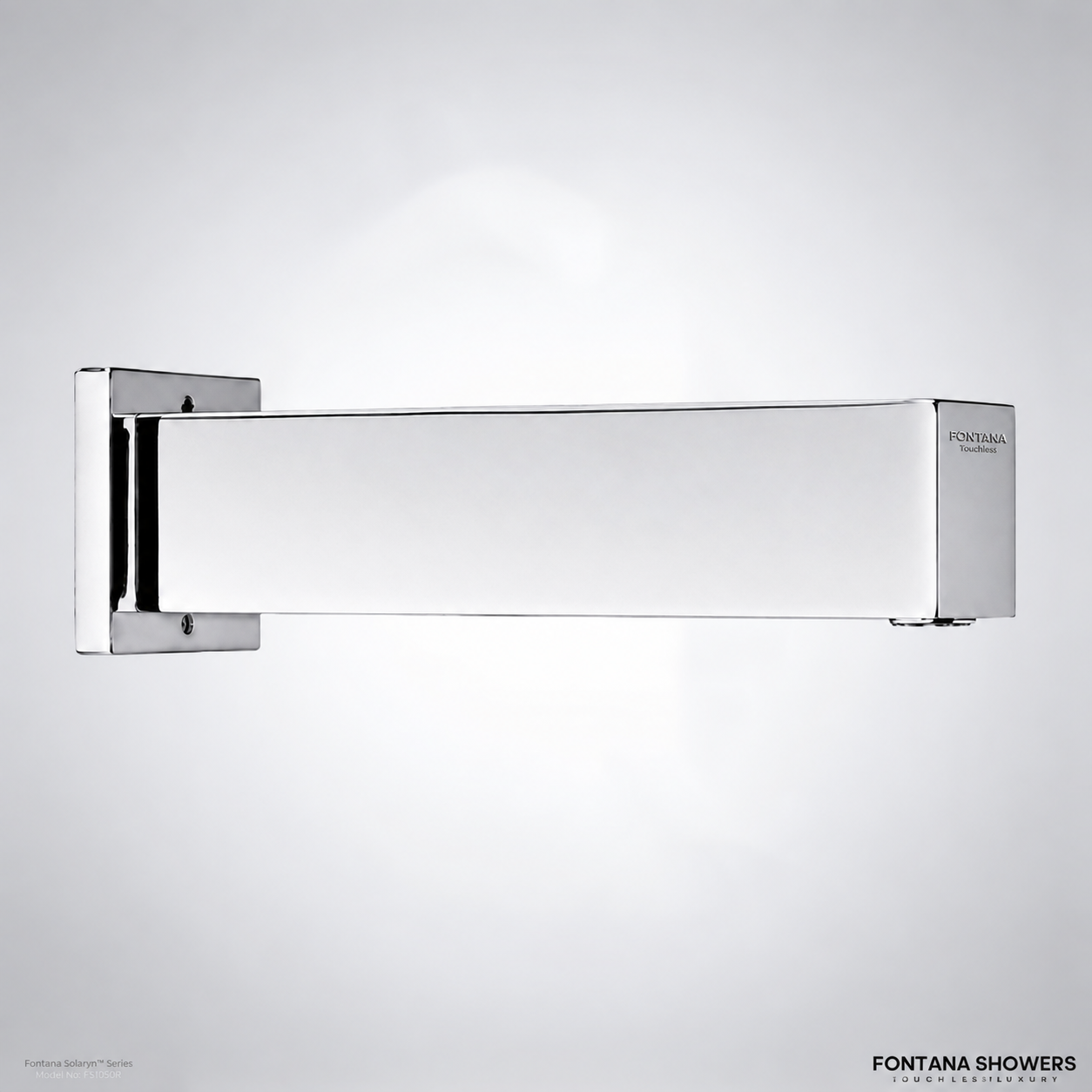

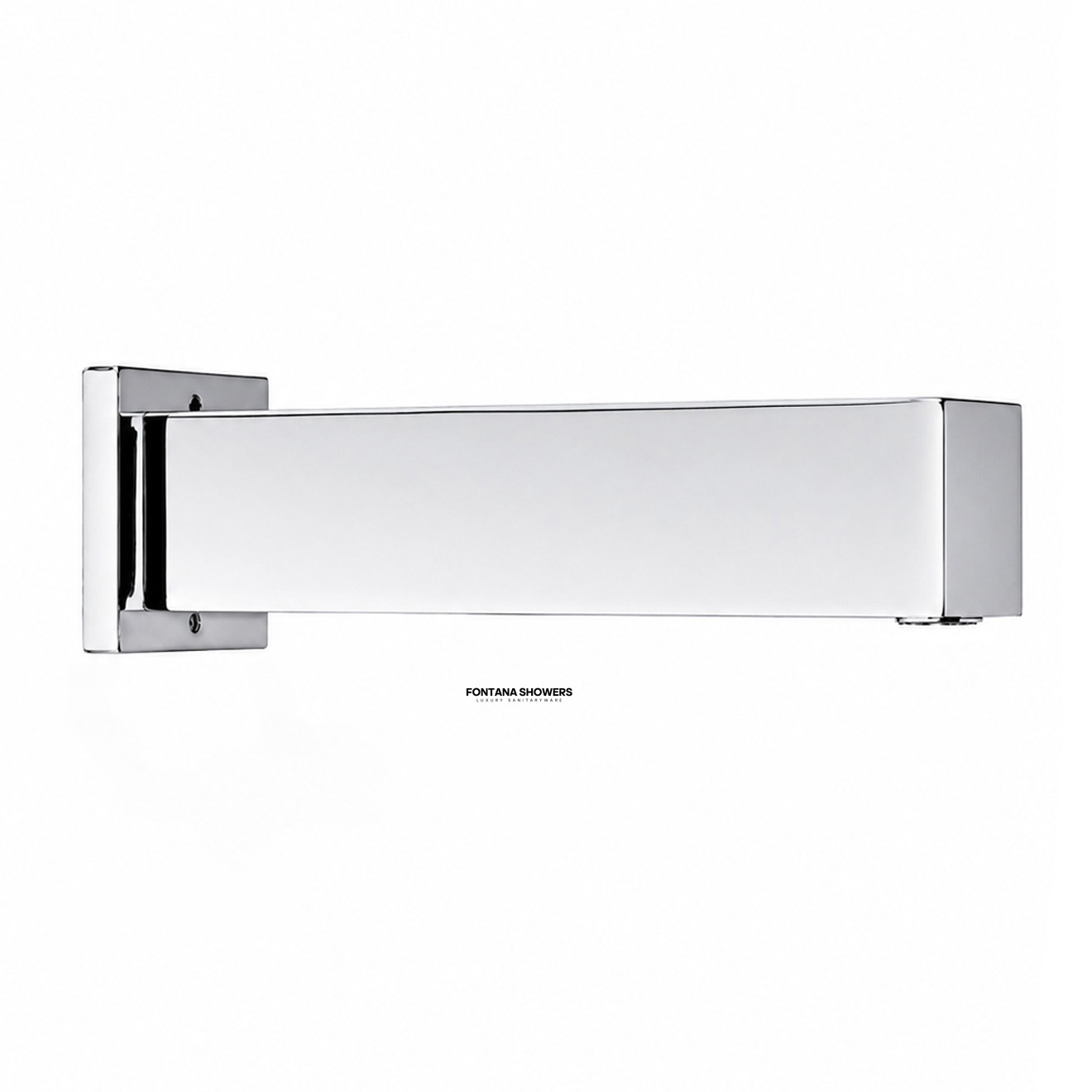

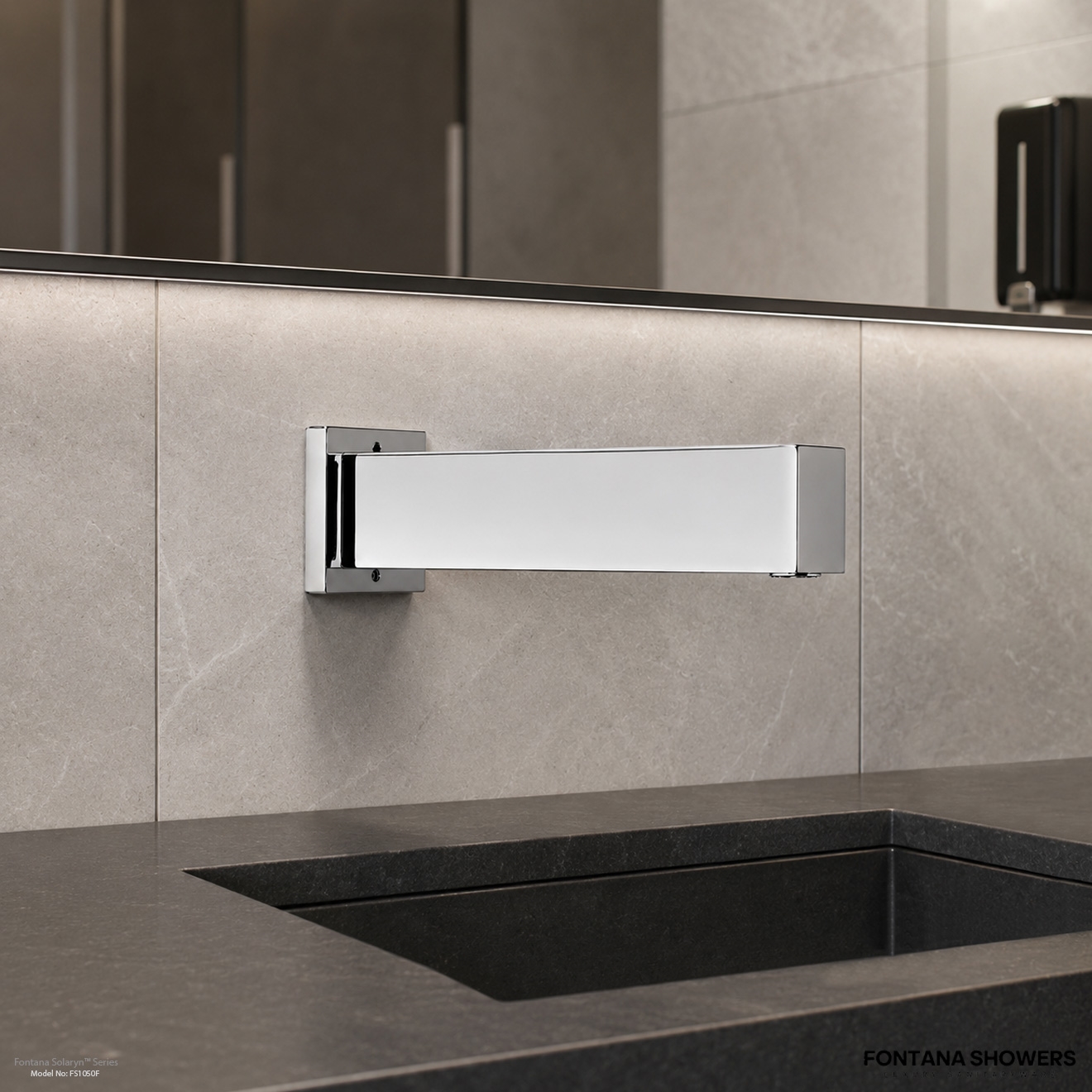

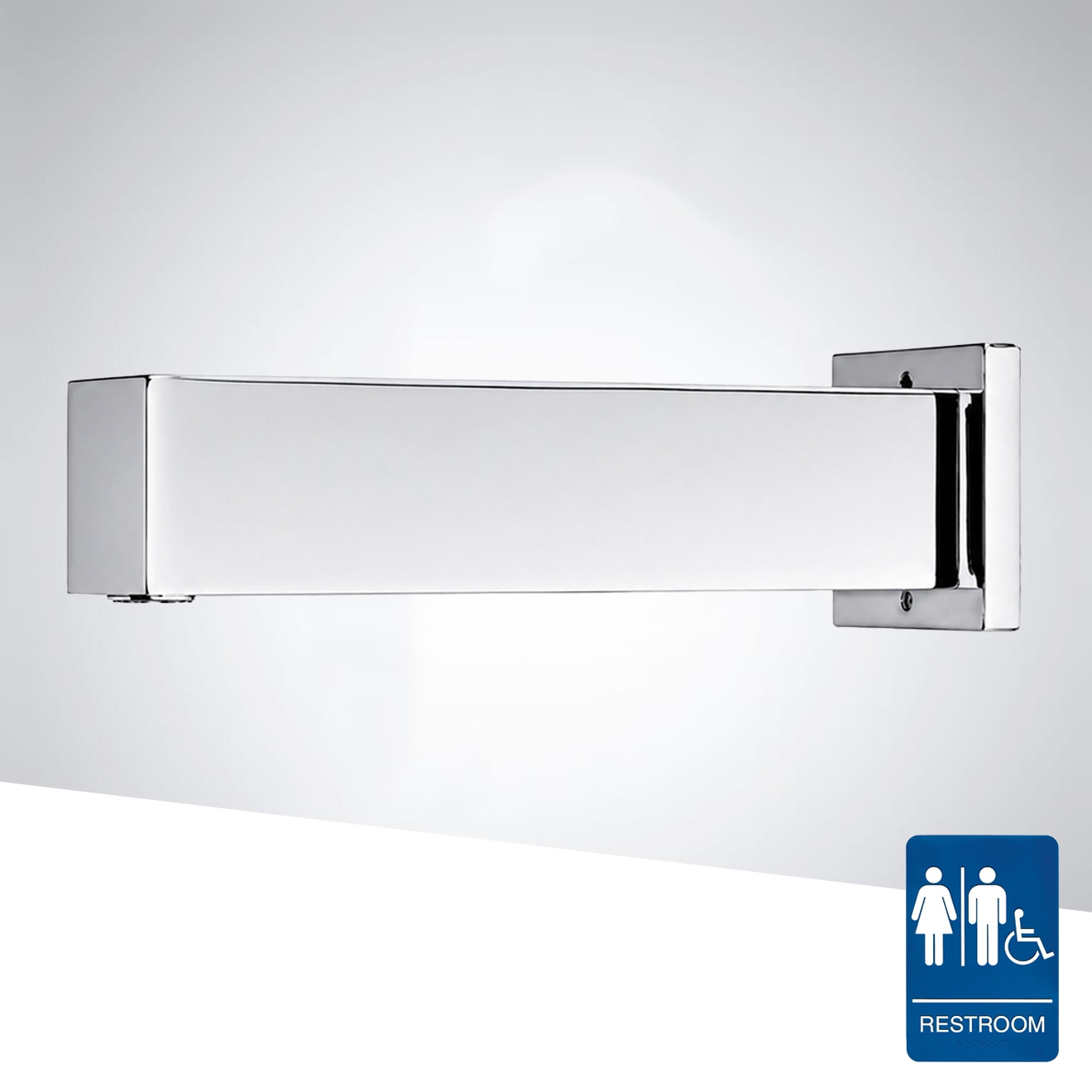

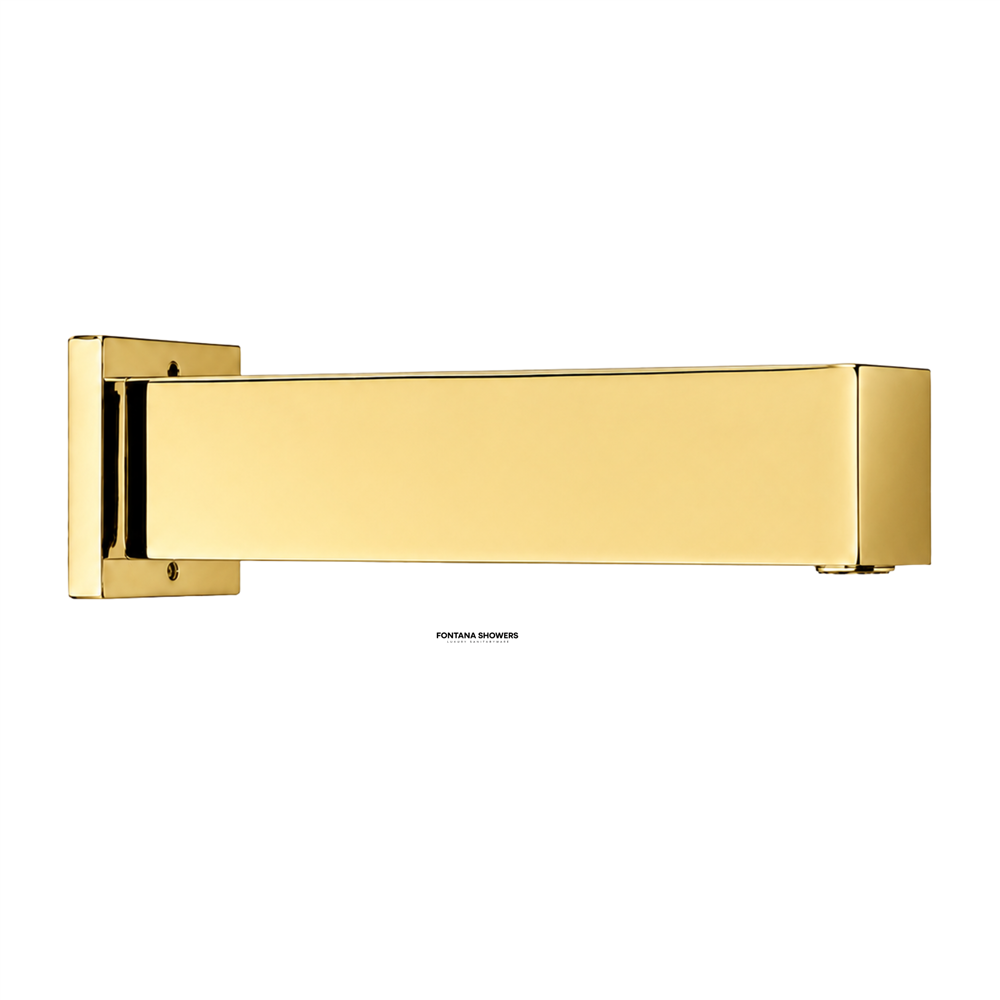

Fontana Wall Mounted Commercial Sensor Faucet

Fontana presents a wall-mounted commercial sensor faucet, which is designed for modern buildings, to provide a safe and reliable touch-free hydration system. Made of stainless steel, the product is resistant to corrosion, so it will last in places like airports, hospitals, restaurants, etc. The use of either direct-current or alternating-current power sources is very flexible, as they can be used according to the different electrical systems.

Standard G-one-half inlet and outlet ports make plumbing integration easier and compatibility with the common installation requirements is guaranteed. The open design helps in the installation process and allows technicians to access the faucet easily during setting up and maintenance work. Superior engineering, flexible sensing, low energy consumption, tough materials, and easy-to-use all these features together make a product that meets sanitation, sustainability, durability, and modern architecture expectations. Heavy-Duty Washroom Sensor Faucet; Built for demanding public spaces—impact resistance, anti-vandal protection, ADA compliance, fast sensor response, and dependable shutoff control.

FONTANA SOLARYN™ LINE

Fontana Solaryn Touchless Faucet FAQs

Commercial wall-mounted infrared touchless faucet with stainless-steel construction, exposed installation, self-adjusting sensing, dual AC/DC power capability, G1/2-inch plumbing connections, and commercial-duty automatic valve control.

✥ Sensor Commissioning Procedure? +

Complete sensor commissioning after the basin, wall finish, backsplash, mirror, and surrounding accessories are installed. The infrared sensor is self-adjusting. Confirm reliable hand detection throughout the intended wash zone and verify that reflective surfaces do not produce unintended activation.

◇ Hydraulic Checks During Installation? +

Flush the plumbing before final connection, verify the G1/2-inch inlet and outlet connections, inspect strainers and the internal water path for construction debris, and perform repeated activation cycles before placing the fixture into commercial service.

◯ Wall-Mount Installation Requirements? +

The Solaryn is designed for exposed wall-mounted installation. Coordinate the mounting position with basin geometry and provide unobstructed service access to the inlet connections, power module, sensor controls, strainers, and valve components for future maintenance.

↻ Continuous Water Flow Diagnostics? +

Clean the infrared sensor area and remove stationary or reflective objects from the detection field. Verify stable electrical power and inspect the solenoid valve and internal water path for sediment or incomplete seating if automatic shutoff becomes inconsistent.

⌁ Sensor Response and Detection? +

The faucet uses self-adjusting infrared sensing with an activation time of less than one second. Commission the fixture in its completed architectural environment and confirm consistent response under normal lighting and basin-reflectivity conditions.

⌂ Solenoid Valve Service Life? +

The commercial solenoid valve is specified for more than 500,000 operating cycles. During scheduled maintenance, verify complete opening and shutoff, inspect for sediment accumulation, and maintain clean inlet filtration to support reliable long-term operation.

⚡ AC and DC Power Options? +

The Solaryn supports DC 6V operation using four AA alkaline batteries and AC 110–220/240V, 50/60Hz power. Validate the specified power configuration during commissioning and maintain accessible, protected electrical components for future servicing.

⌕ Routine Commercial Maintenance? +

Periodically clean the sensor area, inspect plumbing connections and filtration, remove mineral deposits, and verify dependable valve shutoff. Clean decorative surfaces using a soft cloth and mild non-abrasive cleaner appropriate for the selected finish.

‹ ›

Chrome

Chrome Brushed Nickel Gold Brushed Gold Rose Gold Oil Rubbed Bronze Champagne Matte White Matte Black Gun Metal Gray Antique Brass

♧

< 1 Second Fast Activation

◇

Stainless Steel Durable Construction

⌁

Infrared Sensor Self-Adjusting Detection

⚙

AC / DC Power Flexible Installation

◇

Wall Mounted Exposed Commercial Design

• Brand Name: FontanaShowers®
• Type: Automatic Motion Faucet
• Model Number: FS1050
• Feature: Sensor Faucet
• Main Material: Stainless Steel
• Faucet Body Material: Stainless Steel
• Hygienic: Operates automatically and eliminates cross-contamination.
• Activation: Infrared sensor
• Sensor Range: Self-adjusting
• Activation time: < 1 second
• Flow Rate: 1-4.5ML/S
• Sensor life: 10000 times
• Solenoid Valve Life: Over 500000 flushes
• Battery life: 108000 flushes(4 x AA alkaline battery
• Inlet/outlet diameter: G-1/2″
• Power Supply: DC:6v(4 x AA alkaline battery) AC:110-220V-240v; 50/60Hz
• Installation feature: Exposed design; involves easy installation and is user friendly.
• Ambient temperature: 0~55°C

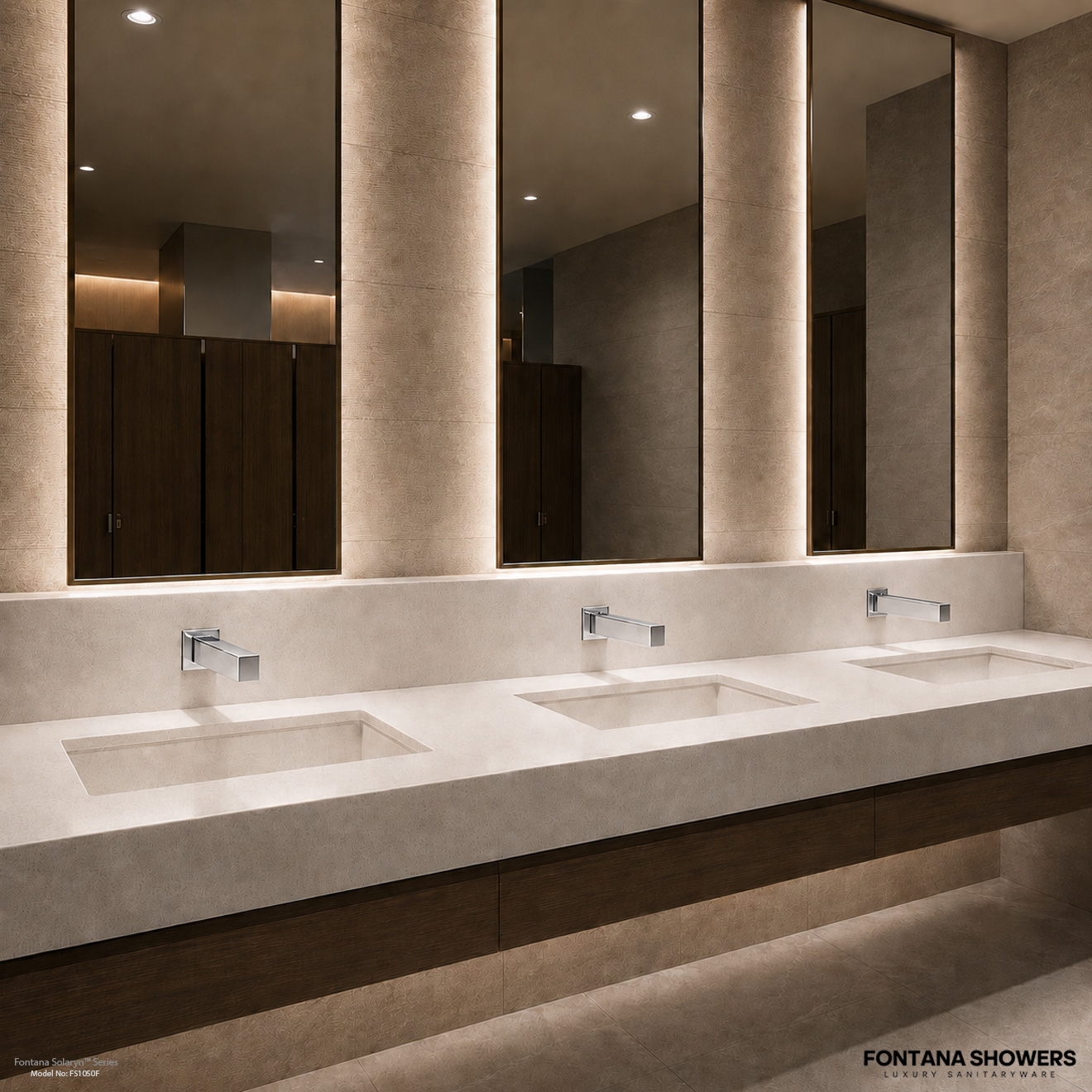

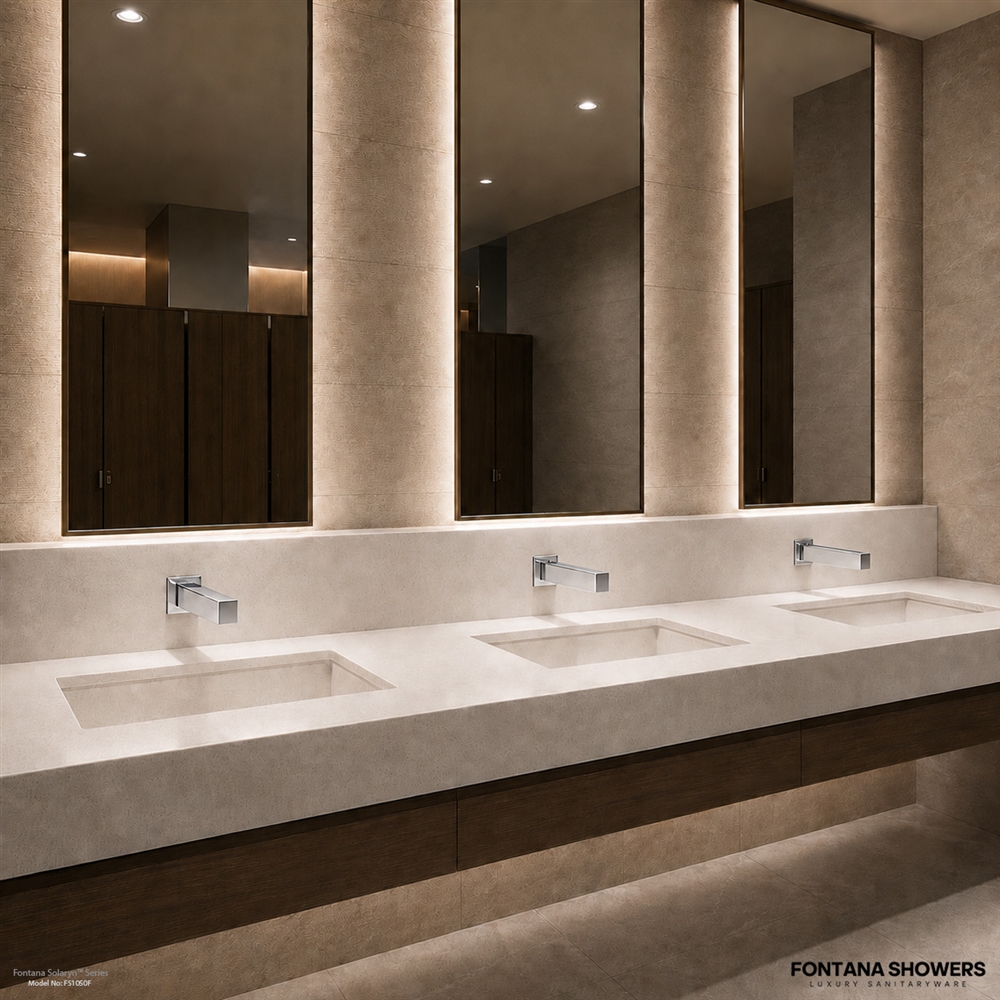

• Facilities: Commercial washrooms, such as airports, hotels, office buildings, shopping malls, schools, etc.
