Fontana Sellia Marina Chrome Touchless Faucet FAQ
Ceiling Suspension, Sensor-to-Spout Coordination & Widespread Hydraulic Routing

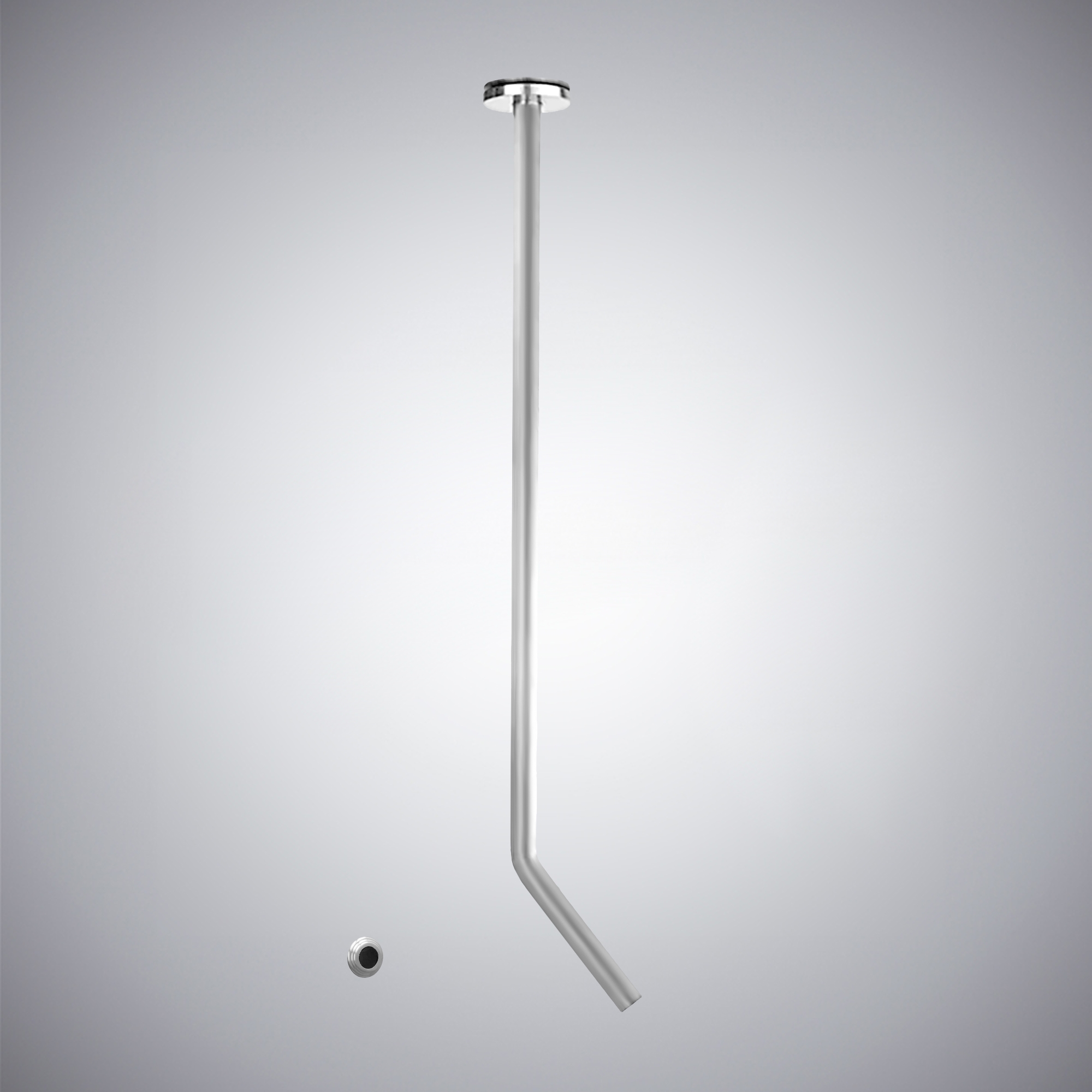

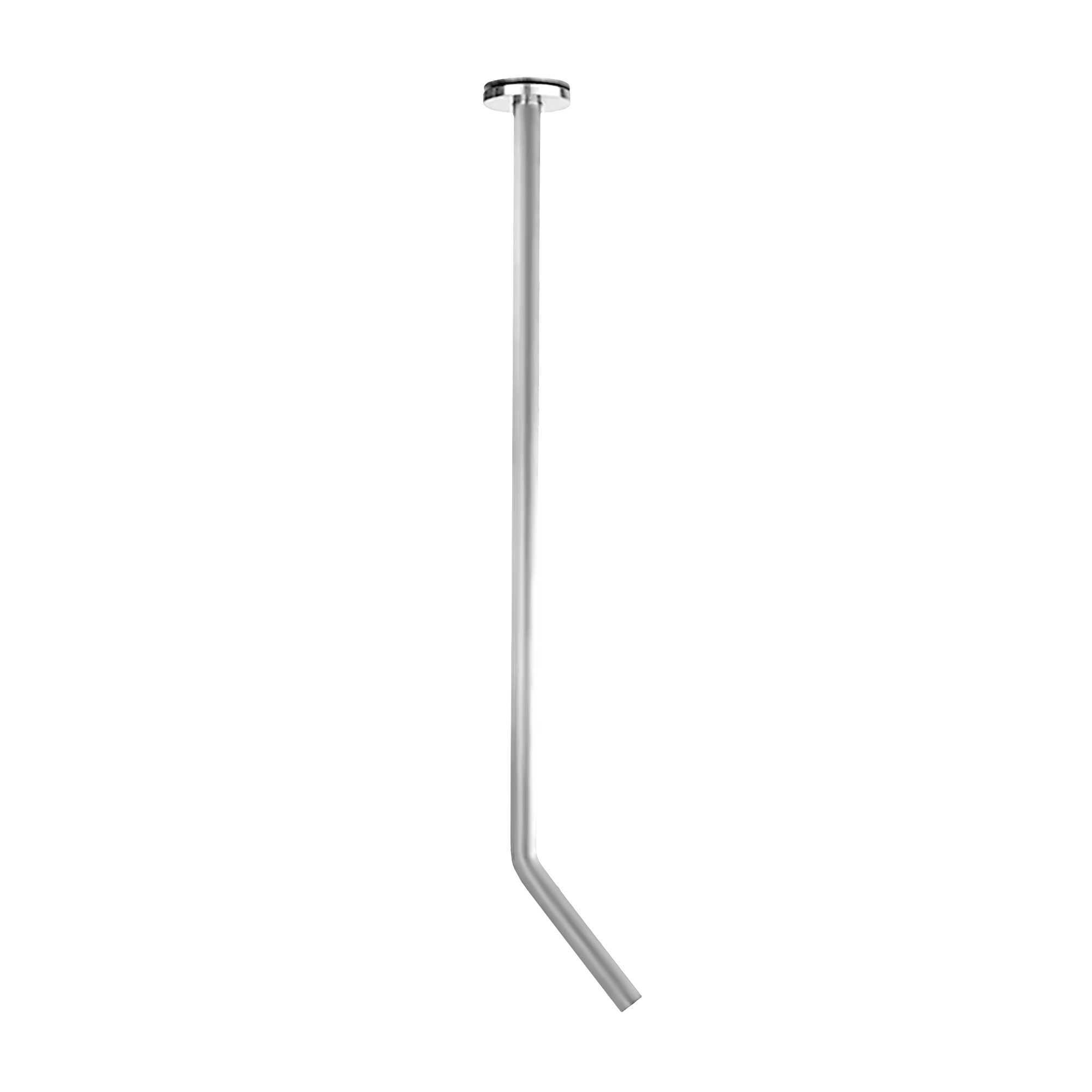

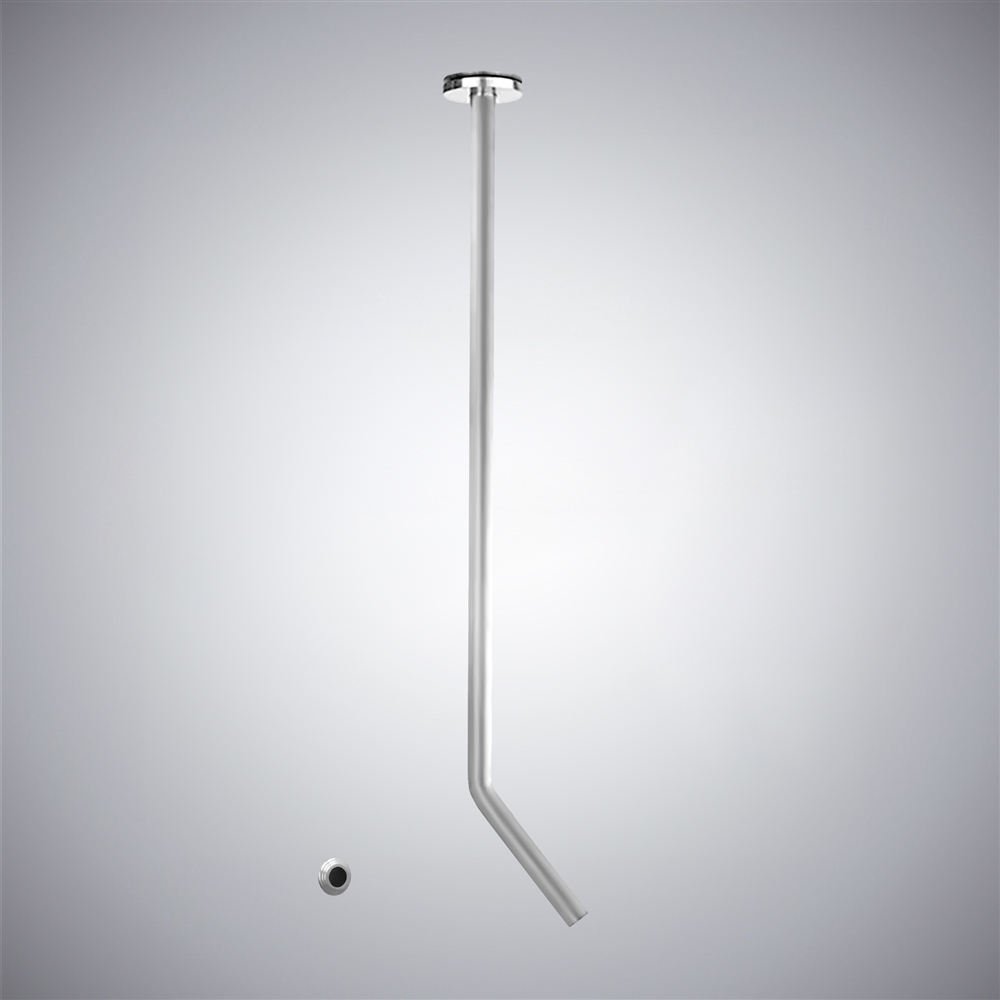

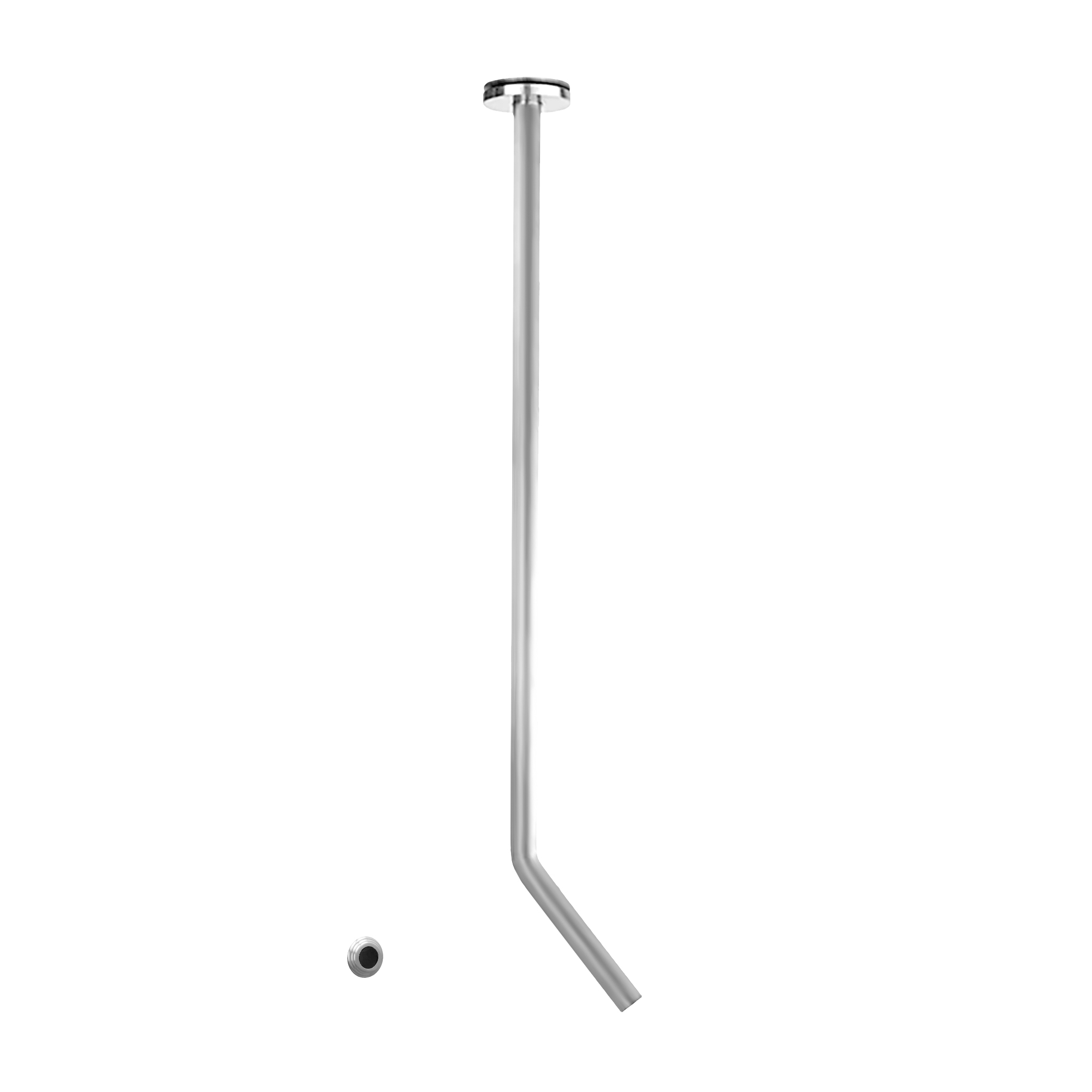

The Fontana Sellia Marina Chrome touchless faucet combines a ceiling-mounted
brass spout, separate wall-mounted sensor control, hot-and-cold water
operation, and an architectural widespread layout for premium hospitality,
commercial, and executive washroom installations.
How should the 62.99-inch suspended spout assembly be supported above the finished ceiling?
The G1/2 ceiling connection should terminate at rigid structural backing rather than relying on the finish panel. Independent bracing must control lateral movement across the 31.50-inch top, 23.62-inch middle, and 8.19-inch lower sections while maintaining the specified outlet angle.
Why must the wall-mounted sensor be aligned with the final discharge zone rather than only with the basin centerline?
The sensor should detect hands where the angled outlet actually delivers water. Commissioning against the completed basin geometry prevents delayed activation, excessive reach, and false triggering caused by nearby reflective wall finishes or countertop accessories.
What piping arrangement is recommended for the faucet's widespread hot-and-cold configuration?
Hot and cold branches should be balanced and routed to an accessible mixing or control assembly before the mixed supply rises to the ceiling outlet. Isolation stops and serviceable unions should remain reachable without removing the suspended spout.

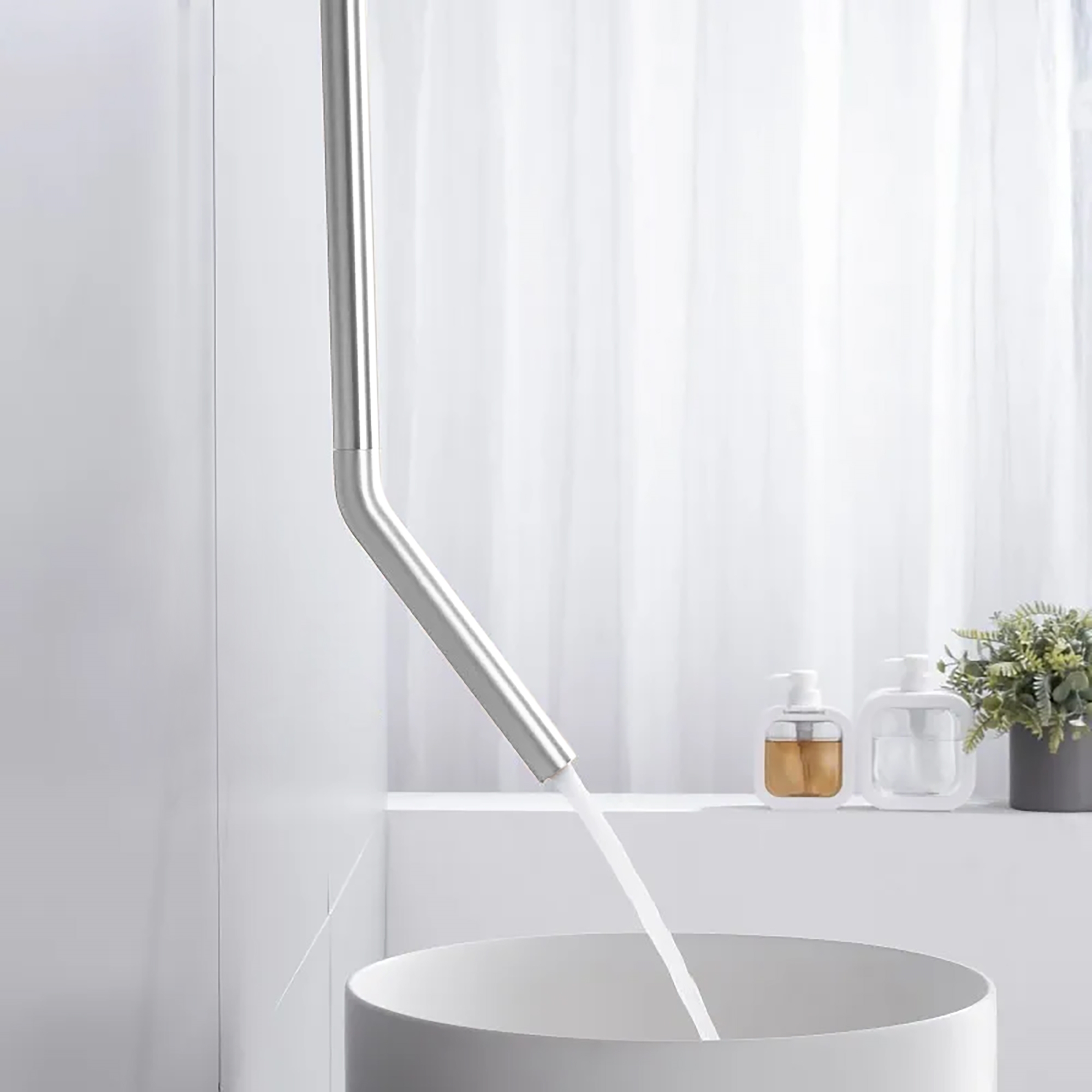

How should the 33-degree lower fitting be checked during final commissioning?
Confirm that the angled outlet directs the stream into the basin's primary capture area without striking the rim or rear wall. Repeated activation testing should also verify stable discharge, immediate shutoff, secure segment joints, and no vibration at the ceiling connection.
