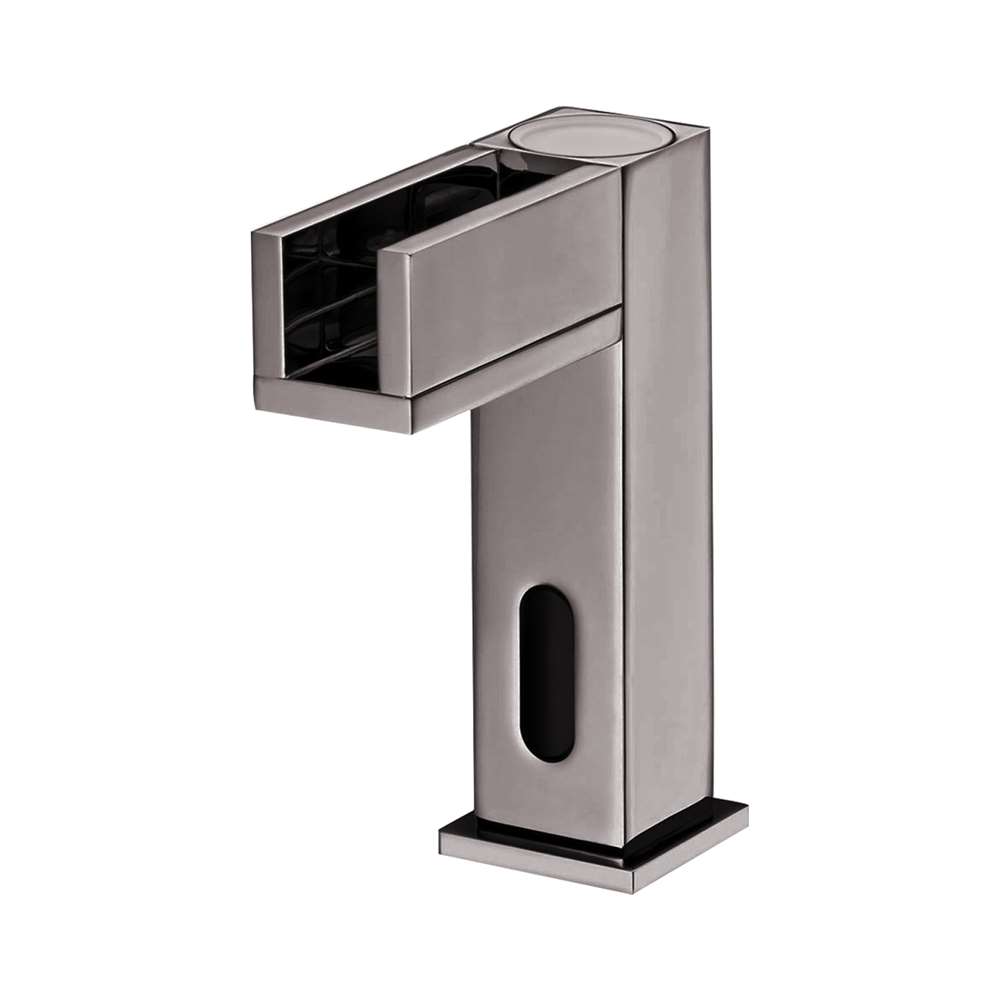

Brushed Nickel

Matte Black

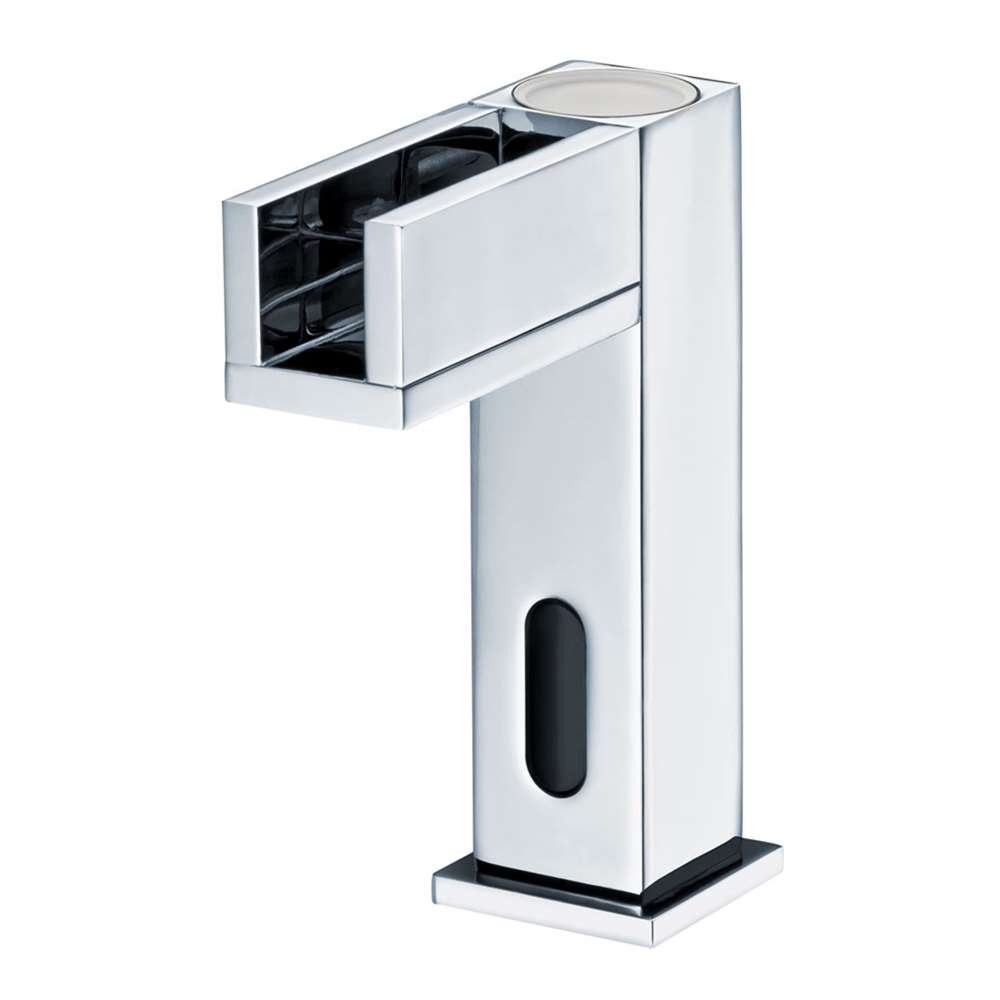

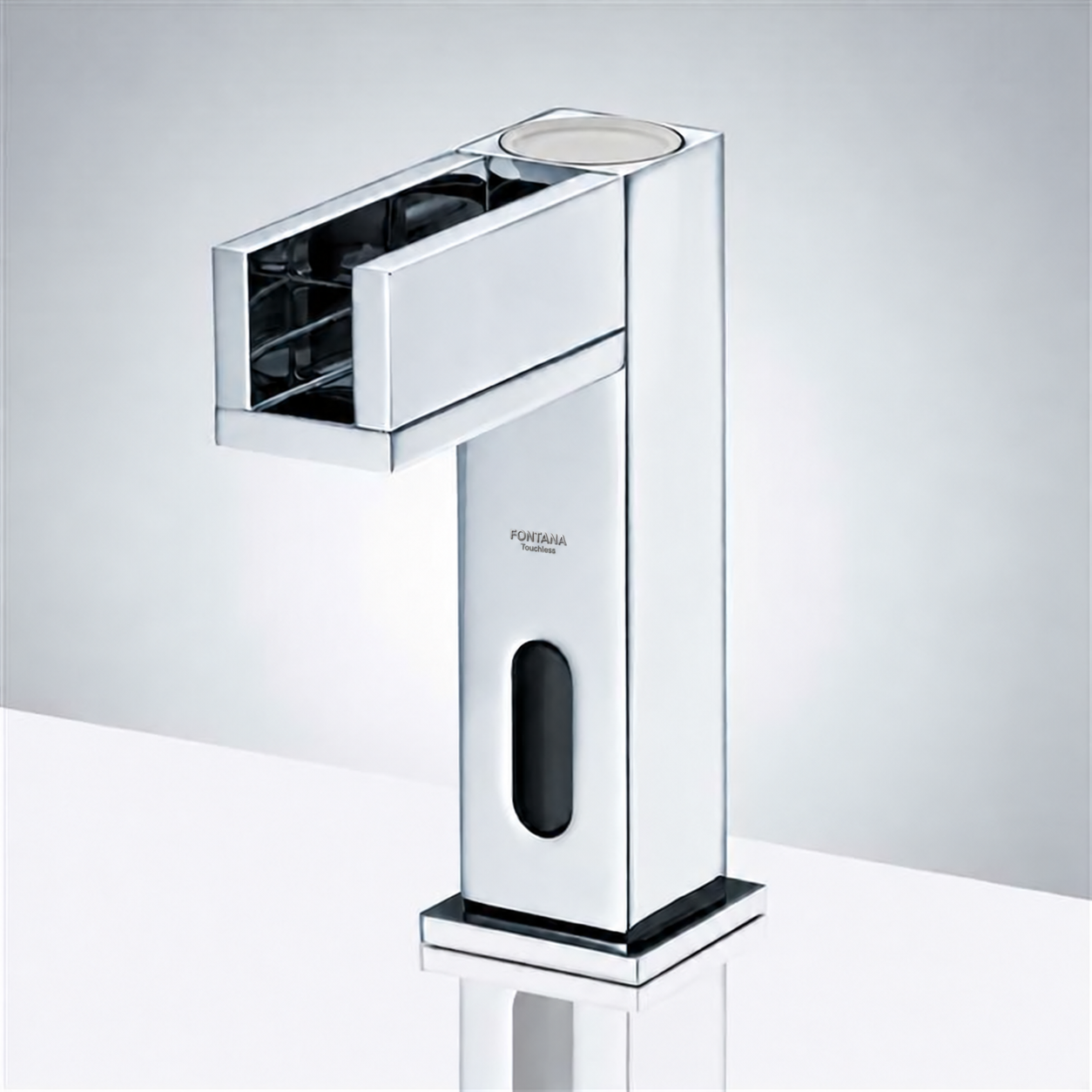

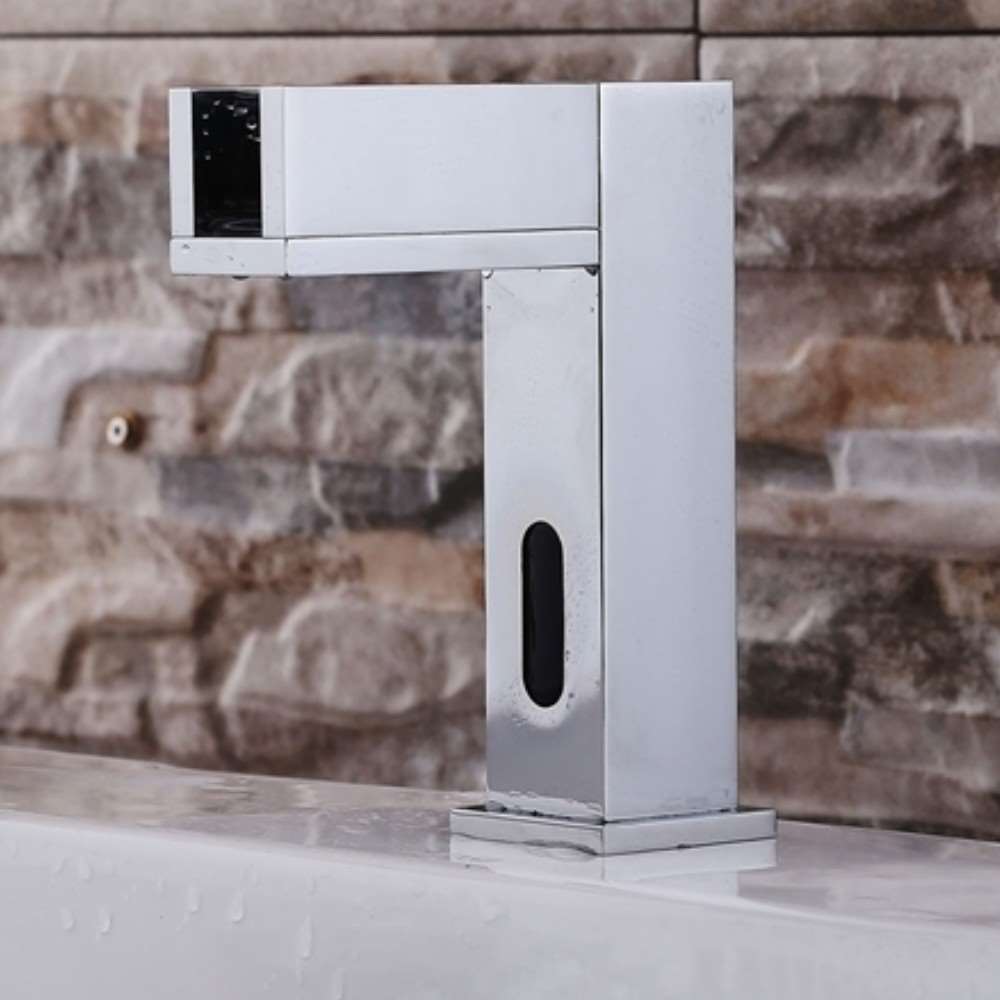

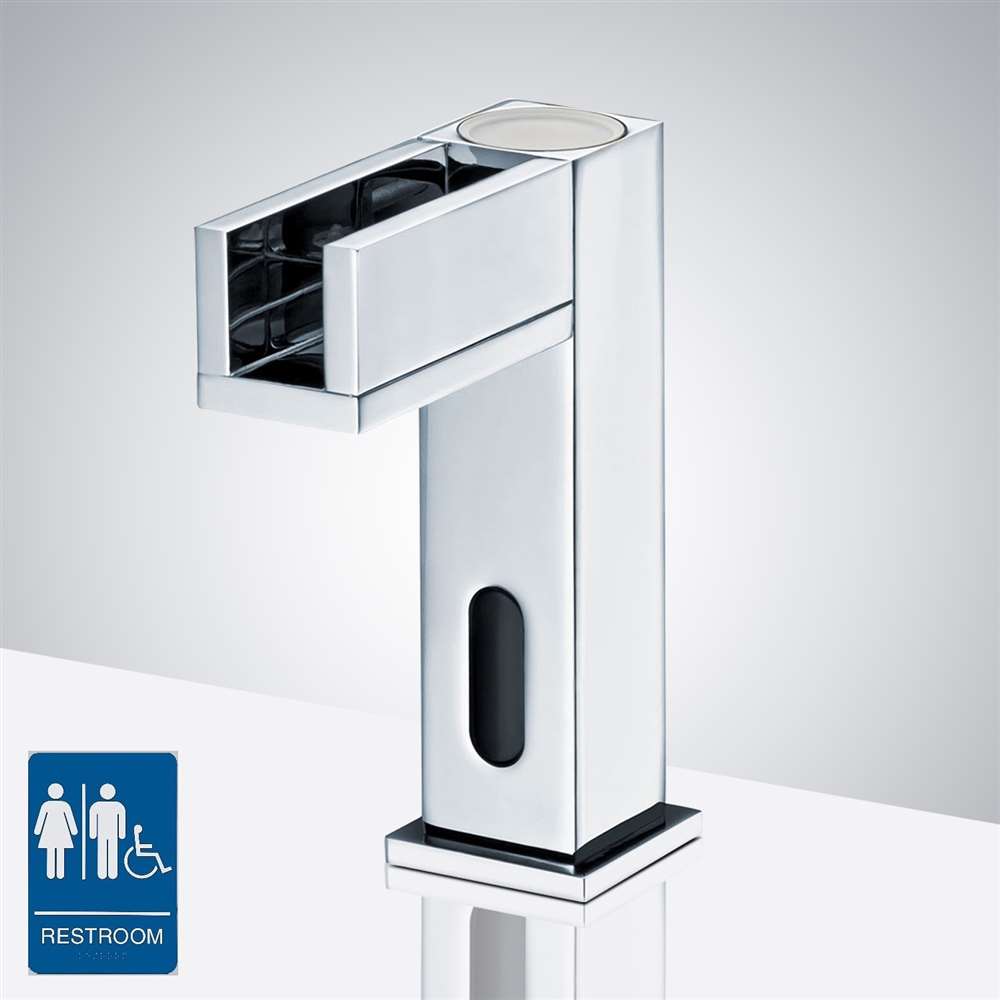

Fontana Contemporary Commercial Automatic Waterfall Sensor Faucet in Chrome

Touchless faucets provide a better user experience in commercial bathroom settings. Minimize waste of water, by using the automatic bathroom sink with no-touch faucets. Handel-operated faucets in public restrooms can be breeding grounds for germs and other bacteria while touch-free operation means that you can avoid the mess and spread of germs entirely.

This touchless faucet is not only hygienic but will immediately reduce water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, these faucets are preset to shut off after approximately 30 seconds. Just because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Uses 4AA Alkaline Batteries (purchase separately). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing. Designed to maintain sensing accuracy even in stainless steel or polished stone basin environments where reflective interference is common.

Fontana Contemporary Chrome Automatic Waterfall Sensor Faucet FAQ

Touchless Waterfall Activation, 30-Second Auto Shutoff; 10–125 PSI Operation & Chrome Surface Protection

The Fontana Contemporary Chrome Automatic Waterfall Sensor Faucet combines polished copper-brass construction with a ceramic valve core and hands-free motion sensing in a single-hole deck-mounted configuration. Designed for commercial washrooms, the faucet operates across a 10–125 PSI water-pressure range, uses four AA alkaline batteries, incorporates automatic shutoff after approximately 30 seconds, and delivers a contemporary open-spout waterfall stream.

How should the infrared waterfall sensor be commissioned after installation?

Complete sensor commissioning only after the basin, countertop, mirror, lighting, backsplash, and surrounding restroom accessories are fully installed. Keep the basin clear during initial calibration, then perform repeated hand-entry and withdrawal cycles from normal washing positions. Confirm reliable waterfall activation and complete automatic shutoff, especially where polished stone or stainless-steel surfaces may create reflective infrared interference.

How should the 10–125 PSI operating pressure range be verified?

Flush the supply piping before final connection and verify that dynamic pressure remains within the specified 10–125 PSI range while the faucet is operating. Perform repeated activation cycles and confirm that the waterfall sheet remains stable without pulsing or excessive splash. If flow becomes weak or irregular, inspect service valves, supply hoses, control-box passages, and the outlet for construction debris or restriction before replacing sensor or electronic components.

How should the approximately 30-second automatic shutoff be checked?

During final commissioning, maintain continuous sensor activation and verify that the faucet automatically terminates water flow after approximately 30 seconds. This safety function helps prevent unattended water use and excessive consumption in commercial restrooms. If shutoff timing becomes inconsistent, inspect sensor calibration, electrical connections, control-box operation, and the ceramic valve path separately before replacing major components.

How should the polished Chrome finish and waterfall outlet be maintained?

Clean the exposed polished Chrome surfaces with a soft damp microfiber cloth and dry them after cleaning to minimize fingerprints, soap film, water spots, and mineral residue. Keep the sensor area and open waterfall outlet free from deposits that could interfere with detection or distort the water sheet. Use diluted pH-neutral cleaner when necessary and avoid abrasive pads, steel wool, acidic descalers, bleach, ammonia, aggressive metal polish, and concentrated chemicals that may scratch or dull the finish.

Chrome

• Type: Basin Sensor Faucet
• Brand Name: FontanaShowers®
• Model Number: FS-BAO87612
• Surface Finish: Chrome
• Feature: Electric Faucets
• Surface Treatment: Polished
• Faucet Mount: Single Hole
• Installation Type: Deck Mount
• Number of Handle: Hands-free motion touchless sensor faucet
• Valve Core Material: Ceramic
• Faucet Name: Automatic Open Spout Waterfall Sensor Basin Mixer Tap for Bathroom
• Material: Copper 59-60%, Sensor Basin Mixer
• Faucet Type: Sensor Basin Mixer
• Faucet Style: Contemporary
• Usage: Commercial
• ADA Compliant
• Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.
