AQUAVIVACE™ CRYSTAL SERIES
Fontana AquaVivace Chrome Faucet FAQs

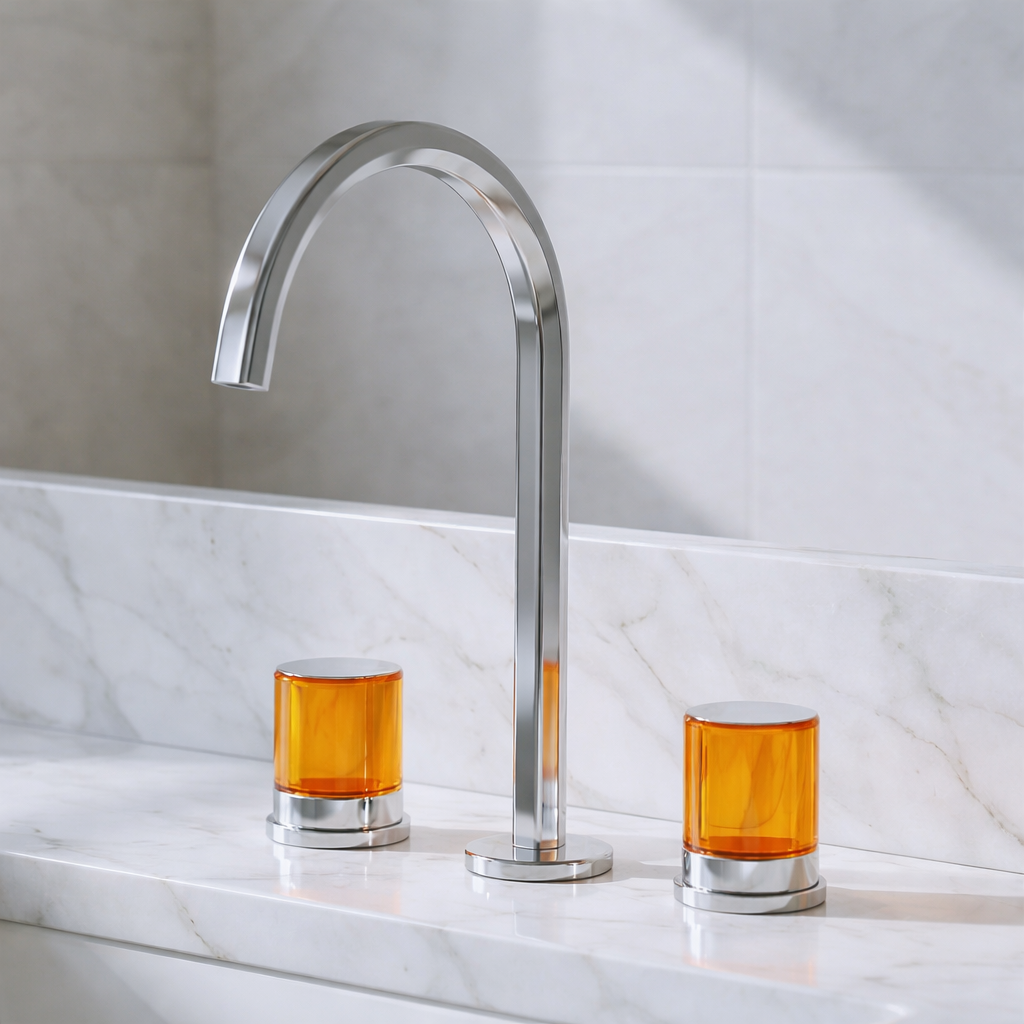

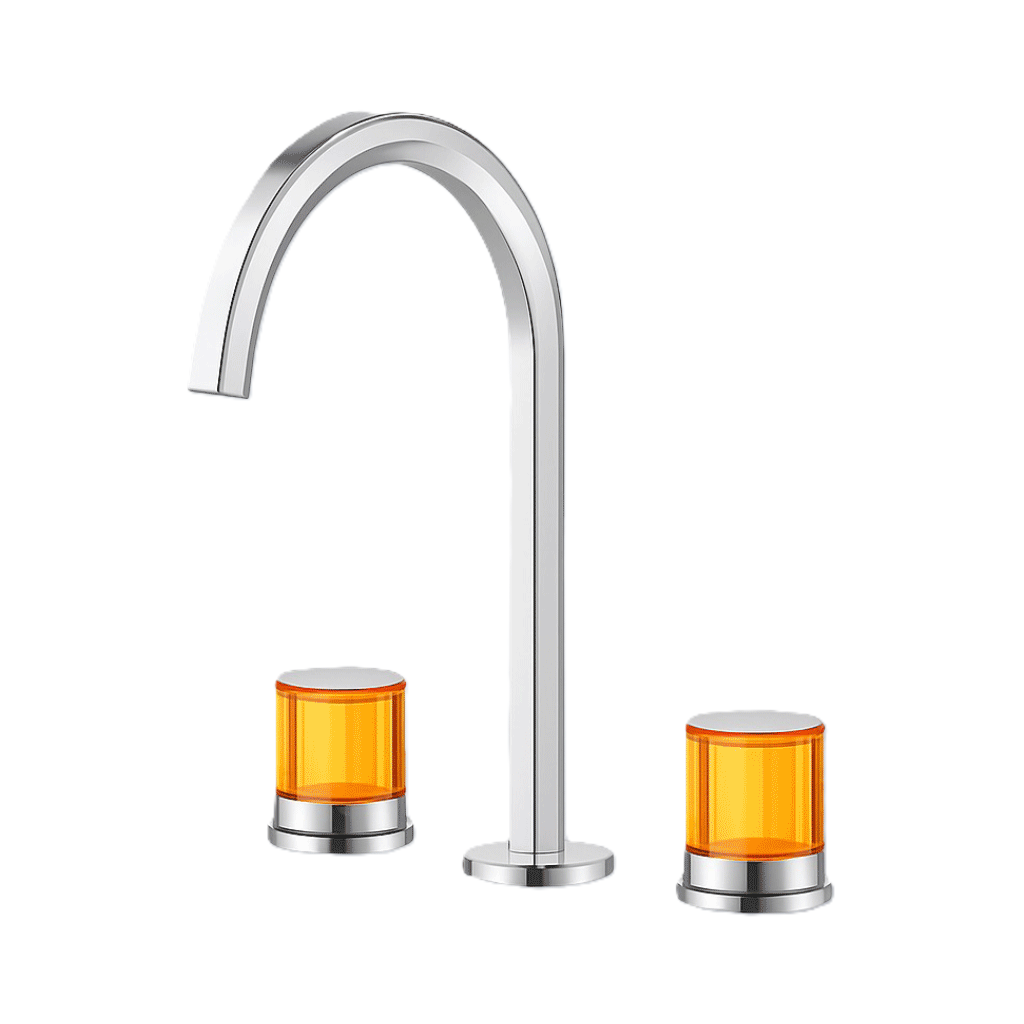

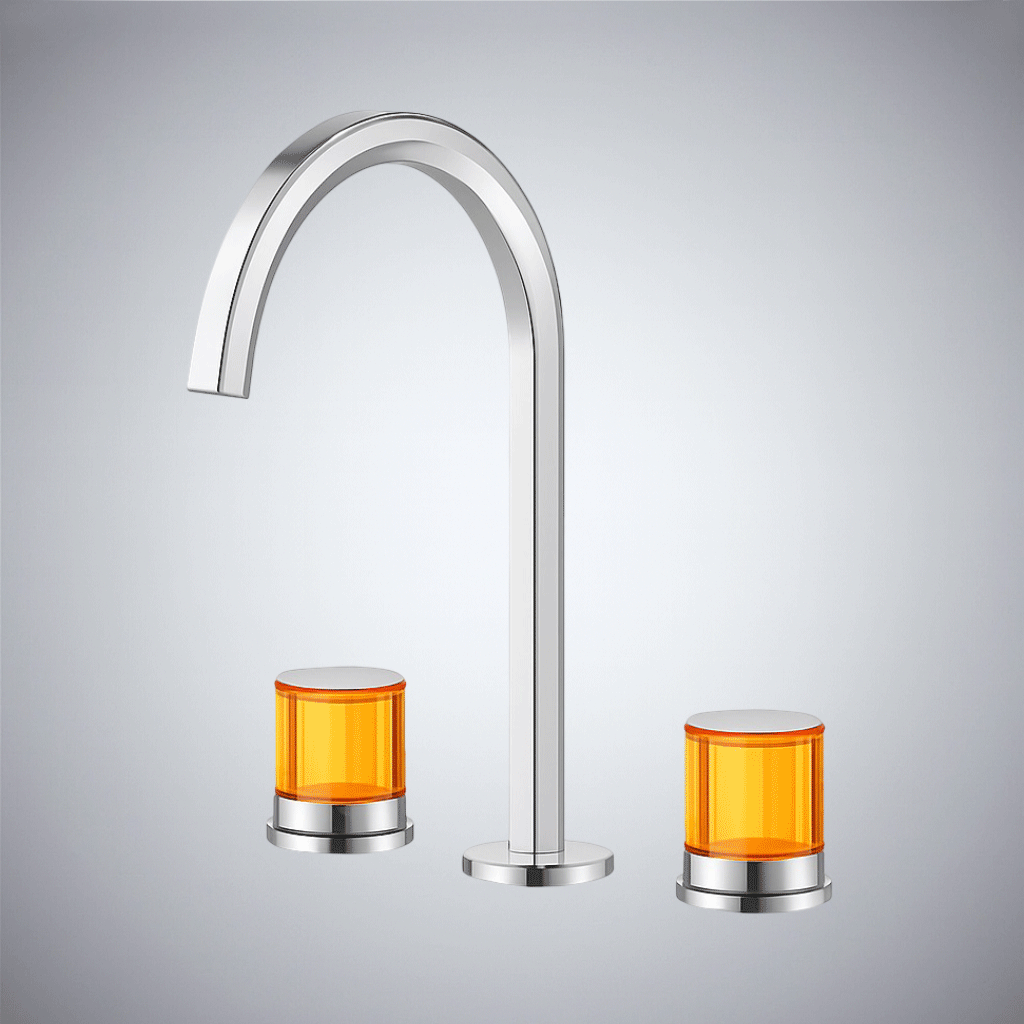

Chrome three-hole deck-mounted basin faucet with 304 stainless-steel body,
brass valve core, dual crystal handles, and hot/cold water control.
✥
What Is The Faucet Body Material?
+
The FS20020CH specification identifies a 304 stainless-steel
faucet body. This material provides corrosion resistance and
structural durability for repeated use in residential,
hospitality and commercial washroom installations.
◇
What Valve Core Material Is Used?
+
The AquaVivace uses a brass valve core. Flush the hot and
cold supply lines before final connection to reduce debris
entering the valve assembly and to support reliable sealing.
◯
What Installation Layout Is Required?
+
The faucet is designed for deck-mounted, three-hole
installation with a center spout and two independent
crystal-handle controls. Confirm deck drilling and
below-counter clearance before final fastening.
↻
What Is The Cartridge Cycle Rating?
+
The published cartridge lifetime is 500,000 open-and-close
cycles. Correct supply flushing, stable pressure and routine
inspection help protect the internal valve mechanism over
long-term operation.
⌁
What Water-Pressure Test Is Specified?
+
The product specification lists water-pressure testing at
1.6 MPa. This is a factory test value and should not be
interpreted as the required operating pressure for the
installed plumbing system.
⌂
What Air-Pressure Test Is Specified?
+
The AquaVivace specification lists air-pressure testing at
0.6 MPa. Final site commissioning should still include
inspection of all supply connections and accessible joints
for leakage after installation.
⚙
How Do The Dual Crystal Handles Operate?
+
Two color-crystal handles provide independent hot and cold
control. Verify correct supply orientation, smooth handle
rotation and balanced mixed-water response during startup.
⌕
What Should Be Checked During Commissioning?
+
Flush both supply lines, confirm hot and cold orientation,
inspect all below-deck connections for leakage, verify smooth
valve operation and check that both handles provide positive
shutoff throughout their operating range.
‹
›
