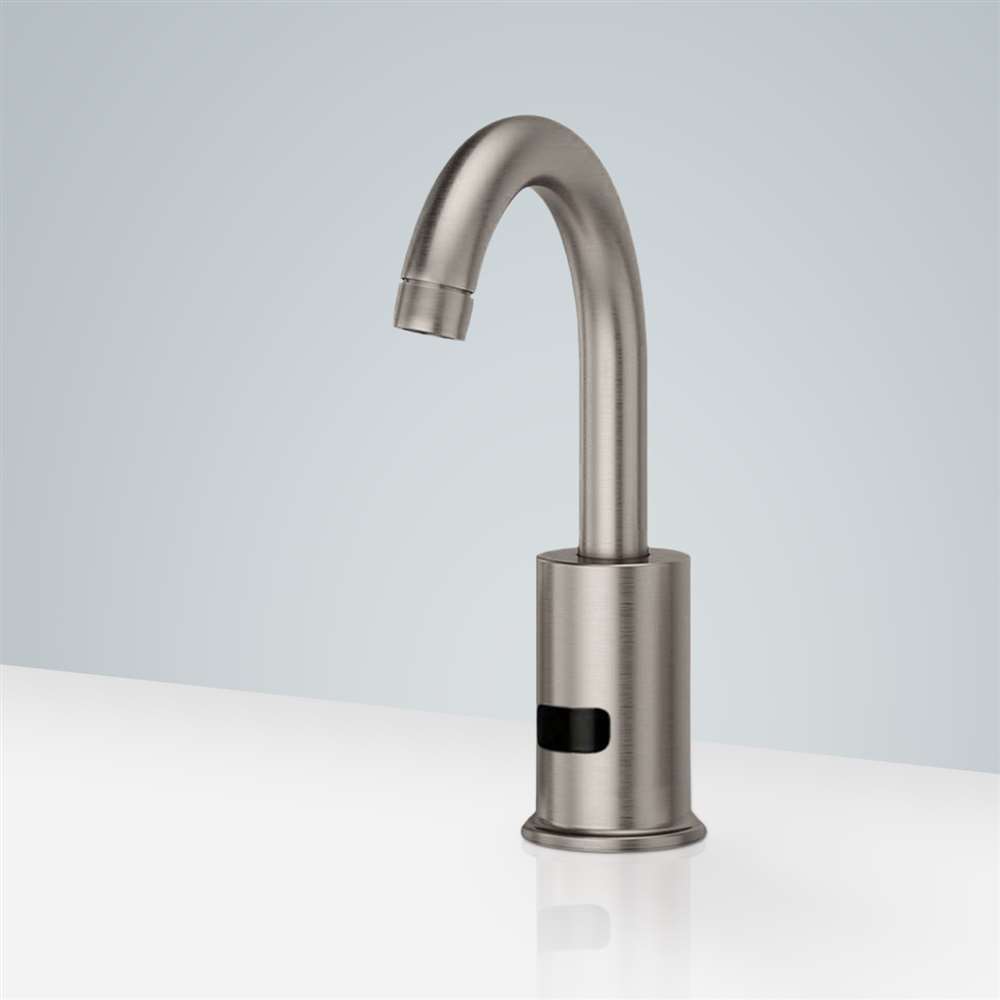

This Fontana commercial faucet combines performance and style, it has a Brushed Nickel finish which sets your restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. This Fontana Commercial Brushed Nickel Touchless Automatic Sensor Faucet is compatible with all standard US plumbing.
The faucet can be used in commercial locations, is ADA Compliant, comes with 5-year warranty. This cast brass electronic faucet in reducing the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Automatic fixture for transportation infrastructure projects, incorporating zero-false-trigger logic, rugged construction, and extended lifecycle components.
Fontana Commercial Brushed Nickel Touchless Automatic Sensor Faucet FAQ
16–32 cm Adjustable Detection, 4.92-Inch Reach;
AC/DC Power & 500,000-Cycle Valve Control
The Fontana FS1327-S-C combines adjustable infrared sensing,
brass construction, AC/DC power, and compact commercial
single-hole deck mounting.
Which basin dimensions best suit the 4.92-inch spout projection?
Coordinate the 4.92-inch reach and 3.93-inch outlet height with the
completed basin before drilling the deck. The discharge should land
within the primary hand-washing zone without striking the bowl wall.
Shallow or compact basins should be tested under actual flow conditions
to confirm acceptable splash control.
What determines the final setting within the 16–32 cm sensor field?
Final sensor adjustment depends on the installed basin, countertop,
mirror, lighting, and surrounding reflective surfaces. Use the shortest
detection distance that consistently recognizes normal hand entry
without responding to the bowl, drain, backsplash, or nearby objects
outside the intended washing zone.
Why is the 33–35 mm mounting opening important during countertop coordination?
The specified mounting opening allows the faucet shank, sensor cable,
water connection, washers, and locking hardware to pass through the
deck correctly. Confirm the 33–35 mm opening before fabrication and
preserve enough underside clearance for the control box, G1/2-inch
plumbing, power components, and future maintenance.
When should the motor valve and dual-power system be performance-tested?
Test both AC and DC operation during final commissioning and complete
repeated activation cycles. Opening should occur in less than
approximately one second and closure within about two seconds.
The motor valve is rated for up to 500,000 cycles, while the battery
system is rated for approximately 100,000 cycles.
