How should the 125 mm spout reach be coordinated with the basin geometry?

Position the faucet so the discharge lands near the basin's primary drainage zone rather than against the rear wall or front slope. Verify the 125 mm projection against the rim width, drain location, basin depth, and countertop setback to minimize splash and standing water.

Why must the 100 mm spout clearance be checked before finalizing the lavatory specification?

The 100 mm outlet height influences hand clearance, splash containment, and sensor-field interaction. Confirm that users can wash comfortably without contacting the basin while ensuring the water stream does not gain excessive impact velocity before reaching the bowl.

How should the single-hole brass faucet be stabilized on thin commercial countertops?

Use appropriate underside reinforcement where the deck material lacks sufficient rigidity. Tighten the mounting assembly evenly so the brass body remains rotationally stable without crushing the countertop, distorting the mounting surface, or imposing stress on the connected supply tubing.

What hydraulic checks are required across the 0.05–0.8 MPa operating range?

Record static and flowing pressure, then verify prompt activation, stable discharge, and complete shutoff. At higher pressure, inspect for excessive splash, acoustic noise, and water hammer; at lower pressure, confirm that the automatic valve still opens consistently and produces a usable stream.

How should the six-liter water-saving performance be verified after installation?

Capture and measure discharge during several representative activation cycles under normal building pressure. Document cycle duration, average delivered volume, stream consistency, and drainage behavior so facility teams have a baseline for identifying future flow restriction or abnormal consumption.

How should the optional hot-and-cold mixer be balanced for this touchless faucet?

Confirm correct hot and cold inlet orientation, establish the target mixed-water temperature under flow, and test while adjacent fixtures operate. Pressure imbalance should be corrected before handover because it can cause unstable outlet temperature despite consistent sensor activation.

What maintenance method protects the brushed-nickel texture and infrared window?

Clean with a soft cloth and diluted pH-neutral solution, working with the direction of the brushed grain, then rinse and dry. Avoid abrasive pads, acidic scale removers, chlorine concentrates, polishing compounds, and waxes that can alter the surface or reduce sensor-window clarity.

Which acceptance tests confirm readiness for high-traffic commercial restroom use?

Verify deck rigidity, accurate stream placement, repeatable hands-free activation, stable operation at measured dynamic pressure, complete automatic shutoff, leak-free standard US plumbing connections, mixed-water stability where fitted, ADA usability, and consistent performance through repeated activation cycles.

Fontana Commercial Brushed Nickel Touch less Automatic Sensor Hands Free Faucet at FontanaShowers.com

Fontana LAquila Brushed Nickel Touch less Automatic Sensor Hands Free Faucet

Fontana Commercial Brushed Nickel Touch less Automatic Sensor Hands Free Faucet

Alternative Views:

Retail Price: $737.09

Sale Price: $727.48

Savings: $9.61

Sale Price: $727.48

Availability: Usually Ships in 2 to 3 Weeks

Product Code: FS-1096BN

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Chrome

Brushed Nickel

Gold

Oil Rubbed Bronze

Matte Black

Matte Brushed Nickel

Bright Brushed Nickel

White

Titanium Gold

Zirconium Gold

Bright Brushed Gold

Matte Brushed Gold

Brushed Copper

Brushed Warm Bronze

Rose Gold

Brushed Rose Gold

Gun Grey

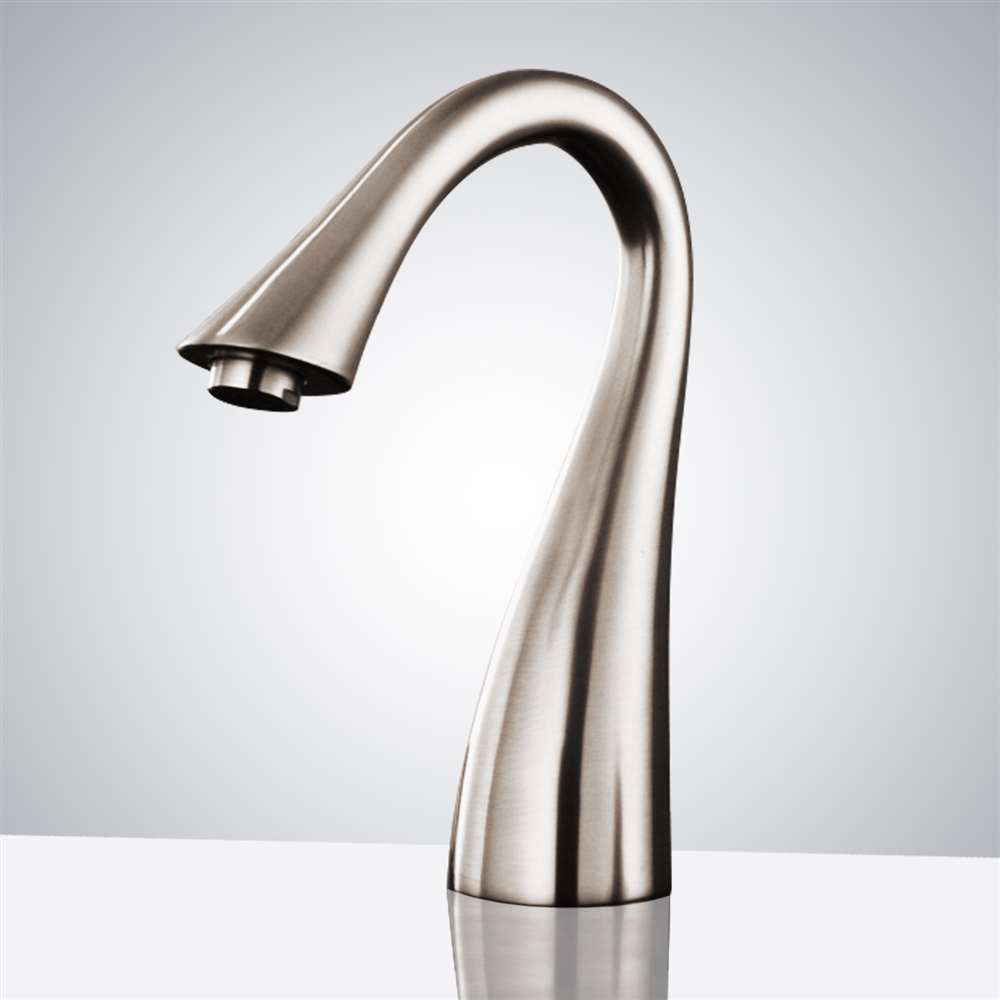

Fontana Commercial Brushed Nickel Touch-less Automatic Sensor Hands-Free Faucet

No Touch Volume Sensor faucet in a class of its own. It has a nickel finish which sets your restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. This Fontana Commercial Brushed Nickel Touchless Automatic Sensor Hands Free Faucet is compatible with all standard US plumbing.

Brand Name: FontanaShowers®
Model Number: FS-1095BN
Type: Motion Sensor Sink Faucet
Style: Contemporary
Finish: Brushed Nickel
Faucet Mount: Single Hole
Faucets height: 6.69" (170mm)
Spout length: 4.92" (125mm)
Spout height: 3.93" (100mm)
Installation Type: Deck Mount
Material: Brass
Water Pressure: 0.05Mpa-0.8Mpa
Water Saving: Volume 6L Each Time
Usage: Commercial restrooms including high traffic bathroom facilities
Hands-free operation is ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

Features

Browse Featured Selections

Touchless Faucet and Soap Dispenser

Oil Rubbed Bronze Touchless Faucet

Dual Touchless Faucet & Soap Dispenser

Explore Our Catalogs Browse Our Project List Architectural Firms /Clients

Average Rating: Average Rating: 5 of 5

5 of 5 Total Reviews: 2 Write a review »

5 of 5 people found the following review helpful:

Excellent hygiene	February 10, 2023
Reviewer: HWKN Architects from Hinesville, GA

These touchless faucets are incredibly convenient. With a simple wave of our hand, the water starts flowing automatically, eliminating the need to touch any handles or buttons. This not only saves time but also promotes excellent hygiene by reducing the spread of germs. We no longer have to worry about touching a potentially contaminated faucet surface, especially when our hands are dirty or soapy.
