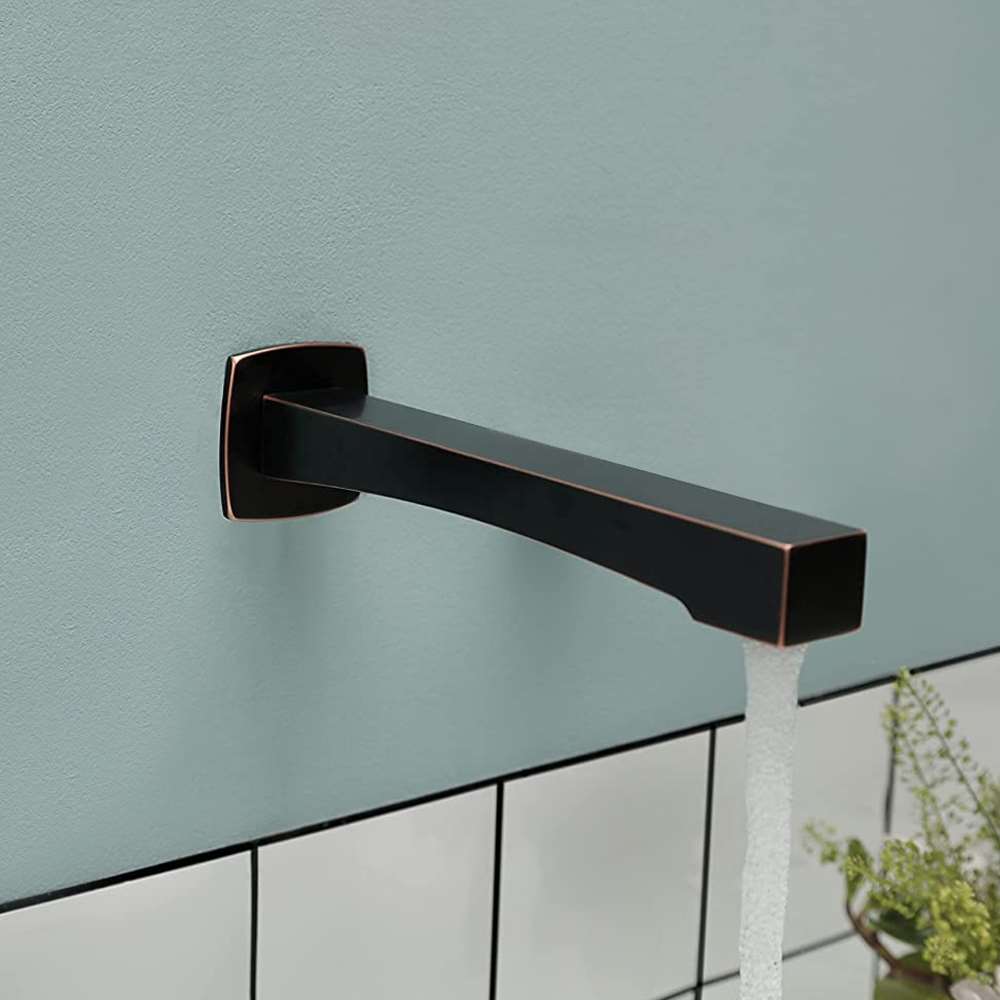

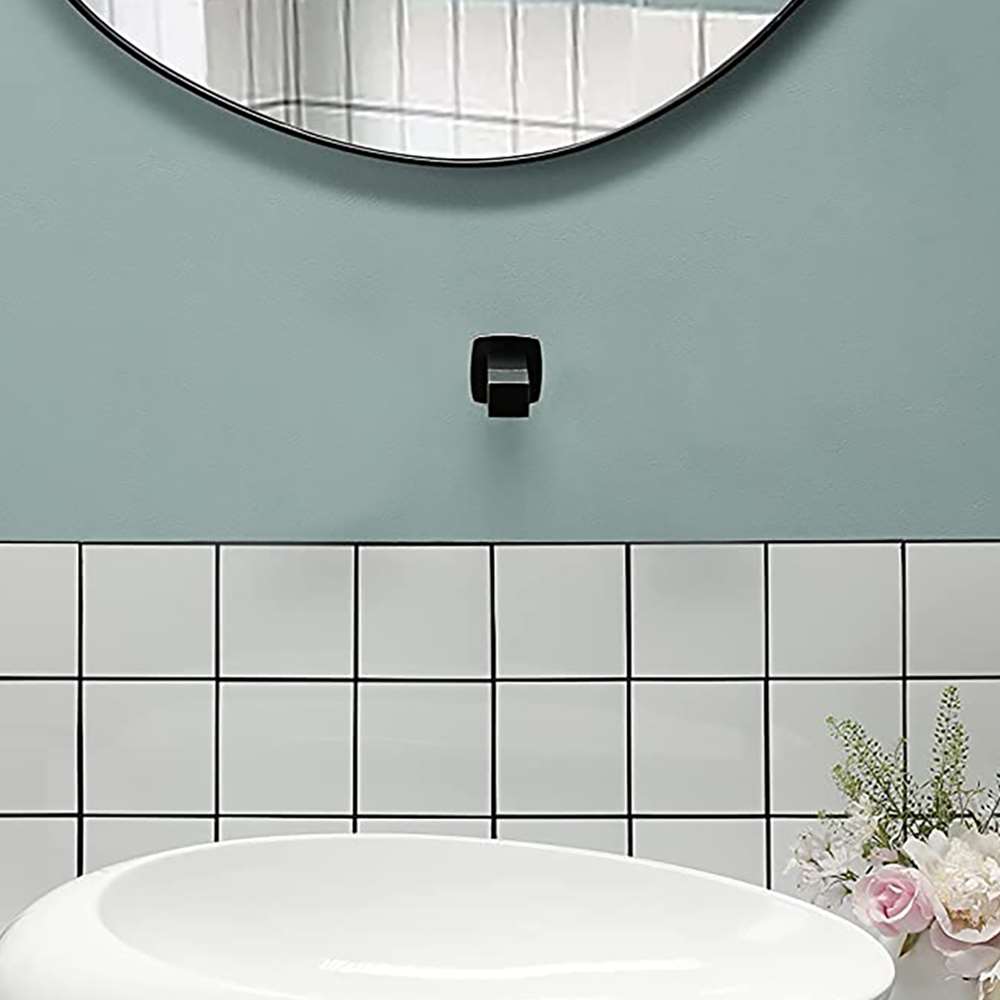

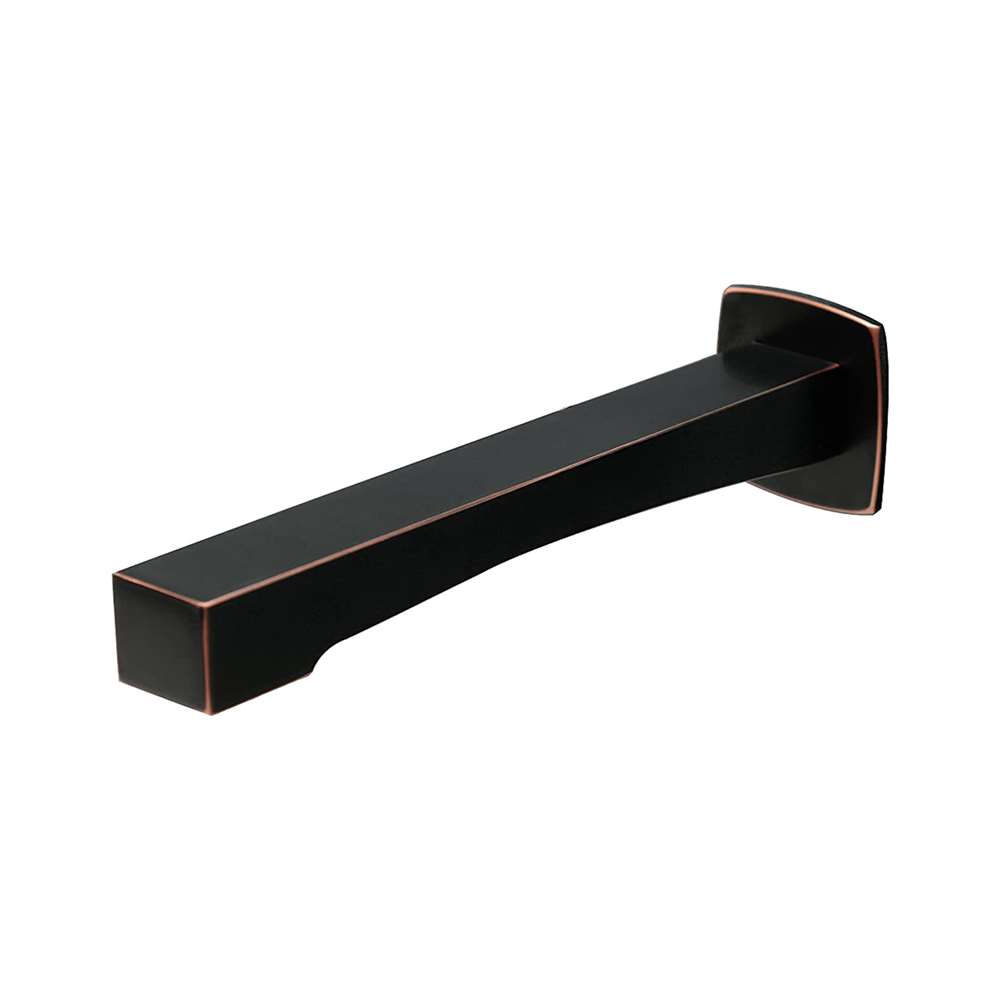

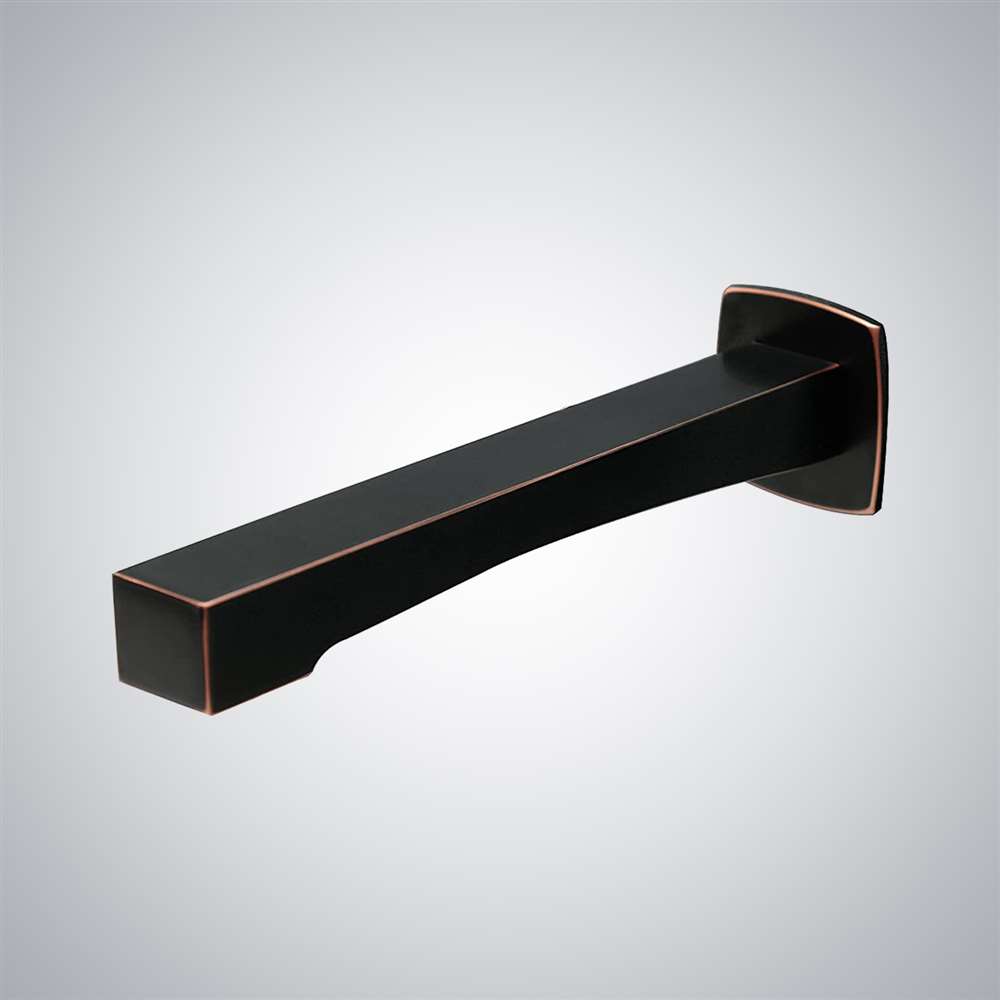

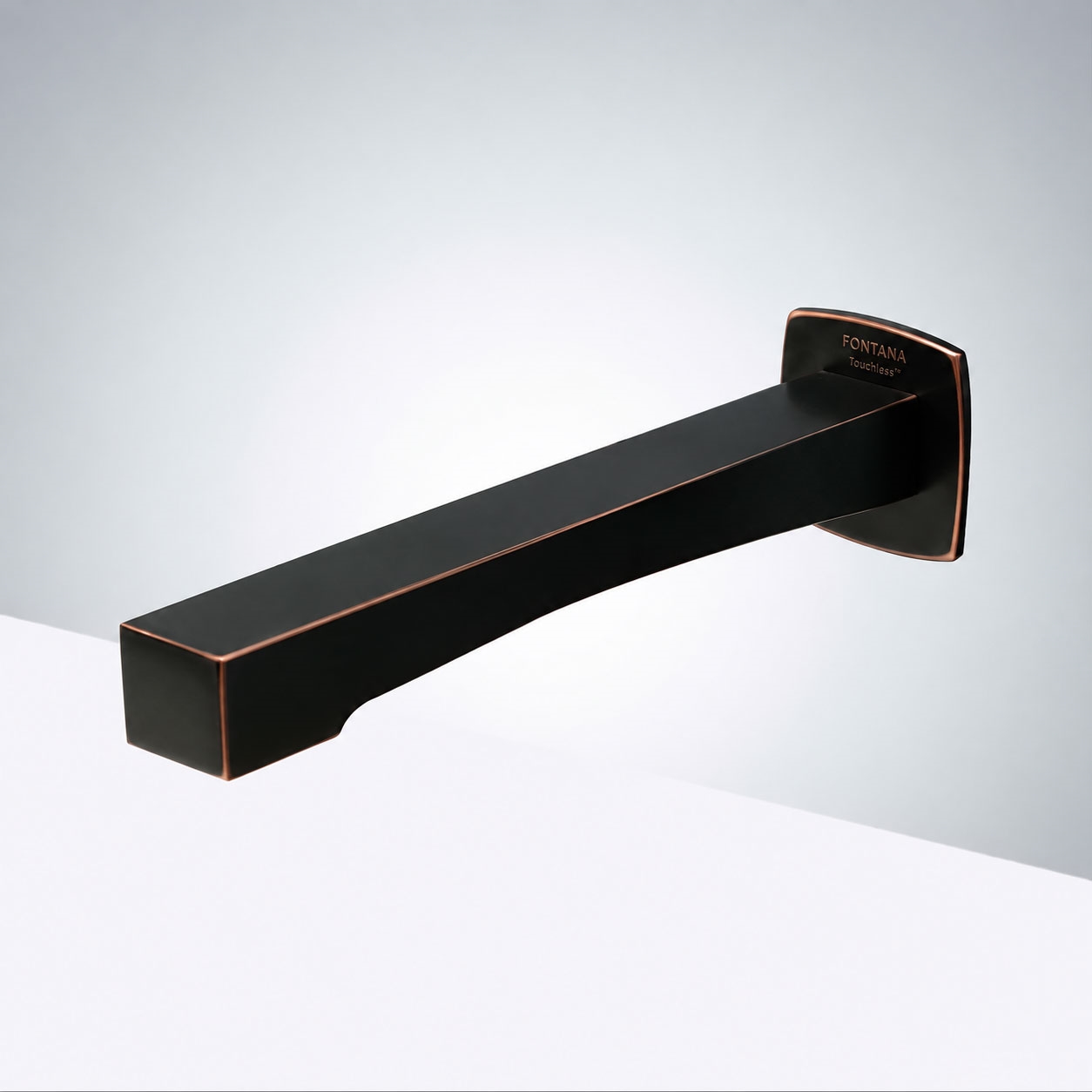

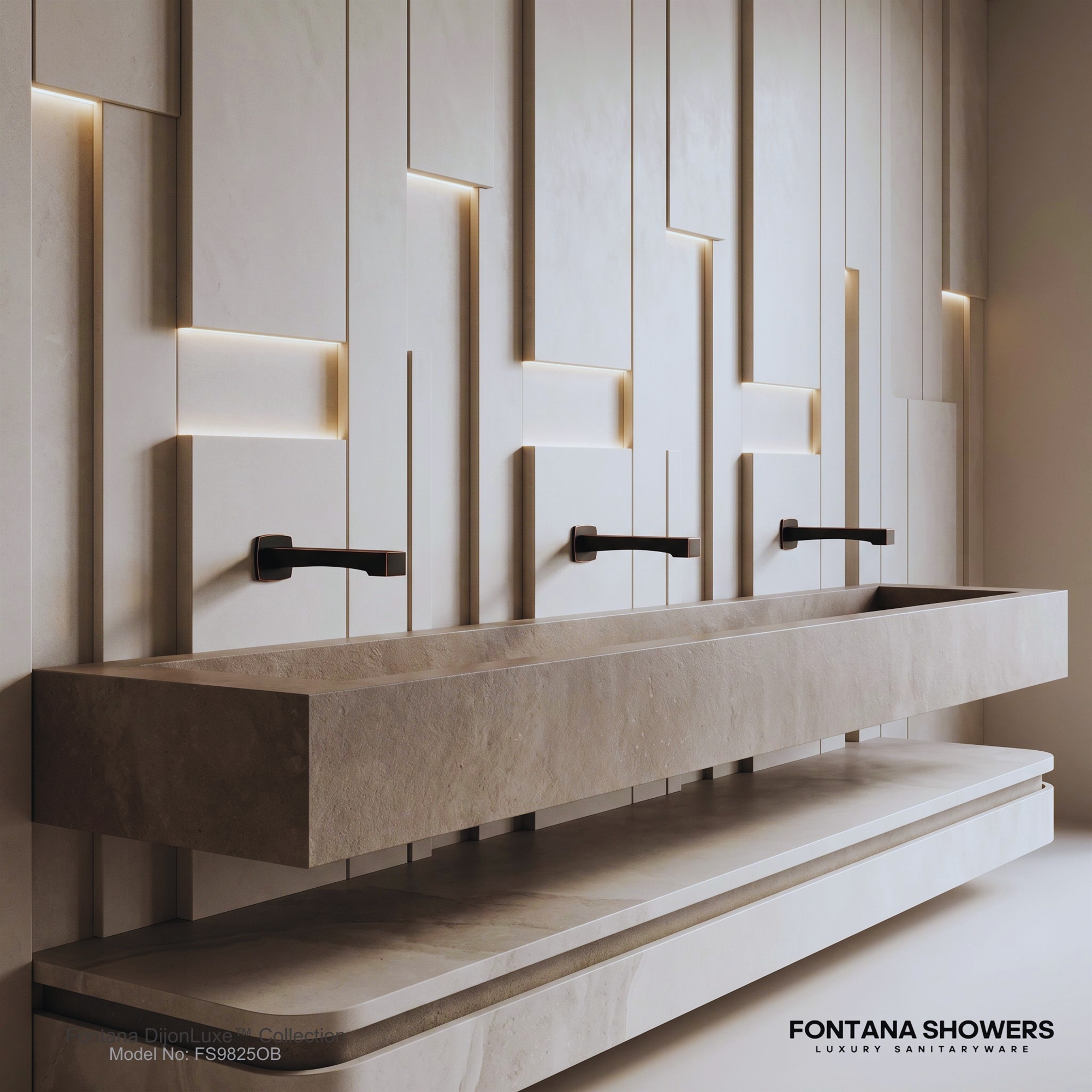

Fontana Commercial Wall Mount Touchless Restroom Faucets in Oil Rubbed Bronze

The Fontana Commercial Wall-Mount Touchless Restroom Faucet in Oil-Rubbed Bronze sets a warm, artisanal tone that enriches upscale commercial washrooms with a tactile-rich finish that softens architectural materials. Its infrared sensor features adjustable detection range to ensure activation accuracy in varied approach conditions, while automatic shutoff logic limits unnecessary water flow in high-traffic use.

The faucet delivers a controlled laminar stream that minimizes splash and noise. Built around a water-sealed solenoid and solid brass valve assembly, it sustains consistent performance across broad pressure ranges (0.05–0.6 MPa), and supports both AC/DC power configurations for flexible installation. Wall-mount placement maintains clear surfaces and simplifies cleaning access. The polished oil-rubbed bronze surface resists spotting and reinforces a calm, refined atmosphere ideal for luxury hotels, corporate lobbies, and curated commercial interiors prioritizing both hygiene and material richness. Specified for extended lifecycle use through conservative electronic tolerances and reinforced mechanical interfaces. Commercial Automatic Faucet; Designed with infrared sensing, controlled flow output, and reliable shut-off timing.

Fontana Commercial Oil Rubbed Bronze Sensor Faucet FAQ

Laminar Flow Engineering, Sensor Range Optimization & Electronic Water Sealing

The Fontana Commercial Wall Mount Touchless Restroom Faucet combines commercial infrared sensing, a water-sealed solenoid assembly, adjustable detection technology, and precision laminar flow engineering to deliver dependable hygienic performance for luxury hospitality, healthcare, airports, offices, and other high-traffic commercial facilities.

Why is a laminar outlet preferred over a conventional aerated discharge in commercial washrooms?

The engineered laminar outlet delivers a smooth, non-aerated water column that significantly reduces splash, minimizes operational noise, and provides better stream control. This improves countertop cleanliness while reducing aerosol formation around frequently used public handwashing stations.

How should the adjustable 6.3–12.6 inch sensing range be optimized after installation?

The detection field should be adjusted after all mirrors, accessories, partitions, and countertop finishes have been installed. Final calibration under actual site conditions allows accurate hand recognition while preventing nuisance activations caused by nearby reflective architectural materials.

What advantage does the water-sealed solenoid assembly provide during long-term commercial operation?

The sealed solenoid design isolates the electronic actuator from moisture migration inside the valve chamber. This protects internal electrical components, improves switching reliability, and extends operational life in continuously occupied restroom environments exposed to frequent cleaning and humidity.

How should engineers verify hydraulic stability throughout the specified 0.05–0.6 MPa operating pressure range?

Commission the faucet under both minimum and maximum design pressures while monitoring discharge consistency, automatic shutoff response, and sensor activation timing. Stable performance across the full pressure range confirms proper hydraulic balancing and reliable commercial operation before project turnover.

• Brand Name: FontanaShowers®
• Model Number: FS9825OB
• Type:Commercial Touchless Bathroom Faucet, Sensor Sink Faucet
• Surface Finish: Oil Rubbed Bronze
• Surface Treatment: Polished
• Faucet Mount: Single Hole
• Installation Type:Commercial Touchless Bathroom Faucet, Wall Mount
• Style: Contemporary
• Style: Automatic sensor touchless faucet,
• Sensor: Infrared Sensor
• Power Supply: DC, AC or DC&AC
• Sensing Distance: 6.30-12.60 inches (16-32 cm), adjustable
• Water Temp: Cold Water
• Water Pressure: 0.05-0.6MPa
• Operating Temperature: 0.1-50℃
• Usage: Commercial
• ADA Compliant
