Fontana Chrome Commercial Widespread Automatic Sensor Bathroom Faucet FAQ
Precision Touchless Detection, 0.05–0.8 MPa Operation;
6 L Water-Saving Cycle & Polished Chrome Protection

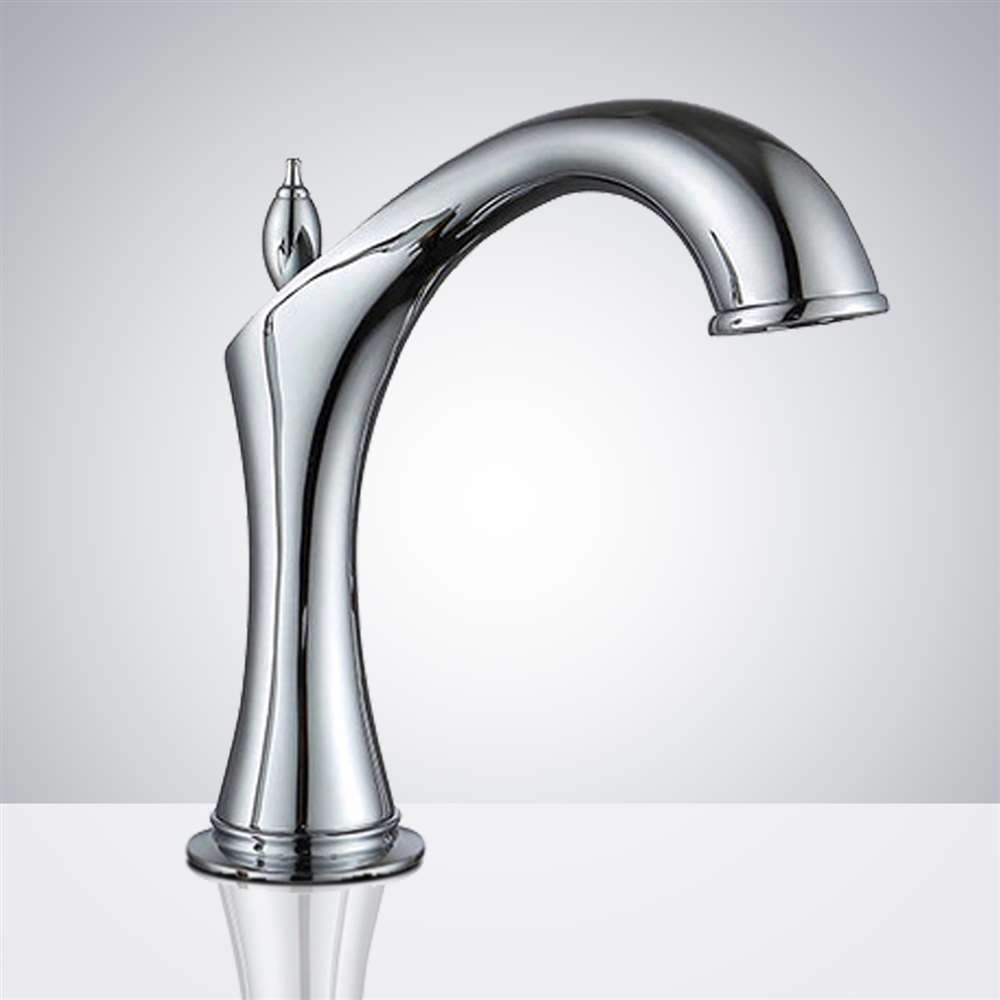

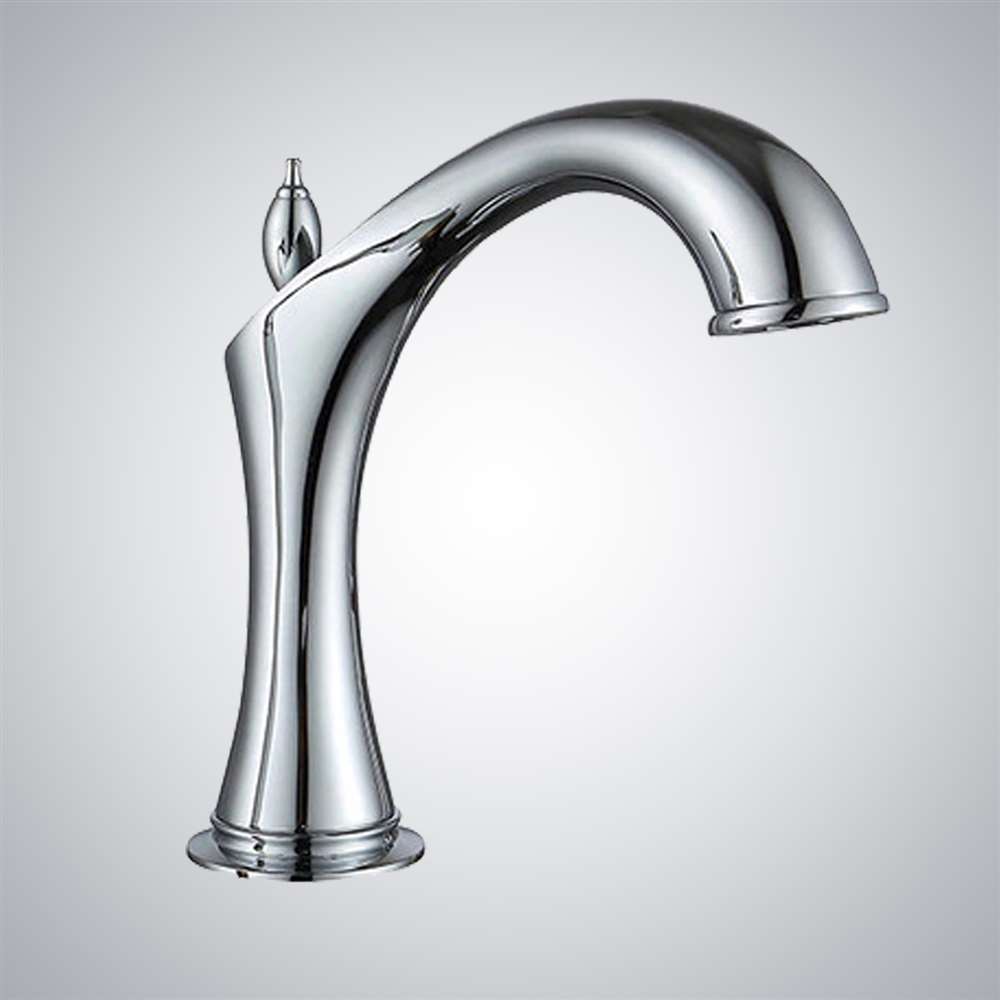

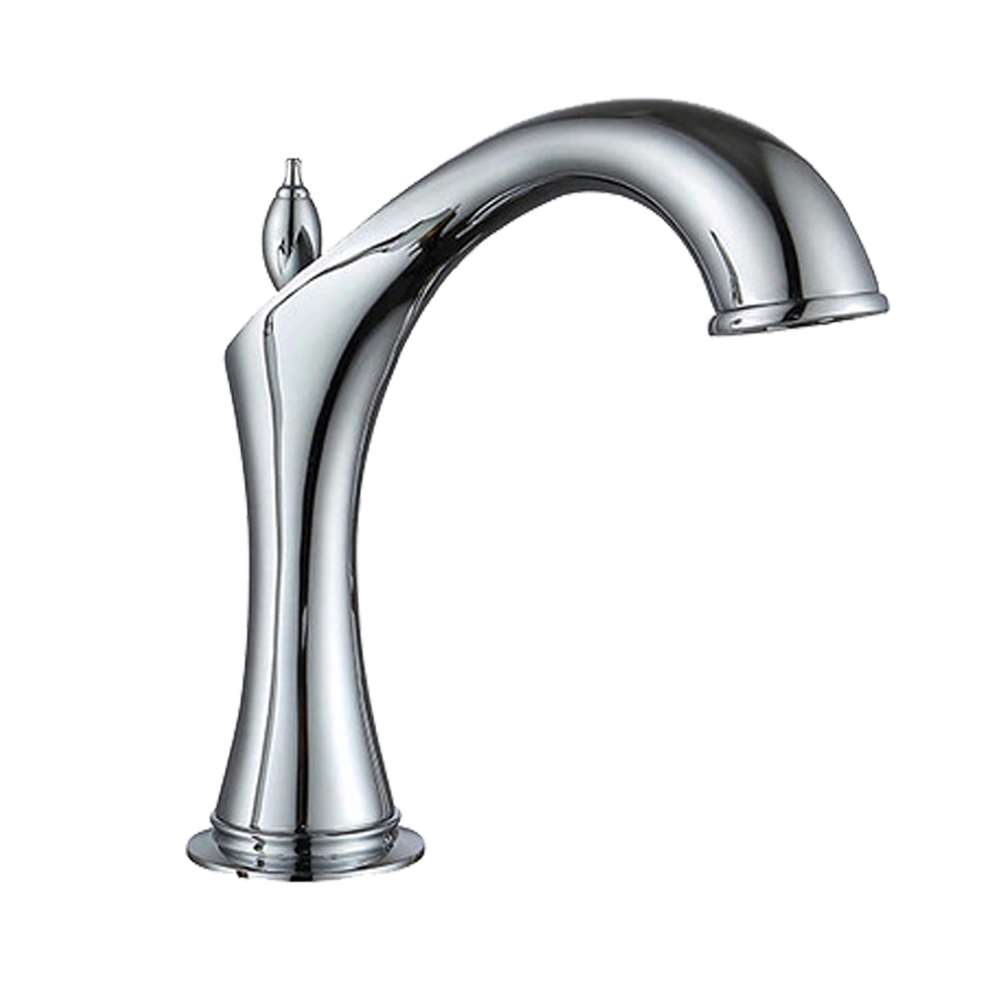

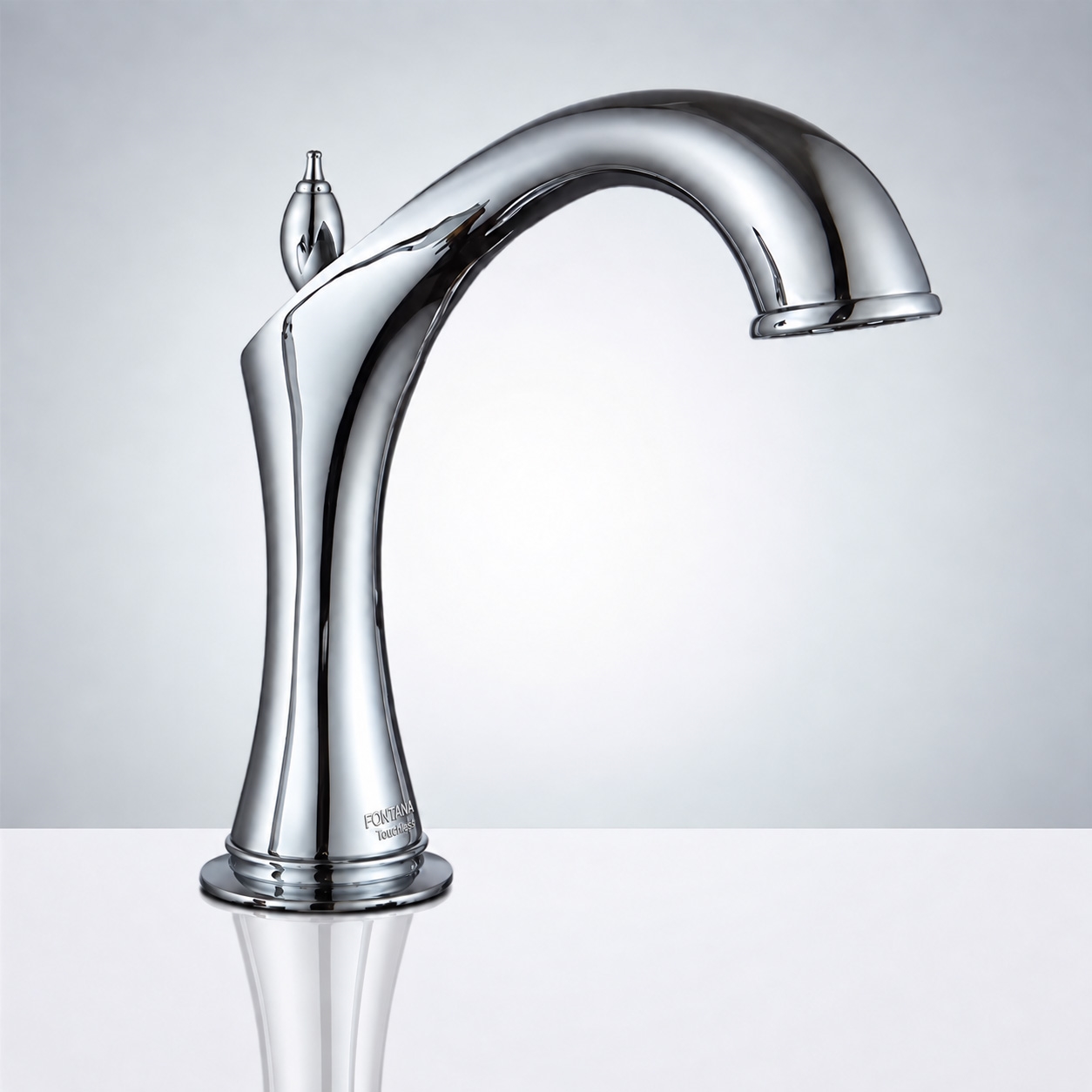

The Fontana Chrome Commercial Widespread Automatic Sensor Bathroom Faucet
combines solid-brass construction with precision hands-free activation for
high-traffic commercial washrooms. The single-hole deck-mounted faucet
operates across a 0.05–0.8 MPa water-pressure range and features a
6.69-inch overall height, 4.92-inch spout length, 3.93-inch spout height,
polished Chrome surface treatment, and a water-saving volume of approximately
6 liters per activation cycle.
How should the touchless detection field be commissioned after installation?
Complete sensor commissioning only after the basin, countertop, mirror,
lighting, backsplash, partitions, and nearby accessories are fully
installed. Perform repeated hand-entry and withdrawal cycles from normal
washing positions and verify prompt water activation followed by complete
automatic shutoff. Check mirrors, polished stone, metallic accessories,
and other reflective surfaces for unintended interaction with the sensor
before placing the faucet into regular commercial service.
How should the 0.05–0.8 MPa operating pressure and water-saving cycle be verified?
Flush the supply piping before final connection and verify that dynamic
pressure remains within the specified 0.05–0.8 MPa range during operation.
Perform repeated automatic activation cycles and confirm stable discharge
without excessive splash or pressure fluctuation. The product specifies
a water-saving volume of approximately 6 liters per activation cycle.
Weak or irregular flow should prompt inspection of the supply path,
service connections, inlet components, and outlet before electronic
controls are replaced.
How should the 4.92-inch spout length and 3.93-inch spout height be coordinated with the basin?
Establish the single-hole mounting centerline relative to the actual basin
before drilling or final tightening. The 4.92-inch spout projection should
position the stream within the primary handwashing zone without directing
discharge against the rear bowl wall, drain assembly, or shallow front
edge. Confirm that the 3.93-inch spout height and 6.69-inch overall faucet
height provide adequate hand clearance while maintaining acceptable
splash control.
How should the polished Chrome finish and sensor surface be maintained?
Clean the exposed polished Chrome surfaces with a soft damp microfiber
cloth and dry them after cleaning to minimize fingerprints, soap film,
water spots, and mineral residue. Keep the sensor area and water outlet
free from deposits that could interfere with reliable activation or
discharge. Use diluted pH-neutral cleaner when required and avoid
abrasive pads, steel wool, acidic descalers, bleach, ammonia, aggressive
metal polish, and concentrated chemicals that may scratch or dull the
polished Chrome surface.
