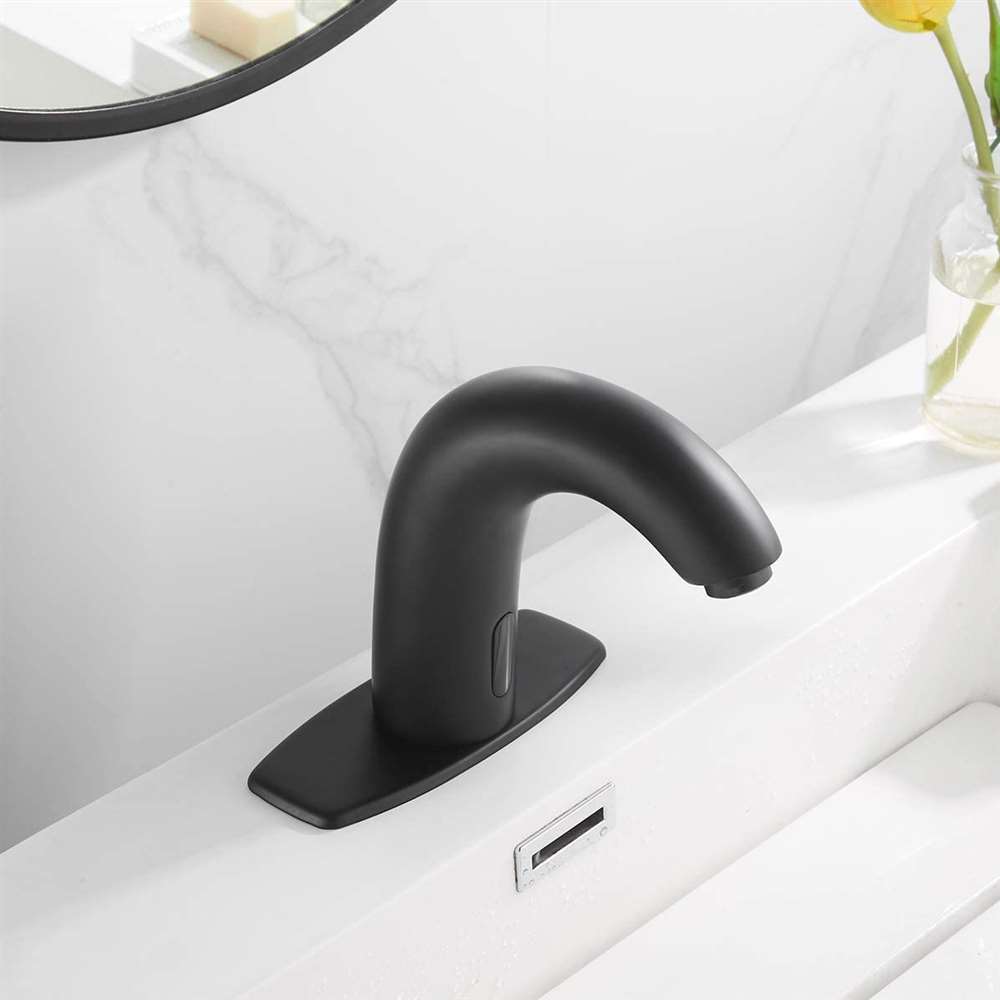

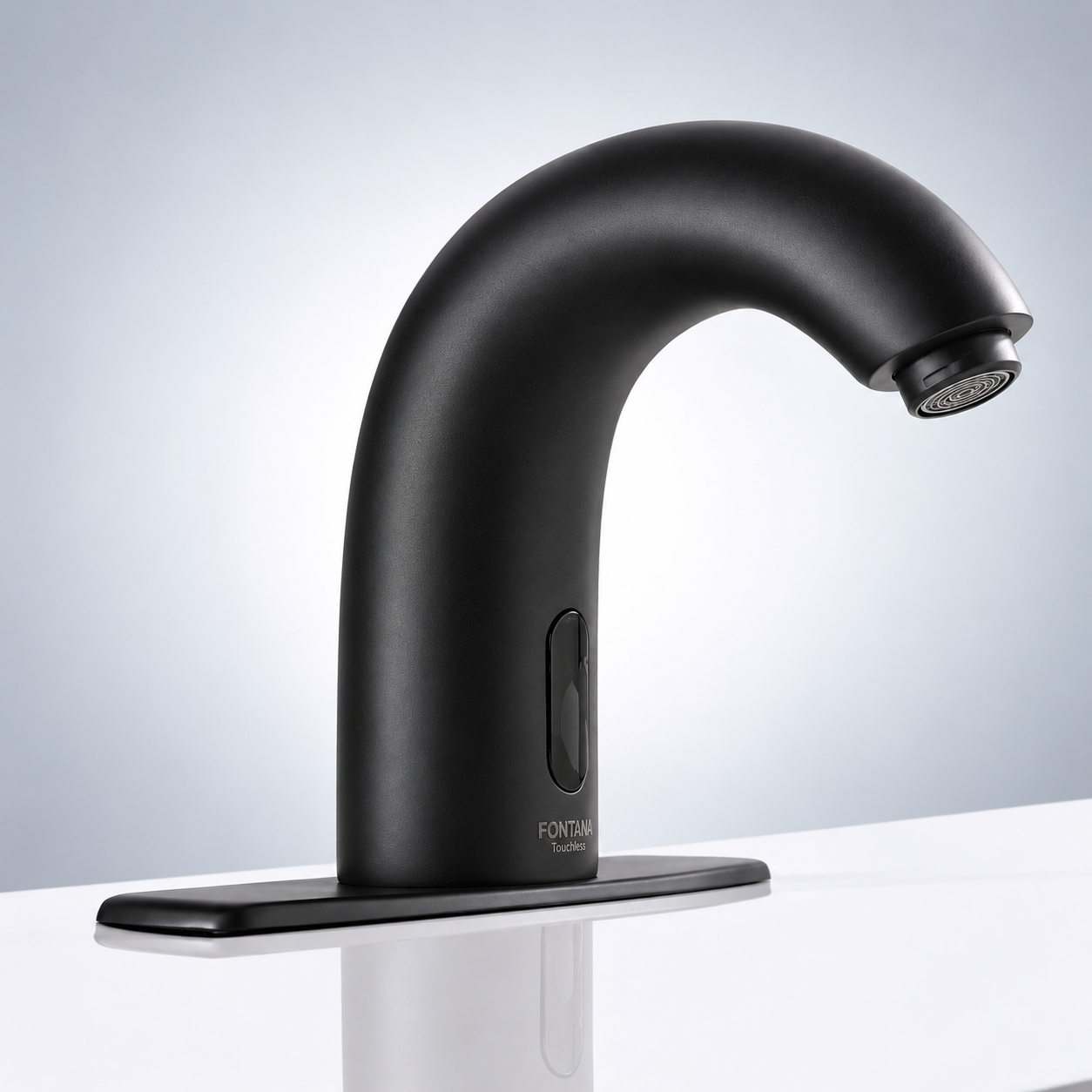

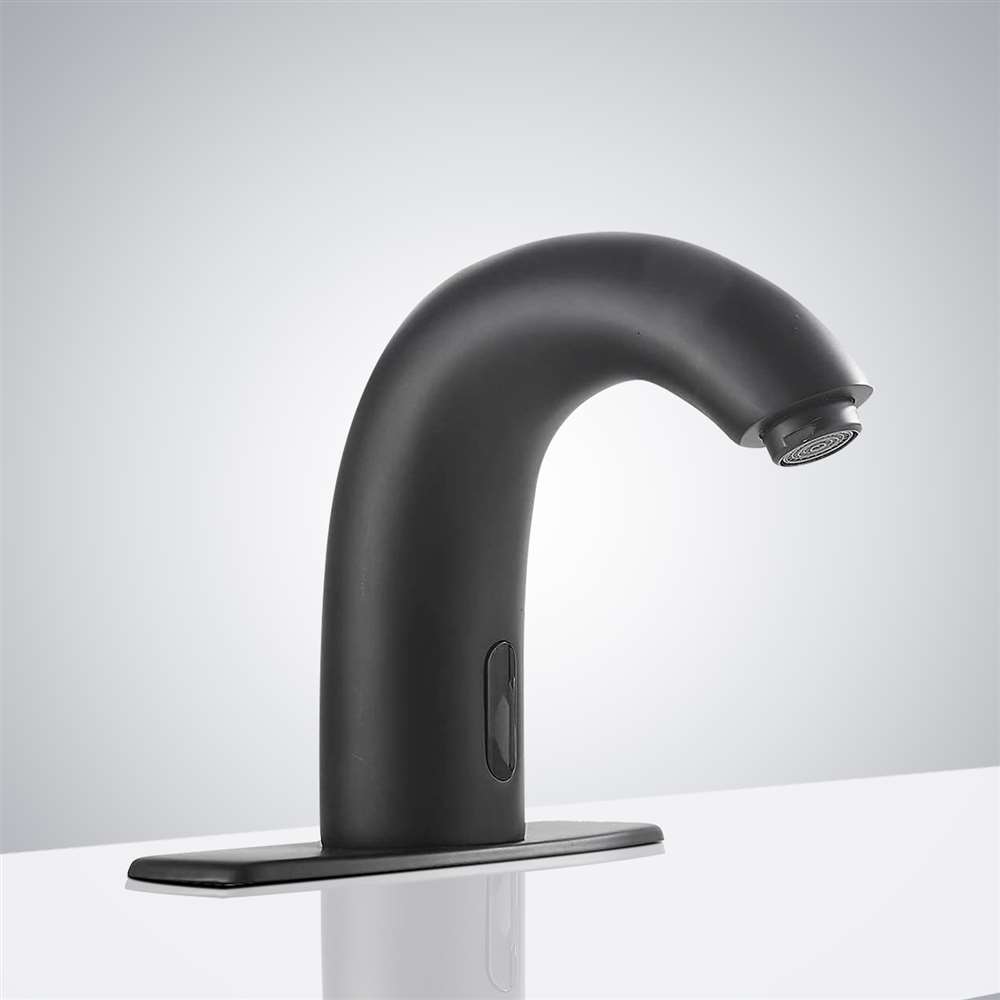

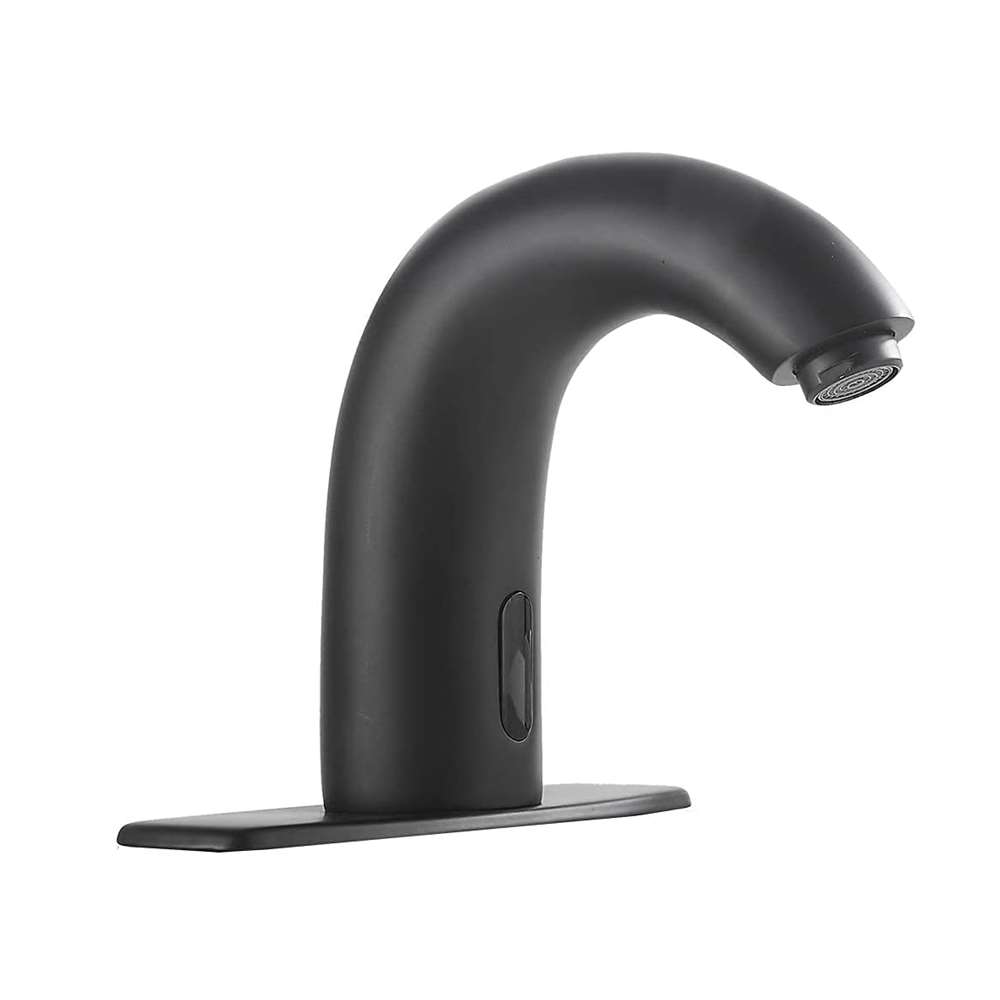

Fontana Dijon High Quality Commercial Automatic Matte Black Bathroom Faucet

The Dijon Automatic Sensor Faucet lends a touch of beauty to any bathroom sink. Constructed of brass to ensure durability and longevity, then finished in a warm oil rubbed bronze. Ideal for commercial high use applications. Utilizing this touchless faucet reduces cross-contamination and re-contamination of germs and bacteria. Minimizes water waste and comes standard with cold water only. Hot/Cold option available.

Fontana Dijon High Quality Commercial Automatic Matte Black Bathroom Faucet Features:

• Brand Name: FontanaShowers®
• Model Number: FS2202
• Type: Touchless Bathroom Faucet
• Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
• Finish: Matte Black
• Construction: Solid Brass
• Control Box : Included- Hardwired & Battery Operated
• Supply Hoses: Included
• Other Features: Vandal resistant
• Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
• Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
• Flow Rate Special: Customizable can be provided for any Water Flow Requirement
• Sensor Range: Adjustable
• Mounting Hardware: Included
• Power Supply: AC110V And DC6V
• Batteries Included: Not
• Usage: Commercial
• Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
