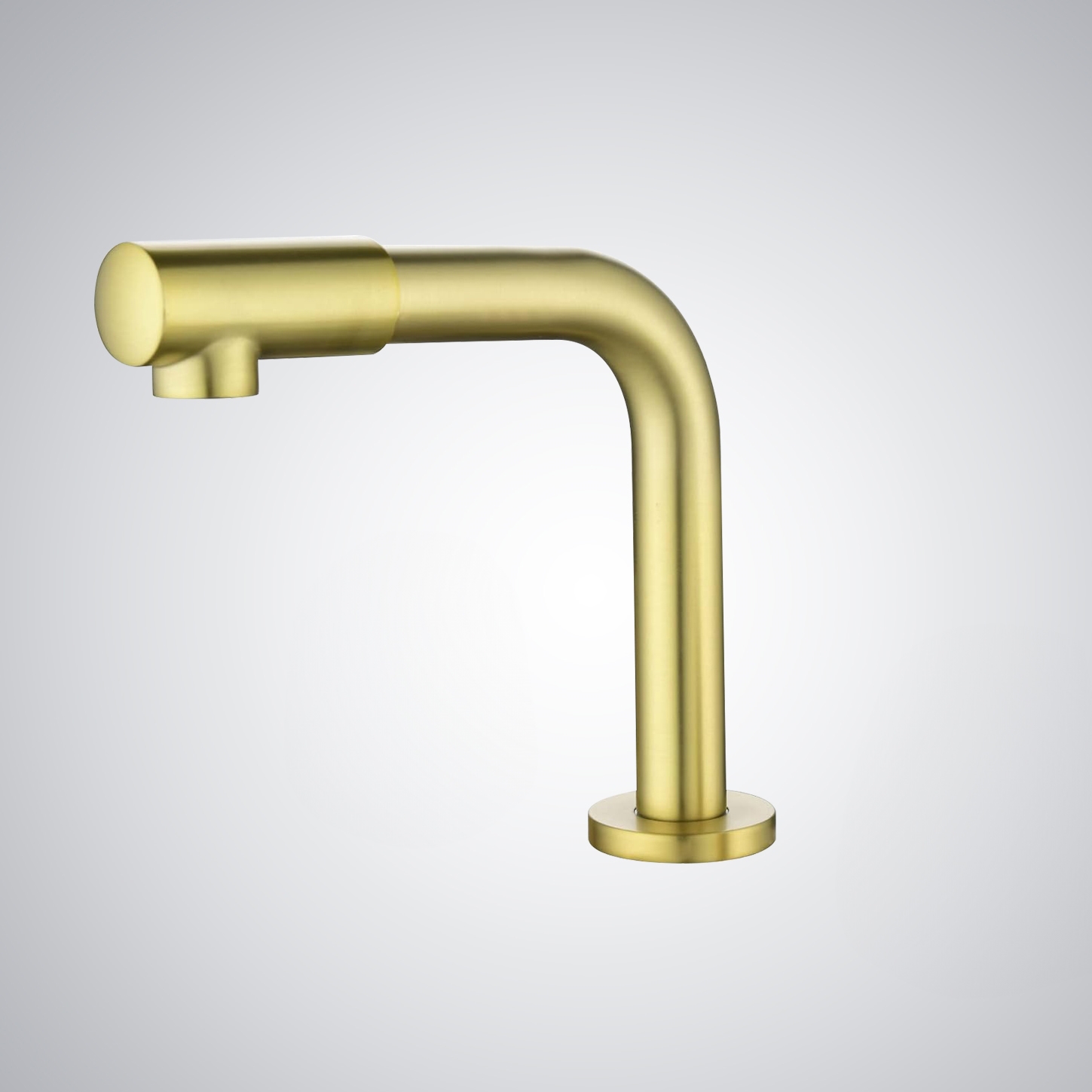

Fontana Grigny Brushed Gold Swivel Nozzle Touchless Faucet FAQ
360° Swivel Spout, 5.91-Inch Reach;
Adjustable 3-Hole Layout & Brass Deck Construction
The Fontana Grigny FS8006BG combines touchless operation,
solid-brass construction, adjustable three-hole mounting,
and a 360-degree swivel outlet.
How should the 360-degree swivel nozzle be checked during commissioning?
Rotate the spout through its complete operating range before final
turnover and confirm smooth movement without binding or excessive
looseness. The outlet should remain over the usable basin area during
normal rotation. Check nearby mirrors, dispensers, backsplashes, and
accessories for interference with the swivel envelope.
How should the 7.8–12 inch adjustable 3-hole layout be coordinated?
Establish the basin centerline before drilling and verify all three
deck penetrations against the adjustable mounting range. The installation
allows approximately 7.8 to 12 inches of spacing, so countertop
thickness, underside hardware clearance, supply routing, and symmetry
should be confirmed before tightening the fixture.
How should the 5.91-inch spout reach be aligned with the basin?
Position the faucet so the 5.91-inch projection places the discharge
stream well inside the primary washing zone. Evaluate the 5.12-inch
outlet height together with bowl depth and rim geometry. Final testing
should verify adequate hand clearance while limiting splash onto the
surrounding countertop.
What should be inspected in the 23.6-inch supply hoses and swivel assembly?
Route the flexible supply hoses without sharp bends, twisting, or
contact with moving components. After pressurization, inspect hose
connections and the swivel body for leakage through repeated operating
cycles. The spout should rotate freely while the deck-mounted brass
body remains rigid and stable.
