How should the FS-136MB thermostatic shower system be rough-installed to maintain accurate valve depth and trim alignment?

Secure the concealed brass thermostatic valve body to rigid wall framing before waterproofing begins. Verify the specified rough-in depth, maintain perfectly level horizontal alignment, and ensure the finished Matte Black trim plate will seat flush against the completed wall while preserving unobstructed access to the thermostatic cartridge for future servicing.

What commissioning procedure should be completed before operating the three-function thermostatic shower system?

Flush the hot and cold supply lines independently before connecting the shower outlets to remove solder residue, pipe scale, sealing compounds, and construction debris. After installation, cycle each shower outlet individually while confirming stable pressure, smooth thermostatic control, and unrestricted flow through every operating mode.

How can installers verify accurate thermostatic temperature regulation during functional acceptance testing?

Operate the shower using a calibrated thermometer while intentionally introducing moderate hot and cold supply pressure variations. The thermostatic cartridge should rapidly compensate for inlet fluctuations, maintaining a stable mixed-water temperature with minimal deviation and smooth recovery throughout extended operation.

How should the rainfall shower head and three-function hand shower be hydraulically balanced during commissioning?

Operate each outlet independently and then switch sequentially between functions while monitoring pressure recovery, discharge consistency, and outlet isolation. Proper hydraulic balancing ensures uniform rainfall coverage, stable handheld performance, and no unintended cross-flow between individual outlet circuits.

Why should the concealed thermostatic valve assembly undergo both hydrostatic and dynamic pressure testing before wall closure?

Hydrostatic testing verifies the integrity of all concealed threaded connections before waterproofing and tile installation, while dynamic testing confirms leak-free operation under flowing conditions. Inspect every valve connection, outlet port, and threaded fitting for leakage, pressure decay, mechanical movement, or improper sealing before completing the finished wall.

How should the function selector and ceramic control mechanism be evaluated during commissioning?

Cycle the selector repeatedly through every shower function while monitoring indexing accuracy, handle torque, outlet isolation, and ceramic sealing performance. Proper operation is confirmed when transitions remain smooth, each outlet activates positively, inactive outlets remain fully isolated, and the control operates without chatter or excessive resistance.

What maintenance procedures help preserve the Matte Black finish and long-term thermostatic performance?

Clean exposed Matte Black components using a soft microfiber cloth with a pH-neutral cleaner while avoiding abrasive pads, acidic descalers, bleach, or ammonia-based products. Periodically descale the rainfall nozzles, inspect the handheld spray outlets, and verify thermostatic cartridge performance to maintain consistent hydraulic operation and finish durability.

Which final commissioning inspections confirm the FS-136MB shower system is ready for long-term residential or hospitality operation?

Final acceptance should verify secure concealed valve installation, leak-free hot and cold supply connections, stable thermostatic temperature regulation, accurate function selection, balanced rainfall and handheld operation, smooth ceramic control performance, proper trim alignment, and consistent Matte Black finish quality following extended operational cycling.

Fontana Matte Black Bathroom Shower Set | Touch Panel Control & Modern Design

Fontana Matte Black Bathroom Shower Set

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-136MB

Request Quote

Description

Technical Specs

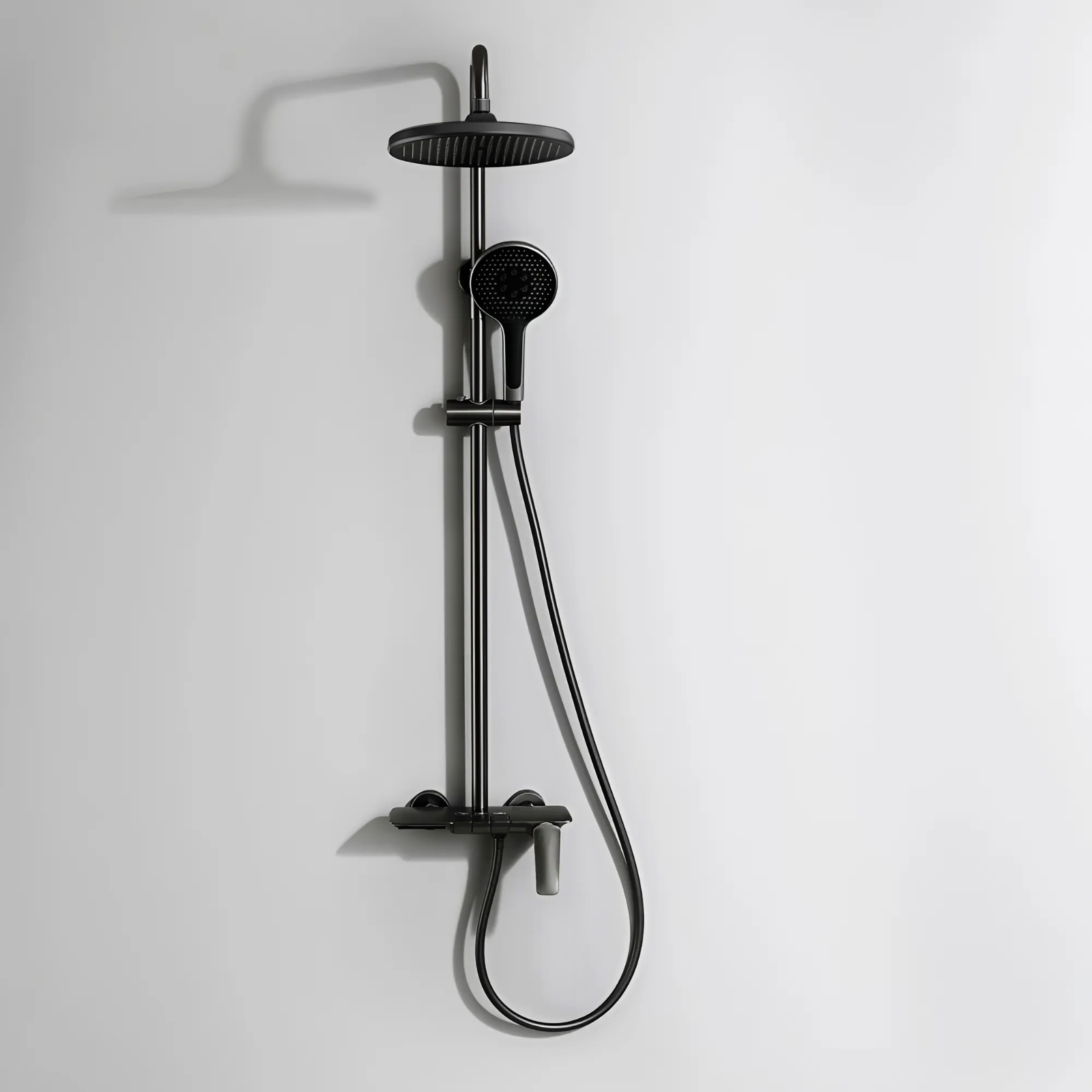

Fontana Matte Black Bathroom Shower Set

The Fontana Matte Black Shower Set is a testament to modern bathroom luxury. Its sleek design, featuring a matte black finish, adds an element of sophistication to any bathroom space. Beyond its aesthetic appeal, this shower set boasts superior performance with a showerhead that delivers a soothing cascade of water and a handheld shower wand for added versatility. Built from high-quality materials, including brass and stainless steel, the set promises durability and resistance to tarnishing, corrosion, and scratches. Installation is a breeze, and maintenance is simple, making it a practical choice for those seeking both style and functionality in their bathroom fixtures.

Fontana Matte Black Bathroom Shower Set Features:

Brand Name: FontanaShowers®
Model Number: FS-136MB
Style: Modern
Type: Shower System Set
Height Adjustable: Yes
Finish: Matte Black
Shower shape: Round
Material: Brass
Shower Head: Rain shower head
Shower Set: Bathroom shower system
Shower System: Three-function thermostatic shower set
Hand Shower: 3 Functions

Features

Fontana Matte Black Bathroom Shower Set

Thermostatic Cartridge Stability, Three-Function Water Distribution & Ceramic Valve Endurance

Engineered for premium concealed installations, this matte black shower system combines a thermostatic mixing cartridge, precision ceramic valve technology, and a three-function water distribution system to deliver stable temperature control, smooth outlet selection, and dependable long-term hydraulic performance.

How does the thermostatic cartridge maintain a constant shower temperature?

The thermostatic element continuously reacts to changes in hot and cold supply conditions by proportionally adjusting the internal mixing ports, maintaining a consistent outlet temperature while minimizing sudden thermal fluctuations during simultaneous household water use.

What advantage does a three-function shower configuration provide?

The integrated diverter hydraulically separates the rainfall head and three-function hand shower, allowing smooth outlet selection while minimizing internal pressure losses and maintaining balanced flow characteristics throughout the concealed shower circuit. :contentReference[oaicite:1]{index=1}

Why is a ceramic valve cartridge essential for long-term reliability?

Precision-lapped ceramic discs operate with extremely low friction while maintaining a watertight seal under repeated cycling. This construction significantly reduces wear, prevents internal leakage, and supports smooth handle operation throughout extended service life.

How should the concealed valve be commissioned after rough-in installation?

The supply lines should be flushed before cartridge installation, the valve body should be pressure-tested for concealed connections, and the thermostatic stop should be calibrated after final trim installation to verify accurate temperature regulation and proper outlet sequencing.
