How should the FS-1176MMW concealed valve body be positioned before waterproofing and wall finishing?

Install the solid brass valve body within the specified rough-in depth while accounting for cement board, waterproofing membrane, tile adhesive, and finished tile thickness. Verify that the valve remains level and securely supported so the decorative trim aligns flush with the completed wall without placing stress on the control stems.

How can the thermostatic ceramic regulating cartridge be calibrated for repeatable outlet temperature accuracy?

Stabilize both hot and cold water supplies before operating a single outlet at normal flow. Measure the mixed outlet temperature using calibrated instrumentation and adjust the thermostatic cartridge until the measured temperature remains consistent throughout repeated operating cycles under varying flow conditions.

Why should the pressure-balancing mechanism be evaluated during simultaneous fixture operation?

Operate nearby plumbing fixtures while monitoring the mixed-water outlet temperature. The pressure-balancing thermostatic cartridge should automatically compensate for changing inlet pressures, maintaining a stable discharge temperature without noticeable thermal fluctuation or pressure shock.

How should the three-way diverter assembly be commissioned before final trim installation?

Cycle the diverter through rainfall, hand shower, and tub spout positions while confirming positive indexing and complete outlet isolation. Verify smooth switching torque, leak-free internal sealing, and uninterrupted hydraulic flow to each selected outlet throughout repeated operating cycles.

How should concealed G1/2-inch threaded connections be verified after rough-in installation?

Pressure-test the concealed valve assembly before installing the faceplate by capping all outlet branches and inspecting every G1/2-inch threaded connection. Confirm leak-free sealing, rigid pipe support, and unrestricted hydraulic performance under both static and dynamic pressure conditions.

Why should each water supply branch be flushed independently before commissioning the thermostatic valve?

Flush both hot and cold supply branches separately until solder residue, mineral scale, thread sealant, and construction debris are completely removed. Clean supply water protects the ceramic valve core, thermostatic regulating cartridge, and diverter assembly from abrasion, blockage, and premature wear.

How should the matte white finish be maintained to preserve its appearance and protective coating?

Clean the exposed trim using a soft microfiber cloth with a neutral-pH cleaner before rinsing and drying thoroughly. Avoid abrasive pads, bleach, acidic descalers, ammonia-based cleaners, or solvent chemicals that could damage the matte white surface or reduce its long-term durability.

Which acceptance inspections verify complete FS-1176MMW commissioning?

Verify correct rough-in depth, secure concealed valve support, leak-free G1/2-inch connections, accurate thermostatic temperature regulation, proper anti-scald limit-stop function, smooth dual-handle movement, reliable three-way diverter operation, correct outlet routing, and stable performance during repeated dynamic pressure testing.

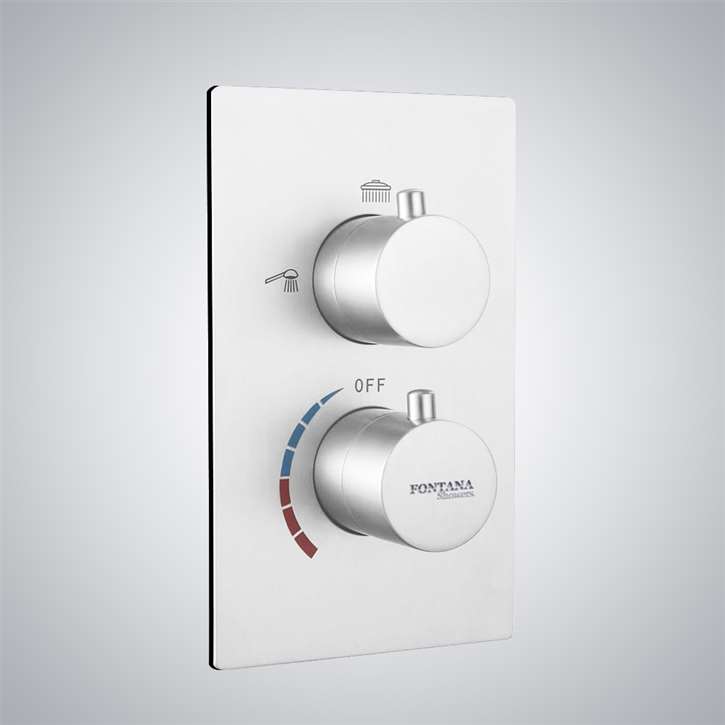

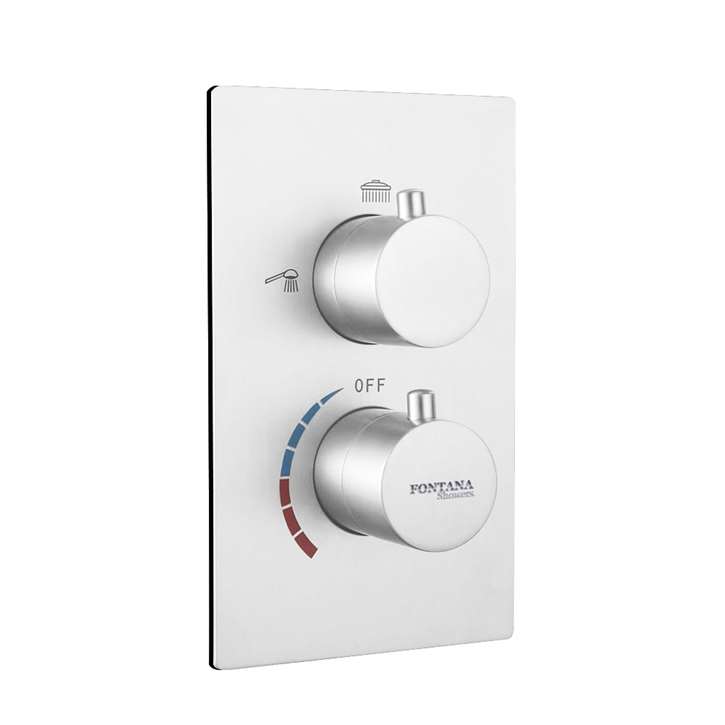

Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1176MMW

Request Quote

Description

Technical Specs

Chrome

Brushed Nickel

Gold

Brushed Gold

Rose Gold

Oil Rubbed Bronze

Champagne

Matte Black

Gun Metal Gray

Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve

Enhance the sophistication of your bathroom design project by introducing a touch of refinement with the Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve. Crafted from durable metal, this mixing valve ensures not only dependability and longevity but also enhances the overall allure of your bathroom project. Meticulously designed, the Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve seamlessly integrates functionality with style. Its sleek and elegant finish not only contributes to the modern aesthetic but also signifies a commitment to quality craftsmanship. With precise control over water temperature and flow, this mixing valve introduces a new level of convenience to your daily routine. Furthermore, the Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve is engineered to boost the overall efficiency of your bathroom, contributing to a seamless and enjoyable user experience. The incorporation of advanced thermostatic technology ensures the maintenance of a consistent and comfortable water temperature, infusing an element of luxury into your bathing routine. The two-knob design provides intuitive control, allowing you to easily adjust both temperature and flow according to your preferences. Whether you are renovating an existing bathroom or designing a new one, the Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve stands as a reliable and stylish choice, embodying a perfect blend of form and function for a modern and sophisticated space.

Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve Features:

Brand Name: FontanaShowers
Model Number: FS-1176MMW
Type: Shower Mixer Valve
Finish: Matte White
Type: Thermostatic
Specifications: Shower Mixer available in Revit Families, and BIM Object
Size: 201-300mm
Valve Core Material: ceramic
Surface Finish: Brass
Style: Contemporary
Number of Handles: Dual Handle
Mixing Valve Water way 1: Rainfall
Mixing Valve Water way 2: Hand shower head
Mixing Valve Water way 3: Spout
Mixing Valve: Shower Switch
Shower Switch Valve: Brass Shower Switch Valve
Brass Mixing valve: Filling Valves
Mixing Valve Material: Brass
Type: Bath & Shower Faucets, Thermostatic Shower Faucet Mixing Valve
Bath & Shower Faucet Type: In-Wall Shower Faucets
Maintenance method of faucet shower:
Method 1: In order to keep the surface of the shower clean, use a soft cloth, rub the surface with the flour, and rinse with water to keep the surface smooth;
Method 2: Brush the surface of the shower with a toothbrush and a toothpaste. Brush it for 3 minutes, rinse with water, and dry.
BRASS VALVE: Faucet body is made from high quality brass, ensuring quality and longevity.
EASY OPERATION: Dual handle design for effortless flow and tempreture control.
Pressure balancing and ceramic temperature regulating cartridge, equipped with adjustable temperature integral limit stop and integral stops
Connection Size: G1/2"
Package includes valve, faceplate

Fontana Matte White Finish Thermostatic 2 Knob 3 Way Mixing Valve

Features

Fontana Matte White Thermostatic 2 Knob 3 Way Mixing Valve FAQ

Temperature Calibration, Three-Way Isolation & Matte White Trim Alignment

This matte white concealed shower mixer combines pressure-balanced thermostatic regulation, dual-handle control, a ceramic cartridge, and three-way outlet distribution.

How should the thermostatic temperature limit be commissioned?

Operate the valve under stable flowing conditions, verify the mixed-water temperature with a calibrated thermometer, and adjust the ceramic cartridge and integral limit stop before securing the temperature-control handle.

How should the three outlet circuits be isolated during pressure testing?

The rainfall shower, hand-shower, and spout branches should be capped and tested independently, then flushed and connected to their assigned diverter ports to prevent crossed waterways or concealed leakage.

What should be checked before fitting the matte white faceplate?

Confirm that the brass rough-in body is level and positioned from the final wall plane so the faceplate seats evenly without gaps, tile interference, compressed seals, or excessive control-stem projection.

How should pressure-balancing recovery be verified at handover?

Operate each selected outlet while nearby fixtures are cycled and confirm prompt temperature correction, stable mixed-water delivery, positive diverter indexing, and unrestricted flow during hot- and cold-supply pressure changes.
