How should the FS-1176MRG concealed thermostatic valve be rough-installed to ensure accurate trim projection after wall finishing?

Install the solid brass valve body within the recommended rough-in depth while accounting for backer board, waterproof membrane, adhesive, and finished tile thickness. Confirm the valve body is level, firmly anchored, and centered so the Rose Gold trim plate fits flush and both control handles rotate freely.

How should the ceramic thermostatic cartridge be calibrated to maintain consistent mixed-water temperature?

Allow the hot-water supply to reach operating temperature before activating a single outlet. Measure the mixed-water discharge using a calibrated digital thermometer and adjust the thermostatic regulating cartridge until the selected handle position repeatedly delivers the intended outlet temperature under normal operating conditions.

Why should dynamic pressure compensation be verified during commissioning of the thermostatic mixer?

Operate nearby plumbing fixtures to create inlet pressure variations while monitoring the mixed-water outlet. The pressure-balancing thermostatic mechanism should automatically compensate for supply fluctuations, maintaining stable outlet temperature and minimizing thermal shock during simultaneous fixture demand.

How can the three-way diverter be tested to verify proper outlet sequencing and hydraulic isolation?

Cycle the diverter through the rainfall shower, hand shower, and tub spout positions while observing each outlet independently. Verify positive indexing, complete isolation of inactive outlets, smooth mechanical engagement, and consistent flow delivery without internal crossover between waterways.

How should concealed G1/2-inch threaded connections be inspected before decorative trim installation?

Cap each outlet branch and pressure-test the concealed valve assembly before installing the faceplate. Inspect every G1/2-inch connection under static and flowing conditions, confirming leak-free sealing, rigid pipe support, and unrestricted hydraulic performance throughout the brass valve body.

Why is supply-line flushing essential before placing the thermostatic valve into service?

Flush the hot and cold supply lines independently until all solder residue, pipe scale, thread sealant, and construction debris have been removed. Clean water protects the ceramic valve core, thermostatic regulating cartridge, diverter assembly, and internal seals from contamination and premature wear.

How should the Rose Gold finish be maintained to preserve its appearance over long-term commercial use?

Clean exposed trim with a soft microfiber cloth and a pH-neutral cleaning solution before rinsing and drying thoroughly. Avoid abrasive pads, bleach, acidic descalers, ammonia-based cleaners, or metal polishing compounds that may damage the Rose Gold finish or reduce its protective coating.

Which commissioning inspections confirm the FS-1176MRG is ready for continuous operation?

Verify correct rough-in depth, secure concealed mounting, leak-free G1/2-inch connections, accurate thermostatic temperature regulation, proper anti-scald limit-stop adjustment, smooth dual-handle operation, reliable three-way diverter indexing, correct outlet routing, and stable performance during repeated dynamic pressure and temperature testing.

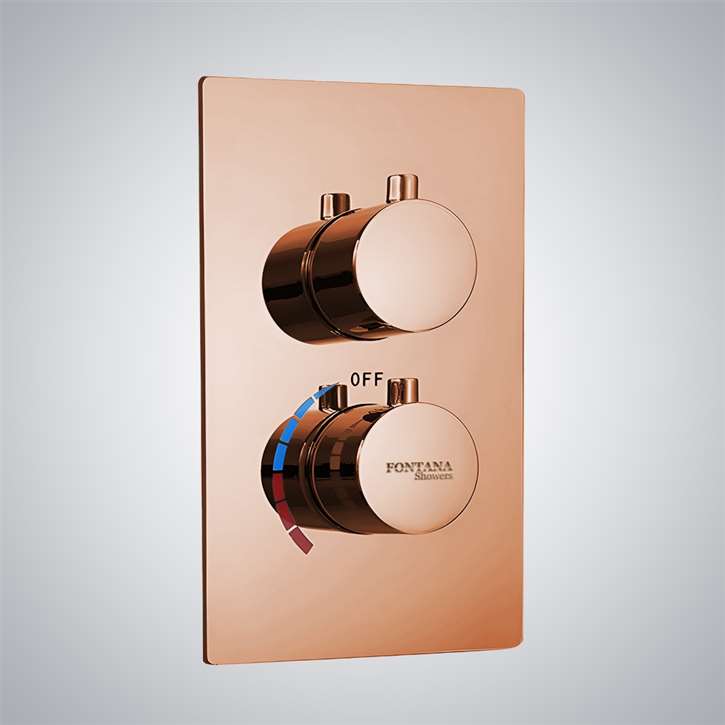

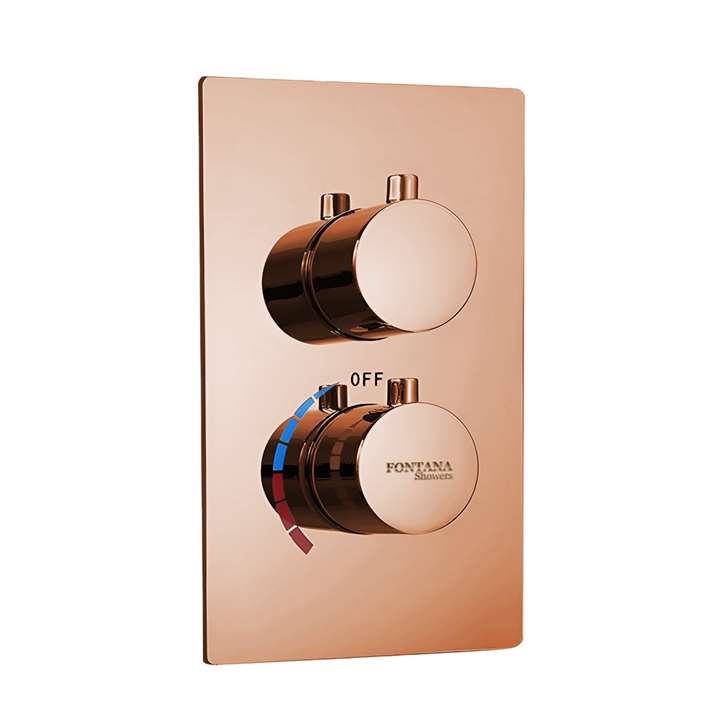

Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1176MRG

Request Quote

Description

Technical Specs

Chrome

Brushed Nickel

Gold

Brushed Gold

Oil Rubbed Bronze

Champagne

Matte White

Matte Black

Gun Metal Gray

Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve

Enhance the sophistication of your bathroom design project by incorporating a touch of refinement with the Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve. Crafted from durable metal, this mixing valve not only ensures dependability and longevity but also elevates the overall allure of your bathroom project. Meticulously designed, the Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve seamlessly integrates functionality with style. Its sleek and elegant finish not only contributes to the modern aesthetic but also signifies a commitment to quality craftsmanship. With precise control over water temperature and flow, this mixing valve introduces a new level of convenience to your daily routine. Moreover, the Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve is engineered to enhance the overall efficiency of your bathroom, contributing to a seamless and enjoyable user experience. The incorporation of advanced thermostatic technology ensures the maintenance of a consistent and comfortable water temperature, infusing an element of luxury into your bathing routine. The two-knob design provides intuitive control, allowing you to easily adjust both temperature and flow according to your preferences. Whether you are renovating an existing bathroom or designing a new one, the Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve stands as a reliable and stylish choice, embodying a perfect blend of form and function for a modern and sophisticated space.

Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve Features:

Brand Name: FontanaShowers
Model Number: FS-1176MRG
Type: Shower Mixer Valve
Finish: Rose Gold
Type: Thermostatic
Specifications: Shower Mixer available in Revit Families, and BIM Object
Size: 201-300mm
Valve Core Material: ceramic
Surface Finish: Brass
Style: Contemporary
Number of Handles: Dual Handle
Mixing Valve Water way 1: Rainfall
Mixing Valve Water way 2: Hand shower head
Mixing Valve Water way 3: Spout
Mixing Valve: Shower Switch
Shower Switch Valve: Brass Shower Switch Valve
Brass Mixing valve: Filling Valves
Mixing Valve Material: Brass
Type: Bath & Shower Faucets, Thermostatic Shower Faucet Mixing Valve
Bath & Shower Faucet Type: In-Wall Shower Faucets
Maintenance method of faucet shower:
Method 1: In order to keep the surface of the shower clean, use a soft cloth, rub the surface with the flour, and rinse with water to keep the surface smooth;
Method 2: Brush the surface of the shower with a toothbrush and a toothpaste. Brush it for 3 minutes, rinse with water, and dry.
BRASS VALVE: Faucet body is made from high quality brass, ensuring quality and longevity.
EASY OPERATION: Dual handle design for effortless flow and tempreture control.
Pressure balancing and ceramic temperature regulating cartridge, equipped with adjustable temperature integral limit stop and integral stops
Connection Size: G1/2"
Package includes valve, faceplate

Fontana Rose Gold Finish Thermostatic 2 Knob 3 Way Mixing Valve

Features

Fontana Rose Gold Thermostatic 2 Knob 3 Way Mixing Valve FAQ

Thermostatic Setpoint, Three-Way Port Mapping & Concealed Trim Alignment

This rose gold concealed shower mixer combines pressure-balanced thermostatic regulation, dual-handle operation, a ceramic cartridge, and three-way outlet distribution.

How should the thermostatic setpoint be calibrated after installation?

Operate the valve under stable flowing conditions, measure the mixed-water temperature with a calibrated thermometer, and adjust the cartridge and integral limit stop before securing the temperature-control knob.

How should the three diverter ports be mapped during concealed rough-in?

Identify the rainfall shower, hand-shower, and spout branches before connection, then flush and pressure-test each circuit independently to prevent crossed outlets or concealed routing errors.

What should be checked before installing the rose gold faceplate?

Confirm that the brass rough-in body is level and positioned from the final finished-wall plane so the trim seals evenly and both controls engage without rubbing or excessive projection.

How should pressure-balancing recovery be tested during handover?

Operate each outlet while nearby fixtures are cycled and verify rapid temperature correction, stable mixed-water delivery, unrestricted flow, and positive diverter indexing during supply-pressure changes.
