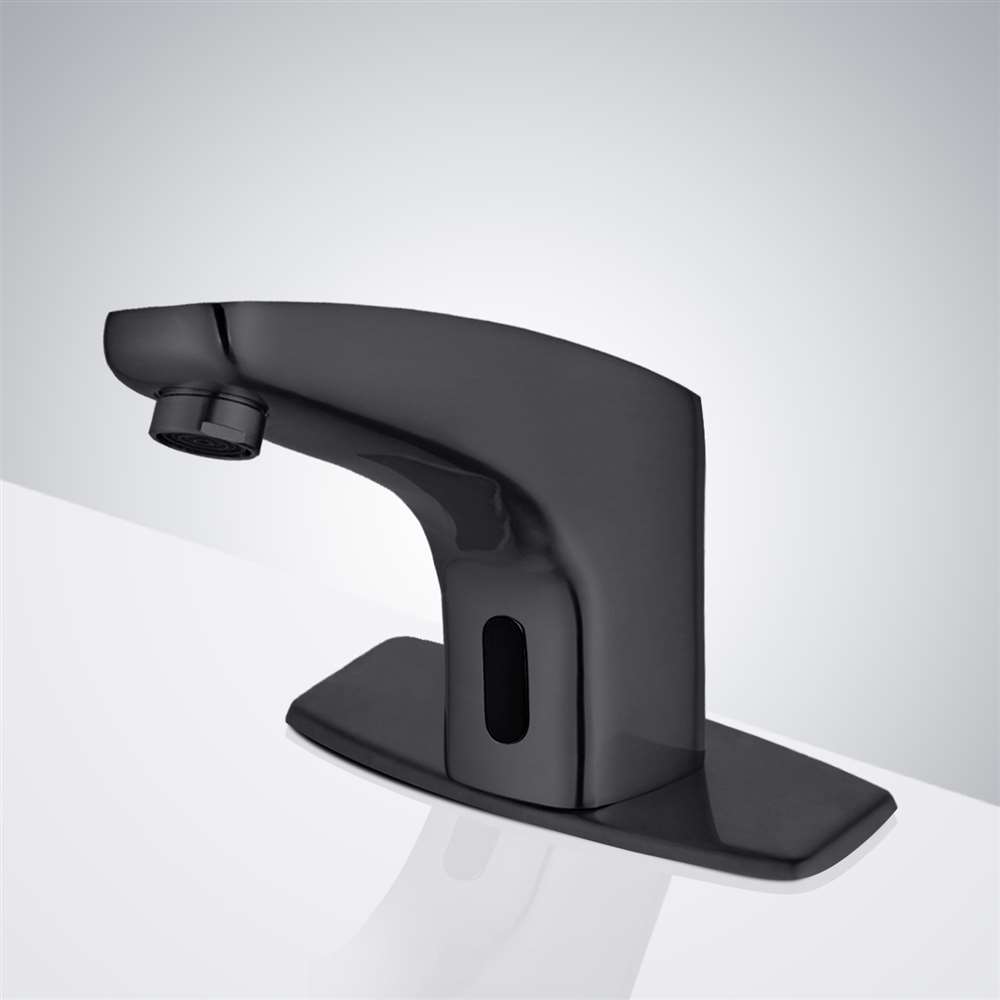

Fontana Mirage Commercial Automatic Motion Sensor Faucet in Matte Black

The Mirage no-touch Automatic Motion Sensor Faucet is an infrared sensor faucet that eliminates the need to touch or turn handles. Preset the temperature and flow rate to ensure consistency. Through the use of sensor beams, the automatic faucet determines when an object is in front of it and automatically turns on the faucet.

Fontana Mirage Commercial Automatic Motion Sensor Faucet FAQ

Infrared Detection Algorithms, Solenoid Valve Performance & Commercial Reliability

The BST5101MB sensor faucet incorporates advanced infrared sensing technology, electronic valve control, and brass construction for dependable touchless operation.

How does the infrared detection system improve activation reliability?

The sensor continuously evaluates reflected infrared signals and activates the valve only when a valid user is detected within the programmed sensing range.

What role does the electronic solenoid valve play?

The solenoid valve controls water delivery with rapid response times and precise shutoff characteristics to reduce water waste.

How does the faucet handle continuous commercial usage?

The heavy-duty brass body and commercial-grade electronics are engineered for high activation frequencies in public restroom environments.

How does automatic shutoff improve operational efficiency?

The system immediately terminates water flow when hands leave the sensing area, helping reduce unnecessary consumption and operating costs.

• Brand Name: FontanaShowers®
• Model Number: BST5101MB
• Type: Touchless Bathroom Faucet
• Water Pressure: 1 PSI -100 PSI
• Finish: Matte Black
• Construction: Solid Brass
• Control Box : Included- Hardwired & Battery Operated
• Supply Hoses: Included
• Other Features: Vandal resistant
• Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
• Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
• Flow Rate Special: Customizable can be provided for any Water Flow Requirement
• Sensor Range: Adjustable
• Mounting Hardware: Included
• Power Supply: AC110V And DC6V
• Batteries Included: No
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mounting Type: Deck Mount
• Usage: Commercial
• Body Material: Brass
• Valve Body: Brass
• Water Temperature Control: Built-in
• Sensing Range: 2” to 6”
• Response Time: 0.3 Second
• Shut-Off Delay Time: 2 Seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM Standard
• Usage: Commercial restrooms including high traffic bathroom facilities
• Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all US standard plumbing.
