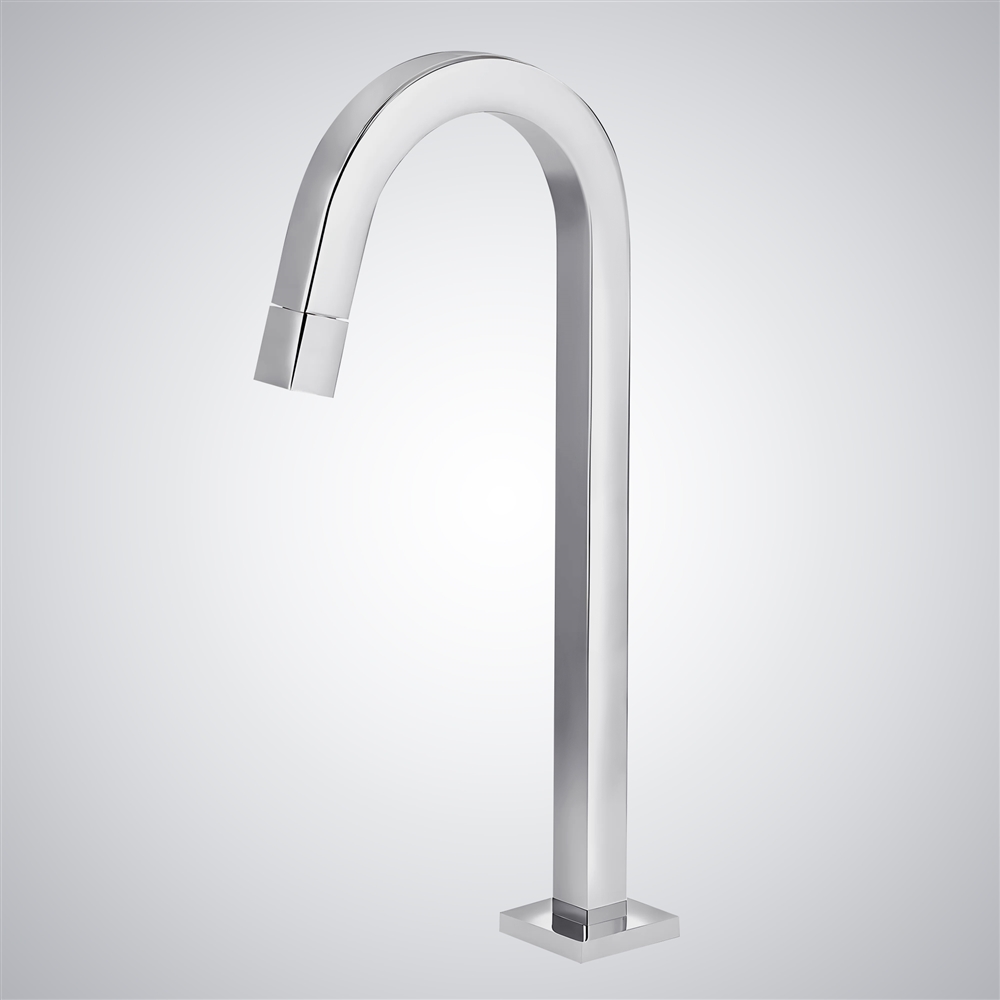

Fontana Orgaz Goose Neck Chrome Finish Bathroom Faucet
The Fontana Orgaz Goose Neck Chrome Finish Bathroom Faucet is a modern and contemporary touchless bathroom fixture for residential and commercial application. Made by FontanaShowers®, this state-of-the-art faucet promotes hygiene and convenience through the elimination of the need to turn on the faucet by hand. With a deck-mounted design, it is made from high-grade brass with long-lasting chrome finish for durability and corrosion resistance. The goose neck spout provides sufficient clearance, and the adjustable sensor range guarantees effective hands-free use. It can be powered by AC110V or DC6V, offering versatility for different installation scenarios. The solid brass thermostatic mixing valve provides accurate temperature adjustment, making it a great option for busy public places like hotels, restaurants, and office buildings.
Created with water efficiency in mind, the 1.3 GPM flow rate conserves water without sacrificing performance. Operating within a water pressure of 0.05Mpa - 0.7Mpa, it can adjust to multiple plumbing configurations. Supporting an ambient temperature between 33.8°F - 113°F, the faucet offers consistent performance across environments. Elegant, strong, and innovative, the Fontana Orgaz Sensor Faucet is a perfect fit for contemporary bathrooms.
Fontana Orgaz Goose Neck Chrome Finish Bathroom Faucet Features:
- Brand Name: FontanaShowers®
- Model Number: FS5587CH
- Type: Bathroom Faucet
- Style: Contemporary
- Mounting Type: Deck Mounted
- Body Material: Brass
- Finish: Chrome
- Overall height: 13.77" (35 cm)
- Spout Reach: 8.85"
- Spout Width: 1.65"
- Water Pressure: 0.05Mpa - 0.7Mpa
- Sensor Range: Adjustable
- Power Supply: AC110V, DC6V
- Batteries Included: No
- Mixing Valve: Water Temperature Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Valve Body: Brass
- Ambient Temperature: 1 - 45° / 33.8 -113 °F
- Overall height: 13.77 Inches (35 cm)
- Spout Reach: 8.85"
- Spout Width: 1.65"
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Usage: Commercial/ Residential
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
 |
