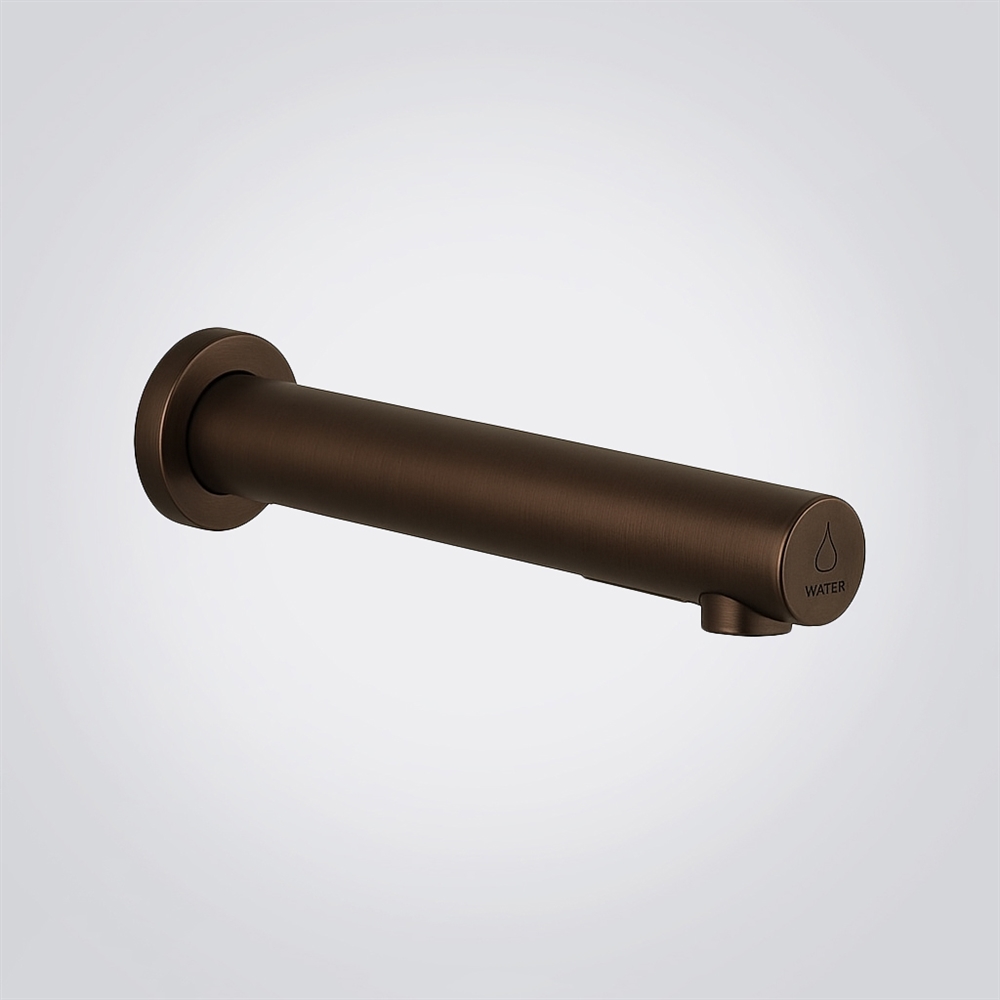

Unique in character and style, the FontanaAquaDynamiX™ Oil Rubbed Bronze Wall-Mounted Sensor Faucet offers a bold and modern aura to whichever room it is installed in. This rich, deep bronze finish elegantly proffers an old-world appeal for the wall set while protecting from wear, scratches, and tarnishing, eventually suitable for mounting under demanding environmental circumstances.
Constructed from brass for excellent durability and to withstand the rigors of daily applications, it intently fulfills the customer's requirement. It is fitted with the latest technology sensor for full activation with no-touch, thereby diminishing any chance of possible risk factors with physical contact in high-traffic areas. Its design is basic, current, and complements any interior décor, as well as the general function of the space. The wall-mounting design, therefore, enables it to be slim and saves the countertop area. Likewise, the single-hole faucet design makes installing this one very easy. A G1/2" connection means it is suitable for conventional plumbing; its smooth touch offers water pressure ranging from 1 to 6 bar. The aim of this design is for use in hotels, restaurants, offices, healthcare, and educational venues, a marriage of style, efficiency, and forward-thinking design to give a touchless faucet solution that promotes cleanliness, performance, and timeless design excellence.
FontanaAquaDynamiX™ Oil Rubbed Bronze Wall-Mounted Sensor Faucet FAQ
Wall Rough-In Alignment, Dynamic Pressure Testing; Oil Rubbed Bronze Finish Care
The FontanaAquaDynamiX™ Oil Rubbed Bronze touchless faucet combines solid-brass construction, single-hole wall mounting, infrared sensor activation, a standard G1/2-inch inlet, and reliable operation across a 1–6 bar water-pressure range.
How should the concealed wall outlet be aligned before installing the faucet?
Set the G1/2-inch connection level, square to the finished wall, and firmly supported within the wall cavity. Confirm that the spout centerline aligns with the basin drain so the stream lands inside the washing area without striking the rear wall or creating excessive countertop splash.
What commissioning checks are required across the 1–6 bar pressure range?
Flush the supply line before connection, inspect the inlet for construction debris, and test the faucet under dynamic rather than static pressure. Verify consistent activation, stable discharge, and complete shutoff while confirming that operating pressure remains within the specified 1–6 bar range.
What should be inspected if the faucet activates intermittently or shuts off slowly?
Clean the infrared sensor window, remove reflective objects from the detection area, and confirm that the faucet body is correctly aligned. Also inspect the inlet passage and internal valve for sediment, since debris can reduce flow or prevent the valve from closing immediately after hand removal.
How should the Oil Rubbed Bronze finish be maintained without changing its dark tone?
Wipe the exposed surface with a soft damp microfiber cloth and dry it immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, metal polish, steel wool, and concentrated disinfectants that may brighten or discolor the bronze finish.
Wall Bronze
