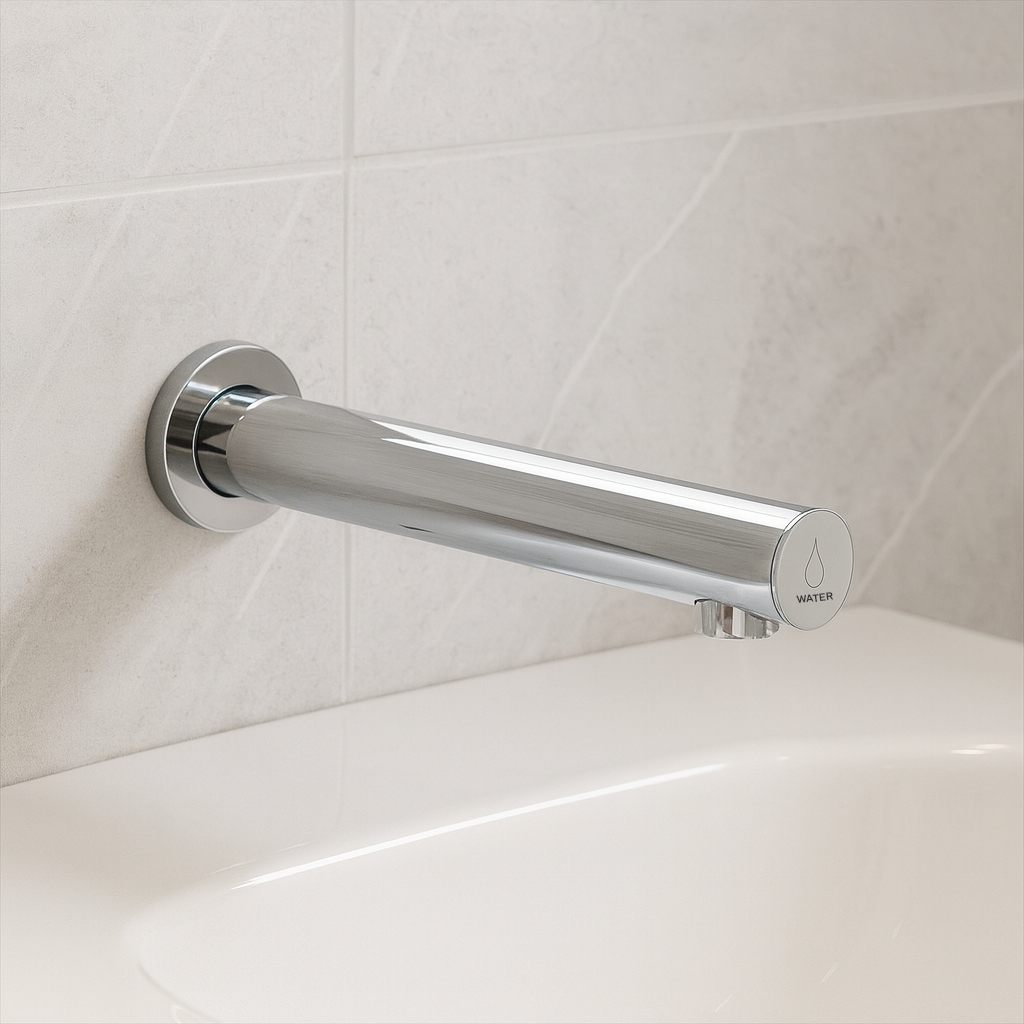

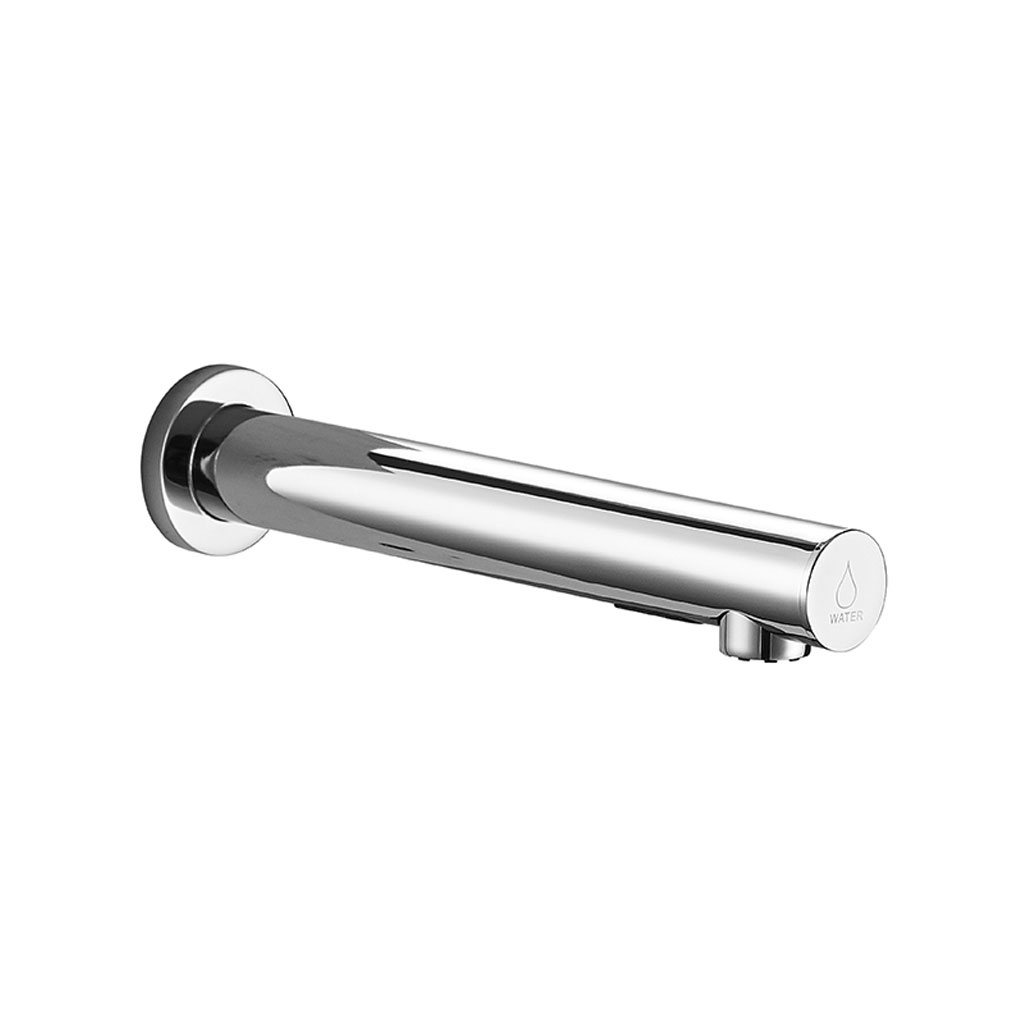

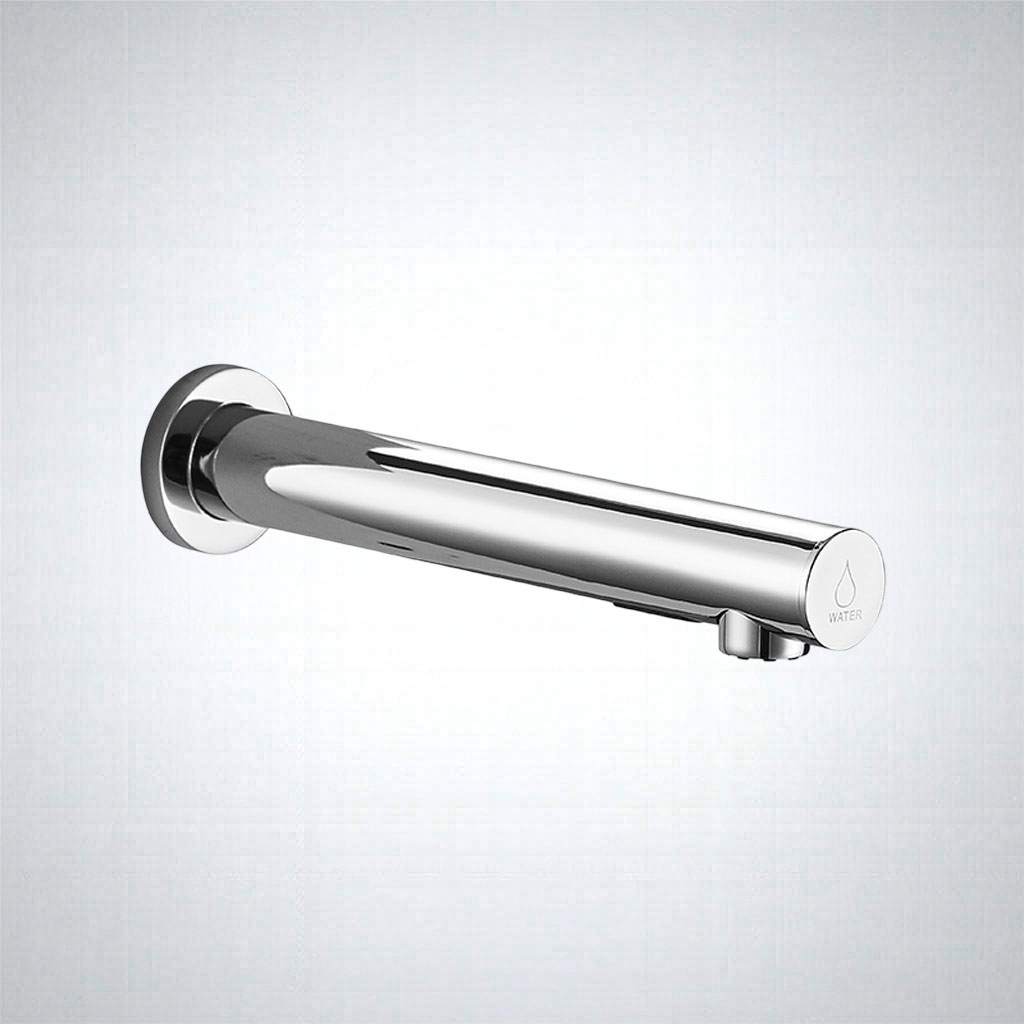

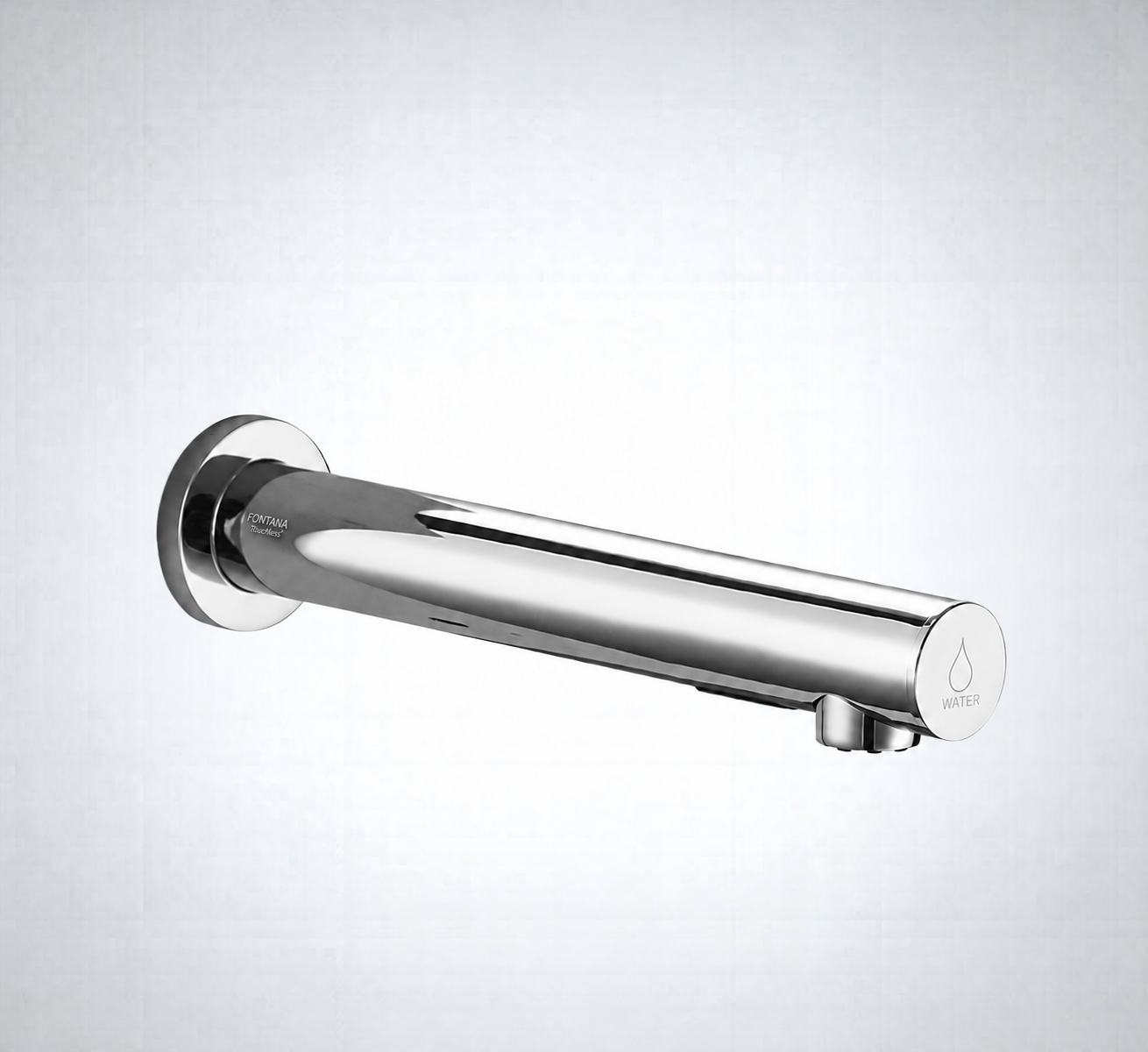

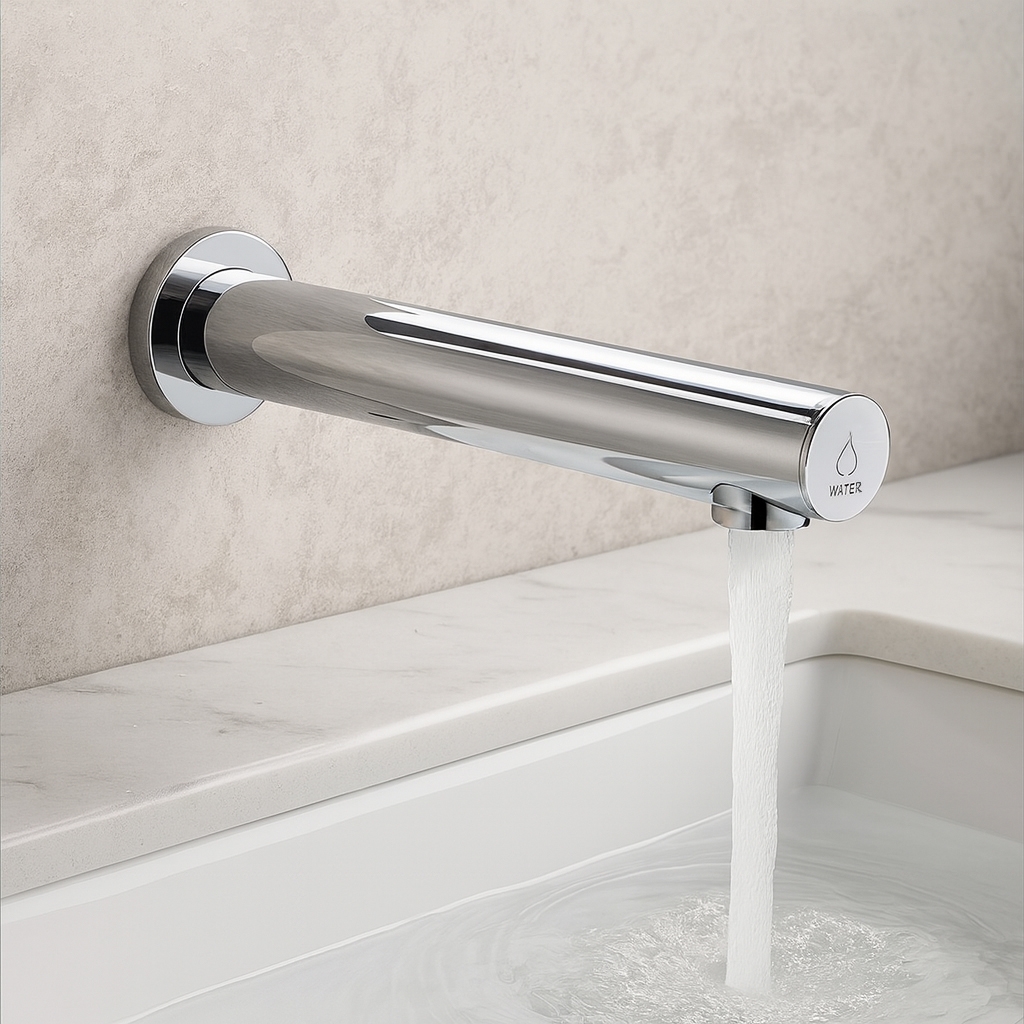

The FontanaVividTap Chrome Wall-Mounted Motion Sensor Faucet is designed for the aesthetic restoration of restrooms, offering a modern and hygienic upgrade. Motion-activated technology ensures use 100% free of touch, thus lessening cross-contamination and keeping high-footfall spaces clean. Made from brass and forged into a polished chrome finish, withstands an excellent level of wear and tear, while sustaining a mirror-like sheen finish.
The very minimalist design allows it to fit into almost any professional interior, be it public or commercial, with some style and participating utility. The wall-mounted design conserves precious counter space; the single-hole layout simplifies installation and increases stability. Practical in design, the faucet works well with water pressures from 1 to 6 bar to ensure a uniform flow rate in different situations. A 1/2-Inch inlet connection ensures compatibility with standard plumbing systems. Suitable for hospitals, offices, schools, airports, and fine hospitality locations, the faucet is a blend of productivity, beauty, and cutting-edge technology as an equal measure of form and function.
FONTANAVIVIDTAP™ SERIES
FontanaVividTap Touchless Faucet FAQs
Wall-mounted commercial touchless faucet with brass construction,
infrared activation, single-hole installation, G1/2" inlet
connection, and 1–6 bar operating pressure.
✥
Infrared Sensor Commissioning?
+
Complete sensor commissioning after the basin, finished wall,
mirror, lighting, partitions, and restroom accessories are
installed. Test repeated hand-entry and withdrawal cycles and
confirm immediate activation followed by complete automatic
shutoff.
◇
Operating Pressure Verification?
+
The specified operating water-pressure range is 1–6 bar.
Flush the supply piping before final connection and verify
that dynamic pressure remains within this range while the
faucet is operating.
◯
Wall-Mount Rough-In Coordination?
+
Establish the finished-wall plane, basin centerline, mounting
elevation, concealed G1/2" supply connection, and sensor-control
access before closing the wall. Provide rigid support for the
brass faucet body.
↻
Weak or Irregular Flow?
+
Inspect service valves, the G1/2" inlet, concealed supply
connections, filters, and outlet passages for restrictions
before diagnosing the infrared control system. Confirm stable
dynamic pressure during operation.
⌁
Reflective Surface Interference?
+
Mirrors, polished stone, metal accessories, and other
reflective materials should be checked for unintended
interaction with the infrared sensing field. Reconfirm
reliable activation from normal washing positions before
placing the fixture into service.
⌂
Basin and Spout Coordination?
+
Position the wall-mounted outlet so water reaches the primary
hand-washing zone without striking the rear basin wall, drain
assembly, or shallow bowl edge. Confirm basin geometry before
finalizing the mounting elevation.
⚡
Concealed Service Access?
+
Maintain reasonable service access to concealed hydraulic
and electronic components when coordinating the wall
assembly. Supply connections and sensor-control components
should remain accessible for inspection and maintenance.
⌕
Chrome Surface Maintenance?
+
Clean the polished Chrome surface and infrared sensor window
with a soft damp microfiber cloth. Use diluted pH-neutral
soap when required and avoid abrasive pads, acidic descalers,
bleach, ammonia, or aggressive metal polish.
‹
›
Chrome
♧
Wall Mounted
Counter-Free Layout
◇
Brass Body
Commercial Construction
⌁
Infrared Sensor
Touch-Free Activation
◇
G1/2" Inlet
Plumbing Connection
