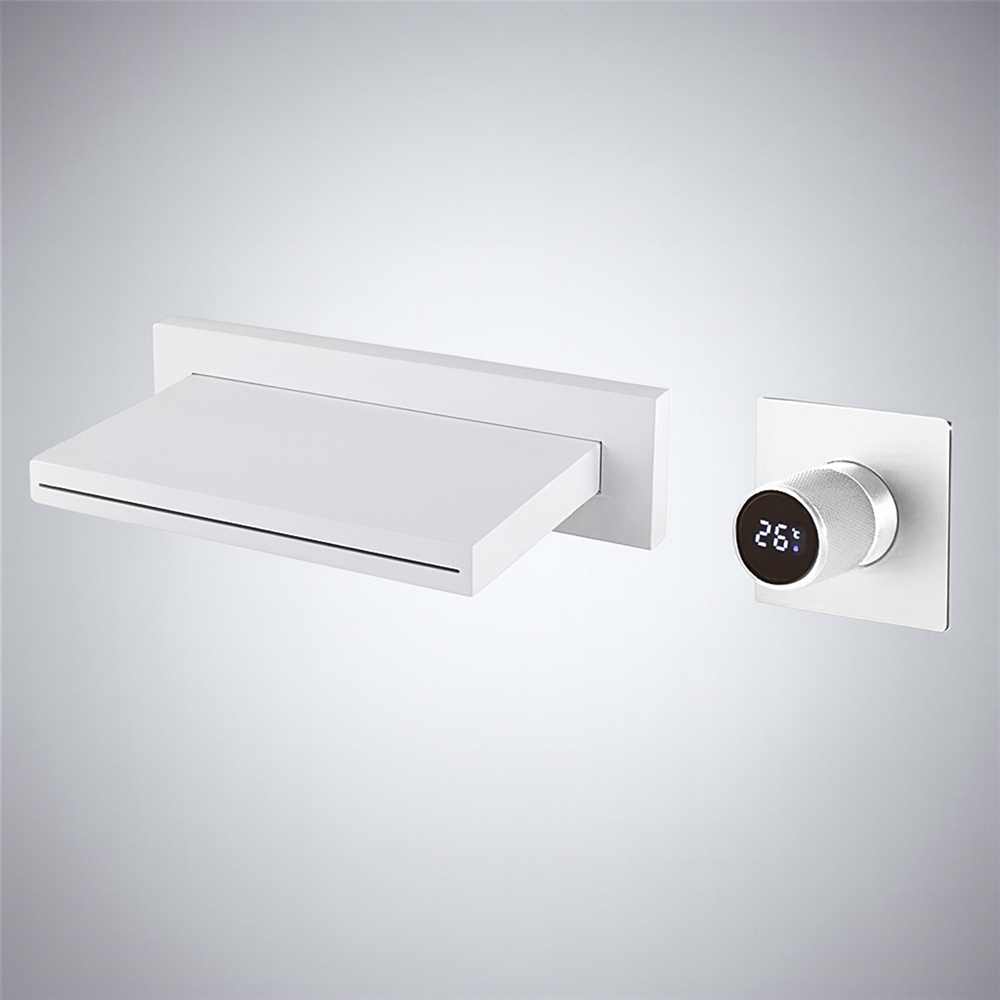

FontanaDuoMotion Matte White Waterfall Basin Faucet with Thermostatic Digital Display
The FontanaDuoMotion™ Matte White Motion Faucet becomes the most peaceful and tranquil presence, thanks to its state-of-the-art technology and design aesthetics. The perfect matte finish, coupled with the modest form, makes it not only a functional but also an aesthetic addition that melts away the tension and enhances the elegance of the contemporary dwellings. The soft waterfall stream provides a soothing atmosphere for the user and turns even the most boring tasks into a luxury-like spa experience. The intelligent thermostatic control maintains a constant temperature, thus ensuring that the user experiences the comfort and reliability of performance every time. The wall-mounted model preserves the neat lines and spatial harmony while the top quality brass craftsmanship makes the product resistant and elegant at the same time. The ceramic valve core gives the user smooth control and also prevents drip and extends the life of the valve. The digital interface presents the user with a perfect combination of accuracy and clarity, thereby not only making the operation easy but also maintaining the aesthetic aspect. The design of the product allows for harmonious integration and the single-handle configuration not only supports intuitive operation but also maintains a balance. This creation, which is ideal for the luxury bathroom, represents innovation, discretion, and relaxation, with the combination of form, flow, and technology in perfect unison and thus elevating the washing moments of every user.
Minimalist Dual Control Flow
- Brand Name: FontanaShowers®
- Model Number: FS10540MW
- Type: Bathroom Faucet
- Style: Contemporary
- Finish: Matte White
- Installation Type: Wall Mounted
- Material: Brass
- Valve Core Material: Ceramic
- Number of Handles: Single Handle
- Number of Holes: Two Holes
- Hot and Cold Water: Yes
- Functions: Waterfall
- Thermostatic Display: Yes
- Base Width: 9.65"
- Base Height: 2.56"
- Spout Width: 7.87"
- Spout Length: 5.31"
- Knob Diameter: 1.38"
- Knob Base Size: 3.35"
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
FontanaDuoMotion™ Matte White Waterfall Basin Faucet with Thermostatic Digital Display FAQ
Thermostatic Digital Display, Ceramic Valve Control;
Two-Hole Wall Mounting & Waterfall Flow Precision
The FontanaDuoMotion™ Matte White Waterfall Basin Faucet combines wall-mounted
two-hole installation with solid-brass construction, a ceramic valve core,
single-handle hot-and-cold water control, broad waterfall delivery, and an
integrated thermostatic digital display. The fixture measures 9.65 inches across
the base, with a 7.87-inch-wide waterfall outlet and 5.31-inch spout projection
for coordinated installation over contemporary bathroom basins.
How should the two-hole wall-mounted layout be coordinated before installation?
Establish the finished-wall position, basin centerline, spout projection,
control location, and concealed hot-and-cold supply routing before closing
the wall. The faucet requires a two-hole wall-mounted configuration with a
9.65-inch base width and 5.31-inch spout projection. Confirm that the
waterfall outlet will discharge into the usable basin area without striking
the drain, rear wall, or basin edge, and maintain accessible concealed
connections for future valve and supply servicing.
How should the thermostatic digital display be commissioned?
Flush and connect both hot and cold supplies before commissioning the
thermostatic system. Operate the single-handle control through the intended
temperature range and allow the outlet water to stabilize while monitoring
the digital display. Compare displayed temperature response with actual
water behavior and investigate abnormal fluctuation by checking hot-and-cold
supply balance, connection routing, and valve operation before assuming a
display fault.
What should be checked if the waterfall stream becomes uneven or distorted?
Because the faucet uses a broad 7.87-inch waterfall outlet, uniform internal
flow distribution is important for an even sheet of water. Verify that both
supply lines have been flushed and that concealed connections are free of
installation debris or restrictions. Inspect the outlet for mineral deposits
or contamination and confirm smooth ceramic-valve operation. Uneven supply
pressure, debris, or partial outlet obstruction can cause the waterfall sheet
to divide, deflect, or discharge inconsistently across its width.
How should the Matte White surface, waterfall outlet, and control area be maintained?
Wipe the exposed Matte White surfaces regularly with a soft damp microfiber
cloth and dry them after cleaning to limit soap film and mineral spotting.
Keep the waterfall outlet and digital-display area free from deposits that
could affect water distribution or display visibility. Use diluted pH-neutral
soap when required and avoid abrasive pads, steel wool, acidic descalers,
bleach, ammonia, aggressive solvents, polishing compounds, and concentrated
cleaners that may alter the Matte White finish.
|
|
|
|
|
|
|
