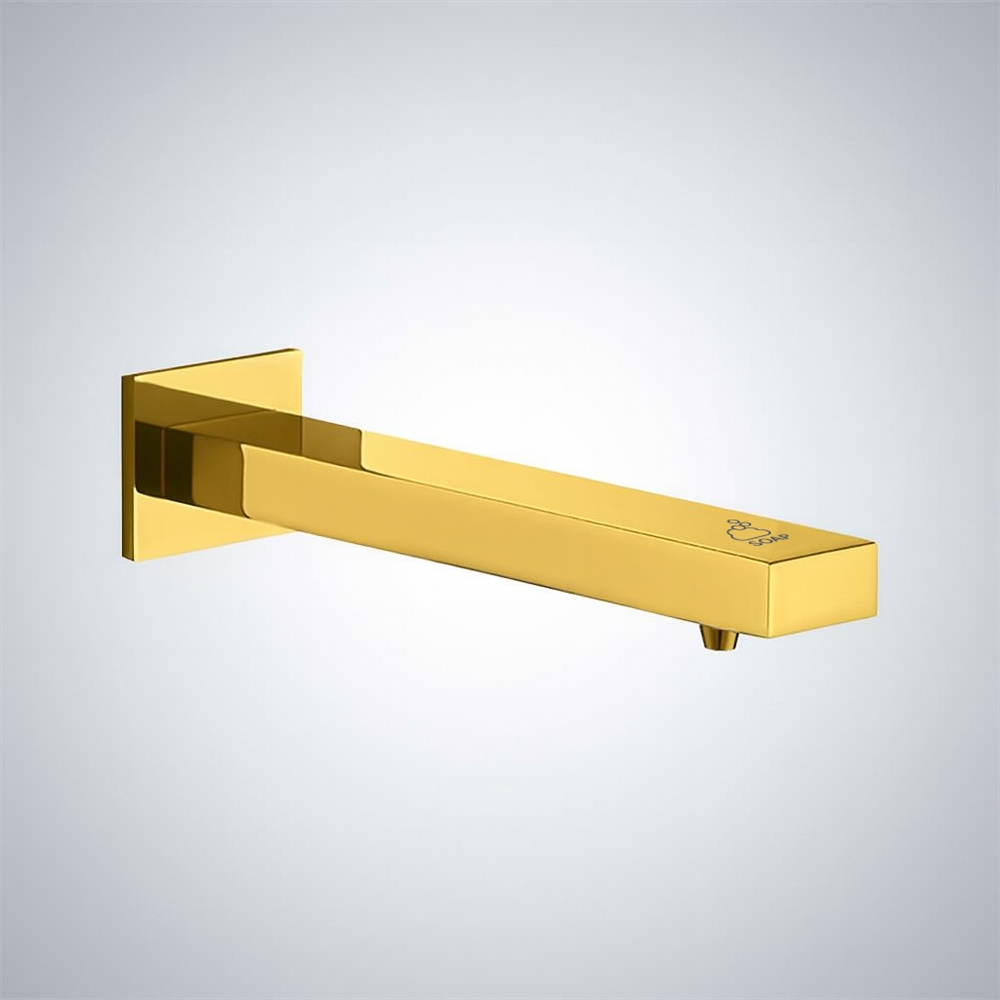

FontanaVelourDispense Gold Soap Dispenser with Automatic Sensor
The FontanaVelourDispense™ Gold Automatic Soap Dispenser merges modern style, reliability, and function for commercial environments. Made from solid brass with a stunning gold finish, it beautifies the restroom while being tough enough to last. The polished treatment enhances the elegance while simplifying cleaning keeping all surfaces clean. The product is designed to be wall-mounted saving space, and thanks to its upscale design, it fits in seamlessly as part of a new project, or an upgraded project. Advanced infrared sensing enables hygiene, hands-free operation to prevent cross-contamination in high-traffic/surfaces. We use a brass pump that is tough enough to ensure performance without question, providing a smooth consistent flow of soap with lasting time. The dispenser can hold a sizable 1L soap refill helping to ensure less refill trips saving time in busy sites. It has a high level of versatility for power options, either an AC110–240V or a DC 6V supply for your needs without sacrificing any outcomes. The dispenser will perform to high standards at pressures ranging between 0.05–0.6Mpa at varying temperatures from 0.1–50℃. And our ADA compliance further demonstrates the combination of efficiency, cleanliness, and style for everyone. FontanaVelourDispense™ Gold helps transform handwashing practices by driving standards in function, cleanliness, and style.
FontanaVelourDispense™ Gold Automatic Sensor Soap Dispenser FAQ
Infrared Touchless Dispensing, 1-Liter Reservoir;
AC/DC Power & Gold Surface Protection
The FontanaVelourDispense™ Gold Automatic Sensor Soap Dispenser combines
solid-brass construction with a durable brass pump, infrared hands-free
activation, and a 1-liter soap reservoir in a wall-mounted commercial
configuration. The system supports AC 110–240 V or DC 6 V power,
operates within a 0.05–0.6 MPa pressure range and 0.1–50 °C temperature
range, and is designed for hygienic dispensing in high-traffic washrooms.
How should the infrared sensor zone be commissioned after installation?
Complete commissioning only after the dispenser, basin, finished wall,
mirror, lighting, and adjacent restroom accessories are fully installed.
Present a hand beneath the outlet from normal user positions and confirm
prompt dispensing without physical contact. Repeat the test from several
practical approach angles and verify that reflective surfaces, nearby
fixtures, or pedestrian movement do not cause unintended activation.
Keep the infrared sensor surface clean during final testing.
How should the 1-liter reservoir and brass pump be serviced?
Maintain accessible service clearance around the 1-liter reservoir,
brass pump, tubing, and control enclosure so routine refilling and
maintenance can be performed without disturbing the finished wall.
During refilling, inspect the bottle, tubing, pump inlet, and outlet
for dried soap or contamination and avoid overtightening reservoir
connections. After servicing, perform repeated sensor-activated cycles
to prime the soap path and confirm smooth, consistent dispensing.
How should AC 110–240 V and DC 6 V power be coordinated for commercial installation?
Select the intended AC or DC power arrangement before closing the
accessible service area. Keep power connections and sensor wiring
protected from soap leakage and moisture while maintaining access for
inspection and replacement. Route cables without sharp bends, crushing,
or excessive tension. After energizing the dispenser, perform repeated
activation cycles and verify consistent infrared detection, pump response,
and complete dispensing cycles before placing the unit into service.
How should the Gold finish, sensor area, and dispensing outlet be maintained?
Clean the exposed Gold-finished brass surfaces with a soft damp
microfiber cloth and dry them after cleaning to minimize fingerprints,
soap film, and water spotting. Keep the infrared sensor and dispensing
outlet free from dried soap or residue that could affect detection or
product delivery. Use diluted pH-neutral cleaner when necessary and avoid
abrasive pads, steel wool, acidic cleaners, bleach, ammonia, aggressive
metal polish, and concentrated chemicals that may alter the Gold finish.
- Brand Name: FontanaShowers®
- Model Number: FS9840GL
- Finish: Gold
- Main Material: Solid Brass-Metal
- Pump Material: Brass
- Volume: 1 Liter
- Installation Type: Wall Mounted
- Working Mode: IR sensor
- Type: Automatic Soap Dispenser
- Touchless Soap Dispenser Power supply: AC110-240V; DC 6V
- Tap Height: 0.79" (20 mm)
- Tap Width: 1.57" (40 mm)
- Tap Depth: 8.66" (220 mm)
- Motor Case Height: 12.09" (307 mm)
- Motor Case Width: 3.54" (90 mm)
- Motor Case Depth: 4.17" (106 mm)
- Usage: Commercial
