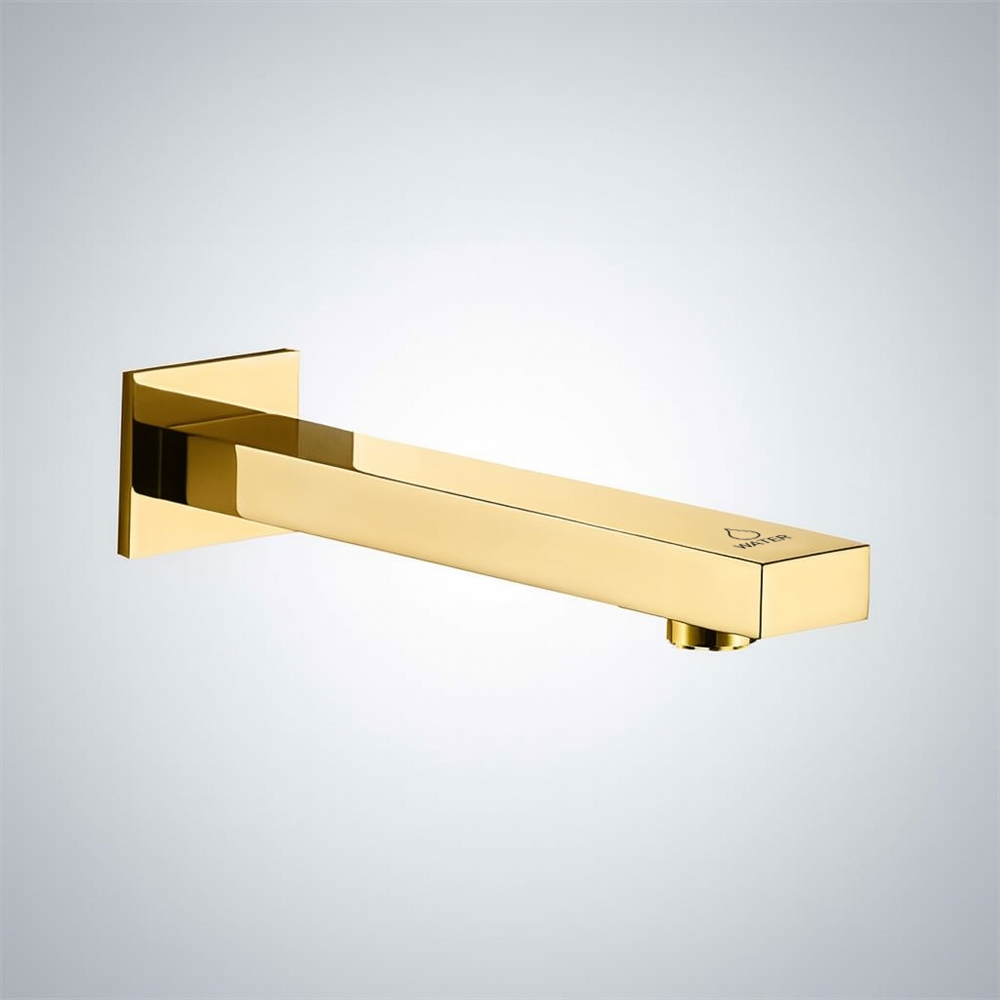

FontanaWaveSense Gold Auto Faucet with Touchless Sensor

The FontanaWaveSense™ Gold Sensor Faucet is a premium, touchless, automatic commercial faucet incorporating modern luxury, aesthetics, and functionality. It is ideally located in high-traffic public and commercial spaces. The gold finish surface delivers a sophisticated satin look, but is also durable, verified in a 24/48 hour salt spray test.

The single-hole wall-mounted installation is convenient and can be used in both new builds and renovations. It includes a sophisticated infrared sensor to operate fully touchless, significantly improving hygiene in busy environments to eliminate cross-contamination between employees and customers. The ceramic valve core guarantees both smooth, leak-free operation in working pressures of 0.05-0.6MPa and water temperatures of 0.1-50 ℃. It can also be installed in DC, AC, or Hybrid configurations. The sensing distance operates in the range of 6.30-12.60 inches (16-32cm), thus providing for a quick response time - within 0.5 seconds. As a commercial item, quickness and efficiency are important. - setting a standard for efficiency, cleanliness, and modernity - based on ADA standards and engineered sophistication.

FontanaWaveSense™ Gold Wall Mounted Automatic Sensor Faucet FAQ

16–32 cm Infrared Sensing, 0.5-Second Response; 0.05–0.6 MPa Operation & Gold Surface Protection

The FontanaWaveSense™ Gold Automatic Sensor Faucet combines a contemporary single-hole wall-mounted configuration with infrared hands-free activation, ceramic valve control, and flexible AC or DC power. Designed for commercial washrooms, the system operates at 0.05–0.6 MPa water pressure and 0.1–50 °C, provides a 16–32 cm sensing range with approximately 0.5-second response, and incorporates an ADA-compliant compact wall-mounted architecture.

How should the 16–32 cm infrared sensing range be commissioned?

Complete sensor commissioning only after the basin, finished wall, mirror, lighting, partitions, soap accessories, and surrounding fixtures are fully installed. Test hand detection throughout the specified 16–32 cm range and confirm that the faucet responds within approximately 0.5 seconds under normal conditions. Verify reliable shutoff after the user's hands leave the sensing field and check mirrors, polished stone, metallic accessories, and other reflective surfaces for unintended infrared interaction.

How should operation across the 0.05–0.6 MPa pressure range be verified?

Flush the supply piping before final connection and verify that dynamic water pressure remains within the specified 0.05–0.6 MPa range while the faucet is operating. Perform repeated activation cycles and confirm consistent discharge and complete valve closure. If flow becomes weak or unstable while sensor detection remains normal, inspect service valves, supply connections, filters, outlet passages, and the concealed hydraulic path before diagnosing the infrared electronics.

How should AC/DC power and the ceramic valve core be checked during commissioning?

Select and verify the intended AC or DC power configuration before completing the concealed installation. Maintain accessible service space for power connections, sensor wiring, the control enclosure, and ceramic valve assembly. Cycle the faucet repeatedly and confirm rapid sensor response, smooth valve opening, and complete shutoff. If sensor detection remains stable but water response becomes delayed, intermittent, or incomplete, troubleshoot the ceramic valve and hydraulic path separately from the electronic sensing system.

How should the Gold finish and infrared sensor surface be maintained?

Remove fingerprints, soap residue, and mineral deposits using a soft damp microfiber cloth and dry the exposed Gold surfaces after cleaning. Keep the infrared sensor window free from soap film and residue that could interfere with reliable detection. Use diluted pH-neutral soap when necessary and avoid abrasive pads, steel wool, acidic descalers, bleach, ammonia, aggressive metal polish, and concentrated chemical cleaners that may scratch, discolor, or alter the Gold finish.

Gold

• Brand Name: FontanaShowers®
• Model Number: FS9825GL
• Finish: Gold
• Type: Sensor Faucet
• Surface Treatment: Brushed
• Faucet Mount: Single Hole
• Installation Type: Wall Mount
• Style: Contemporary
• Valve Core Material: Ceramic
• Sensor: Infrared Sensor
• Power Supply: AC or DC
• Brushed Gold plating: 24/48 Hours Salt Spray Test
• Sensing Distance: 6.30-12.60 inches (16-32 cm)
• Water Pressure: 0.05-0.6MPa
• Operating Temperature: 0.1-50℃
• Usage: Commercial
• Tap Height: 0.7874" (20 mm)
• Tap Width: 1.5748" (40 mm)
• Tap Depth: 8.6614" (220 mm)
• Motor Case Height: 5.7087" (145 mm)
• Motor Case Width: 4.5866" (116.5 mm)
• Motor Case Depth: 3.3661" (85.5 mm)
• ADA Compliant
