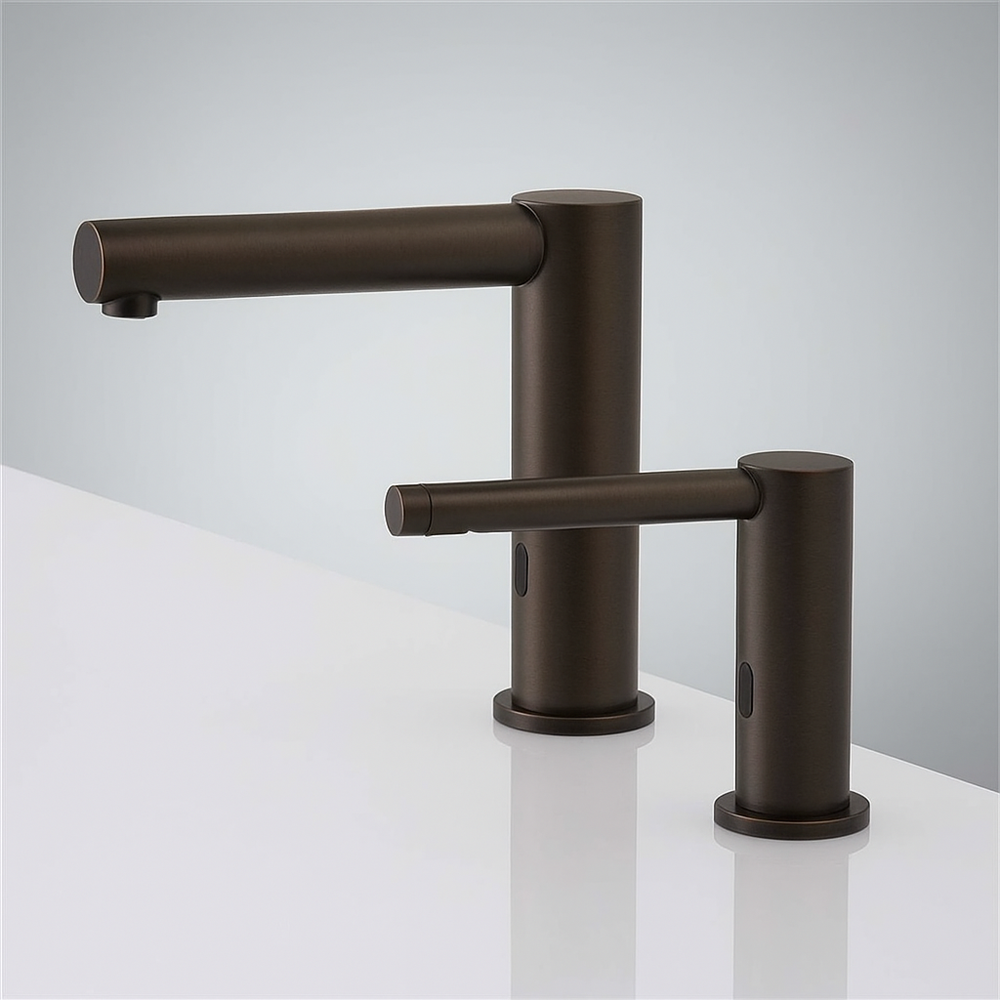

FontanaWaveSync Oil Rubbed Bronze Touchless Faucet and Soap Dispenser Combo
The FontanaWaveSync™ – Oil Rubbed Bronze Dual Sensor Set elevates and innovates any professional environment with this precision-crafted bronze-toned fixture combination. Each piece is made from durable high-quality brass to ensure they can endure constant daily usage with maximum life-span usage considerations. Our matching faucet and soap unit feature two motion detection sensors with smart infrared technology for automatic, hands-free operation. The faucet and soap unit automatically shut off within 30 seconds to help manage your water consumption while enjoying the luxury of convenience, and the water pressure range from 0.5–7.0 KGS/cm² (10–125 PSI) maintains constant reliability and maximum enjoyment with great service. Each unit come with all necessary hoses, accessories and a easy-to-follow installation booklet for instant installation, and our galvanizing solenoid enclosure is water resistant to maximize product longevity. Powering is flexible to allow either AC 110 V or DC 6 V (batteries not included), and provides user AC/DC power options. Both the faucet and soap unit are fully ADA compliant and are the perfect combination of design sophistication, smart innovation and dependable performance in busy hotel lobbies, airport terminals, health facilities and high-end public space venues.
FontanaWaveSync™ Oil Rubbed Bronze Dual Touchless Faucet & Soap Dispenser FAQ
Dual Infrared AI Smart-Chip Sensors, 30-Second Auto Shutoff;
10–125 PSI Operation & Oil Rubbed Bronze Surface Protection
The FontanaWaveSync™ Oil Rubbed Bronze dual sensor system combines a
touchless water faucet and automatic soap dispenser in a coordinated
commercial deck-mounted configuration. Both fixtures use solid-brass
construction and independent infrared AI Smart-Chip sensing, with
10–125 PSI operating pressure, a 30-second automatic faucet shutoff,
water-resistant solenoid protection, AC 110 V or DC 6 V power capability,
and ADA-compliant hands-free operation.
How should the faucet and soap-dispenser sensor zones be commissioned?
Complete commissioning after the basin, countertop, backsplash, mirror,
lighting, and surrounding accessories are fully installed. Test the
faucet and soap dispenser independently from normal handwashing positions
and confirm that each infrared sensor activates only its intended fixture.
Verify prompt water activation and shutoff, controlled soap dispensing,
and no cross-triggering between the two sensing zones. Reflective basin
surfaces and nearby accessories should also be checked for unintended
infrared response.
How should operation across the 10–125 PSI pressure range be verified?
Flush the water supply before final connection and confirm that dynamic
pressure remains within the specified 10–125 PSI range while the faucet
is operating. Perform repeated sensor cycles and verify stable water
delivery and complete shutoff. If discharge becomes weak or inconsistent,
inspect service valves, hoses, inlet passages, outlet components, and
the solenoid water path for restrictions before replacing electronic
sensor components.
How should the AC 110 V and DC 6 V power options be coordinated?
Determine the intended power arrangement before completing the accessible
undercounter installation. The system supports AC 110 V or DC 6 V power,
allowing hardwired or battery-based operation as required by the project.
Keep power connections, sensor wiring, and the water-resistant solenoid
enclosure accessible for service and protected from plumbing or soap
leakage. After energizing the system, cycle both fixtures repeatedly to
verify reliable infrared detection and valve response.
How should the Oil Rubbed Bronze finish and sensor surfaces be maintained?
Clean the exposed Oil Rubbed Bronze brass surfaces with a soft damp
microfiber cloth and dry them after cleaning to reduce soap film,
fingerprints, and mineral deposits. Keep both infrared sensor windows
and the soap outlet free from residue that could interfere with sensing
or dispensing. Use diluted pH-neutral soap when required and avoid
abrasive pads, steel wool, acidic descalers, bleach, ammonia, aggressive
metal polish, and concentrated chemicals that may alter the bronze finish.
- Brand Name: FontanaShowers®
- Model Number: FST1051ORB
- Finish: Oil Rubbed Bronze
- Materials: Solid Brass
- Sensor Type: Sensitive
- Infrared: AI Smart-Chip
- Auto Shutoff: 30 Seconds
- Water Pressure: 0.5-7.0 KGS /cm, 10-125 PSI
- Installation Manual: Included
- Solenoid Enclosure: Water resistant
- Hoses & Accessories: Included
- Power Supply: AC 110 V and DC 6 V (batteries not included)
- Power Option: AC/DC
- Compliance: ADA
- Usage: Commercial
