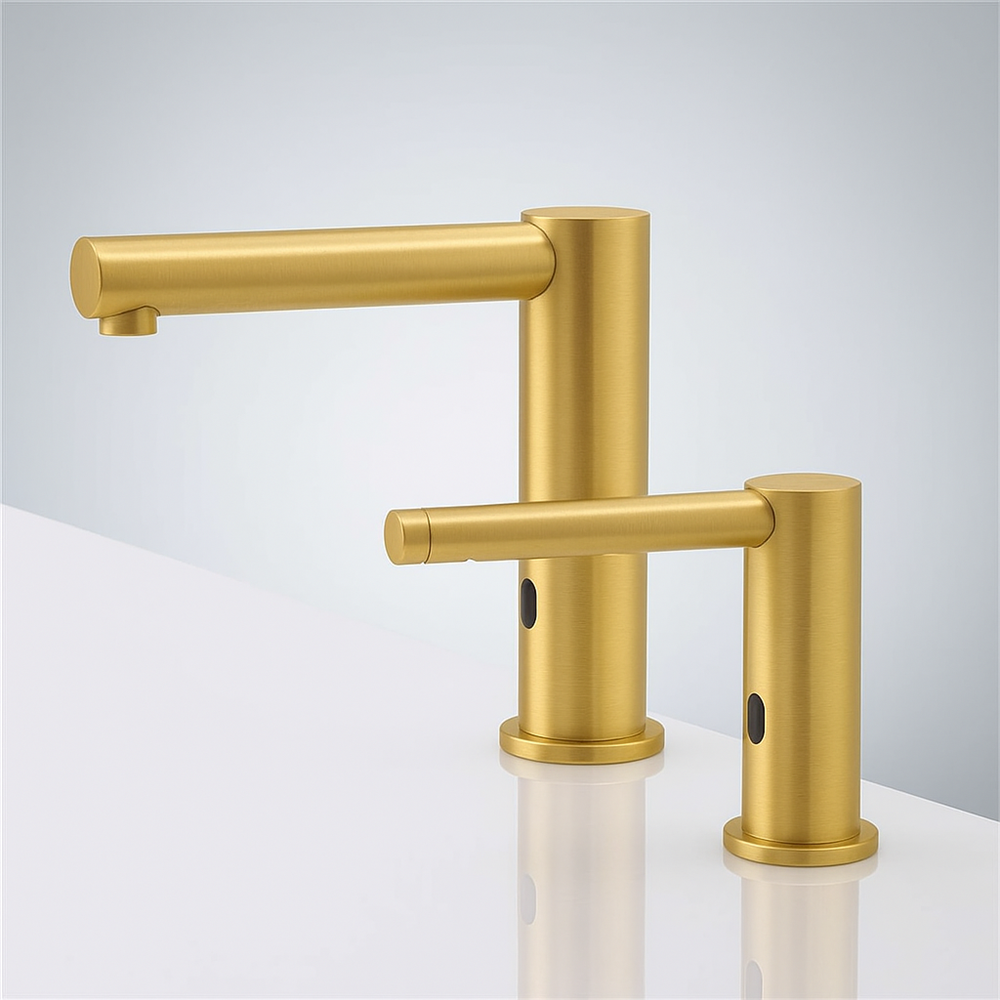

FontanaVelocityFlow Deck Mount Gold Dual Automatic Faucet and Soap Dispenser
FontanaVelocityFlow™ – Gold Series is an elegant practical twin function tap, with a sensor activated tap and automatic soap dispenser. This item will bring both hygiene and practicality to a high traffic washroom where hygienic and fully touch free hand washing experience is a necessity, and with a beautiful Gold finish this elegant combination is suitable for any contemporary space. It is made of durable cast brass, and combines two independent infrared sensors (one for the water, the other for the soap) to provide a hands free solution - Always. By eliminating, or reducing contact, it can help to lessen the risk of spreading germs and encourage cleaner public spaces. Furthermore, the AI powered built in sensor is self learning and will pick its own flush size based on the shape and color of the fitting, while understanding waste .While no one tap wash is equal to another, and having waste in the washroom is never a good thing. The unit ensures flexible installation via 4 AA batteries or AC power. The unit accepts almost any set pressure within a wide range of 0.5 - 7.0 KGS/cm² or 10 - 125 psi. Also the no drip feature of the unit ensures that the counter remains dry for increased efficiency and duty of resources. Great solution for commercial washrooms, restaurants, hospitals, offices and other high traffic environments, it has a stylish, mess free, smart way to increase hand washing compliance that pairs function and beauty.
FontanaVelocityFlow™ Gold Dual Automatic Touchless Faucet & Soap Dispenser FAQ
Dual Infrared AI Smart-Chip Sensors, 30-Second Auto Shutoff;
10–125 PSI Operation & AC/DC Commercial Power
The FontanaVelocityFlow™ Gold dual automatic faucet and soap dispenser combines
solid-brass construction with two independent infrared sensors for fully touchless
water and soap delivery. The commercial deck-mounted system features AI Smart-Chip
sensing, automatic detection-zone adjustment, a 30-second faucet auto shutoff,
10–125 PSI operating pressure, a water-resistant solenoid enclosure, AC 110 V
or DC 6 V power capability, and ADA-compliant operation for high-traffic washrooms.
How should the faucet and soap-dispenser infrared sensor zones be commissioned?
Complete commissioning only after the basin, countertop, mirror, lighting,
partitions, and surrounding restroom accessories are fully installed. Test
the faucet and soap dispenser independently from normal handwashing positions
and confirm that each infrared sensor activates only its intended function.
Because the AI Smart-Chip adjusts the detection area according to basin shape
and color, final testing should be performed under actual installed conditions
to verify reliable activation without cross-triggering or unintended response
from reflective surfaces.
How should the 10–125 PSI operating pressure range be verified during commissioning?
Flush the water supply piping before final connection and verify that dynamic
pressure remains within the specified 10–125 PSI operating range while the
faucet is cycling. Confirm stable discharge, immediate sensor-controlled
opening, and complete shutoff after hand removal. If flow becomes weak or
inconsistent, inspect service valves, hoses, inlet passages, aerator components,
and the solenoid water path for restrictions before diagnosing the electronic
sensing system.
How should AC 110 V and DC 6 V power be coordinated for commercial installation?
Determine the primary power strategy before closing the accessible service
area. The system supports AC 110 V operation or DC 6 V battery power, allowing
hardwired installation or battery-based service where appropriate. Keep power
connections, sensor wiring, and the water-resistant solenoid enclosure
accessible for maintenance and protected from plumbing or soap leakage.
After energizing the system, perform repeated faucet and dispenser cycles
and verify consistent operation of both independent infrared sensors.
What should be checked if the faucet does not shut off within the expected cycle?
First clean the infrared sensor window and confirm that nearby reflective
surfaces, basin geometry, or accessories are not extending the detection
field. Verify stable AC/DC power and inspect sensor wiring and solenoid
connections. The faucet incorporates a factory-set 30-second automatic
shutoff, so continued flow beyond the expected cycle should prompt inspection
of sensor conditions and solenoid response. Keep the Gold surfaces clean with
a soft damp microfiber cloth and avoid abrasive or aggressive chemical cleaners.
- Brand Name: FontanaShowers®
- Model Number: FST1015GL
- Finish: Gold
- Materials: Solid Brass
- Sensor Type: Sensitive
- Infrared: AI Smart-Chip
- Auto Shutoff: 30 Seconds
- Water Pressure: 0.5-7.0 KGS /cm, 10-125 PSI
- Installation Manual: Included
- Solenoid Enclosure: Water resistant
- Hoses & Accessories: Included
- Power Supply: AC 110 V and DC 6 V (batteries not included)
- Power Option: AC/DC
- Compliance: ADA
- Usage: Commercial
