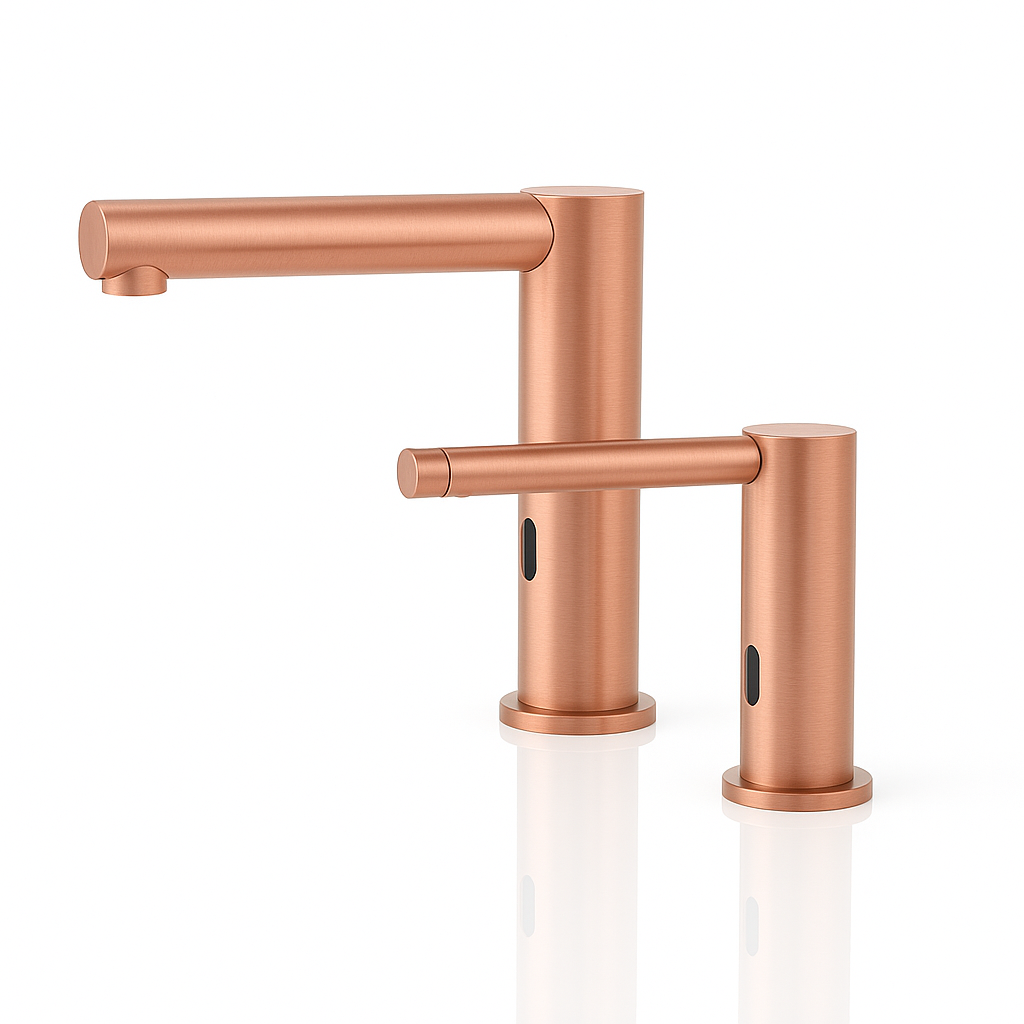

FontanaAquaBlast Rose Gold Sensor Faucet and Soap Dispenser for Deck Mounted Installation
The FontanaAquaBlast™ – Rose Gold Style pairs sophisticated aesthetics with advanced sensor technology. Designed for commercial and high traffic areas, this beautifully executed, touch free, deck mounted faucet and soap dispenser makes an undeniable impact in any modern restroom with its stunning Rose Gold finish. Featuring heavy duty cast brass construction, it's design incorporates dual infrared sensors where one operates the water and the other will dispense soap.
 This is a fully touchless operation which eliminates the possibility of cross contamination. Suitable for standard U.S. plumbing systems, the faucet can accept both hardwired AC as well as battery (4 AA alkaline) and it is also designed to work comfortably across a wide range of operating pressures (0.5–7.0 KGS/cm² or 10–125 psi). It also features a no drip faucet which will help prevent clean up in busy bathrooms as well as conserve water. It is ideal for any application including offices, healthcare, restaurants, arenas, public spaces, etc. This contactless solution is the perfect union of solid, modern functionality and stylish design it's the perfect flush fitting solution for the rest room experience of the future.
FontanaAquaBlast™ Rose Gold Touchless Faucet and Soap Dispenser FAQ
Dual-Sensor Separation, Solenoid Commissioning; Rose Gold Surface Protection
The FontanaAquaBlast™ Rose Gold system combines a solid-brass touchless faucet and matching automatic soap dispenser, dual infrared AI smart-chip activation, deck-mounted installation, AC or DC power, a 30-second automatic shutoff, and operation across a 10–125 PSI pressure range.
How should the faucet and soap-dispenser sensor zones be separated during commissioning?
Complete sensor testing after the basin, countertop, backsplash, mirror, and surrounding accessories are installed. Confirm that hands beneath the faucet activate only water and that movement beneath the dispenser activates only soap, without cross-triggering from the adjacent sensor or reflective surfaces.
What should be checked if the faucet does not shut off completely after hand removal?
Clean the sensor window, remove reflective objects from the detection zone, verify stable AC or DC power, and inspect the inlet filter and solenoid valve for construction debris. Sediment at the valve seat can cause delayed closure, dripping, or repeated unintended activation.
How should the control box and supply connections be arranged beneath the deck?
Mount the water-resistant solenoid enclosure where the sensor cable, faucet hose, incoming supply, and power connection remain accessible without sharp bends or tension. Flush the supply before connection and allow approximately 60 seconds after connecting the sensor cable for calibration.
How should the Rose Gold finish be cleaned without altering its warm metallic appearance?
Remove soap residue, fingerprints, and water spots with a soft damp microfiber cloth, then dry both fixtures immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, metal polish, steel wool, and concentrated disinfectants.
- Brand Name: FontanaShowers®
- Model Number: FST1015RG
- Finish: Rose Gold
- Materials: Solid Brass
- Sensor Type: Sensitive
- Infrared: AI Smart-Chip
- Auto Shutoff: 30 Seconds
- Water Pressure: 0.5-7.0 KGS /cm, 10-125 PSI
- Installation Manual: Included
- Solenoid Enclosure: Water resistant
- Hoses & Accessories: Included
- Power Supply: AC 110 V and DC 6 V (batteries not included)
- Power Option: AC/DC
- Compliance: ADA
- Usage: Commercial
Modern Dual Sensor Design in Sophisticated Rose Gold
|
Rose Impact
