How to install Fontana Commercial Temperature Control Brushed Nickel Platinum Thermostatic Automatic Sensor Faucet | SENSOR-TAP-FB505B


Easy step by steps installation instructions for Commercial Sensor Faucet Visit Product Page

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
sensor

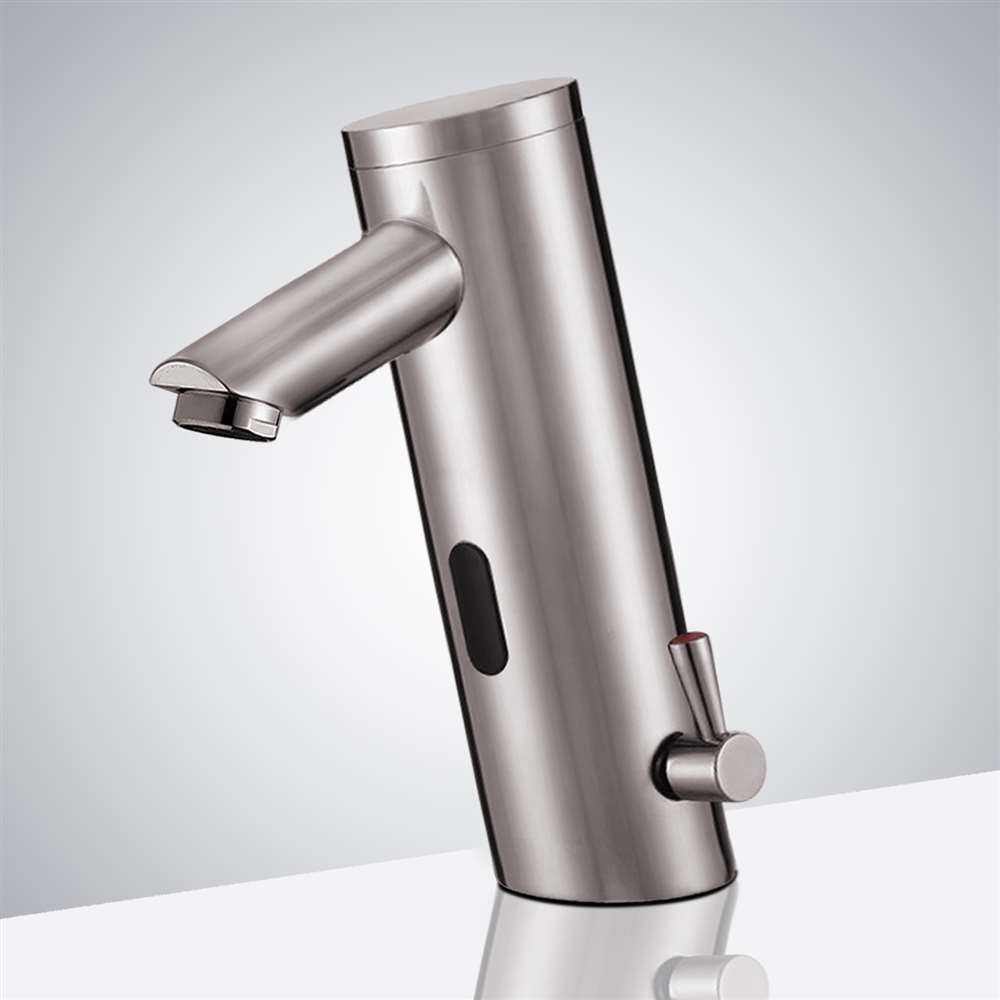

Fontana Commercial Temperature Control Brushed Nickel Platinum Thermostatic Automatic Sensor Faucet

Sensor Faucet Installations Instructions


Size:

Features:
- Cold and Hot integration. It is a mixer with the cold water in the left turning and hot water in the right turning.
- Water saving: Water flows out when your hands approach the induction zone, and stop immediately once you draw back your hands.
- Low power,electricity-saving: For DC type, 4pcs AA batteries can be used for about 2 years, if the faucet working 200 times a day.

Specification:
- Installation Type: Deck Mounted
- Installation Holes: One Hole
- Flow Rate: 1.8 GPM (6.81 L/min)
- Valve Type: Ceramic Valve
- Suitable Water Pressure: 0.3-1.2 MPa
- Temperature of environment:1-45° C (Cold & Hot water )
- Electric Power: DC Dry Battery
- Dia of inlet pipe: G1/2"
- Dia of outlet pipe: G1/2"
- Power: DC6V (4AA Alkaline batteries)
- Power consumption in static: <0.5 mW
- Detection Zone: Factory set 30cm
- Protection degree: IP56


Smart infrared sensor automatically adjusts the distance according to the environment.





Step 1: Battery Box Step 2:
sensor




Step 3: Step 4:



Step 5: Step 6: Correct way for Hose




Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply.
Ensure the ‘O’ ring is in place at the bottom of the mixer body.
Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer.
CAUTION: Do not over tighten the nut/bolts as this may damage the basin.
Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only.
Connect the water supply to the inlet pipes.


Battery installation and replacement

The unit is supplied with a battery backup. Should the mixer will still not function then the batteries may need replacing. Before installing the mixer fit the supplied batteries.
Unscrew the grub screw on the back of the mixer (do not remove) unscrew and remove the cover from the mixer and pull out the battery pack.
Undo the screw on the top of the battery pack and remove the lid. Insert the 4 batteries.
Place the battery pack back into the mixer, replace the cover and tighten the grub screw.


Flexible Connecting Hose
Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
See above for recommended ways to fit the flexible connecting hose.

Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
