Fontana Lima Commercial Chrome Automatic Sensor Sink Faucet

There is a faucet in a class of its own. It has a chrome finish which sets your restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. This sensor sink faucet is compatible with all standard US plumbing. The faucet can be used in commercial and residential locations, and is ADA Compliant, and has a 5-year warranty. This cast brass electronic faucet in reducing the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. The faucet comes with easy installation instructions and all the required hoses and accessories. The Infrared AI Smart-Chip enables complete touch-less operation.

Fontana Lima Commercial Chrome Automatic Sensor Sink Faucet Features:

  • Brand Name: FontanaShowers
  • Model Number: FS9584
  • Type: Sink Faucet
  • Valve Core Material: Ceramic
  • Surface Treatment: Polished
  • Faucet Mount: Single Hole
  • Installation Type: Deck Mount
  • Style: Contemporary
  • Material: Brass
  • Usage: Water Closet
  • Guarantee: 1-Year
  • Water Pressure: 1.6mpa
  • Number of Handles: None
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
    		•  Fontana Lima Commercial Chrome Automatic Sensor Sink Faucet
    Fontana Lima Commercial Chrome Automatic Sensor Sink Faucet
    Fontana Lima Commercial Chrome Automatic Sensor Sink Faucet


    FontanaShowers® Product Warranty Information FontanaShowers Product Warranty

    Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the touchless faucet for any shipping damages for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
    		 sensor

    Sensor Faucet Installations


    Step 1: Step 2:



    Step 3: Step 4:


    Step 5: Step 6:


    Step 7: Step 8:


    Step 9: Step 10:

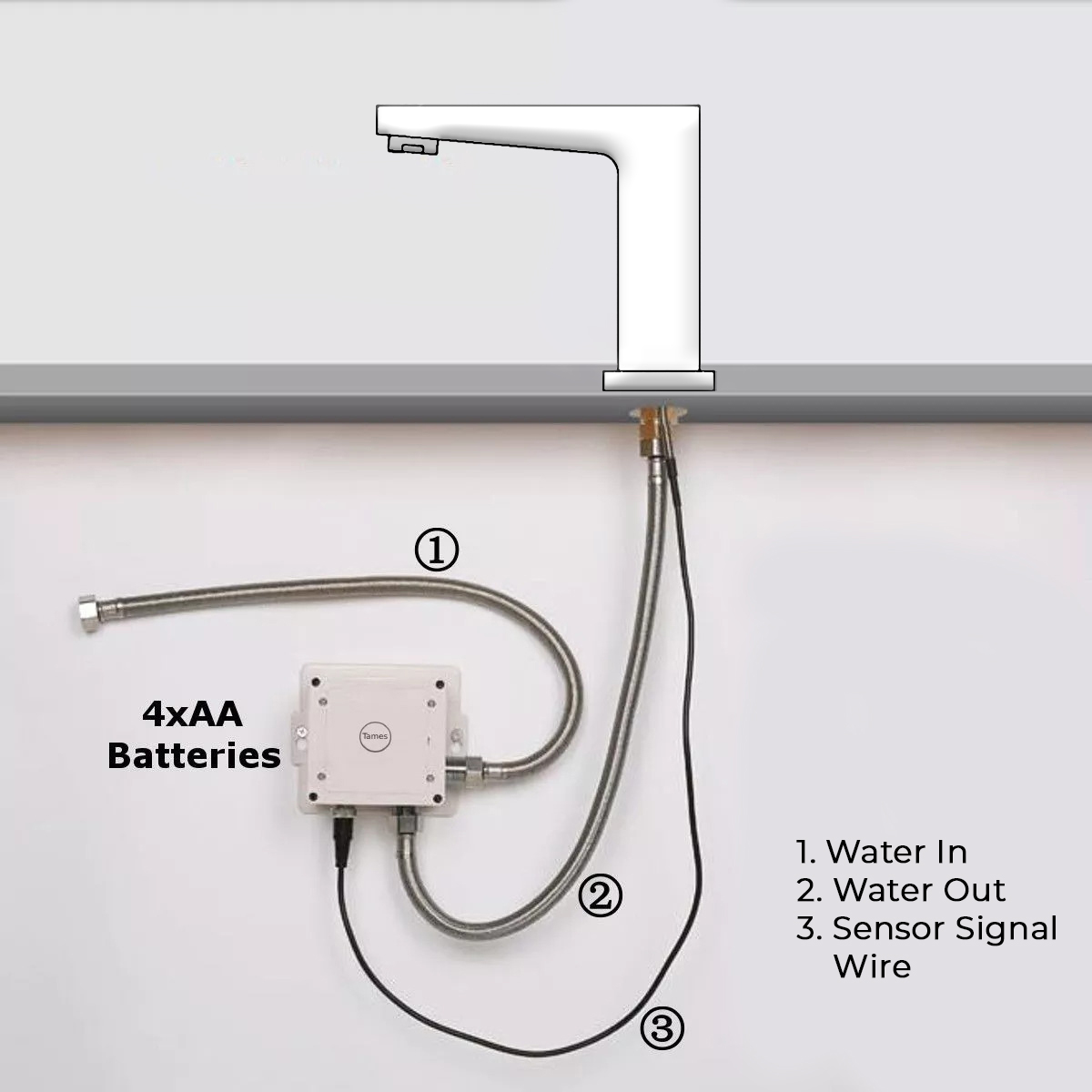

    Cold Connection

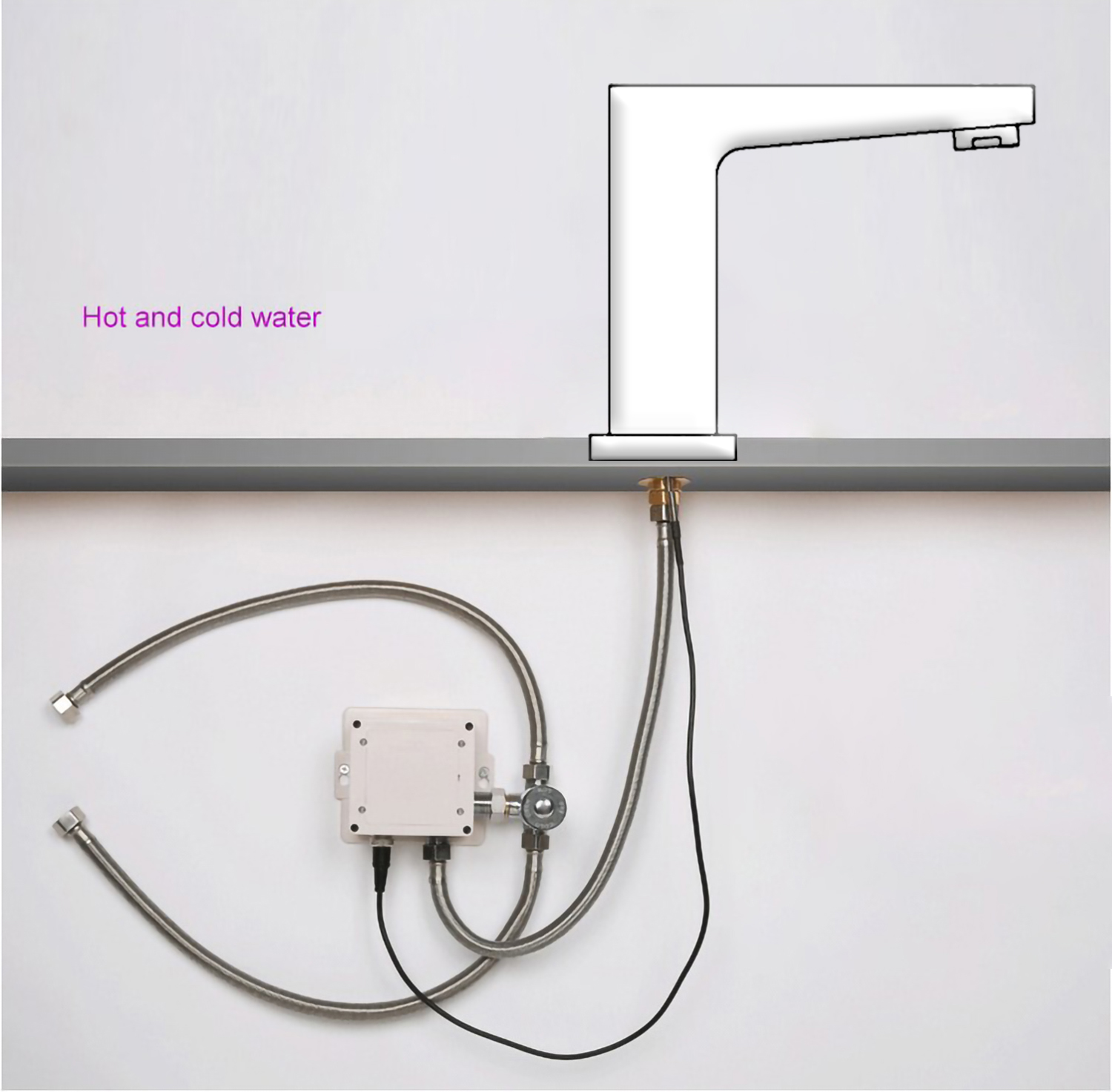

    		Hot & Cold Connection

    Step 11: Hot & Cold Regulator


    1. Screw the hose (F) into the corresponding screw-hole of the faucet body (A). Fix the 0-ring (B) into the bottom groove of faucet body (A).

    2. Insert hose (F), threaded pipe (K) and data cable (3) through the drilled hole of the countertop. Put rubber washer (C) and metal washer (D) onto the threaded pipe (K), screwing in mounting nut (E). Adjust faucet body (A) correctly and tighten the mounting nut (E) with screws (AA).

    3. Install control box (I) to the wall and fix with screws (AA).

    4. Add the rubber washer (C) and screw supply elbow (H) to the control box (I).

    5. Add rubber washers (C) and connect waterlines (G) to the hot and cold inlets of the supply elbow (H). Then connect hose (F) to the water outlet and insert data cable (3) into the control box (I) and plug in.

    6. Connect waterlines (G) to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).


    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
