How to install Luna Rose Gold Brass Swan Vanity Sink Faucet | FS-3289
faucet

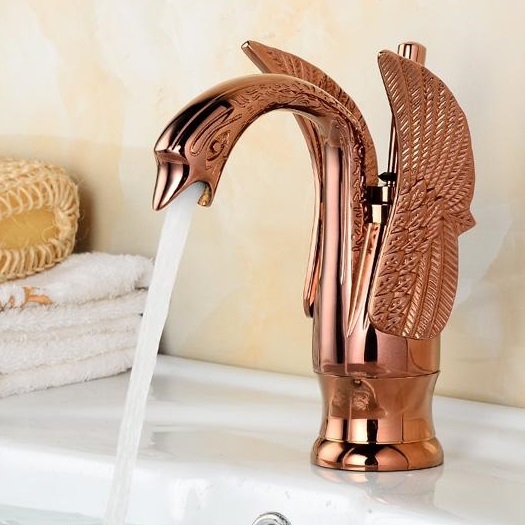

Fontana Luna Swan Rose Gold Vanity Sink Faucet
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
faucet
Deck Mount Faucet Installation Instructions
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
1. Remove the mounting nut (A) and rubber washer (B) from the threaded pipe (C).
2. Fit the O-ring (D) into the groove of the faucet body. Screw the threaded pipe (C) to the faucet body. Screw the waterlines (E) into the corresponding screw-hole of the faucet body.
3. Insert waterlines (E) and threaded pipe (C) into the hole countertop.
4. Install rubber washer (B) onto the threaded pipe (C). Adjust the faucet body correctly and secure with mounting nut (A) tightly.
5. Connect waterlines (E) to angle stops. Turn on the to angle stops and check for leaks (Do not Turn Faucet On)
Product Images
1:
2:
Fontana Luna Swan Faucet Installation
Plan the Deck-Mount Faucet Installation
Connect the Luna guide with faucet mounting, countertop preparation, supply connections and professional installation resources.
What should be checked before mounting the Luna faucet?
Verify the mounting-hole diameter, countertop thickness, clearance below the sink and access for the mounting hardware and supply lines.
Open Luna Guide
How should the faucet be secured?
Seat the O-ring correctly, align the faucet with the basin and tighten the mounting washer and nut evenly without damaging the countertop.
Review Faucet Installation
When should supply connections be tested?
Flush the supplies before final connection, then open the stops gradually and inspect every connection for leakage.
View Deck-Mount Guidance
Where are the related installation guides?
The main installation hub connects this page with faucet, sink, countertop and maintenance resources.
Open Installation Hub
