How to install Verona Swan Gold Vanity Sink Faucet | FS6121SG
faucet

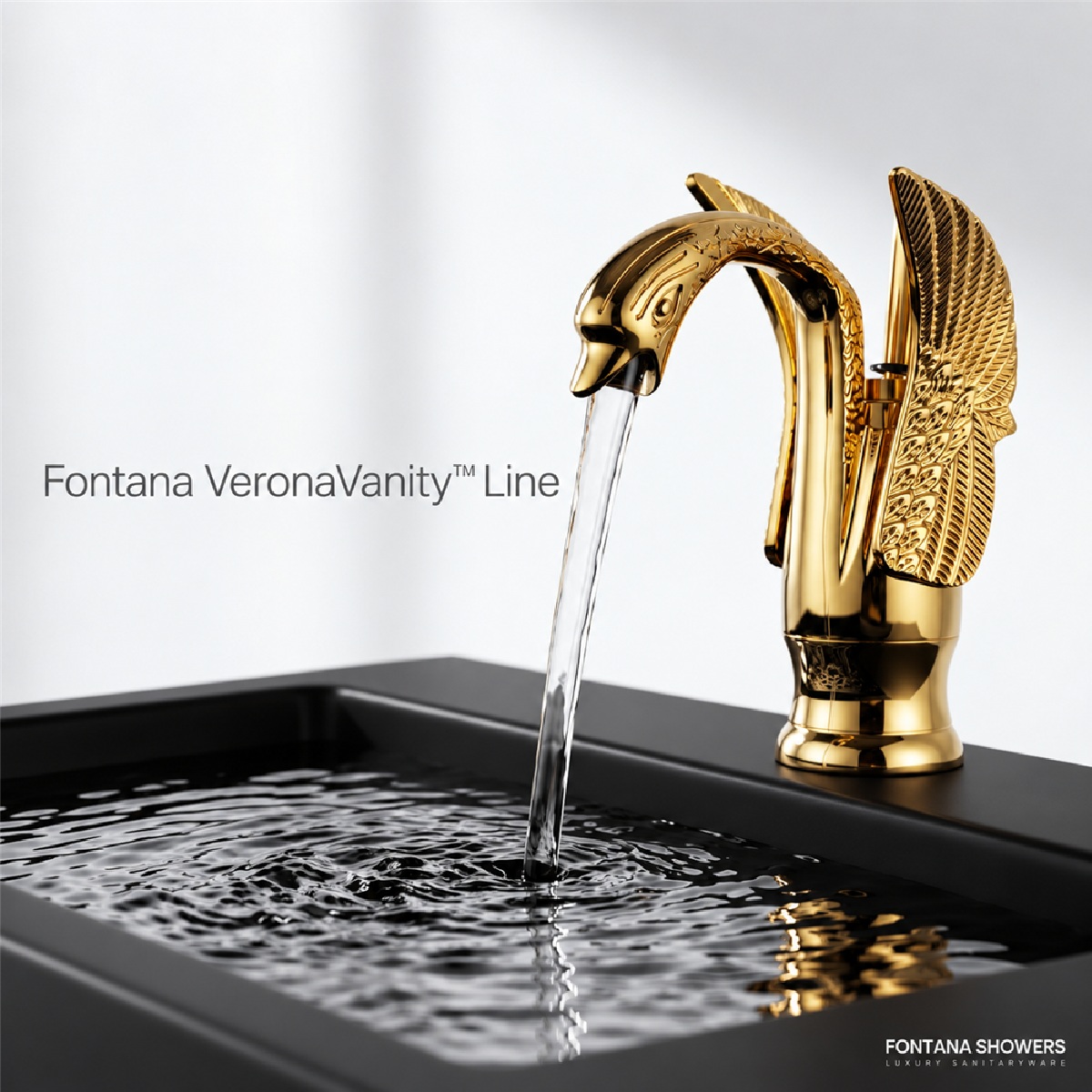

Fontana Verona Swan Gold Vanity Sink Faucet
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
faucet
Deck Mount Faucet Installation Instructions
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
1. Remove the mounting nut (A) and rubber washer (B) from the threaded pipe (C).
2. Fit the O-ring (D) into the groove of the faucet body. Screw the threaded pipe (C) to the faucet body. Screw the waterlines (E) into the corresponding screw-hole of the faucet body.
3. Insert waterlines (E) and threaded pipe (C) into the hole countertop.
4. Install rubber washer (B) onto the threaded pipe (C). Adjust the faucet body correctly and secure with mounting nut (A) tightly.
5. Connect waterlines (E) to angle stops. Turn on the to angle stops and check for leaks (Do not Turn Faucet On)
Product Images
1:
2:
