A Technical Guide for Architectural, Engineering, and Construction Professionals

The U.S. Environmental Protection Agency sets performance and efficiency specifications for lavatory faucets. See the WaterSense bathroom faucet overview and High-Efficiency Lavatory Faucet Specification (EPA) for detailed flow-rate and performance criteria.

Relevant benchmarks:

• Federal baseline: 2.2 gpm 60 psi EPAct 1992
• WaterSense labeled residential lavatory faucets: Max 1.5 gpm @ 60 psi; min 0.8 gpm @ 20 psi
• Public lavatory faucets, non-metering: Maximum of 0.5 gpm at 60 psi as per ASME A112

While choosing a low flow faucet, it has to be ensured that it fits well with the dimensions of the basin to avoid splashing of water and delayed

CALGreen , for projects in California, sets mandatory values for flow rate.

“Many jurisdictions that implement CALGreen are required:

• "Private Toilets": Less than 1.2 gpm when
• Public Toilets: Typically 0.5 gpm; Varies with type of fixture

"Owner portfolios that exist in multiple states will usually standardize all their properties in a similar way to CALGreen."

Lavatories have to comply with the relevant product standard, which depends upon the lavatory material used. This standard has to be followed for different types of

Faucets and supply fittings:

ASME A112.18

Ceramic lavatory fixtures:

ASME A112.19

Stainless Steel Lavatory Fittings:

ASME A112.19

“These specifications cover matters pertaining to durability, structural load tests, impact resistance, glazing, stainless steel thickness, and overflow performance.”

For ceramic lavatory fixtures, see ASME A112.19.2/CSA B45.1 – Ceramic Plumbing Fixtures .

Mounting Configurations

Examples of common configurations are:

Wall-mounted lavatories

• Requires in-wall carriers and has to meet structural load specifications.
• Provide superior floor clearance for janitorial access and ADA compliance.

Drop-in/Self

Counters are supported; designers must take into consideration counter thickness in relation to ADA specifications.

Undermount lavatories

Provide clean-cut edges but with coordinated cut-out, support, and waterproofing.

Trough/Multi-user Toilets

• Often found in public restrooms with a lot of traffic.
• Must handle concurrent flow from multiple low flow faucets.

Design of basin must factor in that a flow rate of 0.35-0.5 gpm in public restrooms is being projected.

• Proper slope to the outlet in order to minimize residual water
• Anti-splash geometries for aligning sensor faucets
• Drain offsets to minimize splash back
• Overflow configurations that comply with infection control policies and ASME requirements

Structural Load Factors

Normally,

Public facilities necessitate fixtures that are able to withstand usage as well as abuse. Carriers and mounting hardware would ideally support ≥ 300 – 400 lbs.

Vandal Resistance

Specify:

• Hidden Fasteners
• Anti-ligature designs where needed
• Stainless Steel Systems in High-Risk Areas

Serviceability

“Lavatory assemblies must provide access for tool use to:”

• Supply stops
• Traps and cleanouts
• Sensor modules, mixing valves, batteries, and solenoid valves

Under sink enclosure designs are also needed to accommodate ADA knee clearance while providing protection.

• Vitreous china (ASME A

  Resists rough use and chemicals; check edge strength and thickness.

• Stainless Steel (ASME A112.

  Their resistance to impacts and hygienic properties make them popular in healthcare, corrections, and industrial institutions.

• "Solid surface/engineered stone"[

  Helpful in deep trough systems; demands precise support, seam definition, and careful provision for thermal movement.

Sustainability and Water Performance

Flow Rate, Drainage, and User Experience

In cases of lower flow rates, the following should be taken into consideration

• Water Splash Control with Bowl Shape and Faucet Projection
• Satisfactory drainage with low flow.
• Slope & Pipe Sizing for Reducing Microbial Growth in Low-Flow Scenarios

WaterSense and Portfolio Integration

WaterSense provides a common performance metric for multi-building portfolios. Reference:

WaterSense High-Efficiency Lavatory Faucet Specification (EPA)

CALGreen, LEED, and Other Rating Systems

The performance goals in CALGreen are set above federal requirements. Using CALGreen benchmarks can facilitate the provision of LEED v4.1 IDc credit paths and owner-level sustainability goals.

A sensor-controlled faucet needs to be placed in a precise way in relation to the bathroom sink in order to avoid misfires and splashing.

Another important consideration for designers is access, low-voltage wiring, and maintainability.

Technical resources for touchless faucets: FontanaShowers Contractor Center for Touchless Faucet Systems .

"Most bathrooms have a requirement for thermostatic mixing valves with an ASSE 1070 rating to eliminate scalding. This becomes most important when it comes to healthcare and K-12 institutions. Valve location must also comply with ADA clearance and maintainability."

For background on anti-scald performance requirements, see this overview of ASSE 1069/1070/1071 mixing valve standards .

Where faucets are enabled with flow monitoring, leak, or use analysis, a lavatory system can offer:

• Operational Alerts in Real-Time
• Water Use Information for Sustainability Reporting
• Predictive Maintenance Indicators

This involves coordinating low-voltage electrical power distribution, sensor networks, and protected data line routing.

Requirements for Fixtures and Fittings

• Lavatory fixture assemblies – Listed to ASME A112.19.2/CSA B45.1
• Water faucet met ASME A112.18.1/
• Check for WaterSense mark, if applicable

Accessibility and Sustainability

Accessibility

• Verification of compliance with ADA codes in plan and elevation
• Accessibility Rim height ≤ 34 in
• 30 x 48 in accessible floor space
• Protection of pipes underneath lavatory
• Observe knee and toe clearance as noted in details:

Sustainability

• Water flow rate compliant with WaterSense, CALGreen, or owner specifications
• Drain design suitable for low flow
• Aerator specifications
• Pressure range

Controlling and Integration

Technical Specifications

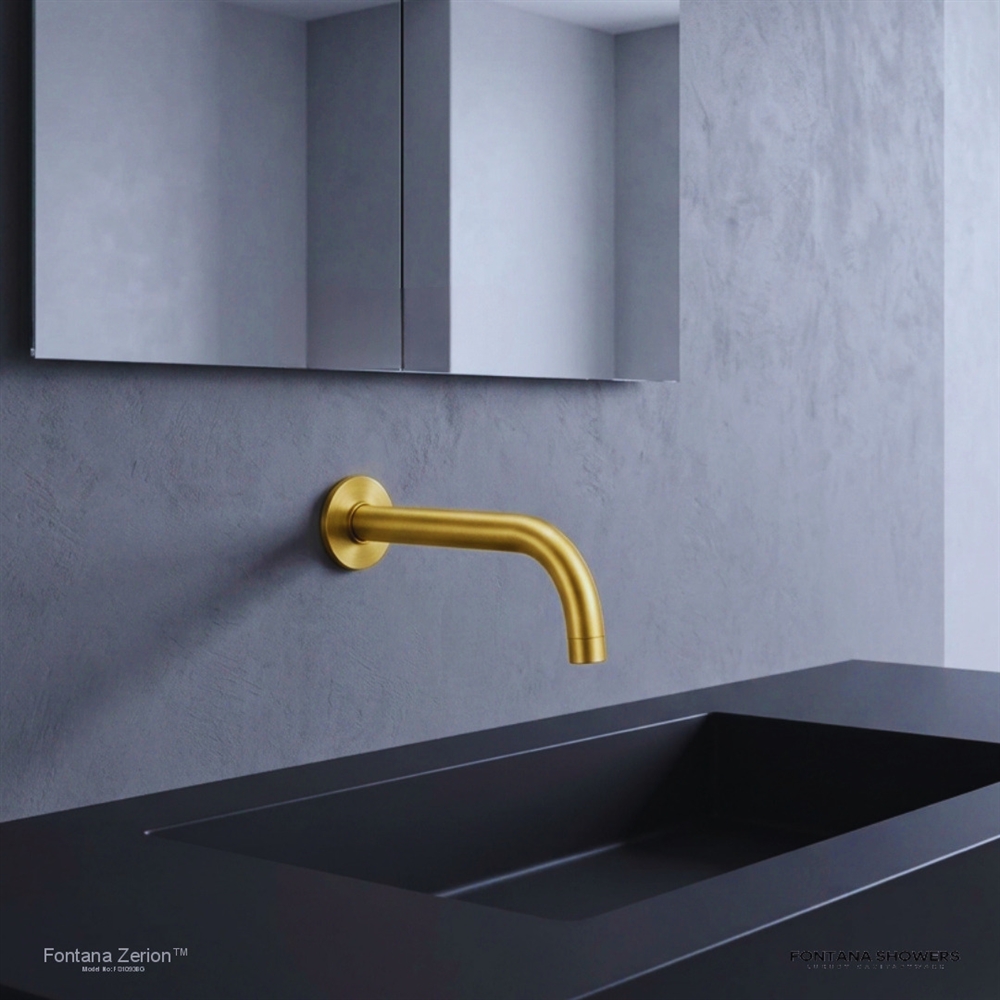

For coordinated touchless faucets, valves, and controls suitable for BMS integration, see Fontana Touchless Faucets .

"The lavatory sink

In commercial andinstitutional spaces, a lavatory sink would be part of a well-structured plumbing and accessibility feature.

The choice of fixture influences ADA compliance, performance with respect to water usage, longevity, infection control, maintenance cycles, and compatibility with touch-sensitive technology.

Proper Specification

Proper specification also provides for effective functionality of the sink, faucet, and associated plumbing as a coordinated effort, complying with various requirements of building specifications, product specifications, and functionality in airports, healthcare, education, hospitality, and government sectors.

A Word about Codes and Performance

ADA Access Requirements, WaterSense and Water Efficiency Criteria, CALGreen Requirements, and ASME/CSA Product Standards influence fixture form, flow rates, materials, and structural characteristics.

Typologies and Geometry

When Mounting types (wall-mounted, drop-in rimming, undermount, trough sink, multi-user bathroom), as well as sink design features (slope, anti-splash, offset, overflow), affect ease of use and

Materials and Durability

Additionally, vitreous china, stainless steel, and solid surface/engineered stone materials, along with structural loading, vandal resistance, and serviceability, affect long-term performance.

Systems-Based Approach

A systems-based approach, which combines the lav with coordinated faucets, valves, enclosures, and building automation strategies, can provide consistent performance in commercial and institutional buildings.
