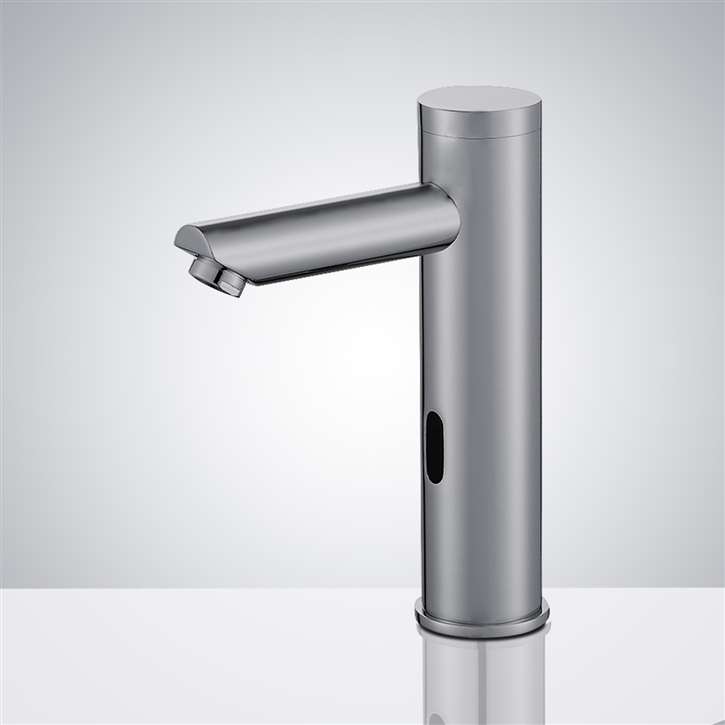

Solo Brushed Nickel Touchless Motion Activated Sink Faucet
- Fits all US standard plumbing.
- Uses 4AA Alkaline Batteries (purchase separately).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
- Motion detection touchless sensor faucet operation
- Commercial
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Brushed Nickel Finish
- Easy to Install - Instructions Included
- Water-resistant solenoid enclosure
- Advanced energy-saving design for long-lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.

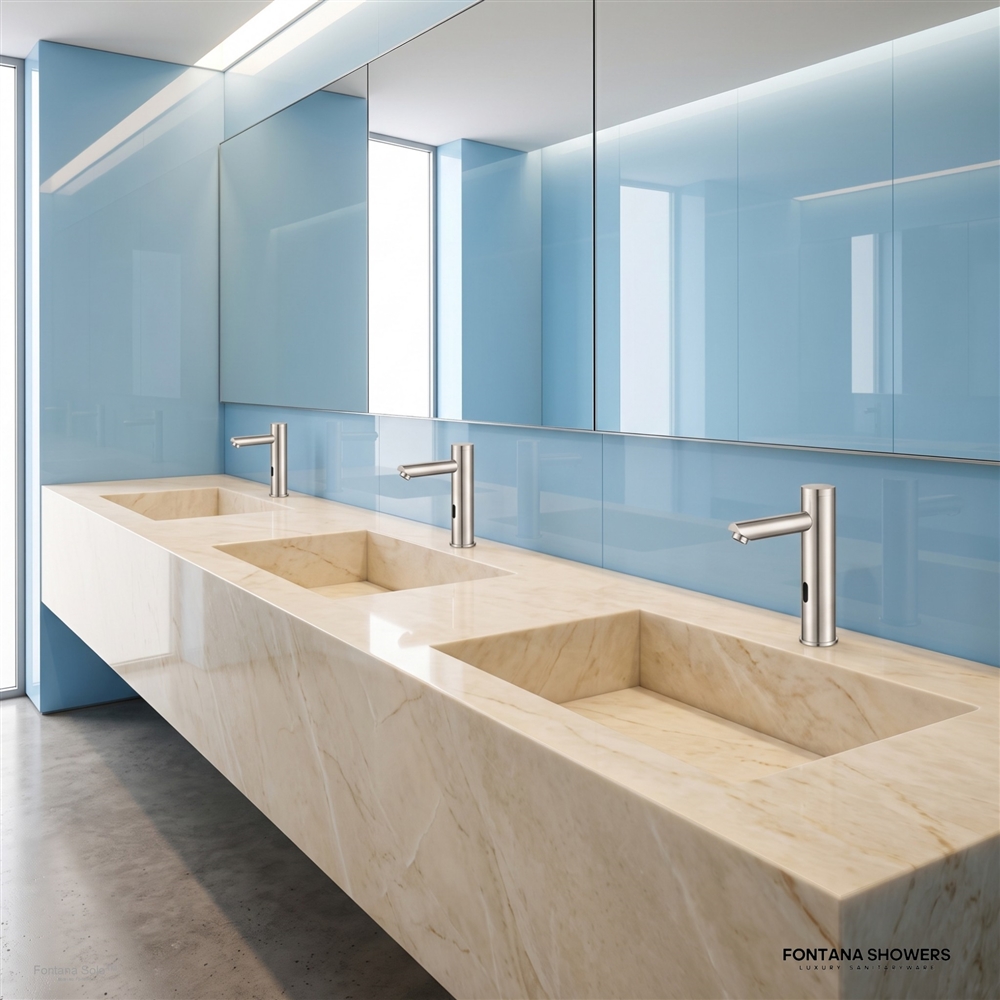

- Can be installed easily in new or upgraded retrofit commercial restrooms.
Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! The Sensor Faucet finish is Brushed Nickel, with a built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Solo Sensor Activated Faucet Special
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant.
- The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
- Brand Name: FontanaShowers
- Model Number: FS-509-bn
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7.87" (200mm)
-
Spout Length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Power Consumption:
0.5MW
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
9.84" (25cm)
-
Time delay:
0.5 seconds
-
Operation duration:
Power will automatically cut off after continuous use for 60 seconds
-
Pop-up drain:
No
-
Color:
Brushed Nickel Finish
Infrared sensor operated, touch-free operation
Advanced energy-saving design for long-lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
For longevity of lifetime and to stand against daily wear and tear the brushed nickel finish used is PVD coatings
Sensor Faucet Advantage
Conserves water
Saves energy during the water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
ADA compliant Ideal for use by disabled people
Vandal resistant
Waterproof Components

FontanaShowers® Product Warranty Information
Fontana Solo™ Edition Brushed Nickel Touchless Motion Sensor Faucet FS-509BN
Solo Brushed Nickel Touchless Motion Activated Sink Faucet Features
|
Reliable Sensor Response
