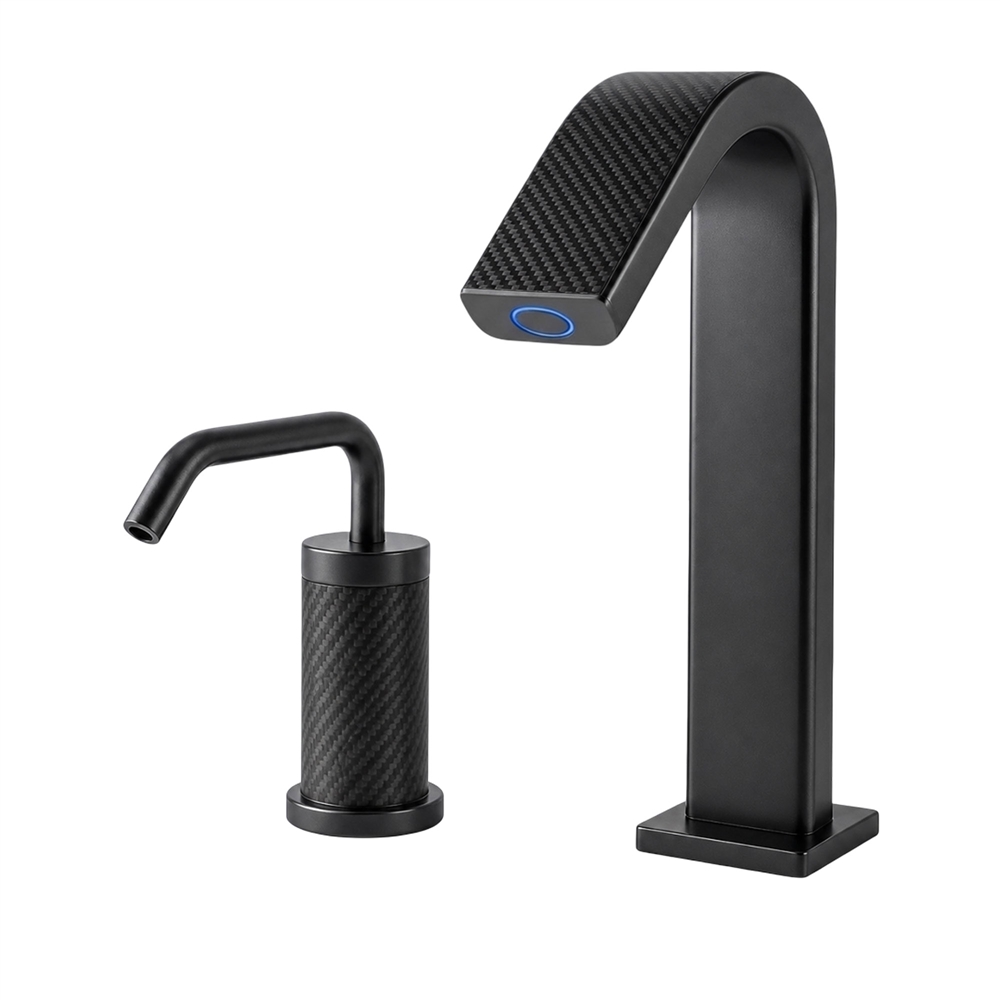

Fontana SquareArc Duo Gunmetal Gray & Carbon Fiber Touchless Faucet With Dispenser Set

The Fontana SquareArc Duo™ Gunmetal Carbon Motion Set thus combines luxury and modernity in the form of deep gunmetal colors and carbon-fiber patterning to introduce a bold and technology-driven presence to upscale bathrooms. This innovative duo is made to be used in the most strategically selected locations like airports, hotels, restaurants, shopping malls, and so on as it integrates a sensor-operated water outlet with a corresponding automatic soap supplier forming a united hygiene solution. The construction of the set is of solid brass that guarantees durability and a contemporary surface treatment which provides sleek, architectural appeal. The infrared activation scheme results in fast, hands-free response with a delay of sub-0.3 seconds thus facilitating easy interaction in places with high traffic. A steady flow free from splashes has been offered by the laminar outlet which is unaffected by variations in pressure thus elevating user satisfaction and minimizing the risk of being sprayed accidentally. Water management is made easier by a timer that allows for adjustable shutoff, and the ultra-quiet operation is a plus that a sophisticated ambiance in premium bathrooms. The availability of two deck openings aids in installation, thus the set is apt for the renovation or new construction where a neat upgrade is desired. This combination of touchless faucet and soap dispenser is perfectly aligned with the requirements of ASME, CSA, ADA, WaterSense, and CALGreen; hence it not only decreases surface contact and enhances sanitation but also elevates the commercial washrooms with a modern professional environment that is sleek and performance-driven.

Fontana SquareArc Duo™ Gunmetal and Carbon Motion Bathroom Faucet

Galvanic Interface Protection, Transient Pressure Response & Carbon-Finish Surface Integrity

The Fontana SquareArc Duo™ Gunmetal and Carbon Motion combines contrasting architectural finishes, angular spout geometry, and coordinated water controls for contemporary basin installations.

How should dissimilar metallic interfaces be evaluated for galvanic corrosion risk?

Galvanic corrosion can develop when electrically connected dissimilar metals are exposed to a conductive electrolyte. The risk depends on the actual substrate materials, protective coatings, and moisture exposure rather than finish color alone. Installers should preserve factory-applied surface protection, use manufacturer-approved connectors, and investigate persistent moisture around exposed joints to reduce long-term deterioration.

What determines the faucet's response to sudden pressure fluctuations?

Rapid changes in supply velocity can generate transient pressure waves that travel through the connected plumbing system. Their magnitude depends on pipe characteristics, water velocity, and valve-closing behavior. Stable operating pressure, adequately supported supply piping, and suitable upstream pressure control help reduce vibration, audible shock, and unnecessary loading on internal sealing interfaces.

How can gunmetal and carbon-inspired finishes be maintained without altering their visual contrast?

Contrasting decorative surfaces may have different coating structures and resistance to cleaning chemicals. Use a soft microfiber cloth and a mild, finish-compatible cleaning solution, followed by rinsing and drying. Avoid abrasive polishing compounds, concentrated acids, and harsh solvents that could produce uneven reflectivity, discoloration, or localized damage at the finish transitions.

Which commissioning checks help identify uneven flow distribution between the faucet controls?

Operate each control independently where the valve configuration permits, then assess the combined discharge under normal dynamic supply pressure. Differences in response may indicate unequal inlet pressure, partially restricted supply connectors, or debris within a valve passage. Confirm supply-stop positions and inspect accessible strainers or outlet components before considering internal valve servicing.

• Brand: FontanaShowers®
• Model Number: FS20004GMCF
• Style: Contemporary
• Type: Touchless Faucet with Soap Dispenser
• Finish: Gunmetal Gray & Carbon Fiber Texture
• Installation Type: Deck Mounted
• Material: Solid Brass
• Control Type: Sensor Activated
• Power: Battery or AC (Sensor Faucet)
• Activation Type: Infrared Sensor
• Auto Shut Off: Adjustable Timed Shutoff
• Noise: ≤20 dB(A)
• Activation Delay:<0.3 s typical
• Pressure Range: 20–80 psi
• Flow Rate: 0.35 – 0.5 GPM
• Aerator Type: Laminar, Anti-Splash
• Cartridge: Ceramic (Replaceable)
• Number Of Holes: Two Holes
• Cycle Life: ≥ 500,000 cycles
• Compliance: ASME / CSA / ADA / WaterSense / CALGreen
• Applications: Commercial, Hospitality, Institutional
