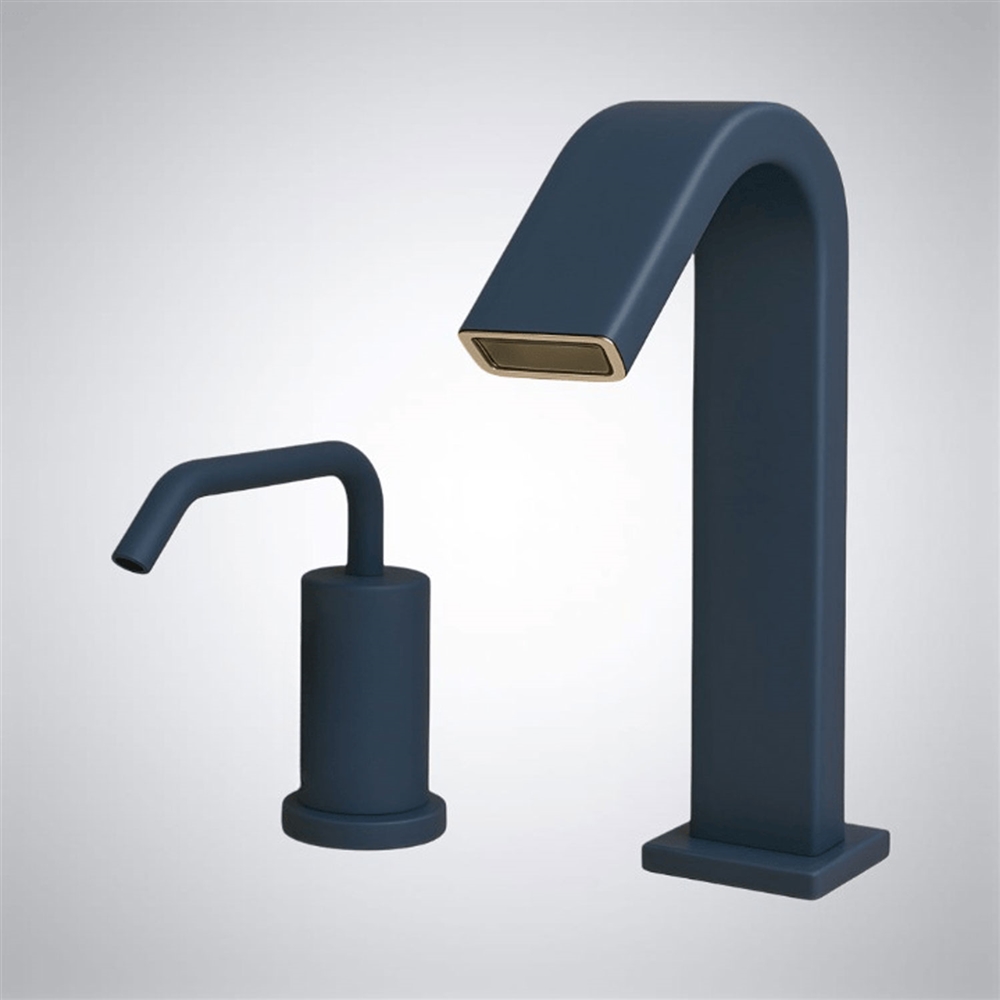

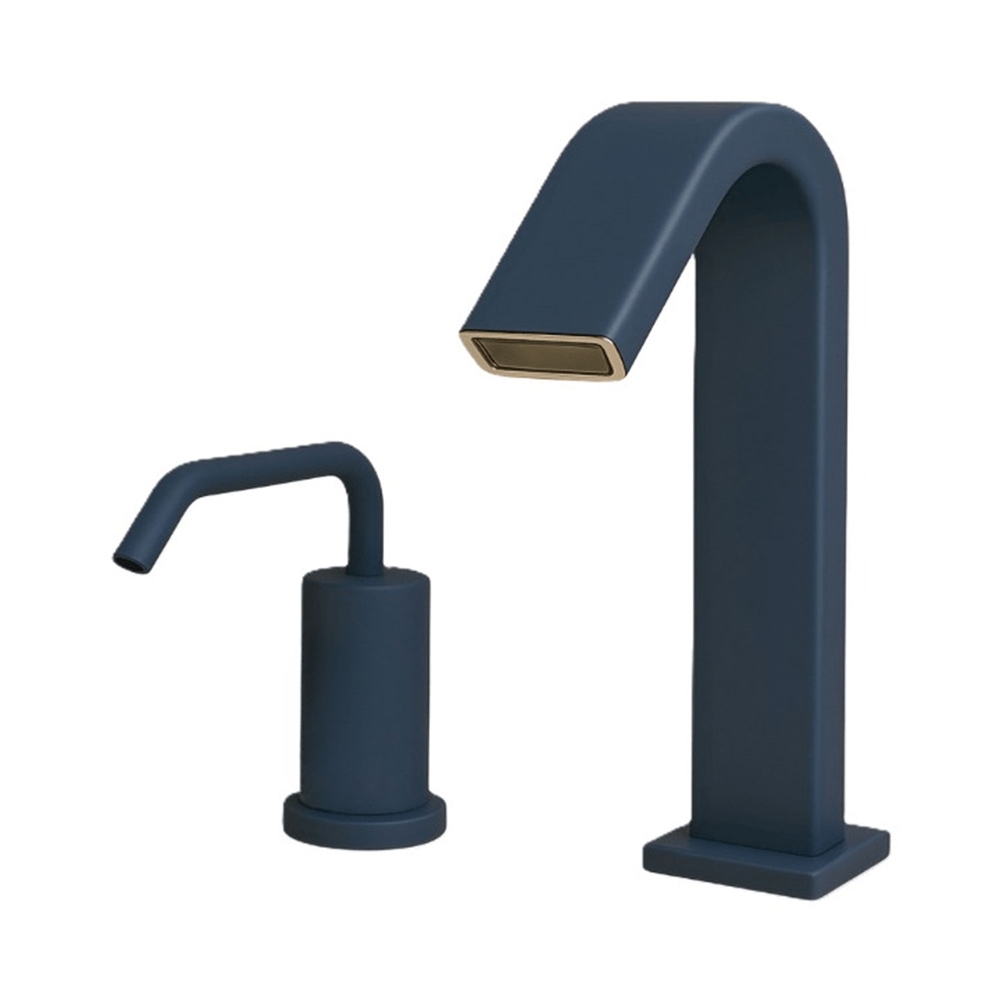

Fontana SquareArc Duo Brass Touchless Faucet With Dispenser Textured Ink Blue Tone

The Fontana SquareArc Duo™ Textured Ink Blue Touchless Set is the next big thing in the world of hand washing. It opens up a premium bathroom that marries the contemporary engineering with the designer's bold and fashionable motiv. The automatic soap dispenser that matches the motion-activated water fixture is the key to this coordinated configuration; thus, it ensures that the hands-free users go on with a good habit of washing their hands, and that is an ideal setting of cleanliness, efficiency, and the emphasis that comes with aesthetics. The combination of deep Ink blue shell and brass accents is made particularly for airports, hotels, restaurants, shopping malls, resorts, office complexes, healthcare facilities, and other places where the public flows in and out regularly, it is upscale touch-free sophistication. The entire system made of solid brass and boasting a long-life span, gives a near-silent operation, a constant pressure stability, and a sharp laminar flow that reduces splash. The installation is made simpler with the deck-mounted layout, and the replaceable ceramic cartridge that is responsible for the durability of the system even when continuous heavy usage is experienced. Intelligent sensor technology not only removes all the contact points but also secures the ADA-friendly accessibility and cleanliness in the busy environments. This is a professional-grade product that has been designed to not only meet but also exceed the high-performance and sustainable development requirements, hence fully working along the ASME, CSA, ADA, WaterSense, and CALGreen standards. This package of premium touch-free faucet solutions, sensor soap dispenser systems, hands-free sink fixtures, and bathroom upgrades is the ultimate choice for the architects, designers, and facility managers who are always on the lookout for state-of-the-art products with excellent functionality and modern artistic appeal that would fit today's luxury bathroom designs.

Fontana SquareArc Duo™ Textured Ink Blue Bathroom Faucet

Textured Coating Preservation, Angular Spout Hydraulics & Precision Valve Control

A contemporary SquareArc Duo™ faucet featuring a textured ink blue finish, geometric spout architecture, and coordinated water controls for refined basin installations.

How does the textured ink blue coating affect mineral-deposit accumulation and cleaning?

The textured surface can retain mineral residue within its microscopic surface variations as water droplets evaporate. Regular cleaning with a soft microfiber cloth and mild, pH-neutral solution helps prevent deposit accumulation. Abrasive pads, acidic descalers, and aggressive solvents should be avoided unless specifically approved for the finish, as they may alter its texture or color uniformity.

How can hydraulic boundary-layer separation affect flow through the angular spout?

When water changes direction within an angular passage, local velocity gradients may cause flow separation near internal bends. This can increase turbulence and pressure loss before the stream reaches the outlet. Maintaining clear internal passages and appropriate operating pressure helps reduce discharge irregularities, particularly during partial-flow operation.

Why should valve control hysteresis be evaluated during commissioning?

Mechanical hysteresis occurs when the control position required to increase flow differs slightly from the position producing the same flow while closing. Excessive variation may indicate friction, mechanical backlash, or irregular valve movement. Testing gradual opening and closing helps verify predictable adjustment and repeatable shutoff without binding.

How should pressure-dependent discharge instability be diagnosed?

Technicians should compare the outlet stream at low, intermediate, and full operating flow while observing dynamic inlet pressure. If instability increases as pressure falls, inspect branch restrictions and supply connectors. If pressure remains stable but the stream becomes irregular, examine the outlet assembly and internal waterway for sediment or localized obstruction.

• Brand: FontanaShowers®
• Model Number: FS20003CTNB
• Style: Contemporary
• Type: Touchless Faucet with Soap Dispenser
• Finish: Textured Ink Blue
• Installation Type: Deck Mounted
• Material: Solid Brass
• Noise: ≤20 dB(A)
• Pressure Range: 20–80 psi
• Flow Rate: 0.35 – 0.5 GPM
• Aerator Type: Laminar, Anti-Splash
• Cartridge: Ceramic (Replaceable)
• Number Of Holes: Two Holes
• Cycle Life: ≥ 500,000 cycles
• Compliance: ASME / CSA / ADA / WaterSense / CALGreen
• Applications: Commercial, Hospitality, Institutional
