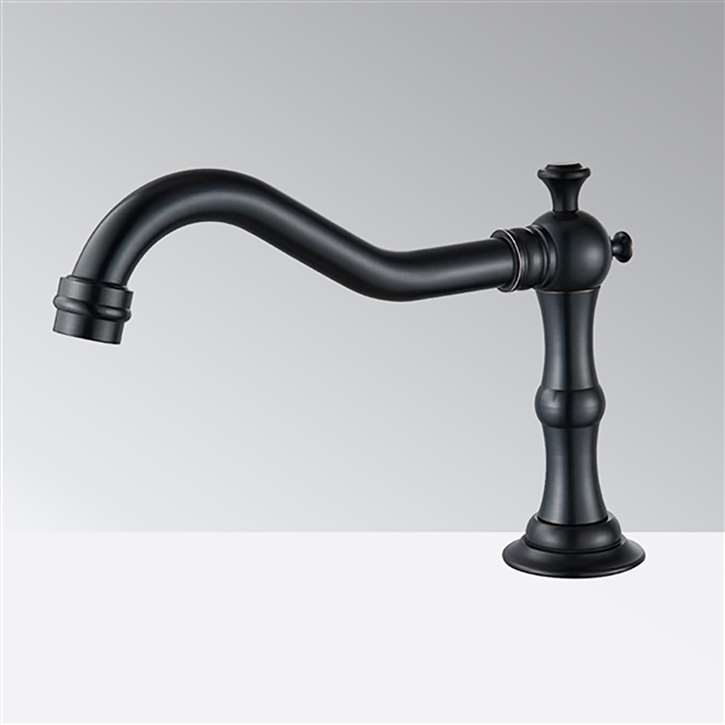

Touchless Bathroom Sink Faucet
This Touchless Bathroom Sink Faucet is easy to use, has instant on-and-off technology, and is simple and intuitive making it a great choice among architects and designers. Using an automatic touchless Faucet is a great way to keep your hands clean and free from bacteria. This type of faucet is becoming increasingly popular in commercial settings, such as office buildings, hotels, and restaurants, public restrooms, shopping malls. The Touchless Bathroom Sink Faucet uses sensors to detect when your hands are under the spout, and then automatically turns on the water. This means that you don't have to touch the handle to turn on the water, which reduces the spread of bacteria. In addition, the Touchless Bathroom Sink Faucet is very easy to use and can be turned on with just a wave of your hand. This makes it perfect for those who are looking for a quick and convenient way to wash their hands.
Touchless Bathroom Sink Faucet Specifications:
- Brand Name: FontanaShowers®
- Model Number: FS-359OBDP
- Diameter of inlet pipe: DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V / AC.110-220V - 50/60Hz
-
Power Consumption:
0.5MW
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
Water supply pipe size:
DN15
- ADA Compliant
Sensor Faucet Features
Infrared sensor operated, touch-free operation
Water Conserving
Waterproof sensor
Battery low LED light indicator
Advanced circuit design saves electricity and water
Advanced energy-saving design for long-lasting battery life.
Three-year battery life based on 3,000 hand washes per month
The sensor is not affected by reflections or abnormal lighting
Self-adapting sensors range
Long life durable body
Power Supply Options
Hands-Free Sanitary Operation
Vandal-Resistant Aerator
Automatic 30-Second Time Out
Highly-Polished Oil Rubbed Bronze Plated Cast Brass Bodies
Low Battery Indicator Light
In-Line Filter
Factory Set Sensor Range
Touchless Bathroom Sink Faucet
Function: Water-saving: water flows out when your hands approach it and stops immediately Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections Intelligent: with its micro-computer to controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory Low power consumption, 4AA alkaline batteries can be used for 2 years at 200 cycles a day Convenient to maintain:
Touchless Bathroom Sink Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
The Touchless Bathroom Sink Faucet
- Sensor faucet complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Oil-Rubbed Bronze finish.
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant
- Easily can be installed in new or retrofit applications.
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, shopping malls. Fits all standard US plumbing.
|
|
Touchless Bathroom Sink Faucet Special Features
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Usage: Commercial
|
|
|
|
|
|
|
