Morelia Double Handle Brushed Nickel Wall Mount Bathtub Faucet

Our Morelia bathtub faucet is ideal for contemporary bathrooms decorated in a classic style. The straight lines and the brushed nickel finish will make this beautiful faucet fit in any modern décor. It comes with hot and cold water mixer for your convenience. It is deck mount, three holes, with brushed nickel finish. The body, spout and handles are made of brass, while the valve core material is ceramic for best performance and long lasting life time. It comes complete with accessories and installation instructions.

Morelia Double Handle Brushed Nickel Wall Mount Bathtub Faucet Features:

  • Brand Name: FontanaShowers
  • Model Number: FS311WMB
  • Type: Bathtub Faucet
  • Valve Core Material: Ceramic
  • Style: Classic Contemporary
  • Hot & Cold Water: Yes
  • Number of Handles: Dual Handle
  • Installation Type: Wall Mount
  • Surface Treatment: Brushed Nickle
  • Installation Holes: Three Holes
  • Material: Brass
    		• Morelia Double Handle Brushed Nickel Wall Mount Bathtub Faucet

    FontanaShowers® Product Warranty Information FontanaShowers Product Warranty

    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

    		 faucet

    Bathtub Faucet Installation Steps
    Step 1

    		faucet Step 2

    Step 3

    		Step 4

    Step 5

    		Step 6

    Step 7

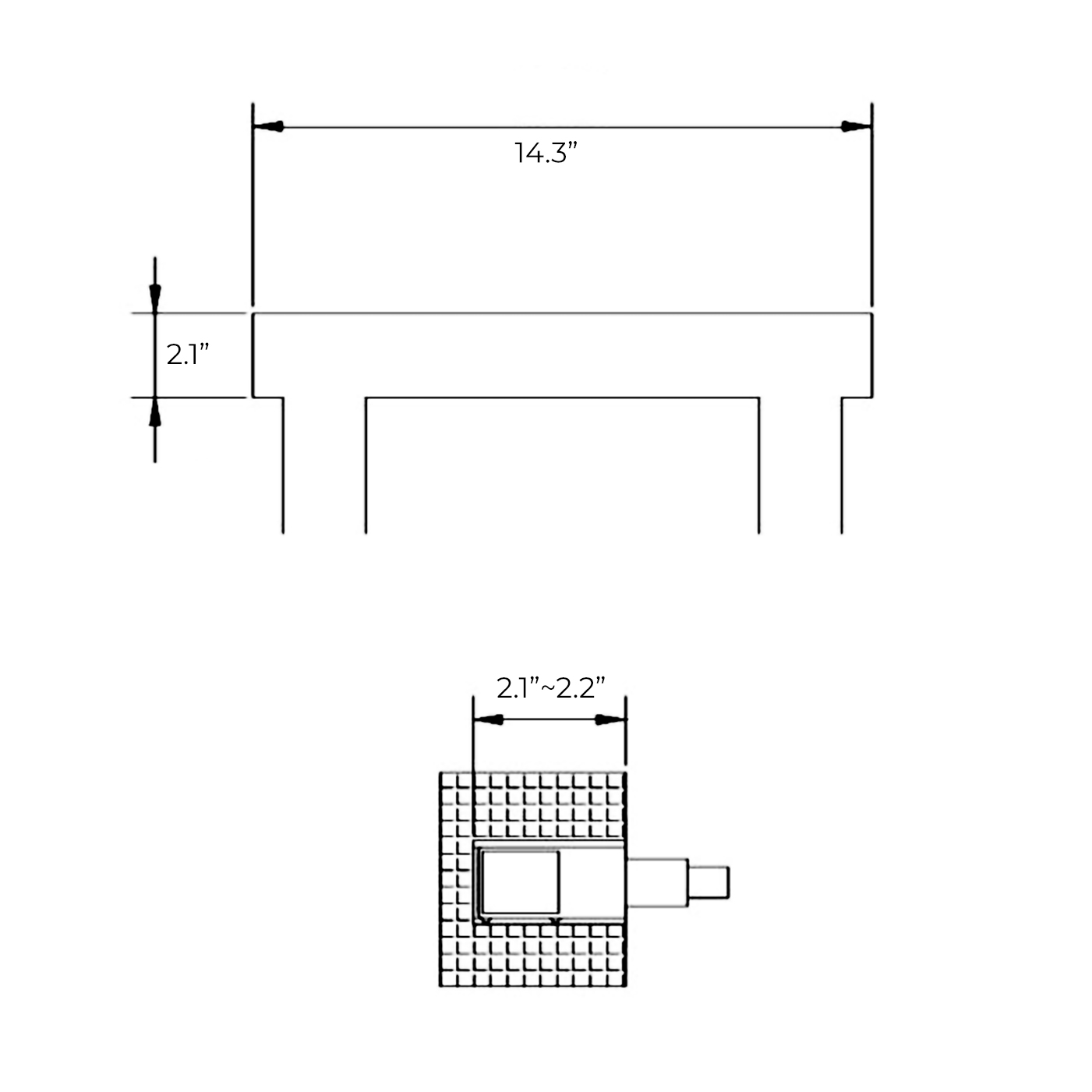

    Step 2: The valve body excavates hole size. (L 14.37"xH 2.16"xD 2.16-2.24")
    Step 3: Turn off the main switch, adjust the cold and hot water inlet interface and the upper and lower water outlet interface, and use screws to fix the valve body in the wall. The installation in the wall is completed and the switch is opened for the sealing test.

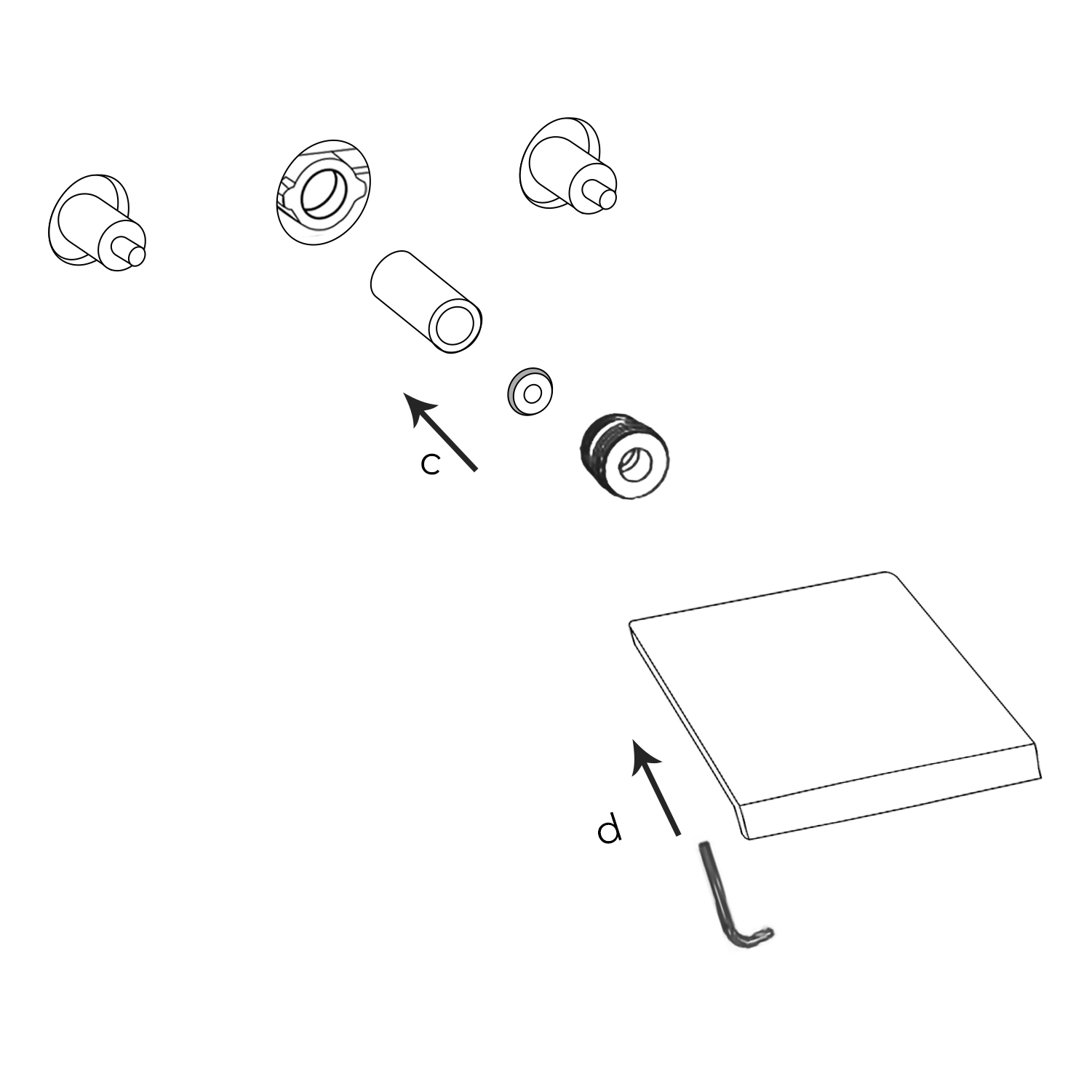

    Step 4: Install the spout part: Use the connecting pipe to connect the left outlet of the valve body to the interface of the spout.
    Step 6: Installation Panel: The valve body is fixed, and the panel is covered on the valve body.
    Step 7: Install handle: Put two handles on top and lock with a hexagonal wrench.


    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
