Faucets for Bathtubs in Residential & Hospitality Projects

Fill Time, Flow & Hot Water Capacity

Bathtub faucets typically operate at higher flow rates than lavatory faucets in order to keep fill times within a reasonable window. Engineers balance 6–10 gpm tub filler flows against domestic hot water capacity and branch sizing so that multiple tubs can fill without starving other fixtures or causing temperature swings.

Mounting Type & Rough-In Geometry

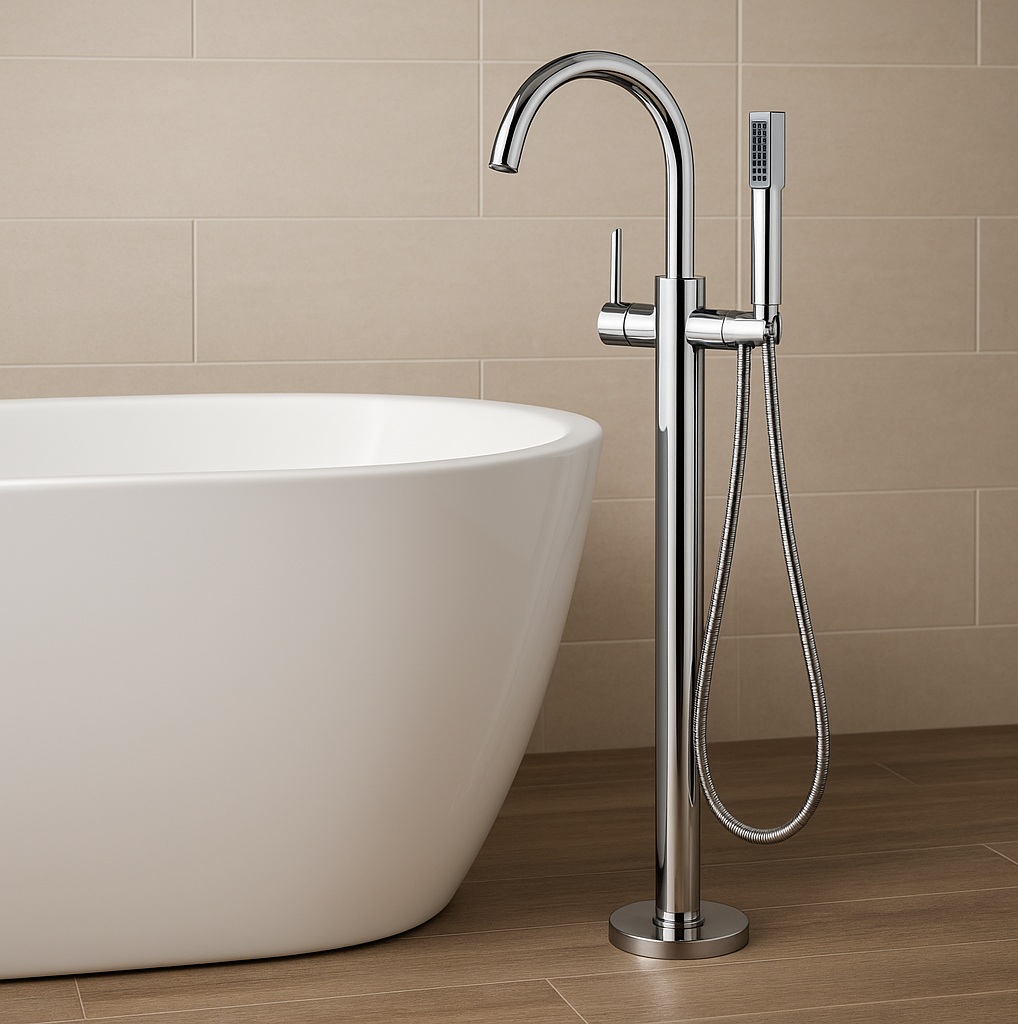

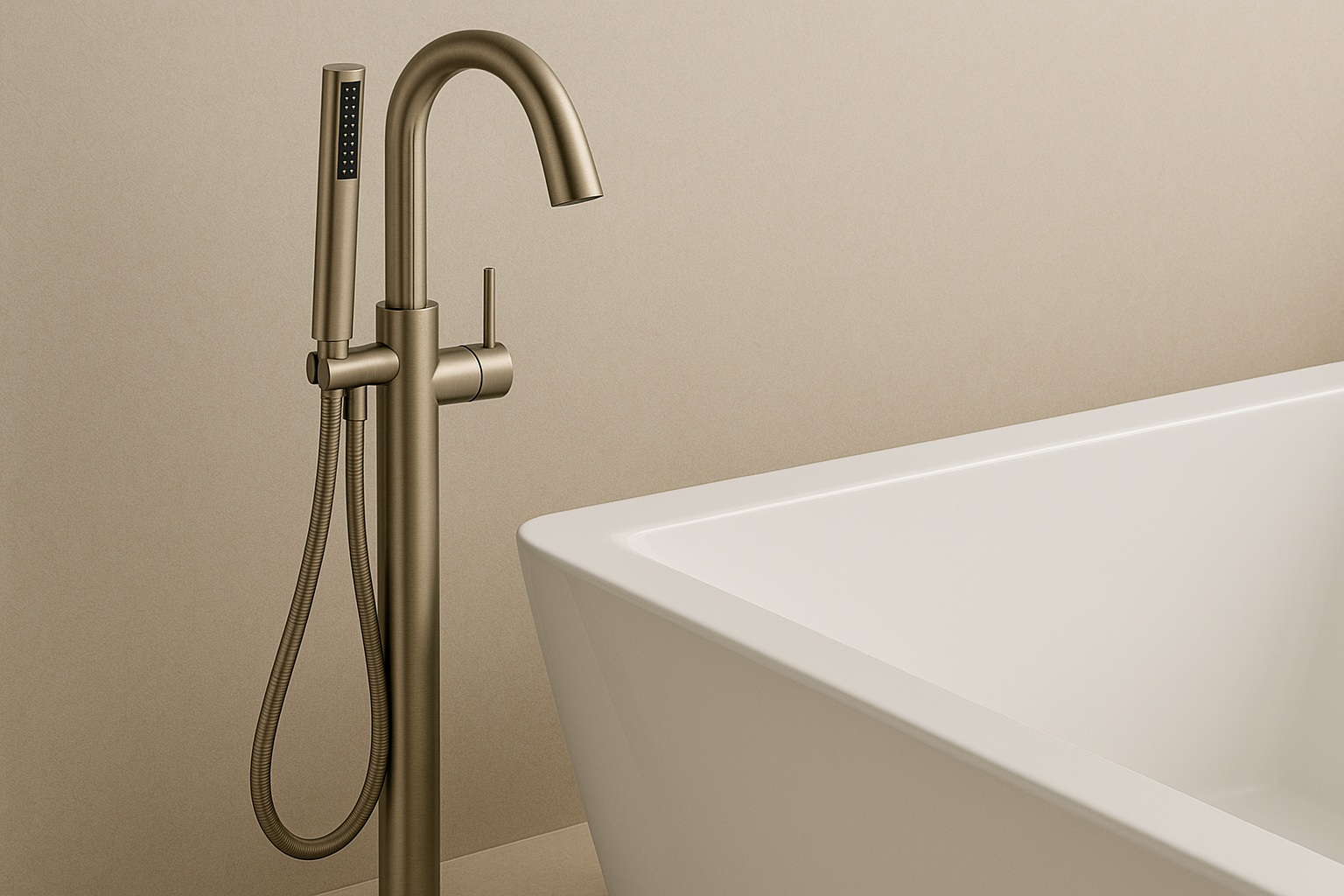

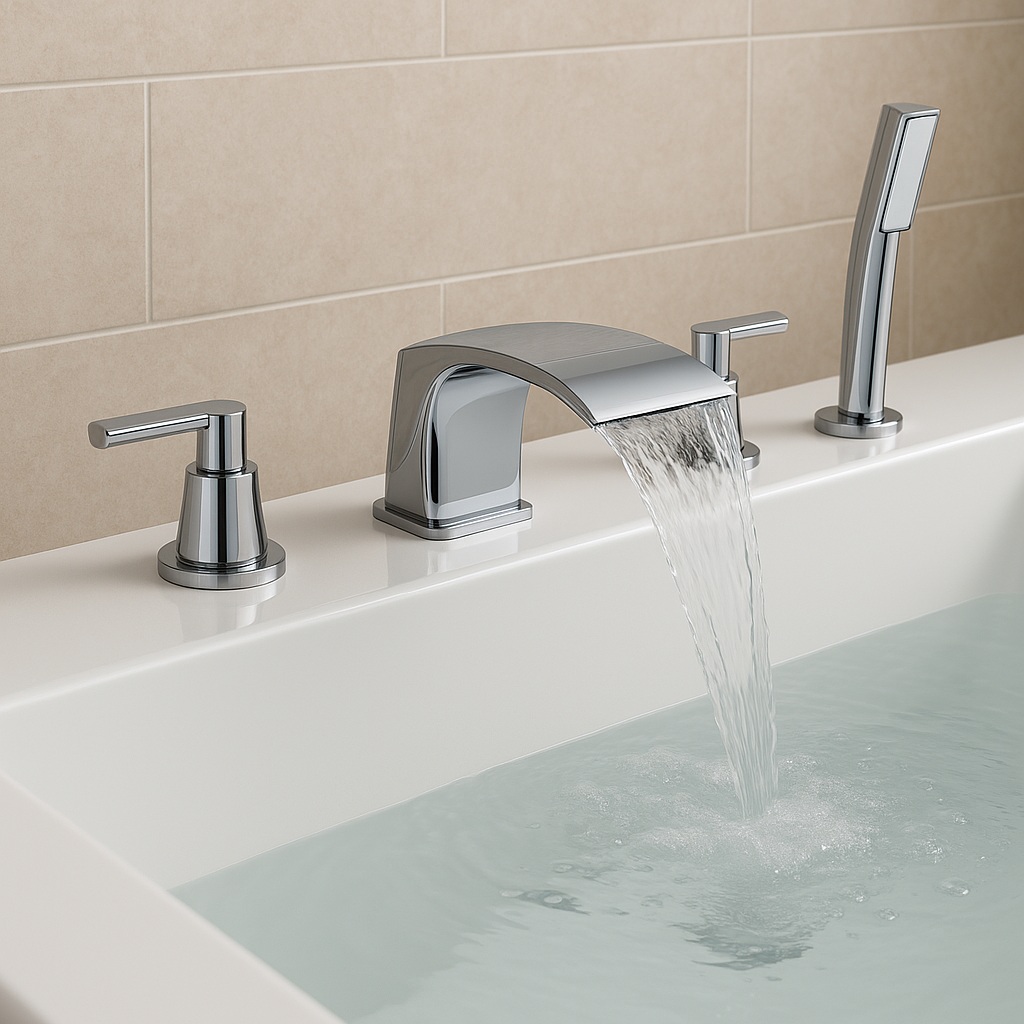

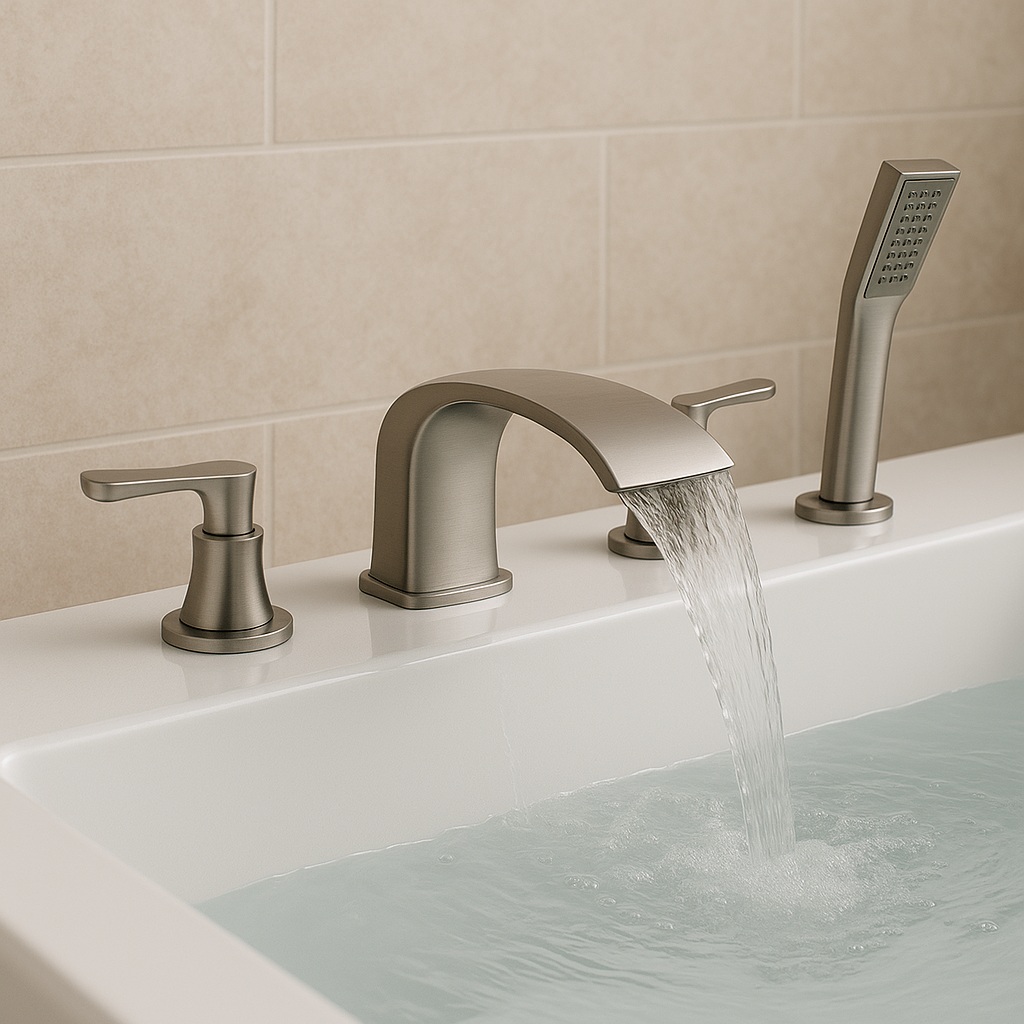

Freestanding, deck-mounted, and wall-mounted tub fillers each require different rough-in dimensions, blocking, and waterproofing details. Coordination with tubs, slopes, and structural framing ensures that spouts reach the bathing well without causing splash or short-throw issues.

Scald Protection & Mixing Strategy

Scald control relies on thermostatic or pressure-balancing mixing valves that deliver tempered water to the tub filler while still allowing hot-water system temperatures high enough to mitigate Legionella risk. Point-of-use valves, remote group mixers, or smart controls may be used depending on project size and risk profile.

Structure, Stability & Movement

Freestanding tub fillers require rigid anchorage and blocking at the floor to resist side loads from hand showers and cleaning tools. Wall-mounted sets must coordinate with carrier or backing systems and waterproofed penetrations to prevent movement and long-term leakage at the envelope.

Diverters, Hand Showers & Reach

Many Fontana tub faucets integrate diverters and hand showers, which add flexibility but also require hose management and reach considerations. Hand showers should reach all surfaces of the tub without dragging across finished floors or exceeding hose bend radius.

Maintenance Access & Parts Standardization

Commercial and multi-unit residential projects benefit from standardized cartridge families, shared diverter assemblies, and easily accessible shutoffs. Under-deck and access panel layouts should provide clear reach to valves and connections without disturbing stone, tile, or waterproofing membranes.

Body, Valve & Internal Components

• Solid brass or stainless-steel bodies with ceramic valve cores for long-life, low-leak performance even at higher tub filler flow rates.
• High-quality diverter assemblies and check valves to manage hand shower and tub outlet functions without cross-flow.
• Factory-tested cartridges and mixers rated for domestic hot water temperatures and pressure ranges typical of hospitality and multi-residential systems.

Finishes, Coordination & Cleanability

• PVD gold, brushed nickel, matte black, and oil-rubbed bronze finishes that stand up to frequent cleaning with hospitality-grade chemicals.
• Finish coordination between tub faucets, lavatory faucets, showers, and accessories to keep the design language consistent across suites.
• Smooth geometries, minimal crevices, and removable aerators or waterfall spout plates to simplify cleaning and reduce scale buildup.

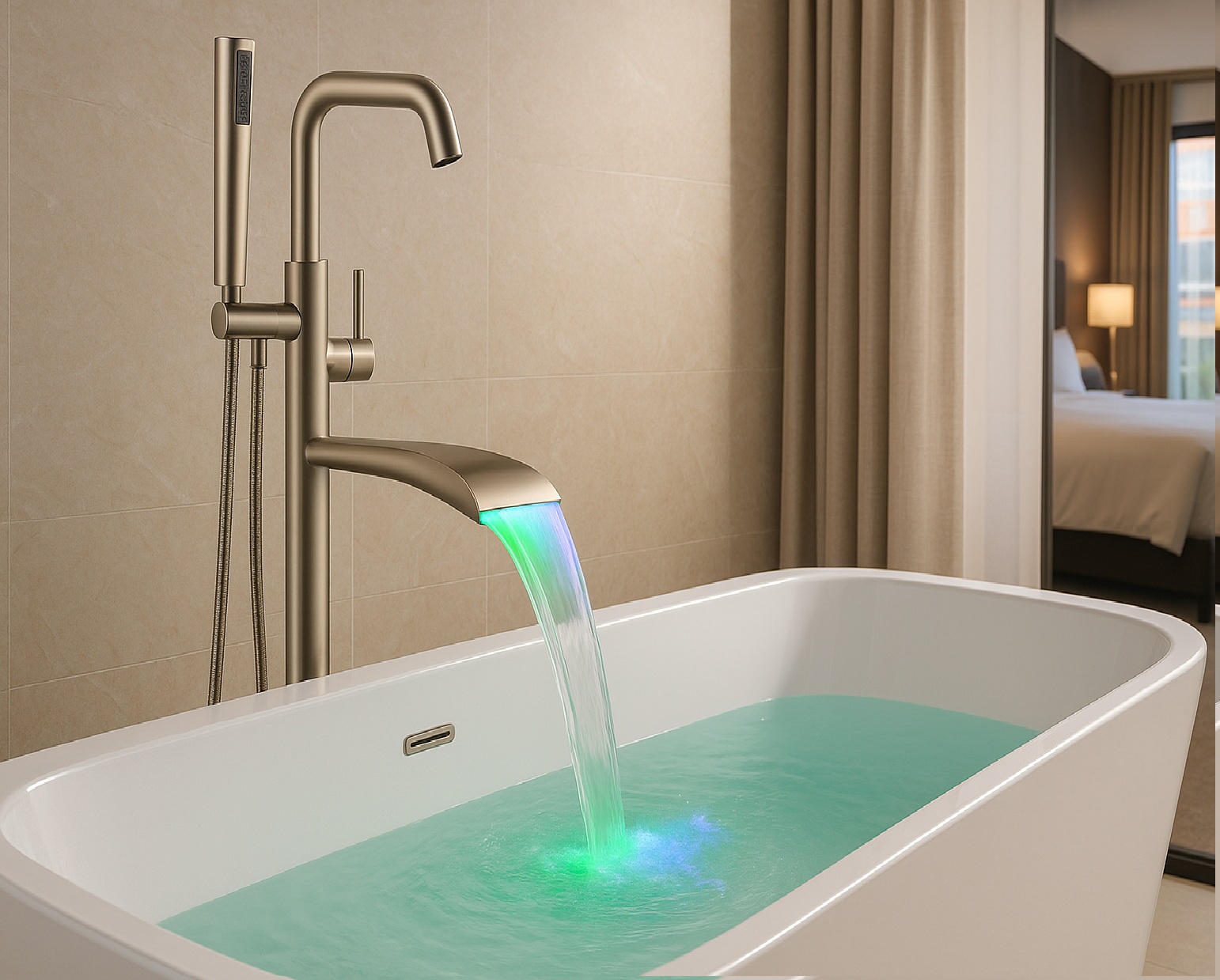

Hospitality & Resorts

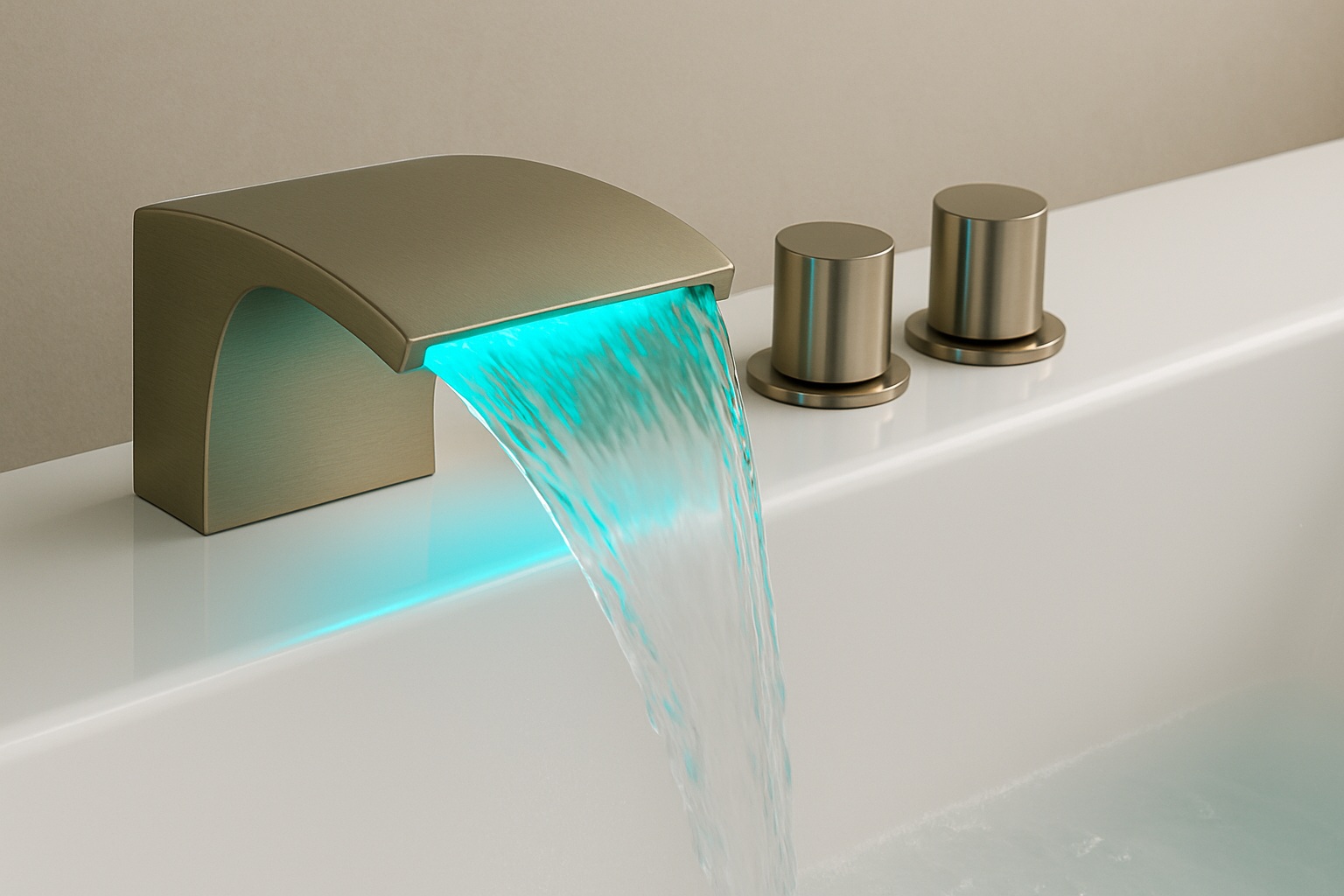

Guest suites and spa-level bathrooms rely on tub fillers as focal points. Waterfall spouts, LED accents, and high-end finishes support brand storytelling while properly sized valves and supply lines deliver predictable fill times and stable temperatures.

Luxury Residential & Multi-Family

In single-family homes and premium multi-family units, freestanding tub fillers and wall-mounted sets must coordinate with soaking tubs, window placement, and structural framing. Fontana’s documentation and BIM content help teams standardize tub/filler pairings across unit types.

Spa, Wellness & Boutique Projects

For spa suites and wellness centers, perceived water quality, acoustic character, and outlet pattern matter as much as flow rate. Wide waterfall spouts and laminar flow outlets provide calming sound profiles and visual comfort for guests.

Healthcare & Assisted Living

Assisted bathing areas require highly controlled temperature, accessible controls, and stable outlets. Pairing tub fillers with thermostatic valves and non-scald strategies supports clinical safety criteria and staff workflows.

Renovations & Retrofit Projects

When replacing existing tub fillers, wall and deck conditions may constrain mounting and reach. Fontana bathtub faucets offer flexible rough-in tolerances, adjustable escutcheons, and installation kits that support retrofit conditions with minimal rework.

Corporate & Hospitality Residential Programs

For branded residences or corporate housing, standardizing on a small set of tub faucets simplifies procurement and maintenance. Shared cartridges, finishes, and installation methods reduce spare-part inventories and training needs.

AEC-Focused Design Support

Fontana provides product data, BIM files, and installation details for core bathtub faucet families, helping architects and engineers coordinate tub fillers with domestic hot water systems, structural constraints, and finish schedules.

Coordinated Collections

Tub fillers can be paired with matching lavatory faucets, showers, and accessories in the same finish families, allowing designers to maintain a consistent language across guest baths, ensuites, and spa zones.

Lifecycle & Maintainability

Shared cartridge families, robust mounting hardware, and documented repair procedures reduce maintenance overhead. This is particularly important for hotels, multi-family properties, and mixed-use developments with large fixture counts.

Hydraulic & Comfort Outcomes

Flow rates and outlet forms are selected to keep fill times reasonable while maintaining quiet operation and comfortable splash patterns. Designers can choose between waterfall, laminar, and aerated outlets depending on project intent.

Finish & Brand Story

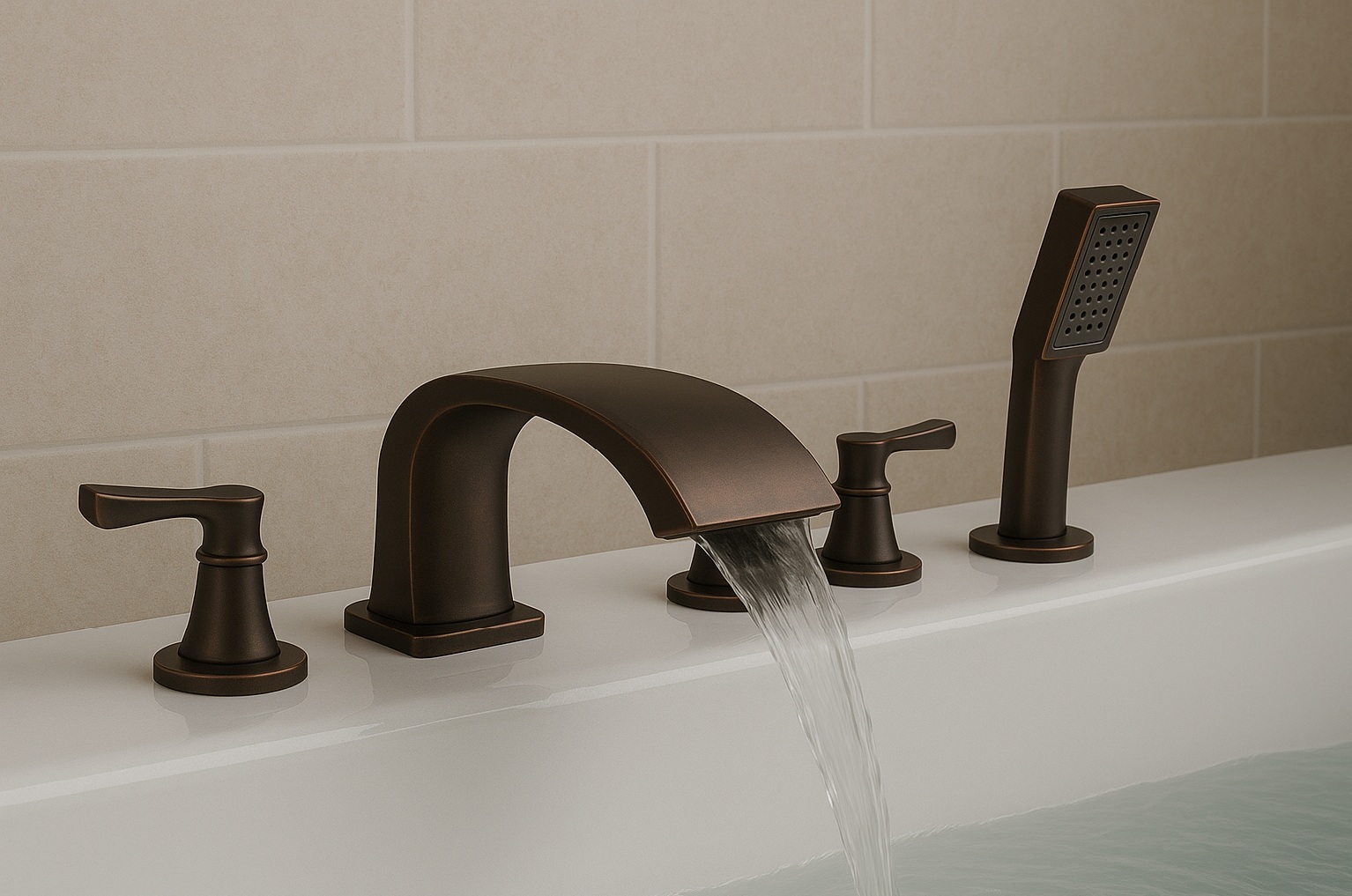

From brushed nickel minimalism to dramatic gold and oil rubbed bronze, Fontana bathtub faucets support brand narratives in hospitality and premium residential projects while meeting durability expectations.

Documentation & Submittals

Specification sheets, CAD/BIM content, and installation guides are structured for use in Division 22 submittals and office standards so teams can reuse vetted tub/filler details across multiple projects.

What’s Included

• Representative product data sheets and pressure–flow information for key tub fillers (freestanding, deck-mount, and wall-mount).
• Editable Division 22 specification language covering flow, finish, mixing, and scald-control requirements.
• BIM / CAD families and typical detail sections for floor, wall, and deck installations.
• Finish coordination notes and pairing suggestions with lavatory faucets, showers, and accessories.

Project Coordination Notes

When requesting a specification kit, include tub volumes, desired fill times, domestic hot water system information, and mounting preferences (deck, wall, or freestanding). Fontana can help you narrow down compatible bathtub faucets and tub fillers that align with your hydraulic, accessibility, and aesthetic goals.
