Fontana Verona Gold Single Handle Mixer Shower Set- Installation


Shower-Head Installation






No tools required, ½ connector fits standard-sized shower plumbing.
  1. Use your hands counterclockwise to unscrew the old showerhead and removed it.
  2. Take out the showerhead, make sure the shower filter is placed in the connector.
  3. Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
  4. Use your hands clockwise to tighten showerhead.






1. Install the valve body. Wrap the threaded portion of the joints in Teflon tape and connect the water inlet and outlet.

2. Put the protective cover on the valve body and finish the shower wall.

3. When the finished wall is complete, remove the protective cover.

4. Install the escutcheon, and handle. Tighten the set screw with an Allen wrench to secure.

5. Attach the shower arm escutcheon to the shower arm. Wrap the threaded portions of the shower arm with Teflon tape and connect the arm to the shower inlet. Adjust the direction of the water flow as needed. Attach the rainfall shower head to the shower arm.
Fontana Verona Gold Mixer Installation Resources
Prepare the Verona Gold Shower Rough-In
Coordinate the single-handle mixer, wall outlet, shower head, supply orientation and finished-wall depth while protecting the gold finish.
Installation Guides
All FontanaShowers Installation Guides Shower Installation Details
Mixer
Shower Mixer Installations Wall Rough-In Dimensions
Rain Shower
Rain-Shower Requirements Handheld Shower Installation
Gold Finish
Finish Care and Maintenance Compliance Records
Project Planning
Resources for Architects BIM and Revit Resources
Commissioning
System Testing Guidance Maintenance Planning
VIEW ALL FONTANASHOWERS INSTALLATION GUIDES →

Verona Gold Mixer Installation Questions

Why is mixer rough-in depth important?

Correct depth allows the trim, handle and escutcheon to seat properly against the finished wall. Review Wall Rough-In Dimensions

How should the gold components be protected?

Keep trim packaged during construction, use nonabrasive tools and cleaners, and install exposed pieces after dusty work is complete. Review Finish Care

What should be tested before tiling?

Verify hot and cold orientation, pressure-test concealed joints and flush the lines before installing cartridges or finished components. Open Mixer Installation Guidance

Where can installers find the broader guide library?

Use the installation hub for related shower, mixer, rough-in and maintenance guidance. All FontanaShowers Installation Guides

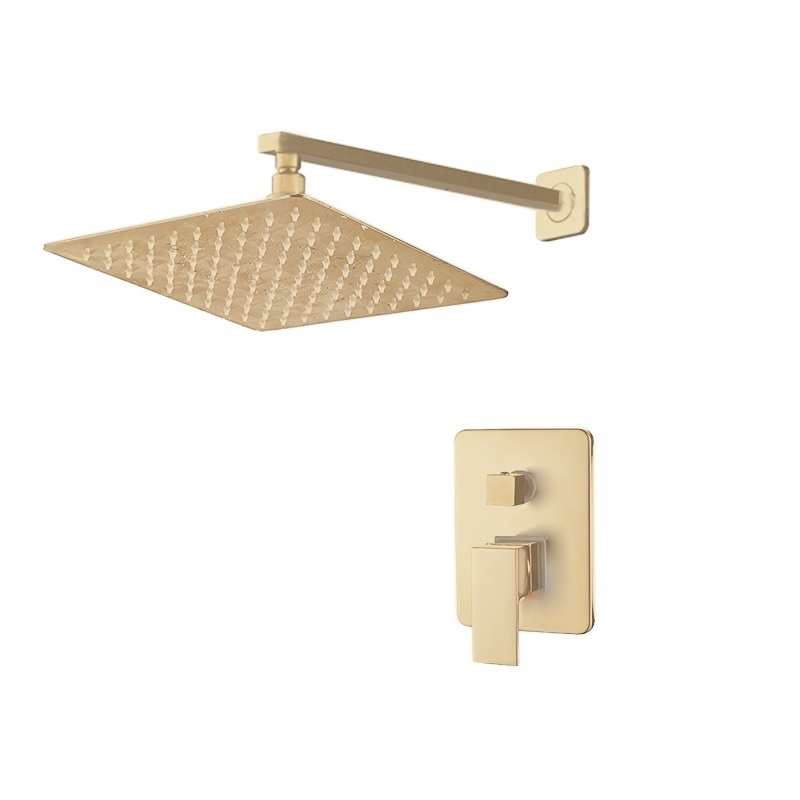

Gold shower system related to the Fontana Verona mixer installation guide
