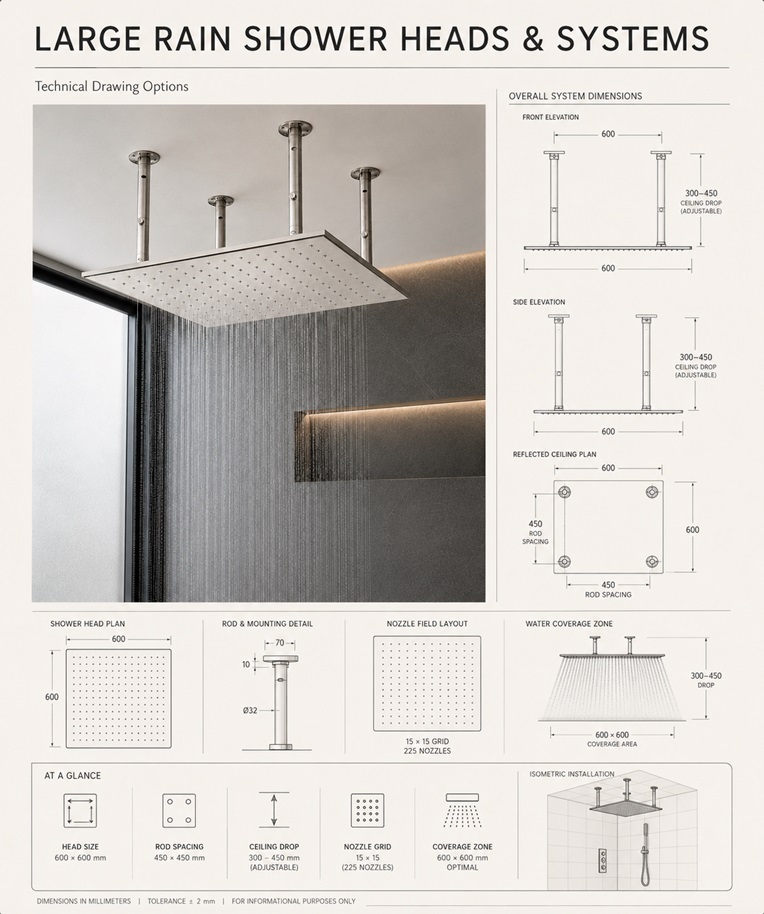

Rain shower head dimensions should be documented as coordinated construction information rather than treated as a decorative fixture note. For architects, plumbing engineers, interior designers, contractors, and BIM coordinators, large-format rain shower heads can affect ceiling framing, waterproofing, plumbing routes, valve selection, drainage design, lighting placement, access panels, and the user’s position within the shower enclosure. A complete technical drawing package should include dimensioned plan views, elevations, sections, reflected ceiling plans, plumbing schematics, and mounting details. These drawings should identify the shower head width, length, thickness, nozzle arrangement, water-inlet location, connection size, mounting points, and relationship to surrounding architectural and mechanical systems.
Large Rain Shower Heads for Coordinated Project Design
FontanaShowers offers square and rectangular rain shower heads in multiple sizes, mounting configurations, spray formats, and system combinations for architectural and engineering review.

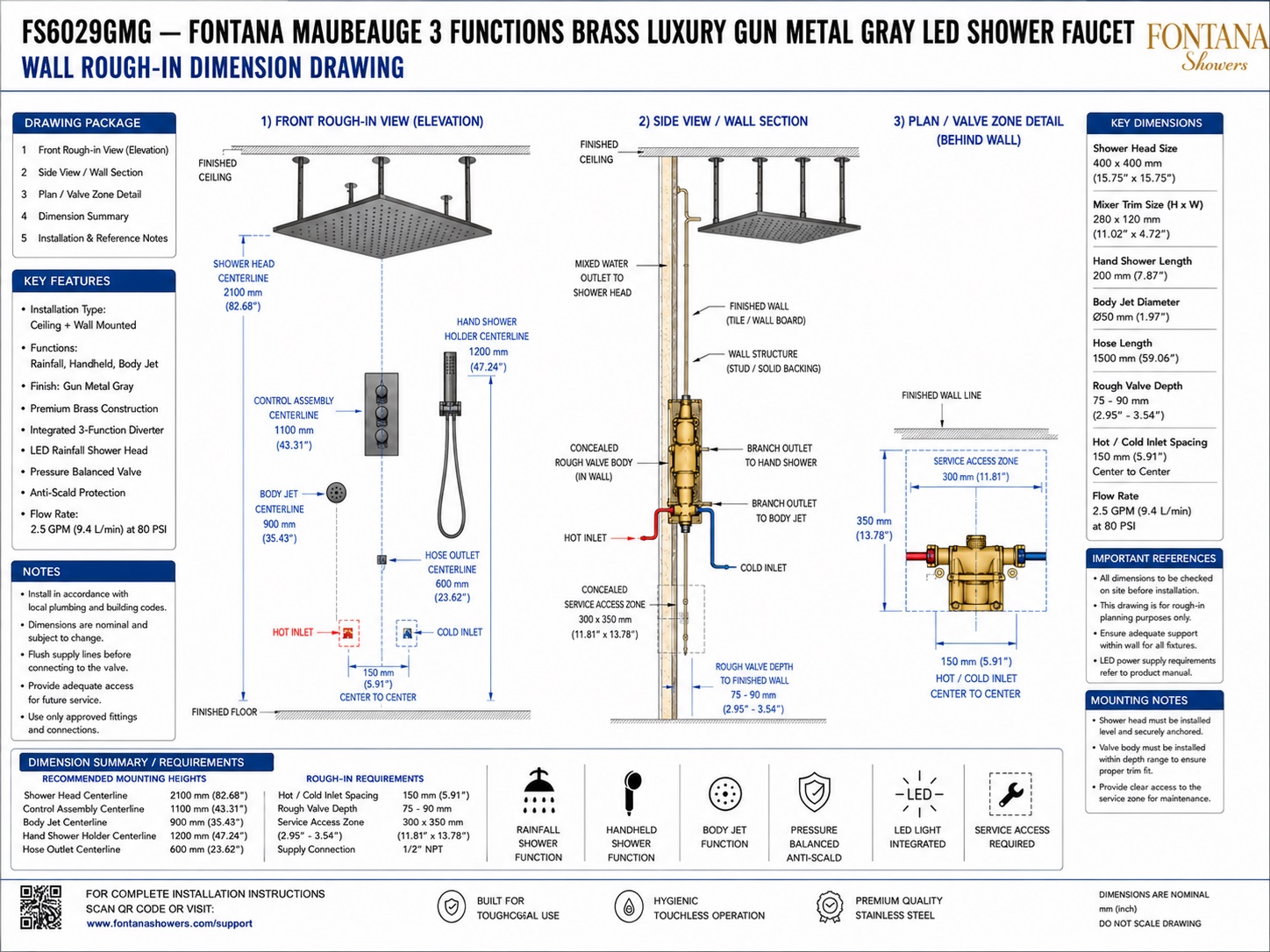

Plan, Elevation & Mounting Requirements

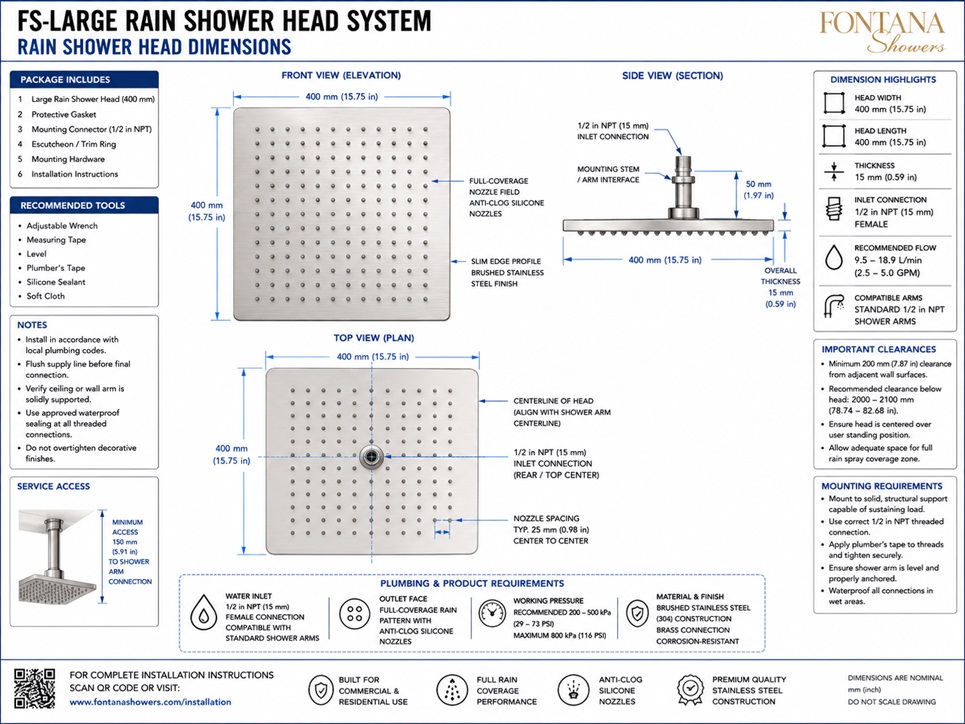

The primary plan view should show the overall width and length of the rain shower head together with fixture centerlines, edge offsets, mounting-point locations, nozzle spacing, water-inlet position, and orientation within the shower enclosure.
Fixture Orientation
Rectangular rain shower heads should be clearly marked for orientation. Rotating a 20-by-40-inch fixture by 90 degrees can substantially affect spray coverage, ceiling framing, supply-pipe routing, and alignment with the intended standing area.
Surrounding Conditions
The plan view should also show walls, glass partitions, shower doors, benches, drains, lighting, sprinklers, ventilation grilles, ceiling access panels, and other surrounding elements. Dimensions should reference permanent points such as structural gridlines, finished walls, or established architectural centerlines.
Elevation & Height
The elevation view should identify the visible fixture thickness, finished ceiling height, installation height, suspension-rod length, shower-arm projection, and outlet elevation.
Suspended Mounting Height
For ceiling-suspended models, indicate the vertical distance from the finished floor to the lower face of the shower head. This dimension supports evaluation of user comfort, spray distribution, and visual alignment with adjacent fixtures.
System Alignment
The elevation should coordinate the rain shower head with the hand shower, body jets, thermostatic controls, diverter valves, benches, grab bars, and other components within the shower system.
Section & Mounting
The technical section should identify whether the fixture is surface-mounted, recessed, flush-mounted, or suspended below the ceiling. It should also show the ceiling assembly, waterproofing system, plenum depth, structural supports, supply-pipe route, connection type, and service-access requirements.
Structural Support
Large rain shower heads may require independent structural support and should not rely on ceiling board or decorative finish materials. Details should identify the number, spacing, and type of fasteners, threaded rods, brackets, support frames, or backing plates required.
Inlet & Service Access
Dimension the inlet from the fixture centerline and coordinate it with the plumbing connection. Where a manifold, LED driver, transformer, control module, or multiple supply connections are included, identify access provisions for inspection and future maintenance.
Plan View Coordination
Drawing type: Plan view. Required data: width, length, nozzle arrangement, centerlines, inlet location, and mounting points. Coordination purpose: confirm fixture orientation, spray coverage, and ceiling integration.
Drawing Type: Elevation — Required details include fixture thickness, mounting height, shower-arm length, and outlet elevation. Coordination purpose: define visual position and user clearance.
Section & Coordination Drawing Types
Section Detail
Required information: ceiling assembly, support framing, supply route, anchors, and service access. Coordination purpose: prevent conflicts with structure and concealed building services.
Reflected Ceiling Plan
Required information: rain-head footprint, lighting, sprinklers, diffusers, and access panels. Coordination purpose: align overhead building services with architectural ceiling features.
Plumbing Schematic
Required information: flow rate, pressure, valve type, diverter configuration, and branch-pipe sizes. Coordination purpose: verify hydraulic compatibility and simultaneous operation of selected outlets.
Mounting Details
Required information: fasteners, brackets, backing, substrate, and support frame. Coordination purpose: establish the structural load path and installation method.
Dimensional Coordination
Position the rain shower head within the usable showering zone rather than automatically centering it in the room or enclosure. Final placement should account for floor slope, drain location, spray containment, glass panels, door swing, benches, hand-shower placement, body jets, and accessible components.
Active Spray Area
Designers should distinguish between the fixture’s nominal dimensions and its active nozzle area. A rain shower head may measure 40 inches across while producing a smaller spray field because of perimeter framing, lighting strips, or inactive edge zones.
Hydraulic Coordination
Flow & Pressure Review
Fixture size alone does not determine hydraulic performance. Plumbing engineers should review the specified flow rate, available pressure, pipe size, valve capacity, outlet count, and anticipated simultaneous-use conditions.
Multi-Outlet Demand
Multifunction shower systems may combine a rain shower head, waterfall outlet, body jets, hand shower, and tub filler. Where multiple outlets are intended to operate together, calculate total demand and coordinate it with the available water-supply system.

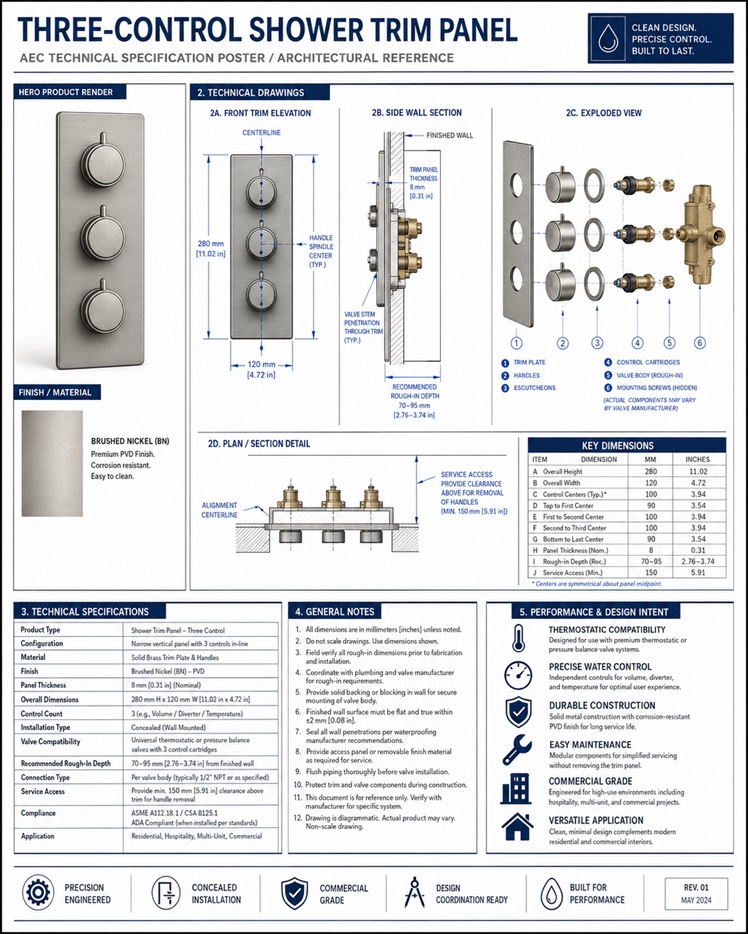

Codes & Valve Compliance
Selected shower fittings should be evaluated for compliance with applicable plumbing standards, including ASME A112.18.1/CSA B125.1. Where pressure-balancing or thermostatic valves are used, the design team should also review applicable ASSE requirements and locally adopted plumbing codes.
Illustrative AEC Coordination Example
Consider a hospitality shower with a rectangular 20-by-40-inch ceiling-mounted rain shower head, linear drain, two recessed lights, and a ceiling access panel.
BIM Coordination Conflict
Although the fixture was initially centered in the enclosure, BIM coordination revealed that a structural joist conflicted with one mounting point and the proposed inlet. A recessed light was also located within the anticipated spray area.
Coordinated Resolution
The coordinated solution relocated the light, positioned the access panel beside the concealed manifold, adjusted the rain-head centerline, and rotated the fixture. Resolving these issues before construction avoided field drilling, ceiling modifications, piping offsets, and installation delays.
Specification & Submittal Information
-
Submittal Requirements:
The project submittal should include dimensioned drawings, product data, connection sizes, finish information, flow data, mounting hardware, valve requirements, structural-support instructions, installation guidance, maintenance access, and cleaning recommendations.
-
Architect & Specifier Technical Resources
-
BIM, CAD & Specification Support:
Access coordinated product information and technical resources for architectural, engineering, and construction documentation.
-
Coordination Value:
A well-prepared rain shower head dimensional drawing converts a visually prominent fixture into coordinated, buildable information. Documenting fixture width, length, thickness, nozzle arrangement, inlets, mounting locations, structural support, hydraulic requirements, and service access can reduce RFIs, protect finished ceiling assemblies, and improve installation accuracy from design development through commissioning.
-
|
|
|
