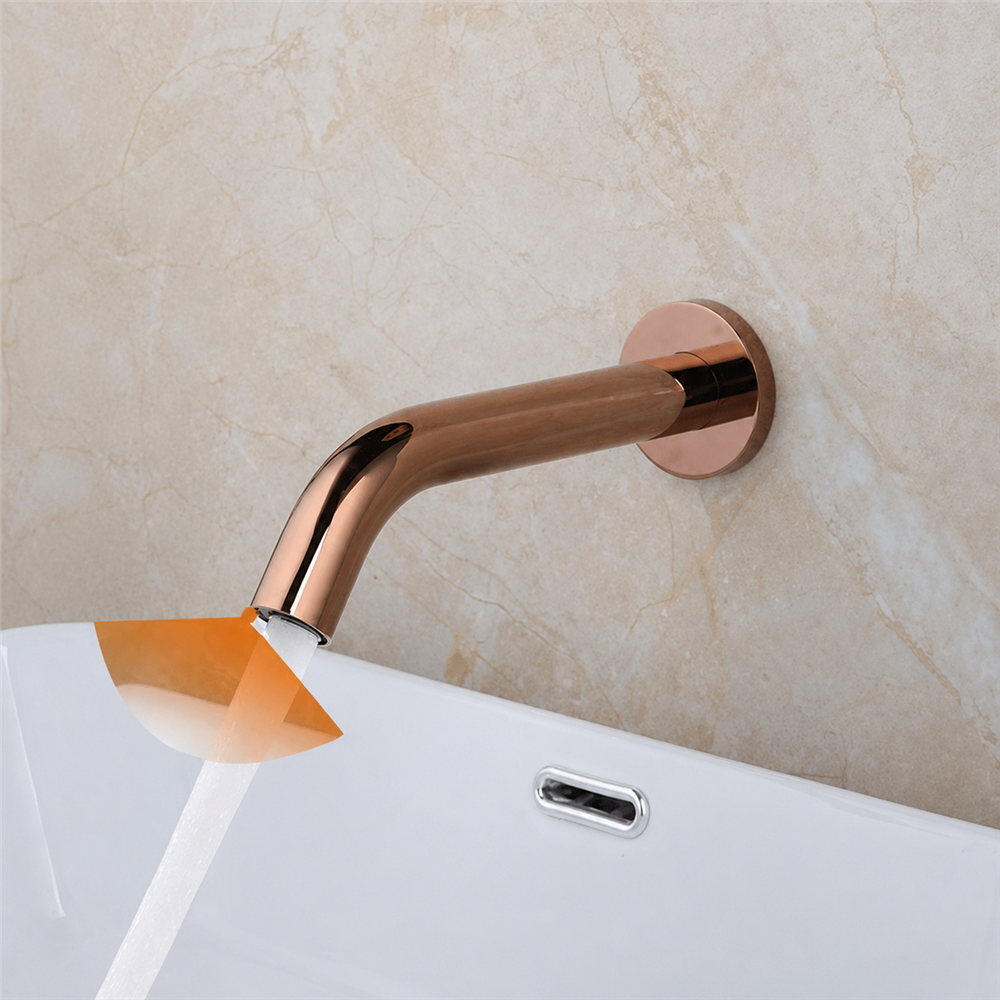

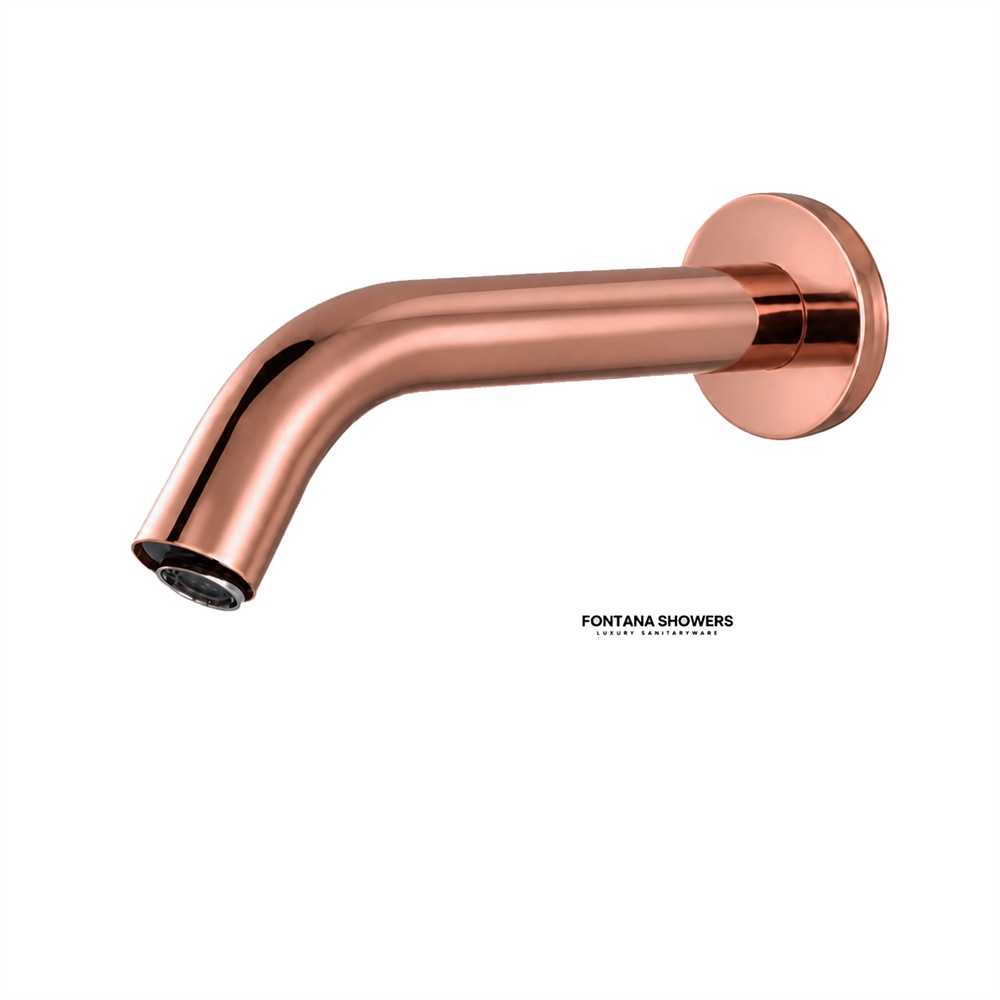

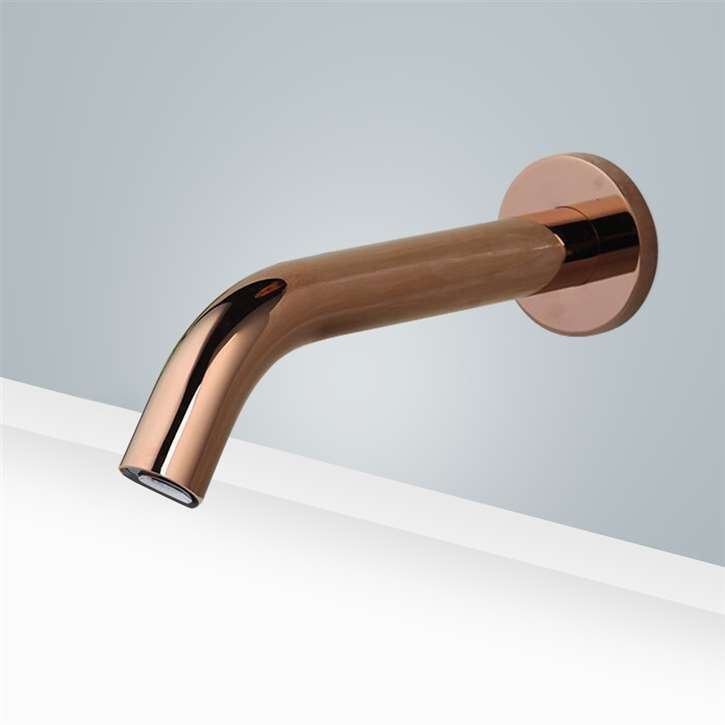

Brio Wall Mount Commercial Sensor Faucets Rose Gold

Minimize waste of water by using the Brio Wall Mount Commercial Sensor Faucets Rose Gold automatic faucet. Handle operated faucets in public restrooms can be breeding grounds for germs and other bacteria while touch-free operation means that you can avoid the mess and spread of germs entirely.

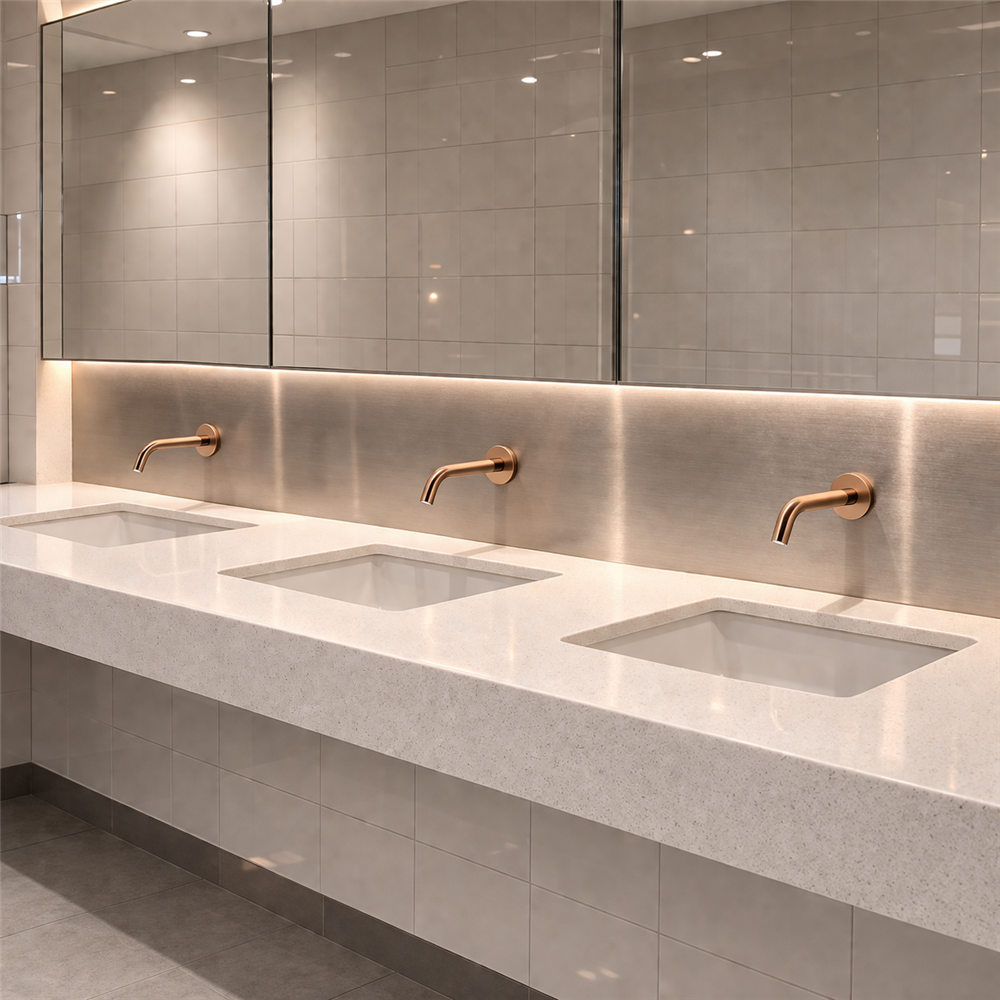

This touchless faucet is not only hygienic but will immediately reduce water waste by eliminating unnecessary and unattended water flow. Brio Wall Mount Commercial Sensor Faucets Rose Gold Finish with elegant chrome finish that will perfectly complement any modern bathroom Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing. High-Throughput Hands-Free Faucet; Built for peak usage periods—fast activation, consistent performance, anti-false triggering, auto shut-off, and water-saving low-flow output.

BRIO WALL MOUNT™ SERIES

Fontana Brio Wall Mount Sensor Faucet FAQs

Commercial wall-mounted sensor faucet with solid-brass construction, 0.3-second infrared response, dual AC/DC power, and IP56 protection.

✥ Sensor Calibration Procedure? +

The sensing field is factory set to approximately 25 cm. Verify detection after the basin, backsplash, and surrounding accessories are fully installed. Confirm reliable hand activation and adjust the sensing environment where reflective surfaces could influence infrared performance.

◇ What Is the Sensor Response Time? +

The published sensor response time is approximately 0.3 second. During commissioning, perform repeated activation cycles to confirm stable communication between the infrared sensor, electronic controller, and solenoid valve assembly.

◯ Operating Water Pressure? +

The specified operating pressure range is approximately 0.05–0.7 MPa. Maintain stable dynamic pressure within this range and regulate excessive pressure where required to support consistent valve operation and water delivery.

↻ Automatic Shutoff Configuration? +

The faucet incorporates an automatic safety shutoff function. The current specification identifies a factory-set 30-second automatic shutoff that can be adjusted, helping limit unattended water discharge in high-traffic applications.

⌁ What Power Supply Options Are Available? +

The Brio supports dual electrical operation using AC power and DC 6V battery power. This configuration provides an alternative operating source during electrical interruption and supports continuity in commercial facilities.

⌂ What Are the Plumbing Connections? +

Both the inlet and outlet are specified as DN15 connections. Flush supply piping before final connection, verify secure fittings, and inspect the concealed valve assembly for leakage before commissioning the sensor system.

⚡ How Is the Electronics Assembly Protected? +

The electronic system incorporates a water-resistant solenoid enclosure with an IP56 protection rating. Install the enclosure away from standing water while maintaining adequate cable routing and service access.

⌕ Routine Commercial Maintenance? +

Periodically clean the sensor window and outlet, inspect the water-resistant solenoid enclosure, check supply connections, remove mineral buildup, and verify the 0.3-second activation response and complete automatic shutoff.

‹ ›

Rose Gold

Rose Gold Chrome Brushed Nickel Gold Brushed Gold Oil Rubbed Bronze Champagne Matte White Matte Black Gun Metal Grey Antique Bronze

♧

0.3 Second Rapid Response

◇

Solid Brass Commercial Construction

⌁

Infrared AI Smart-Chip Detection

⚡

AC/DC Power Dual Power Architecture

◇

IP56 Protected Electronics

• Brand Name: FontanaShowers®
• Model Number: FS11231
• Type: Motion Sensor Faucet
• Finish: Rose Gold
• Material: Solid Brass Construction
• Installation Type: Wall Mount
• Response time: 0.3second
• Shutt-off delay time: 60 seconds
• Power Supply: AC110V And DC6V (batteries not included)
• Inlet Pipe Diameter: DN15
• Outlet Pipe Diameter: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power and Voltage: DC.6V, AC.110-220V - 50/60Hz
• Power Consumption: 0.5MW, <2W
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Sensitive Sensor with Infrared AI Smart-Chip
• Factory set to 30-second Auto Shutoff (can be adjusted).
• Water-resistant solenoid enclosure
