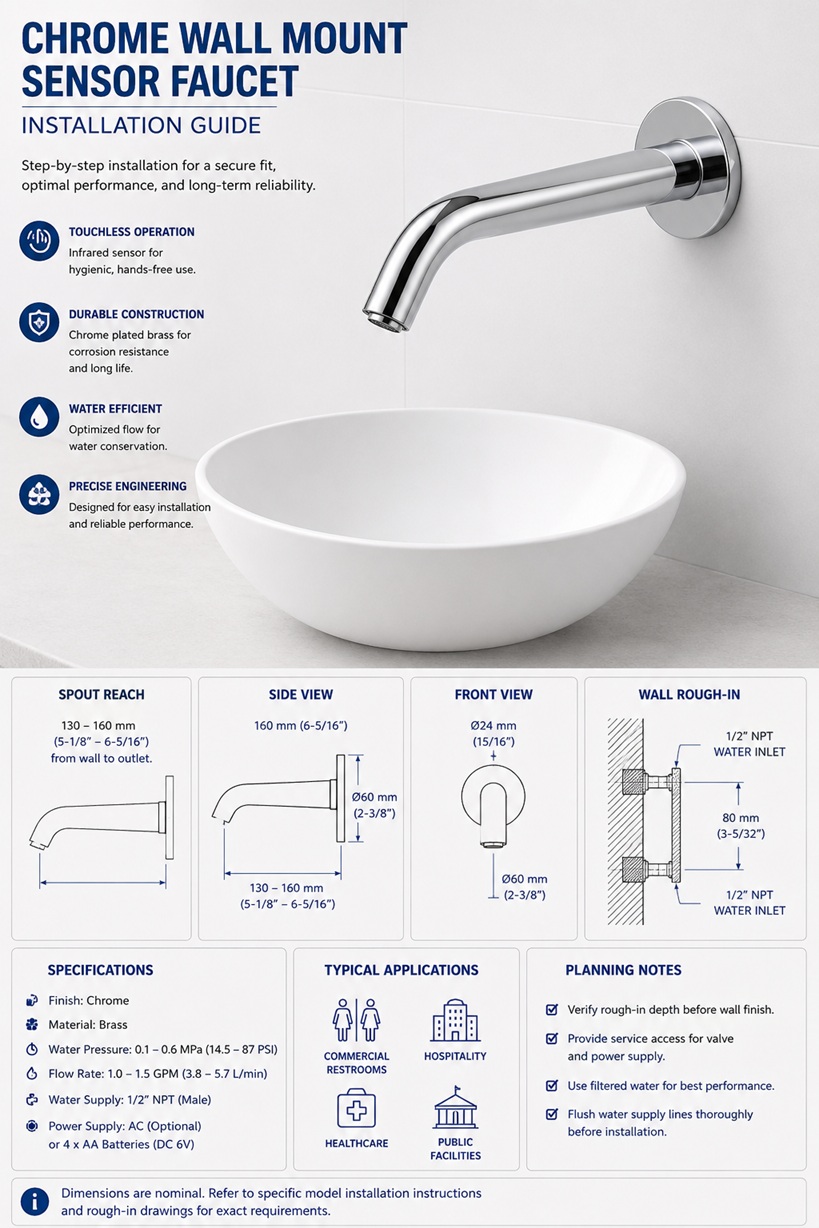

Chrome Wall Mount Sensor Faucets:
Installation Guide
This installation guide is intended to support architects,
plumbing engineers, interior designers, contractors, installers,
specifiers and facility managers installing Fontana chrome wall-mounted
automatic sensor faucets across commercial, hospitality, healthcare,
institutional and public washroom projects. The guide addresses
pre-installation preparation, wall rough-in, mounting support, faucet
positioning, water connections, power coordination, sensor setup,
commissioning, service access and final installation verification
across the available faucet configurations within this category.
Fontana Chrome Wall-Mounted Automatic Sensor Faucets
This category includes multiple chrome wall-mounted automatic
sensor faucet configurations intended for hands-free lavatory
operation. Installation requirements, spout profiles, wall flanges,
concealed valve assemblies, sensor positions, water connections
and power arrangements may vary according to the selected faucet model.
This page should be used as a category-level installation resource
rather than as a universal model-specific installation manual.
Final wall openings, mounting positions, concealed clearances,
water connections, electrical requirements, sensor settings and
service locations must be verified using the approved installation
documentation for the selected model.
-
Category:
Chrome wall-mounted automatic sensor faucets
-
Installation:
Wall mounted
-
Operation:
Infrared touchless activation
-
Finish:
Chrome
-
Applications:
Commercial, hospitality, healthcare, institutional and public lavatories
-
Installation requirements:
Model specific
-
Wall rough-in:
Verify from the selected model documentation
-
Water configuration:
Varies according to model and project requirements
-
Power configuration:
AC, battery or model-specific arrangement
-
Service access:
Required for concealed operating components

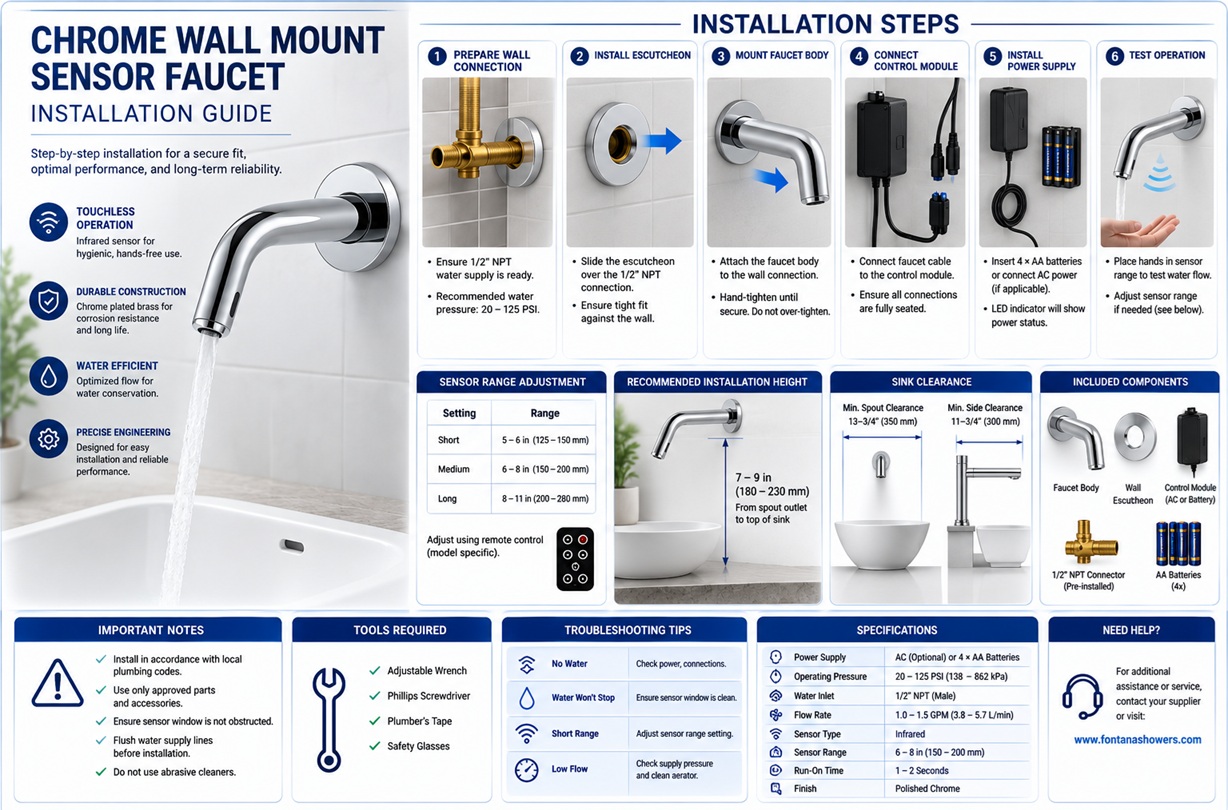

Chrome Wall Mount Sensor Faucet Installation Guide
Each installation should follow the approved instructions supplied
for the selected faucet model. Before work begins, confirm the
finished-wall reference, mounting position, concealed rough-in,
water supply arrangement, power configuration, basin relationship
and required service access. Model-specific instructions always
take precedence over category-level installation guidance.
Installation Preparation
Review the selected faucet model, installation instructions,
wall construction, basin location, plumbing arrangement,
power requirements and concealed service conditions before
beginning installation.
Verify Installation Components
Confirm that the faucet body, wall flange, mounting hardware,
valves, control components, hoses, sensor components and
model-specific power parts required for installation are available.
Confirm Faucet Position
Establish the faucet centerline and outlet position relative
to the selected basin before creating wall openings or fixing
concealed mounting components.
Prepare the Wall Opening
Prepare the required wall opening according to the selected
model documentation while maintaining the specified relationship
to the finished-wall surface and concealed components.
Verify Spout Reach
Check the horizontal spout reach before final mounting so the
water stream is directed into the usable basin area without
discharging onto the rear ledge, countertop or front rim.
Install Wall Flange
Position and secure the exposed wall flange against the
finished surface while protecting tile, stone, wall panels
and surrounding finishes from damage.
Confirm Finished-Wall Depth
Use the completed wall surface as the installation reference
for faucet projection, flange seating and concealed rough-in
depth before permanently securing the faucet assembly.
Complete Wall Rough-In
Coordinate wall openings, concealed plumbing connections,
internal support, wiring routes and operating components
before tile, stone or permanent wall finishes are completed.
Secure Mounting Support
Provide suitable backing, blocking or structural support
within the wall assembly according to the selected faucet
configuration and mounting requirements.
Set Mounting Height
Install the faucet at the verified mounting height relative
to the finished countertop, basin rim and intended handwashing
area while following model-specific requirements.
Align Faucet and Basin
Align the faucet centerline and outlet with the selected basin
so the water stream enters the intended capture area and
supports comfortable hands-free operation.
Check Water Stream Landing
Confirm the expected water-impact area within the basin and
review bowl depth, drain location and splash-control conditions
before completing final commissioning.
Position the Sensor
Ensure the infrared sensor is correctly positioned relative
to the intended hand-detection area, basin profile and nearby
reflective surfaces that could influence activation.
Connect Water Supply
Connect the required water supply, valves, hoses and concealed
plumbing components according to the selected model instructions
and applicable project requirements.
Connect Power Supply
Install the specified battery, transformer, controller or
other power arrangement according to the selected model,
manufacturer instructions and project electrical requirements.
Install Concealed Components
Position valves, control boxes, transformers, battery packs,
hoses and other operating components within their designated
concealed locations without restricting service access.
Preserve Service Access
Maintain practical access to concealed plumbing, electrical
and control components for future inspection, adjustment,
battery replacement and maintenance.
Test Sensor Activation
After water and power connections are complete, test automatic
activation and shutoff through the intended hand-detection
area and confirm consistent touchless operation.
Complete Final Verification
Confirm mounting security, water connections, sensor response,
power operation, basin alignment, service access and the
selected model requirements before placing the faucet into service.
Installation note:
Category-level installation guidance does not establish universal
installation requirements for every faucet within the category.
Final wall openings, mounting depth, spout position, water connections,
power requirements, sensor setup, concealed clearances and commissioning
procedures must be verified using the approved specification sheet and
installation instructions for the selected faucet model.
Installation Workflow
Select the Faucet
Confirm the exact wall-mounted sensor faucet model, design
profile, projection, sensor arrangement, power source and
project application before installation begins.
Review Installation Documentation
Obtain and review the selected model’s specification sheet,
installation instructions, dimensional drawing and available
project-submittal information.
Prepare the Installation Area
Confirm the basin location, finished-wall condition, faucet
centerline, mounting height and required wall opening before
fixing concealed components.
Install Concealed Rough-In
Position concealed plumbing, mounting supports, control
components and required electrical provisions before permanent
wall finishes restrict access.
Mount and Connect Faucet
Secure the faucet assembly and complete the required supply
piping, valves, hoses, controllers and power connections
according to the selected model instructions.
Check Sensor Operation
Confirm that the basin, backsplash, mirror and adjacent
accessories do not obstruct or interfere with the intended
infrared detection field.
Test and Commission
Open the water supply, energize the required power source
and test activation, shutoff, water delivery and sensor
response before completing the installation.
Complete Final Inspection
Confirm mounting security, wall condition, basin alignment,
connections, sensor performance, service access and applicable
project requirements before handover.
Installation and MEP Coordination
Wall Construction
Coordinate framing, blocking, waterproofing, tile, stone,
wall panels and other finish materials so the required mounting
depth and structural support are available for installation.
Plumbing Installation
Confirm supply routing, shutoff locations, valve orientation,
pressure conditions and accessible connections before connecting
the selected faucet.
Electrical Installation
Install transformers, battery packs, receptacles, control
boxes and cable routes according to the selected model’s
power configuration and installation documentation.
Basin Compatibility
Before final mounting, verify that the selected basin geometry
is compatible with the faucet projection, outlet position,
water stream and sensor location.
Finish Protection
Protect the chrome faucet surface and surrounding mirrors,
tile, stone and finished materials during installation while
maintaining practical cleaning access.
Multi-Faucet Installation
In shared washbasins, maintain consistent centerlines,
mounting heights and fixture spacing while preventing
overlapping sensor detection zones.
Chrome Wall-Mounted Faucet Installation Resources
Professional Installation References
Installation verification:
This category-level installation guide does not replace model-specific
specifications, installation instructions or approved project submittals.
The architect, plumbing engineer, electrical engineer, interior designer,
contractor and licensed installer should verify the selected faucet model,
finished-wall construction, mounting support, rough-in depth, spout
projection, basin alignment, water connections, sensor position, power
requirements, service access, accessibility criteria and locally adopted
codes before installation and final commissioning.
|
|
|
