Fontana Wall Mount Commercial Sensor Faucet
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Motion Faucet with Soap Dispenser Option
|
Type
|
Automatic Motion Faucet
|
|
Model Number
|
FS1050
|
|
Feature
|
Sensor Faucet
|
|
Brand Name
|
Fontana Showers
|
|
Main Material
|
Stainless Steel
|
Fontana Wall Mount Touchless Bathroom Faucet Technical
|
Model No.
|
FS1050
|
|
Faucet Body Material
|
Stainless Steel
|
|
Hygienic
|
Operates automatically, eliminates cross-contamination.
|
|
Activation
|
Infrared sensor
|
|
Sensor Range
|
Self-adjusting
|
|
Activation time
|
< 1 second
|
|
Flow Rate
|
1-4.5ML/S
|
|
Sensor life
|
10000 times
|
|
Solenoid Valve Life
|
Over 500000 flushes
|
|
Battery life
|
108000 flushes(4 x AA alkaline battery)
|
|
Inlet/outlet diameter
|
G-1/2″
|
|

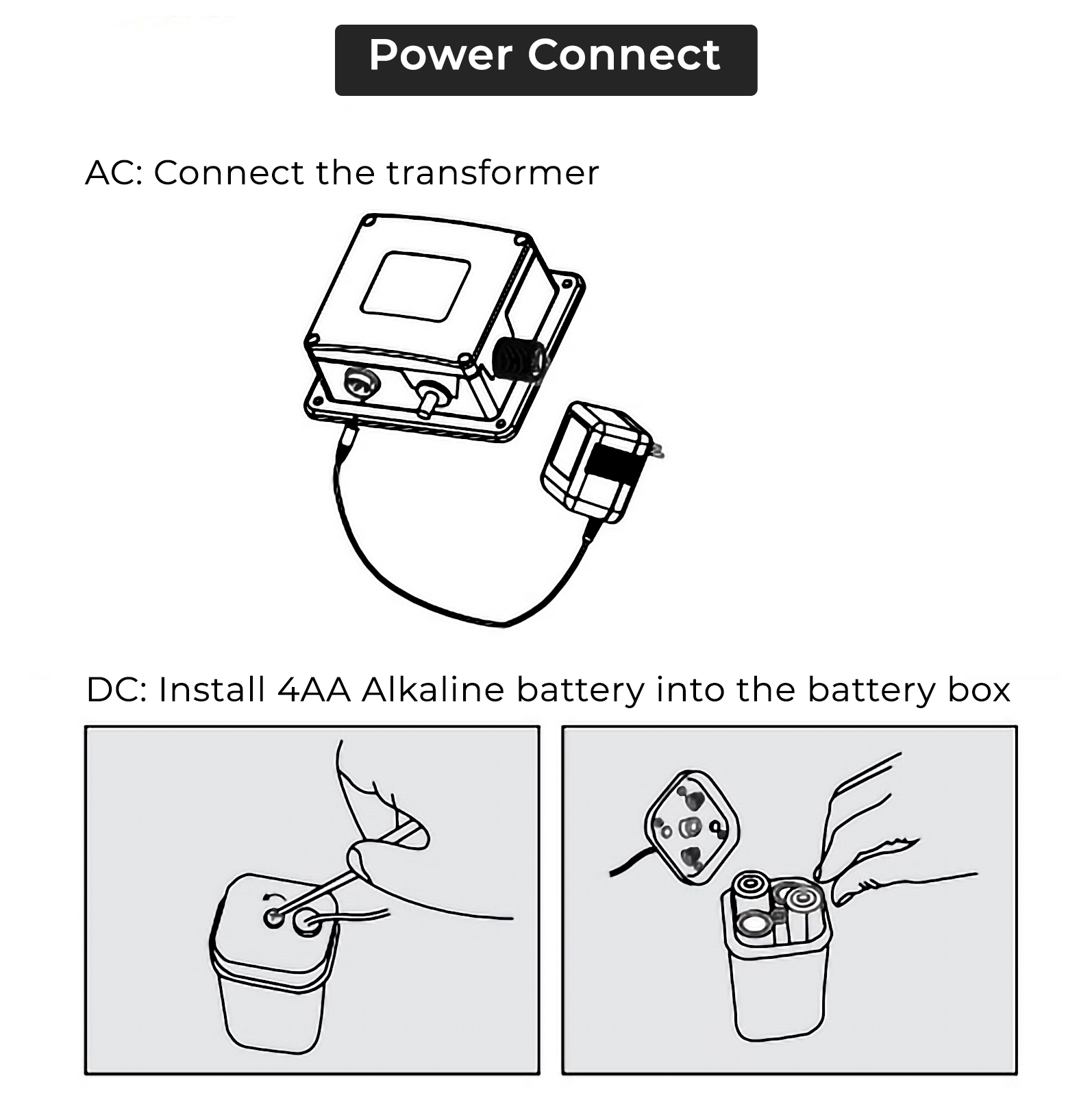

Power Supply
|
DC:6v(4 x AA alkaline battery) AC:220v-240v; 50/60Hz
|
|
Installation feature
|
Exposed design; involving easy installation and is user friendly.
|
|
Ambient temperature
|
0~55°C
|
|
Facilities
|
Commercial washrooms,such as airport, hotel, office building, shopping mall ,hospital, school etc.
|
|
|
|

|
FontanaShowers®Product Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the touchless faucet for any shipping damages for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
|
sensor
|
|
Commercial touchless faucet installation and commissioning should coordinate plumbing connections, control-box placement, electrical or battery power, sensor calibration, solenoid operation, water pressure, and future maintenance access before the fixture enters service. Installers can review
commercial infrared sensor faucet setup procedures covering auto-calibration, solenoid testing, battery installation, detection-range adjustment, and supply-line flushing,
reference
wall-mounted commercial sensor faucet installation guidance for control-box and water-connection coordination,
and compare
automatic sensor faucet installation requirements covering sensing distance, shutoff timing, flow control, and overtime-flow protection
when commissioning touchless fixtures for dependable activation, controlled water delivery, accessible servicing, and reliable long-term operation.
Sensor Faucet Installation
Step 1
|
faucet
|
Step 2
|
Step 3
|
|
Step 4
|
Step 5
|
|
Step 6
|
Soap Dispenser Installation
|
|
|
|
|
|
|
Step 1

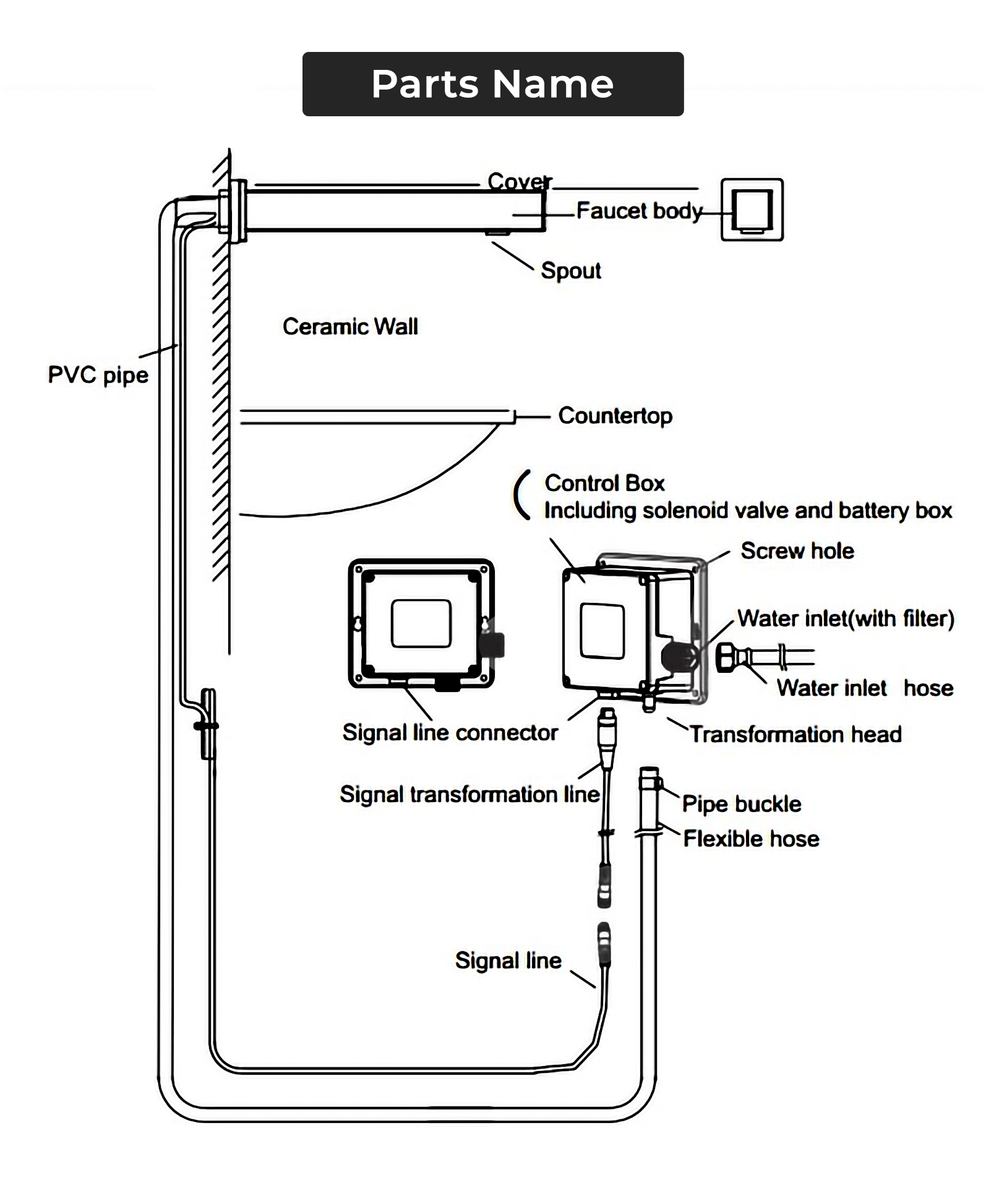

1) Insert PVC hose on wall, in order that install faucet body and the signal line.
2) Put the signal line and water inlet hose inside the PVC hose.
3) Screw fixed joint and nut of faucet on tightly, then close the cover.
Step 4

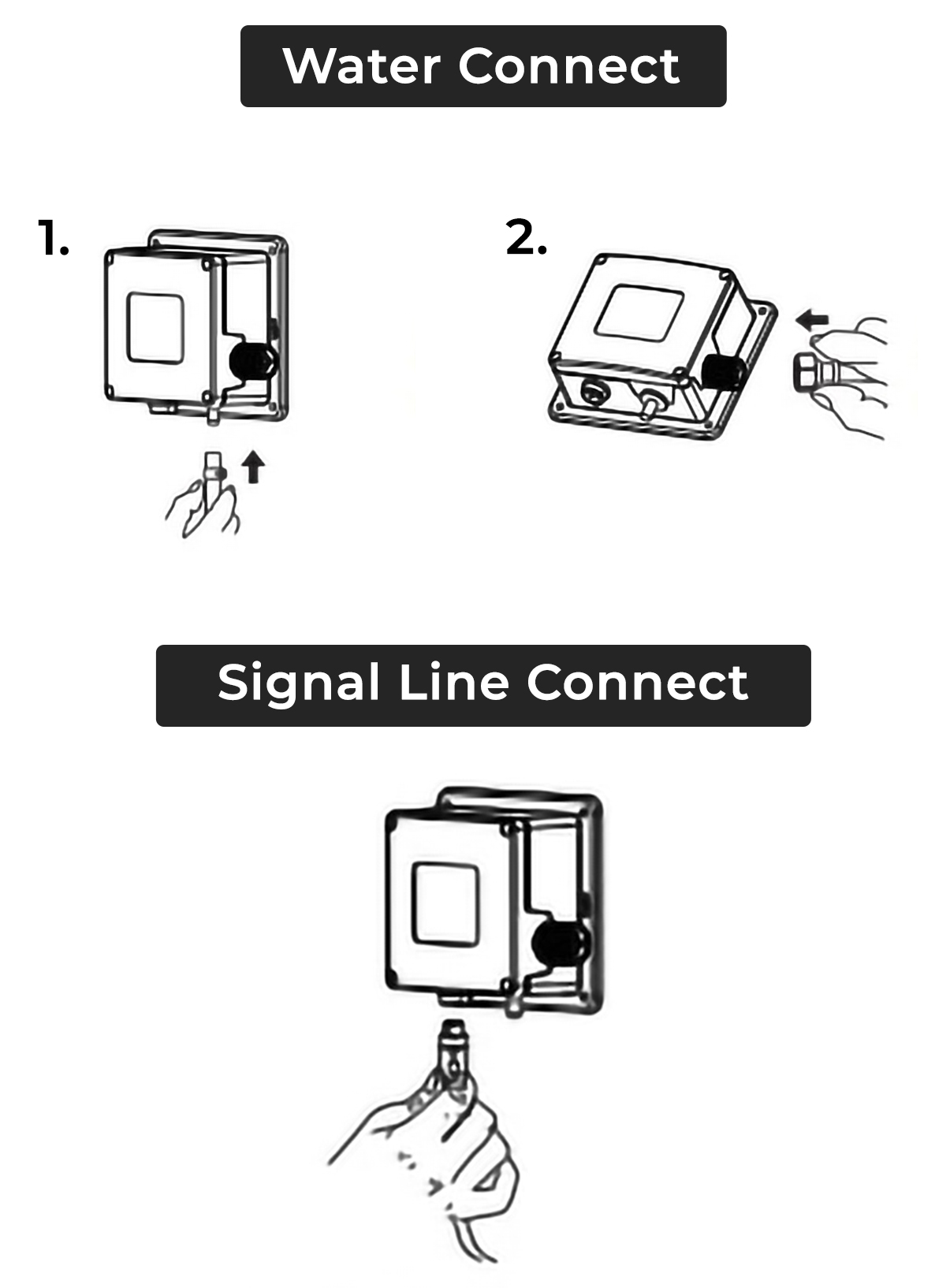

1) Water outlet, hose connect, connect the faucet body with control box by flexible hose, screw the pipe buckle tightly.
2) Water inlet, hose connect, connect 4" water supply hose with water inlet.
Note: Be sure no water leakage after connecting water.
connect the signal line with the control box, then screw tightly.
Step 5
1) Put the control box on the wall, drill four holes, then insert the plastic bulged tube.
2) Fix the control box on wall by screw.
Note:
1) Please close the water supply and power supply before install.
2) Be sure to install the control box correct, don't put upside down.
3) For easy to maintain, should choose a suitable place to install the control box.
Meanwhile, it must less than 19.6inches(50cm) distant from the basin(Please check the above picture).The installation drawing of the control box.
|
