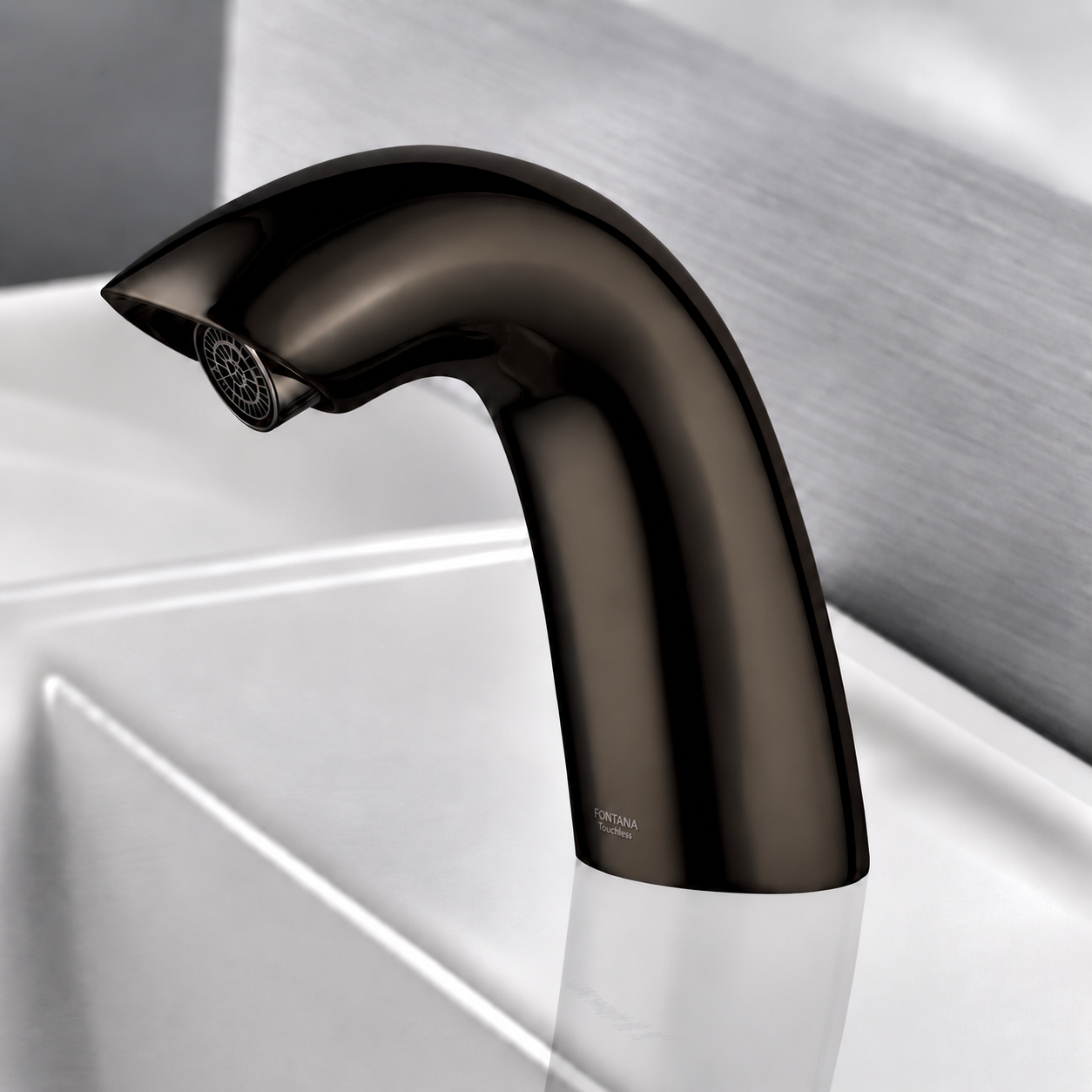

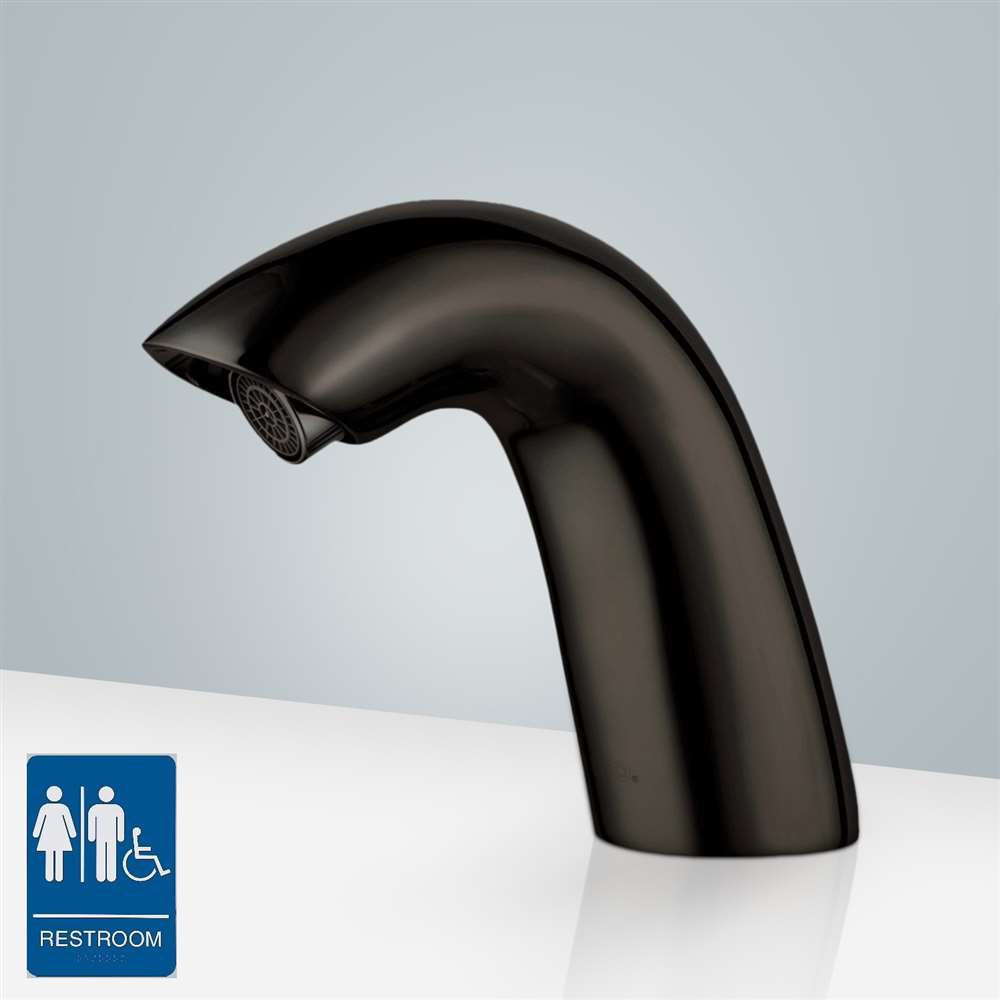

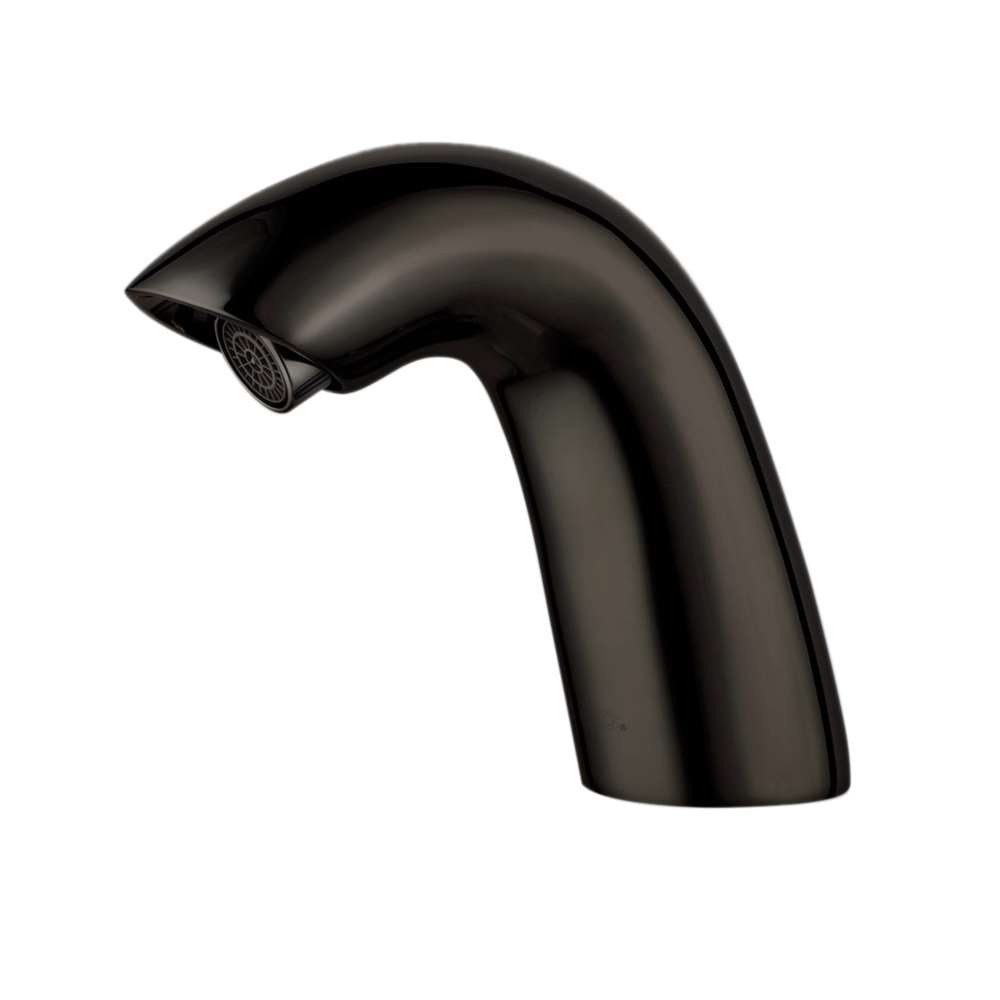

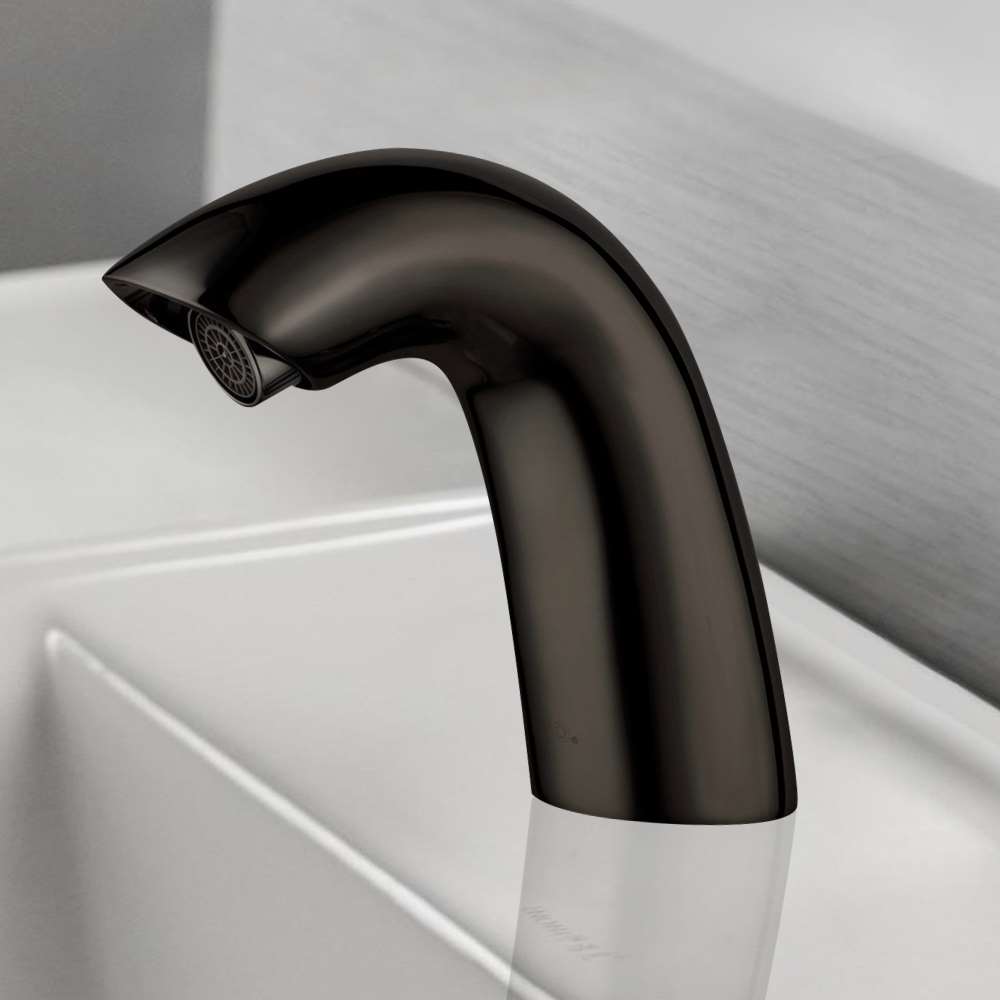

Fontana Conto Commercial Automatic Hands Free Faucet Matte Black

Alternative Views:

Retail Price: $498.00

Sale Price: $298.80

Savings: $199.20

Price with Selected Options: $298.80

Availability: Usually Ships in 5 to 10 Business Days

Product Code: FS-B507RB

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Fontana Conto Commercial Automatic Hands Free Faucet Matte Black Features:

Fit for residential or commercial use applications.

Motion touchless sensor operation

Sensitive Sensor with Infrared AI Smart-Chip

Factory set to 30-second Auto Shutoff (can be adjusted).

Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi

Solid Brass Construction, Matte Black Finish

Easy to Install - Instructions Included

Water resistant solenoid enclosure

Advanced energy saving design for long lasting battery life

Sensor faucet comes complete with Hoses & Accessories

Power Supply: AC110V And DC6V (batteries not included)

AC/DC power option.

ADA Compliant

Can be installed easily in new or retrofit applications.

Usage: Commercial / Residential

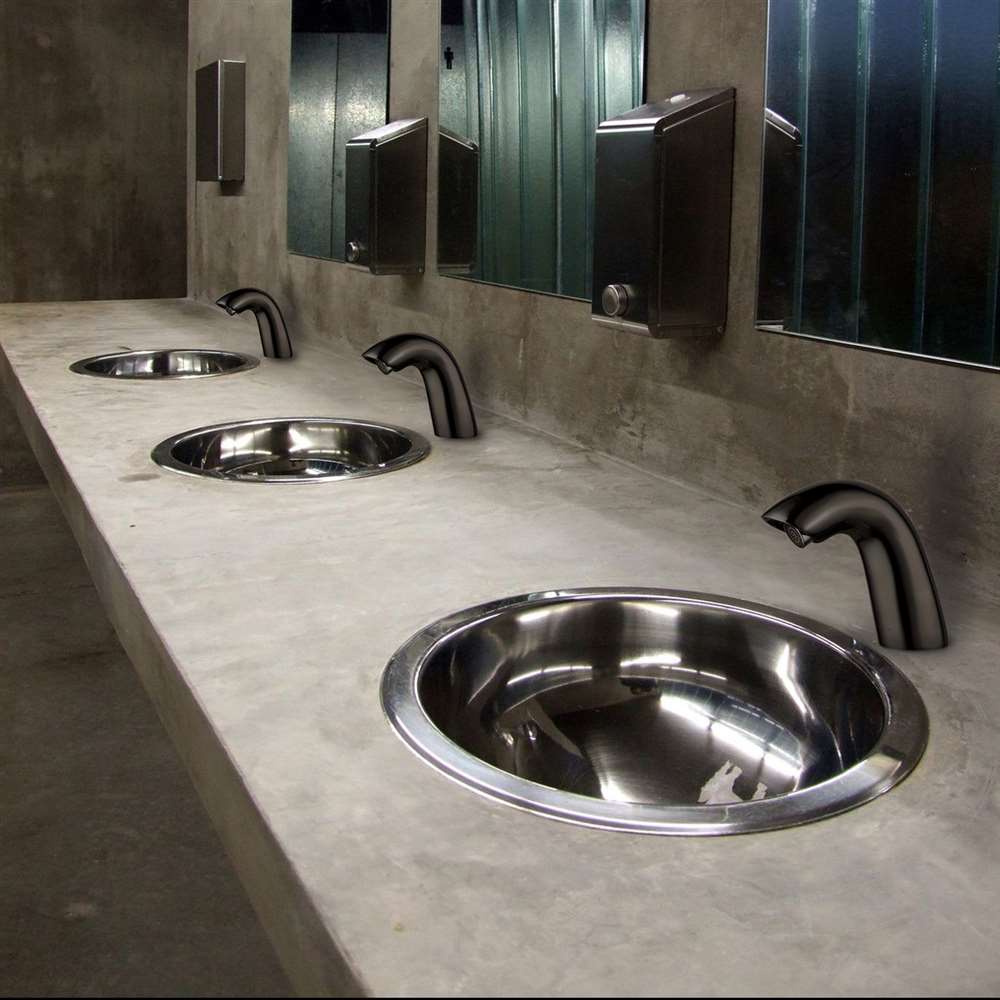

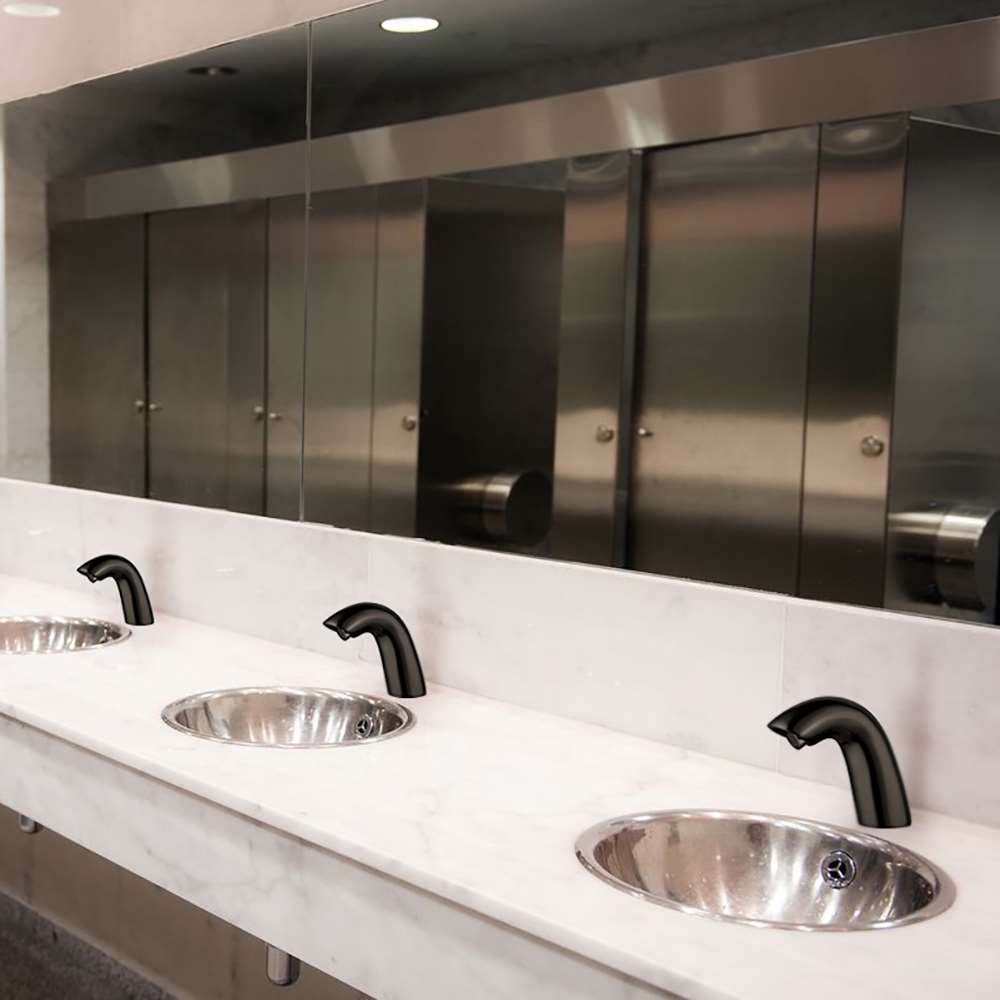

Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.

Meaning of the codes are described in the installation instructions.

Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean

Faucet can be mount to any sink surface.

ADA Compliant

Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.

Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.

Sensor Faucet Specification:

Diameter of outlet pipe: DN15

Water Pressure: 0.05Mpa - 0.7Mpa

Power: DC.6V

Detection Zone: Factory set 25cm(based on standard inductive board)

Ambient Temperature: 1 - 45 °

Degree of protection by enclosure: 1P56

Operational water pressure range: 0.05 - 0.6MPa

Battery: 4 x 'AA' size cells

US standard water supply pipe size: DN15 (G1/2")

Ambient temperature range: 0.1 - 45ºC

Sensing distance: 9.84" (25cm)

Time delay: 0.5 seconds

Operation duration: power will automatically cut off after continuous use for 60 seconds

Color: Matte Black

Sensor Faucet Features

Infrared sensor operated, touch-free operation

Advanced energy saving design for long lasting battery life

Waterproof sensor

Battery low LED light indicator

Sensing distance adjusted automatically

Long life durable body

Advanced circuit design saves electricity and water

Sensor Tap Advantage

Conserves water

Saves energy during water heating process

Hygienic, no-touch activation

Easy installation

Durable, solid all-brass construction

Built-in filter

ADA complaint Ideal for use by disabled people

Vandal resistant

Waterproof Components

FontanaShowers® Product Warranty Information
Installation Instructions for Conto Commercial Automatic Hands-Free Faucet Matte Black

Fontana Conto Commercial Automatic Hands Free Motion Sensor Faucets

The Conto Bathroom sensor faucets an eye catching design which is both functional and stylish; the Sensor Faucet has been developed with ease in mind. The Conto motion faucet is anti-erosion, anti-abrasion and high strength. Minimize waste of water, by using the automatic faucet. Manual faucets can be a breeding ground for germs and other bacterias and being completely touch-free operation means that you can avoid the mess and spread of germs entirely. This touchless faucet not only hygienic but will immediately reduces water waste by eliminating unnecessary and unattended water flow. Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is Oil Rubbed Bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Conto-Commercial-Automatic-Hands-Free-Fauce

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Residential, Commercial use & ADA

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation

Specifications and Dimensions

Spout	Chrome Plated Solid Brass
Power	4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy	250,000 cycles
Solenoid valve	6 Volt magnet latching
Working Water Pressure	1 PSI -100 PSI
Supply Inlet Size	1/2” NPT Male
Water Temperature Control	Built-in Pop-Up Drain
Sensor type and Location	Active Infrared, Neck mount Sensor
Microprocessor	Digital, Pug And Play
Sensing Range	2” to 6”
Response Time	0.3 Second
Shut-Off Delay Time	2 Seconds
Anti vandalism maximum Running Time	60 Seconds
Particle filter size	50
Mesh Aerator	2.2 GPM Standard
